Pasyvus Gigabito „PoE“ tvirtinamas į spintą injektorius/ekranuota panelė 16 prievadų (POE-INJ-16-G-RM)

OEM kodas: ZQPOEGI016
Kodas: POE-INJ-16-G-RM
ID: #1144

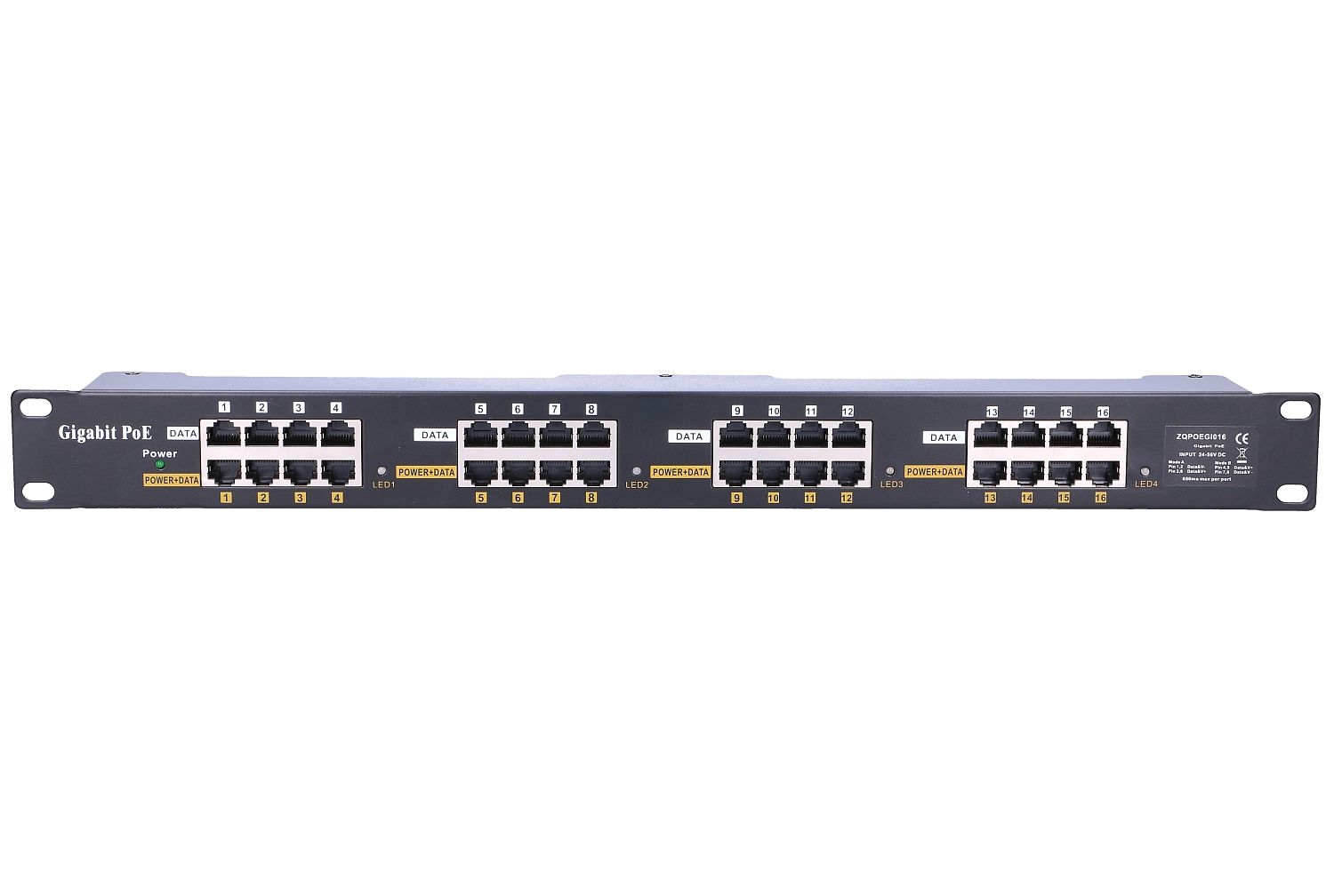

16 uostų Gigabito PoE injektoriaus panelė su metaliniu dėklu, 1U aukšto standarto stovo laikiklis, ekranuotas, viršutiniai Rj45 lizdai duomenims, apatiniai lizdai skirti duomenims + galiai

75.26€ su PVM

Kaina be PVM: 62.20€


Produkto savybės:

The 16 port gigabit PoE panel is using 10/100/1000M Ethernet. The upper Rj45 sockets is for  “LAN/Switch/PC ” 1/2&3/6 or 4/5&7/8 are transmitting data. The under RJ45(power+data) socket is to deliver data and power: Mode A-1/2&3/6  Mode B-4/5&7/8. Each socket provides protection against short overflow (current protection 650mA).
There commended formula for ac/dc power converter is: 5W per RJ45 set (1 set = 2 x RJ45sockets).
For example, 16 x 15W = 240W for 16 port Passive PoE panel.
The configuration size of panel is:1U (height), 19” (width) and 52mm (thickness).

– 16 x  10/100/1000M Gigabit Ethernet ports
– Flexible power (DC 18-57V)
– For 1’U high standard rack mount
– 5 LED status indicators
– Use with any Ethernet switch
– 650ma automatic resettable fuse on each port
– Support IEEE 802.3at or 802.3af devices:
Mode A operation-minus on pins 1/2, plus on 3/6 (802.3af/at)
Mode B operation-minus on pins 7/8, plus on 4/5 (Mikrotik, UBNT)
– Ideal for IP cameras, VOIP phone, WiFi Access Points

Produkto specifikacijos:

Input: 100-240Vac (18-57V Dc In)
Output: 18-57V
Data: 1/2&3/6&4/5&7/8
Power: 3/6+ & 1/2- ,4/5+&7/8-
Data In: Connects PC/HUB/Switch
Weight: 16 Port 1.3Kg
Dimensions: 482.6mm×44.3mm×52mm
Case of material: metal work material
Ethernet Cable: TIA/EIA 568 Cat. 5
Data rate: 10/100/1000Mbps
Connector: RJ-45
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -40°C~+70°C
Operating Humidity: 10%~80%RH
Storage Humidity: 5%~90%RH
Certification: CE FCC
