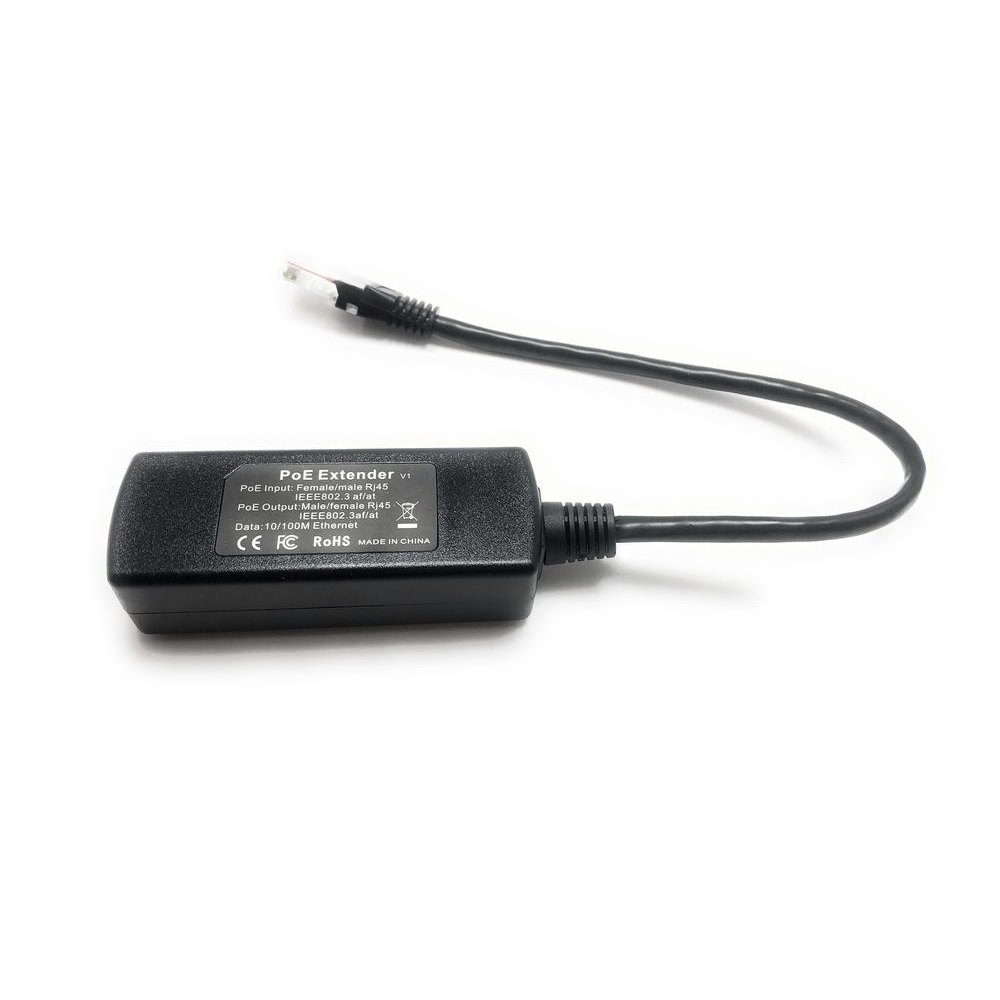

802.3af/at Ethernet PoE Extender 10/100 Mbps (PoE-EXT-Active)
This device extends PoE power and data for 100 meters past the standard. Repeat each 100 meters as needed, max 2 extenders.
This device extends PoE power and data for 100 meters past the standard. It allows power to be carried on 10/100 network cables with either 802.3af , 802.3at, and have that power and data extended another 100 meters. Compatible with PoE switches or passive injectors with any CAT5e, CAT6 or CAT7 Ethernet network cable.
Intended for use with Ubiquiti, Mikrotik, TP-LINK, Cisco or similar PoE switches – this pass through PoE solution maintains the remote device auto negotiation with the switch to activate power, and it uses some of that power to rebuild each data packet for error free retransmission another 100 meters. It is a compact and cost effective power solution. The PoE switch supplies 48 or 56 volts DC at the source location. 13 watts in delivers 12.5 watts out. Repeat each 100 meters as needed, max 2 extenders.
The PoE switch can send either polarity, and only 2 pairs are required.
The device is symmetrical – either side can be used as the input or output.
Power and data source: RJ 45 PoE in – male or female
Data speed: 10/100 Mbps
Power and data output: RJ45 PoE out – male or female
Input Voltage Max : Up to 57 volts
Power supply: powered after a client PoE device is attached, remains on without load
PoE Passthrough: 802.3af or 802.3at
Internal power use: 500 mw
Operating Temperature: 0°C - 50°C
Ethernet switch: IP175G as a 2 port, 802.3u fast low power switch
VLAN Support: Transparent
Size: 95 x 24 x 31 mm plus 24 cm Ethernet cable.
PoE Power input Pins: Any combination of pins – either polarity – mode A or mode B
PoE Power output pins: Any combination of pins – either polarity – mode A or mode B
802.3af / 802.3at: Transparent - no impact on client class
LED status on Female RJ45: 2 LEDs – one for each port to show an Ethernet connection
