ALFA NETWORK 2.4GHz 12dBi Omni antena (AOA-2412)

Kodas: AOA-2412
ID: #2002

Lengvo svorio omni kryptinė antena daug mažesnės kainos nei palyginamų konkuruojančių prekių ženklų produktų

naujiena

32.27€ su PVM

Kaina be PVM: 26.67€

Kiekis:


Produkto savybės:

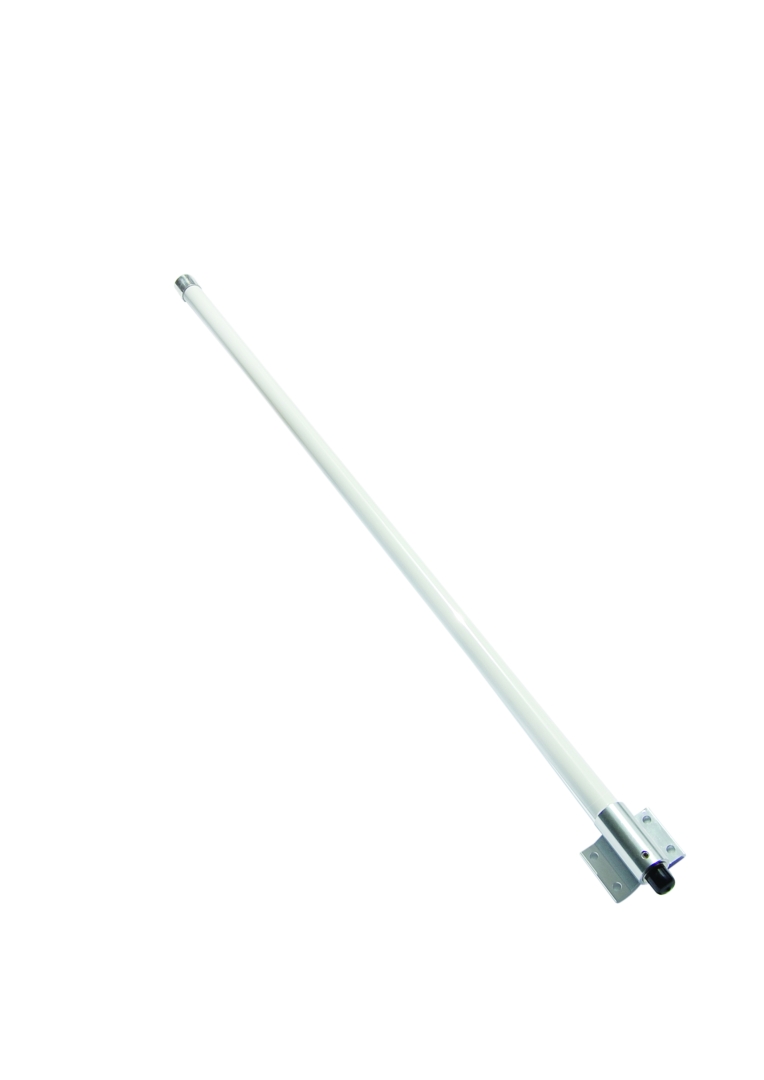

Alfa Network AOA-2412 2.4 GHz 12dBi omni antenna

AOA-2412 antennas are professionally engineered and manufactured with the highest industry quality at the lowest possible price providing extreme value.

AOA-2412 is designed for the 2.4GHz ISM band, supporting 2.4 to 2.483 GHz and provides superb performance in IEEE 802.11b/g WiFi and Bluetooth applications.

AOA-2412 includes mounting bracket and hardware for up to 2” masts. Made with fiberglass and comes with an integrated N Female

Key features Alfa Network AOA-2412 2.4 GHz 12dBi omni antenna

  • 2.4 - 2.5 GHz ISM Band
  • IEEE 802.11b, 802.11g, 802.11n Wireless LAN
  • Directional and multipoint applications
  • Bluetooth
  • Public Wireless Hotspot
  • WiFi, RFID
  • Wireless Video Systems
  • Superior performance
  • Light weight
  • All weather operation
  • DC Short lightning protection
  • Installed for vertical
  • Includes tilt and swivel mast mount

Produkto specifikacijos:

Model AOA-2412
Frequency 2.4GHz ~ 2.5GHz
S.W.R ≦1.5
Gain 12dBi
Polarization Vertical
Impedance 50 Ω
Power Handling 50 Watts
Beam Width H: 360° / V: 8°
Connector N Female
Operation Temp -40 C ~ +80 C
Dimension 1130*70 mm
Mounting 32 ~ 45 mm ( 1.2 ~1.75 inch )
Weight 700g
