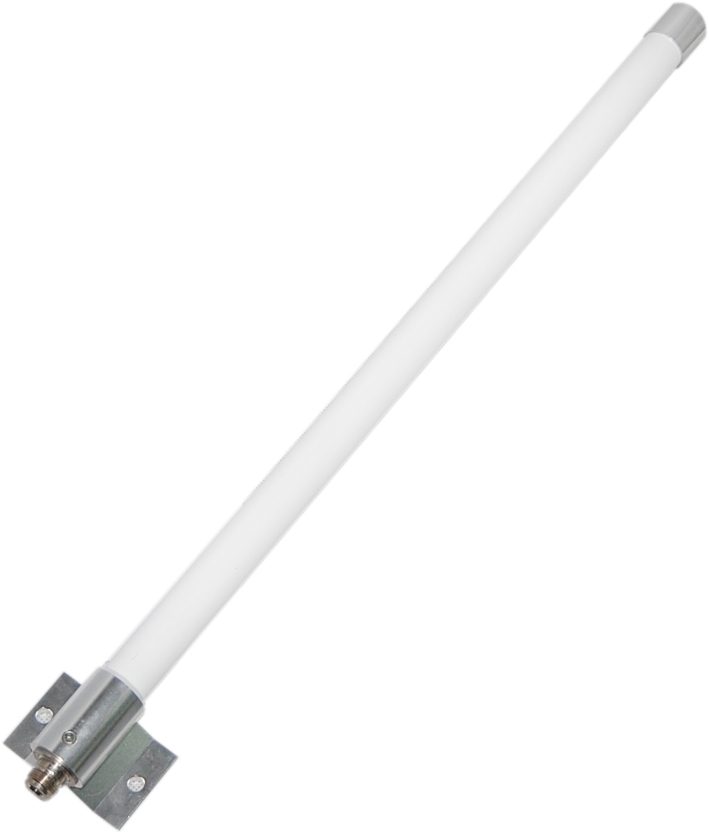

ALFA NETWORK 2.4~2.5 GHz Omni antena 15dBi (AOA-2415)

Kodas: AOA-2415
ID: #1418

Profesionaliai suprojektuotas ir pagamintas su didžiausia pramonės kokybę už mažiausią įmanomą kainą

35.95€ su PVM

Kaina be PVM: 29.71€

Kiekis:


Produkto savybės:

Overview

AOA-2415 antennas are professionally engineered and manufactured with the highest industry quality at the lowest possible price providing extreme value. AOA-2415 is designed for the 2.4GHz ISM band, supporting 2.4 to 2.483 GHz and provides superb performance in IEEE 802.11b/g Wi-Fi and Bluetooth applications. AOA-2415 includes mounting bracket and hardware for up to 2” OD masts. Made with fiberglass.

Application

2.4 - 2.5 GHz ISM Band
IEEE 802.11b, 802.11g, 802.11n Wireless LAN
Directional and multipoint applications
Bluetooth
Public Wireless Hotspot
Wi-Fi, RFID
Wireless Video Systems

Key Features

Superior performance
Light weight
All weather operation
DC Short lightning protection
Installed for vertical
Includes tilt and swivel mast mount
In accordance with customer needs to change the color or features

Produkto specifikacijos:

Model AOA-2415
Frequency 2.4GHz ~ 2.5GHz
S.W.R <=1.3
Gain 15dBi
Polarization Vertical
Impedance 50 Ω
Connector N Female
Operation Temp -40℃ ~ +80℃
Dimension 1485*68 mm
Mounting 32 ~ 45 mm ( 1.2 ~1.75 inch )
Weight 910g
