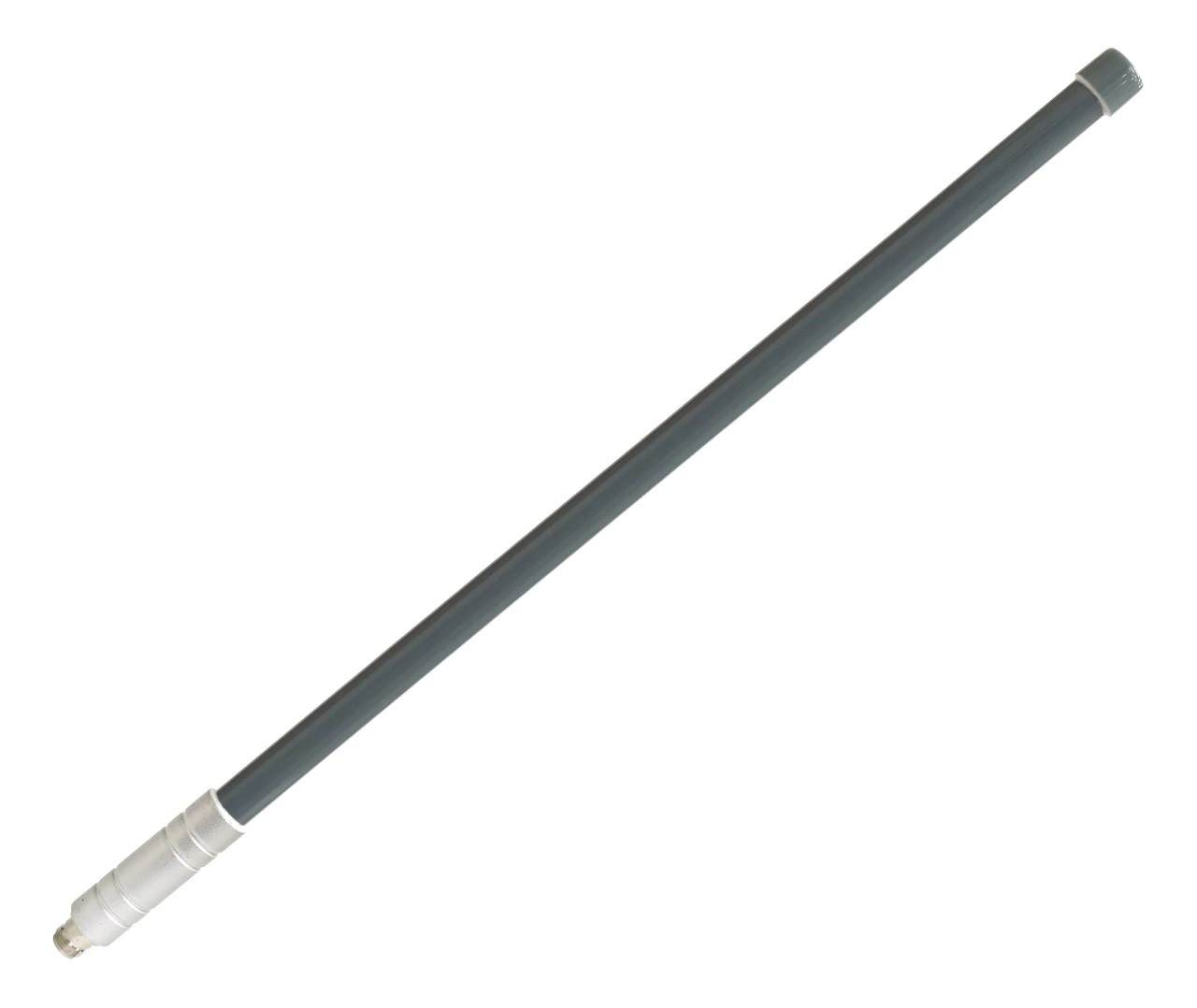

ALFA NETWORK 4G LTE Lauko sąlygų Omni antena, 8dBi, N-Female (AOA-4G-8F)
OEM kodas:
AOA-4G-8F
Kodas:
AOA-4G-8F
ID:
#3498
EAN kodas:
4718050305568
Lauko sąlygų IP67-class visakryptė antena | Skirta jungtis prie mobilaus 4G/LTE tinklo | Antenos stiprinimas: 8dBi | N-Female jungtis
36.23€ su PVMKaina be PVM: 29.94€ |
Produkto specifikacijos:
| Frequency Range | 698-960 MHz 1710-2700MHz |
| Gain | 6/8 dBi |
| VSWR | <1.5 |

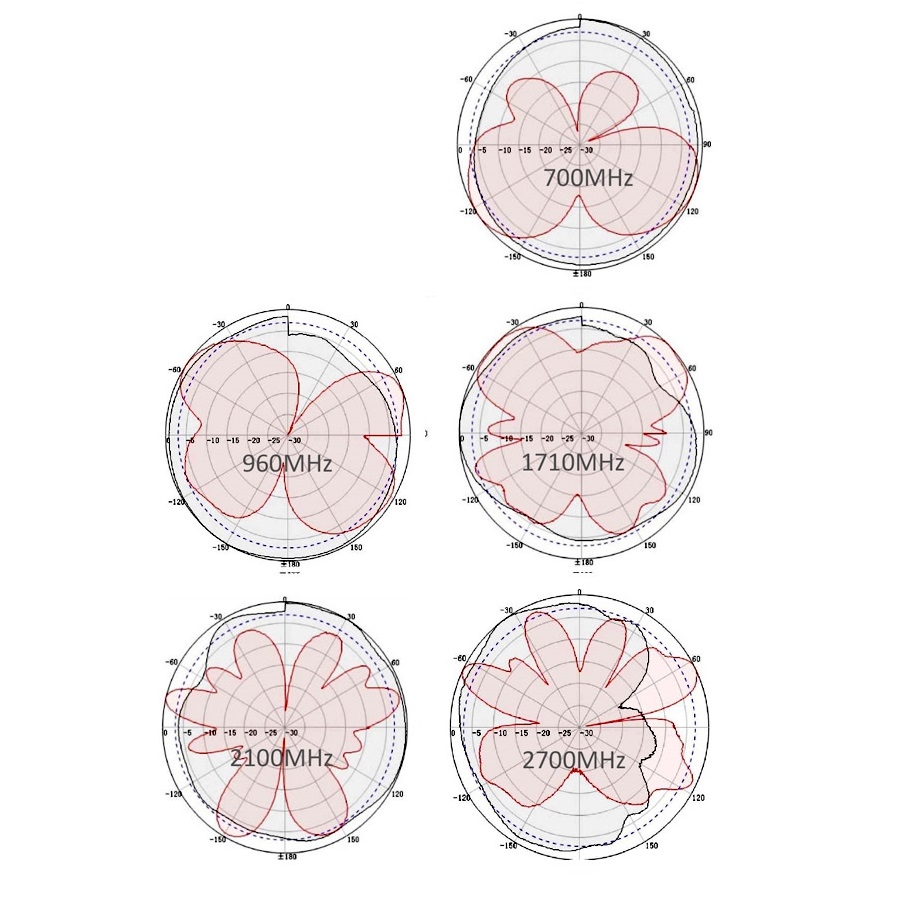

| Radiation | Omni Direction |
| Horizontal Beam width | 360º |
| Vertical Beam width | 16º |
| Polarization | Vertical |
| Maximum Input Power | 100W |
| Impedance | 50 ohm |

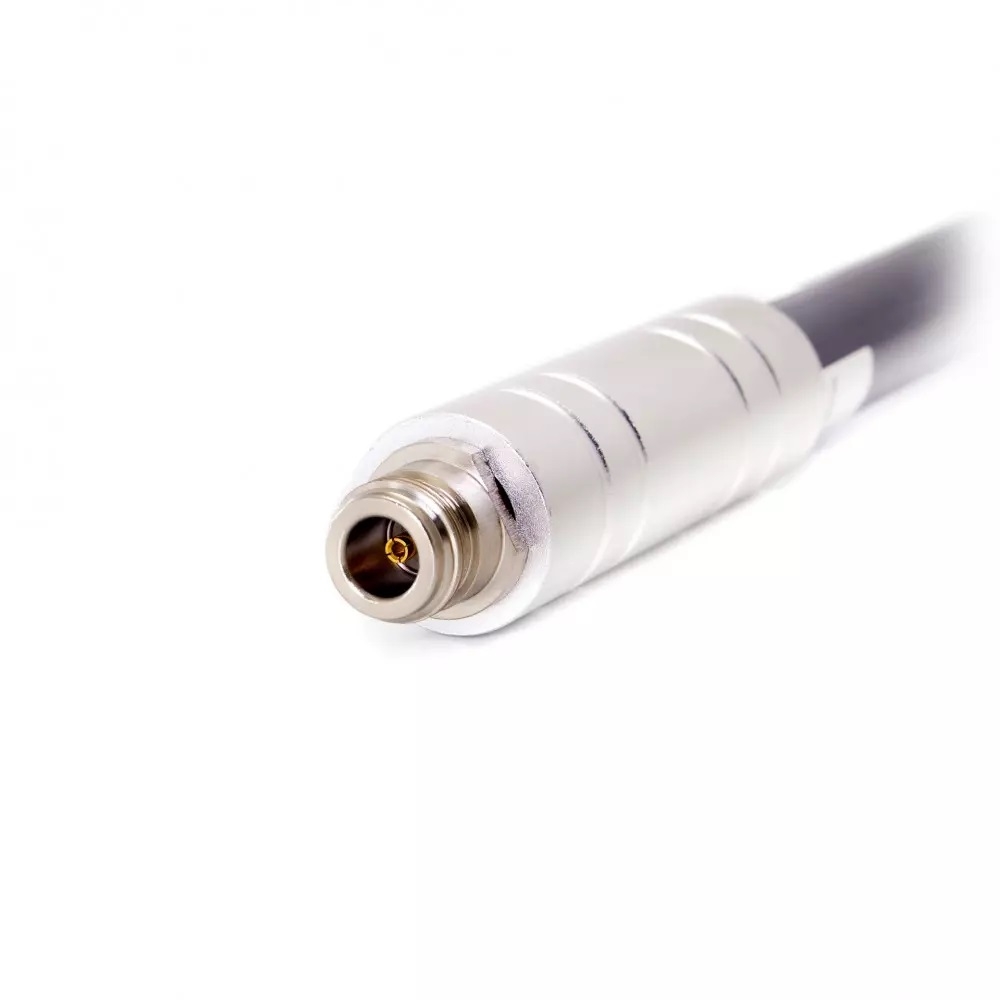

| Connector | N female |
| Antenna Material | Fiberglass |

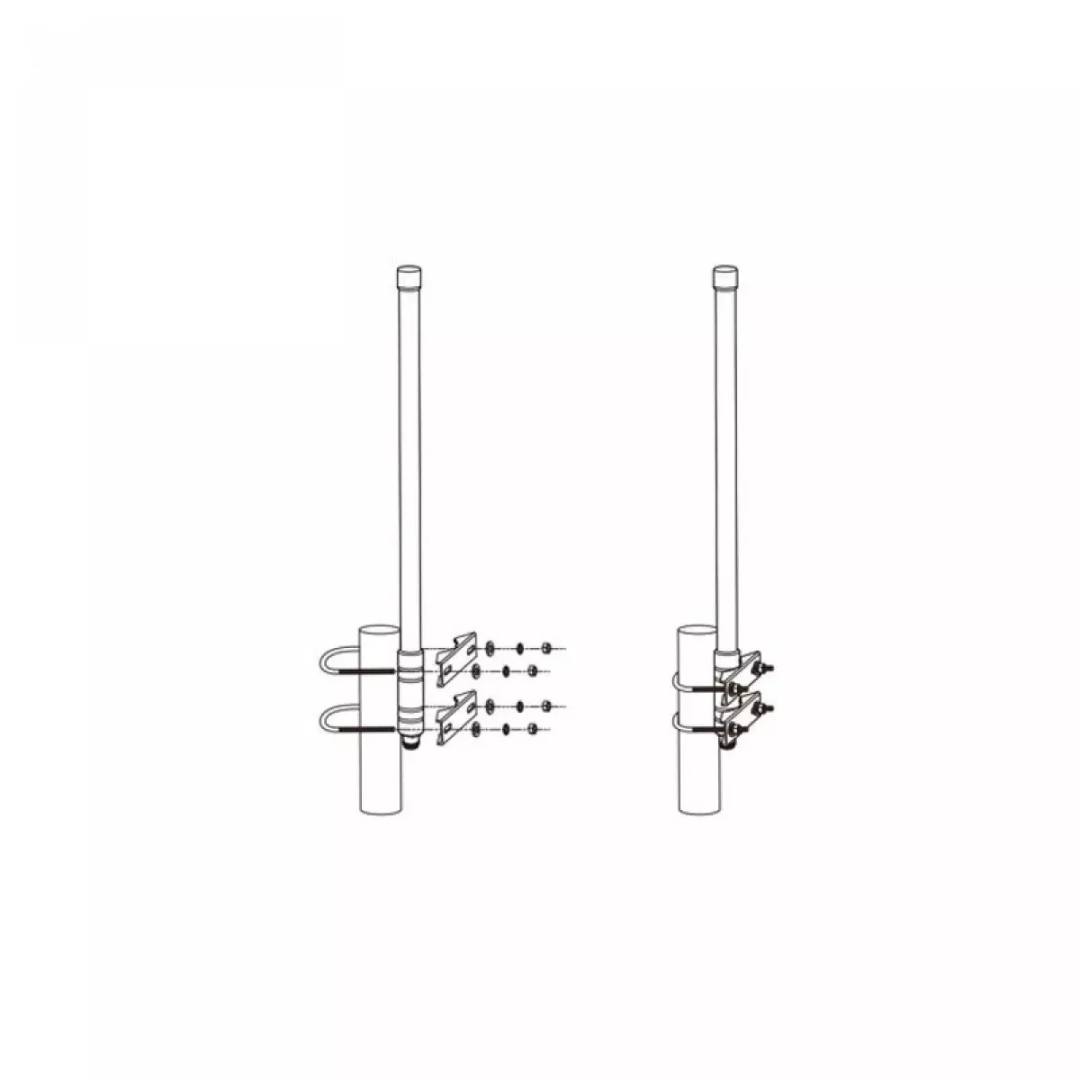

| Mount type | Pole |
| Diameter of Installation Pole | ⌀30-⌀50 mm |
| Dimensions | ⌀20x600 mm |
| Weight | 650g |
| Operating Temperatur | -40 ºC - 70 ºC |
| Rated wind velocity | 60m/s |
