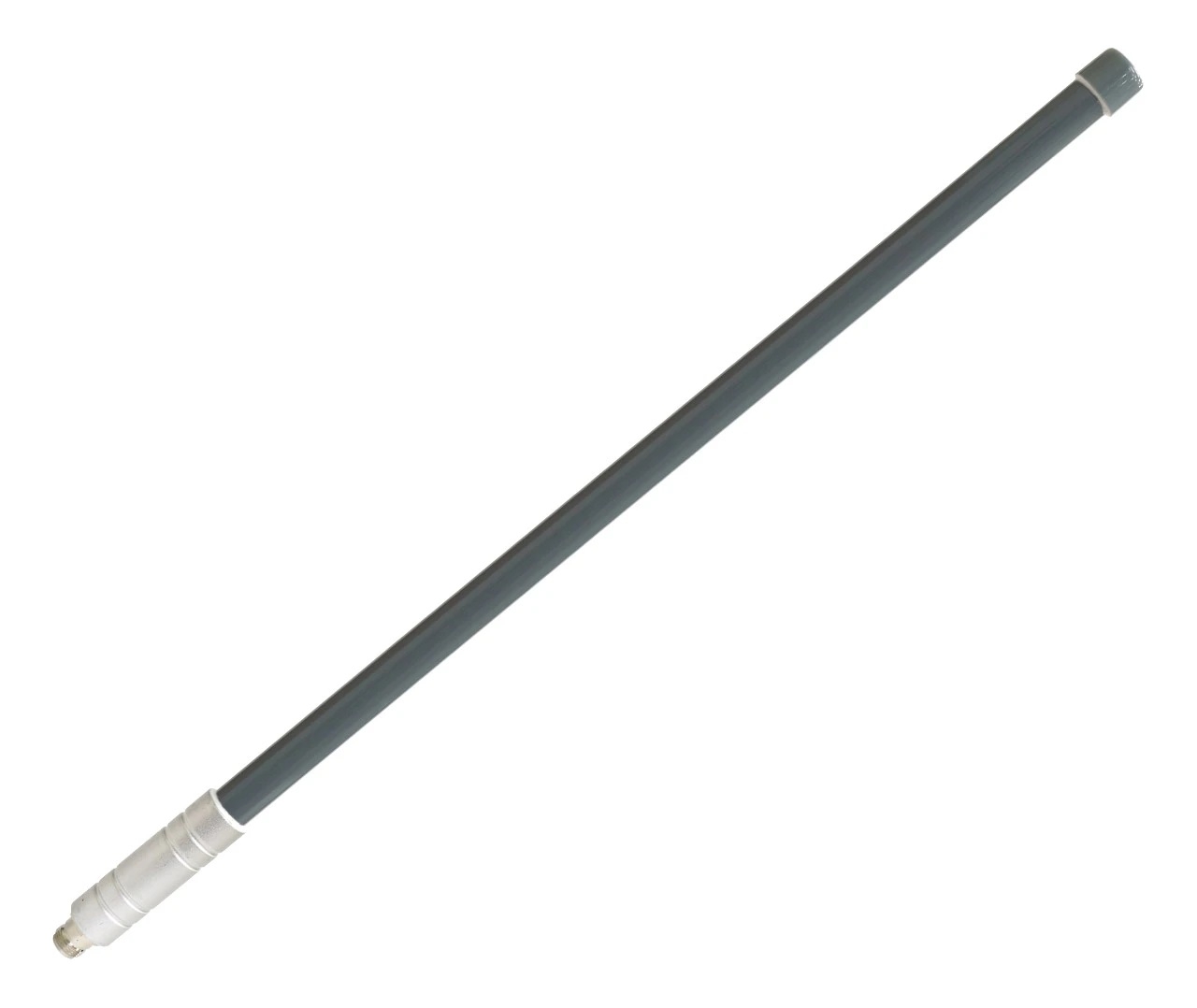

ALFA NETWORK 4G LTE Outdoor Omni Antenna, 8dBi, N-Male (AOA-4G-8M)
OEM kodas:
AOA-4G-8M
Kodas:
AOA-4G-8M
ID:
#3497
Water proof IP67-class antenna for 4G, 8dBi, N Male Connector
36.28€ su PVMKaina be PVM: 29.98€ |
Produkto specifikacijos:
| Frequency Range | 698-960 MHz 1710-2700MHz |
| Gain | 6/8 dBi |
| VSWR | <1.5 |

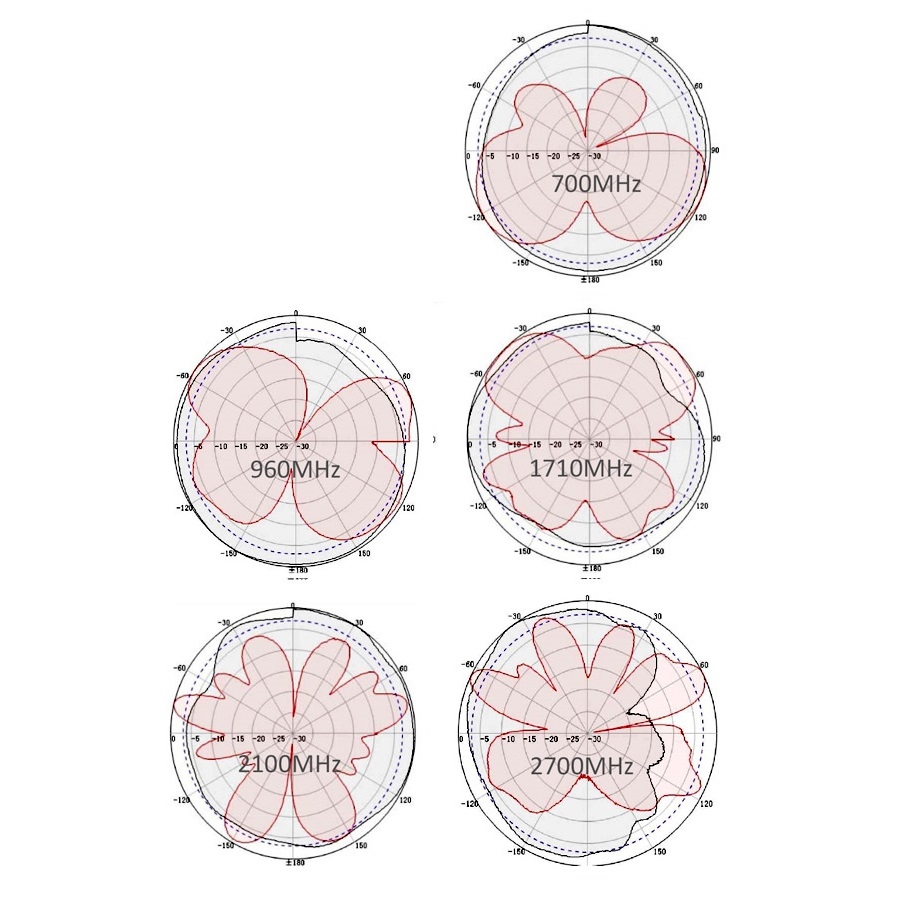

| Radiation | Omni Direction |
| Horizontal Beam width | 360º |
| Vertical Beam width | 16º |
| Polarization | Vertical |
| Maximum Input Power | 100W |
| Impedance | 50 ohm |

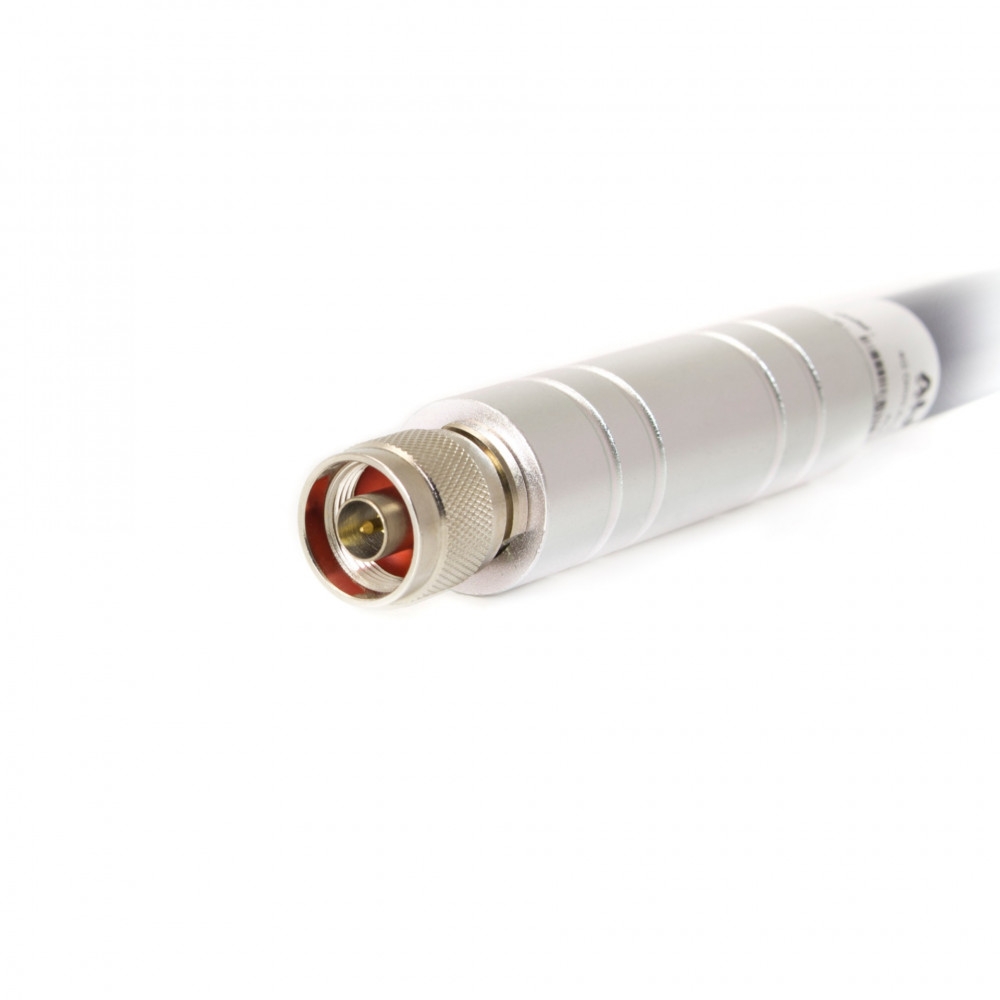

| Connector | N male |
| Antenna Material | Fiberglass |

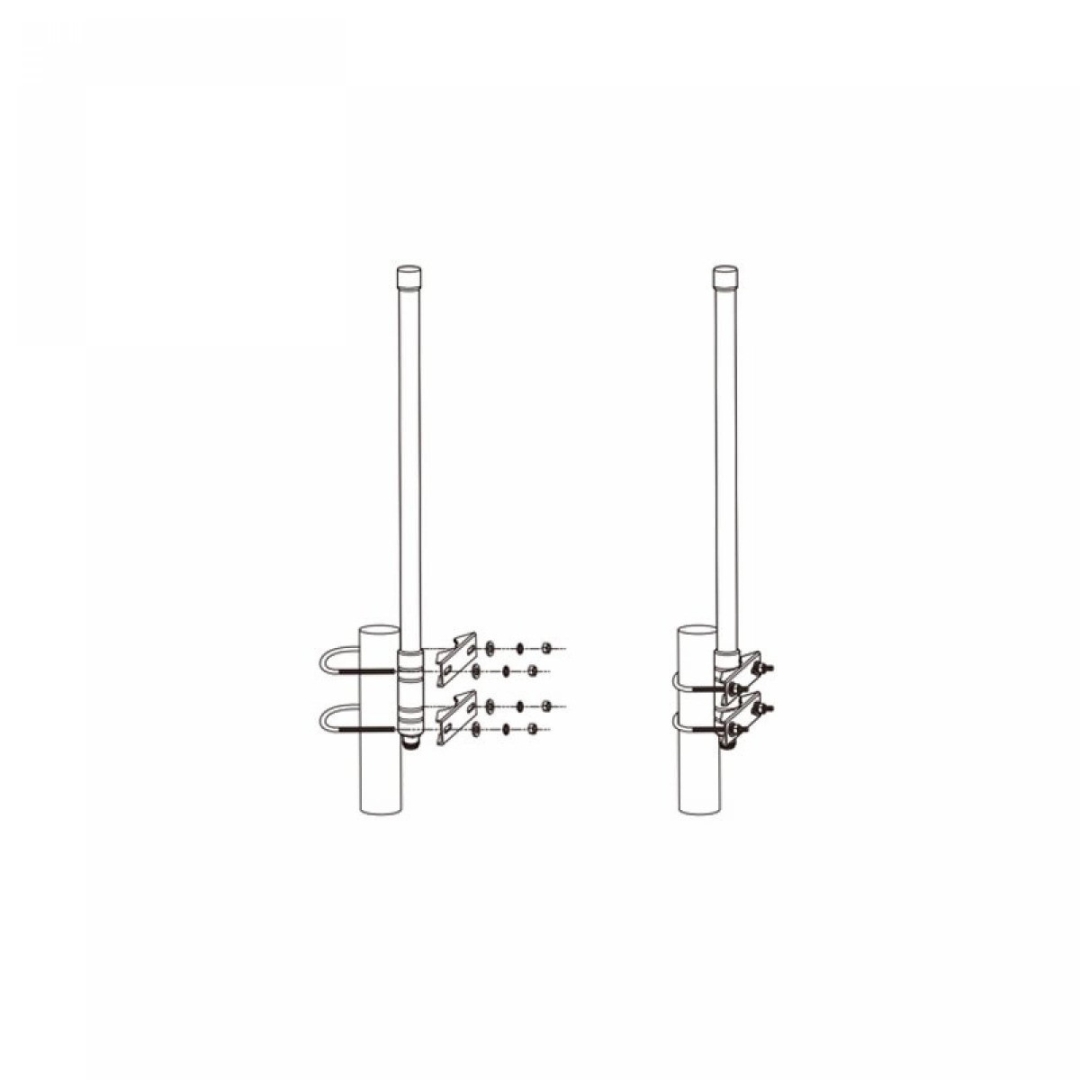

| Mount type | Pole |
| Diameter of Installation Pole | ⌀30-⌀50 mm |
| Dimensions | ⌀20x600 mm |
| Weight | 650 g |
| Operating Temperatur | -40 ºC - 70 ºC |
| Rated wind velocity | 60m/s |
