ALFA NETWORK 802.11n PoE CPE ilgo nuotolio daugefunkcinis įrenginys (N Male) (Tube-2HP)
Išorinis daugiafunkcis ilgo nuotolio, „PoE 802.11n“ standarto įrenginys (N-male)

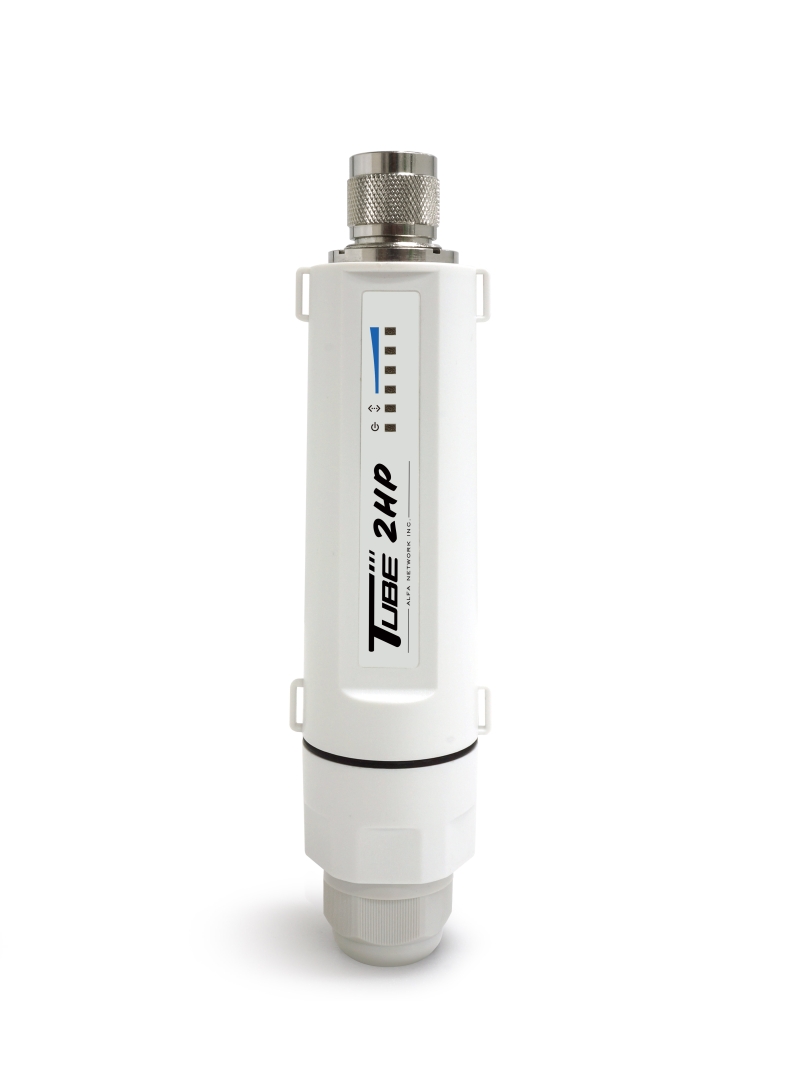

Alfa Tube 2HP is a new outdoor long range multi-function PoE Wi-Fi product from Alfa Network, Inc. It is 802.11n standard and supports both AP and Client Bridge modes. This means it can be used to transmit or receive a long range Wi-Fi signal outdoors. Because it is Ethernet based, it is OS independent. It can be used with a Mac, PC, or any Ethernet enabled device (it must be configured on a computer using a web browser though).
-IP68 Water Proof Certified

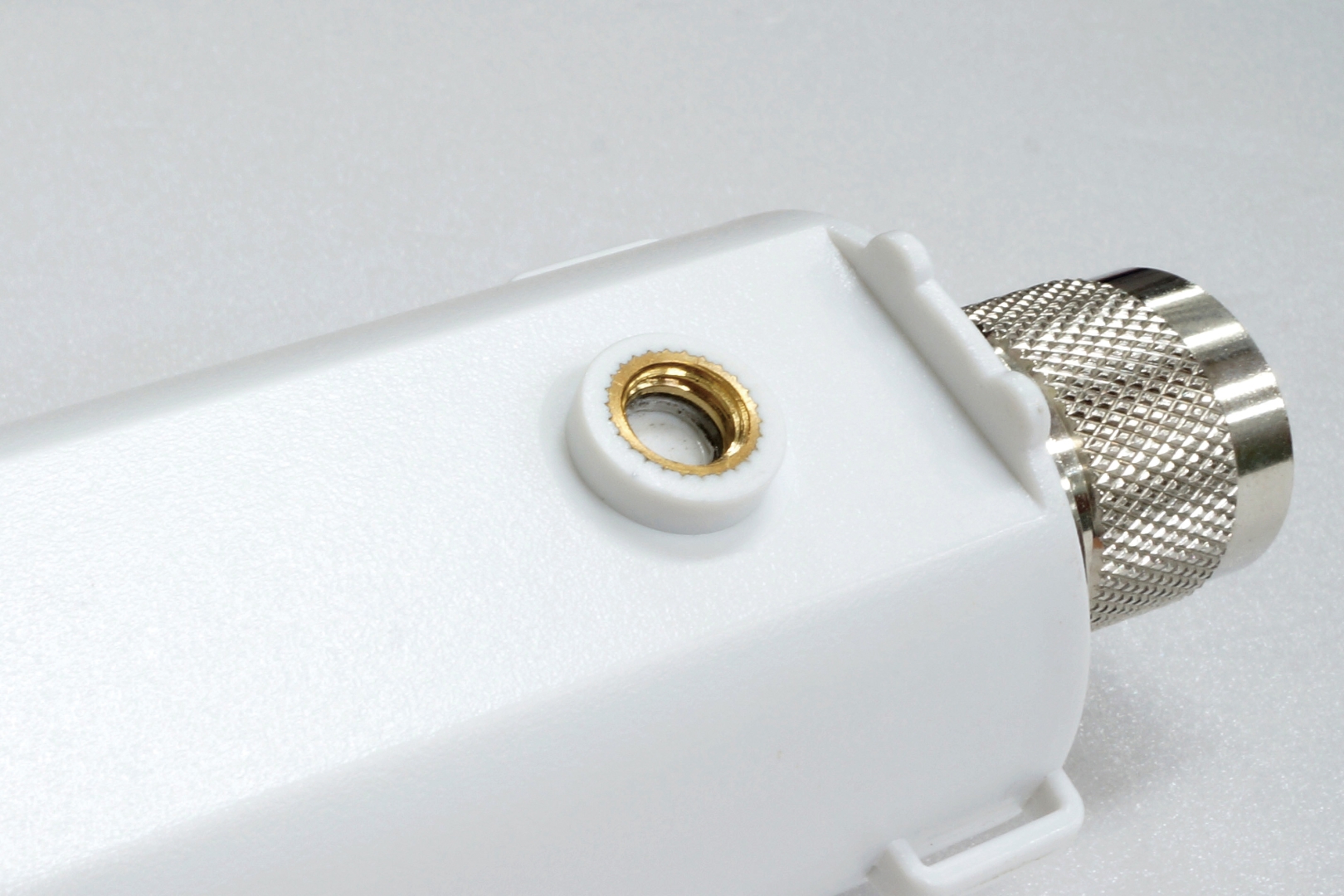

-Easy to mount: 1/4-20 UNC nut
-Includes waterproof sealing tape and wire ties for quick pole mount
-802.3at / af PoE

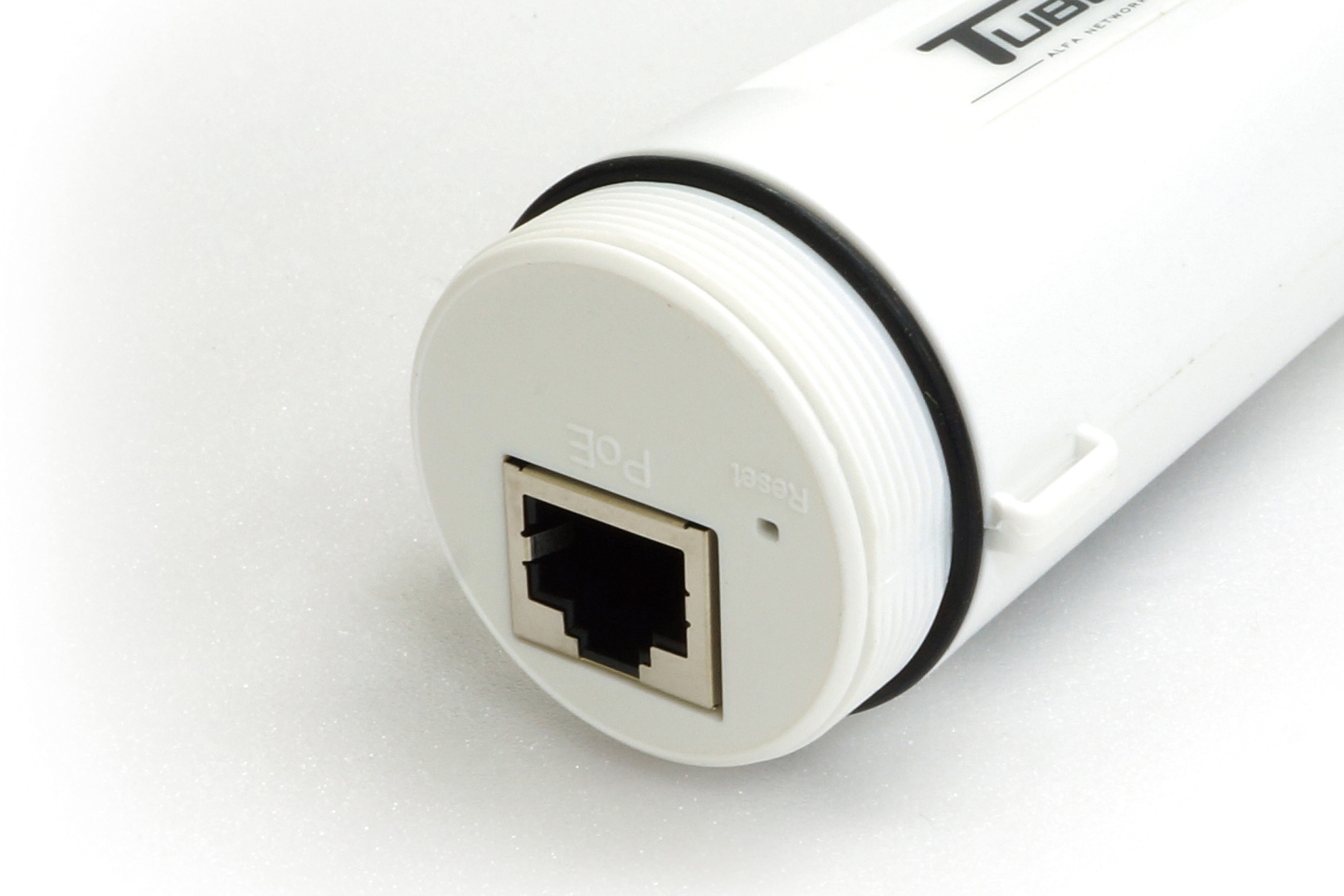

It is a PoE device which means it is accessed and configured via Ethernet cable, and also receives power over the Ethernet cable, so there is no need to run long electrical extensions. We have a selection of different length Ethernet cable available here. This device is suitable for outdoor use in campgrounds and marinas.
Some technical knowledge of access points is required to configure this device.

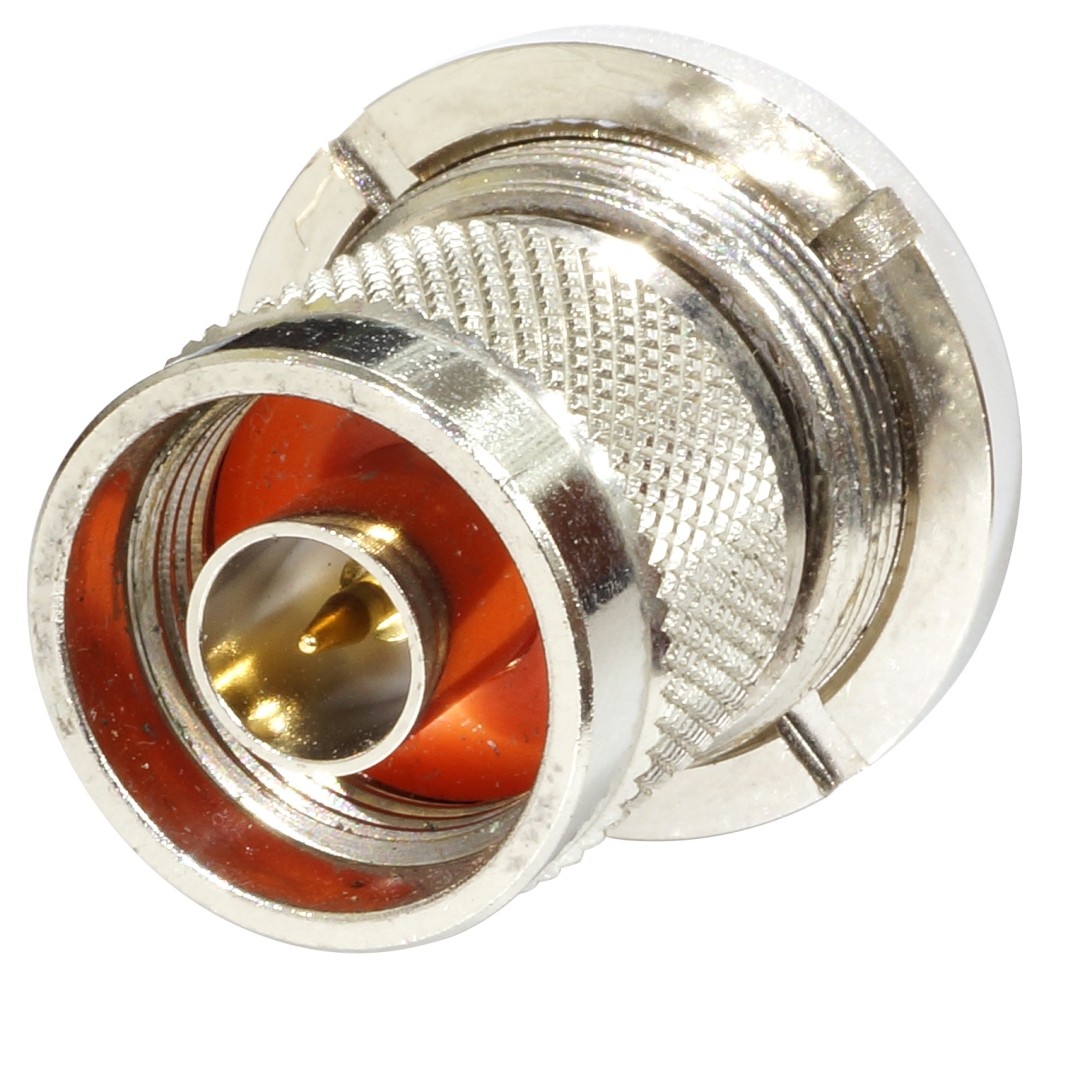

The Tube 2H does not include an integrated antenna. It has an N-male antenna connector that can be used with any N-connector 2.4 GHz antenna. We carry compatible antennas and extension cables.
It ships with mounting ties. No Ethernet cables, no power supply are included.
|Flash/SDRAM||16M / 64M|
|Transmit power||Max 800mW, regular 400mW|
|Receive sensitivity||-90dBm @ 802.11n
-95dBm @ 802.11b/g
|Interface||1x 10-100Base-T RJ-45 Ethernet|
|Mounting||Pole Mount ( Standard)
1/4-20 UNC nut
|Security||Wired Equivalent Privacy (WEP) data encryption
Dynamic WEP key exchange
WEP64/128, WPA, WPA2 80211x
Operating: -20 ~ 65℃
|Humidity||Operating: 5 ~ 90%|
|Frequency||2.4 GHz ISM band|
|Data Rate||802.11bg: Up to 54Mbps
802.11n: Up to 150Mbps
