ALFA NETWORK Wi-Fi 6E PCIe Card with Dipole Antenna (AIT-AX210)

OEM kodas: AIT-AX210
Kodas: AIT-AX210
ID: #3973

2x 5 dBi gain tri-band antennas (2.4 GHz, 5 GHz, 6 GHz) | Standards 802.11a/b/g/n/ac/ax | Data rate up to 2.4 Gbps | Bluetooth 5.2 | OFDMA and MU-MIMO | PCIe Wireless Adapter

41.97€ su PVM

Kaina be PVM: 34.69€

Kiekis:


Produkto savybės:

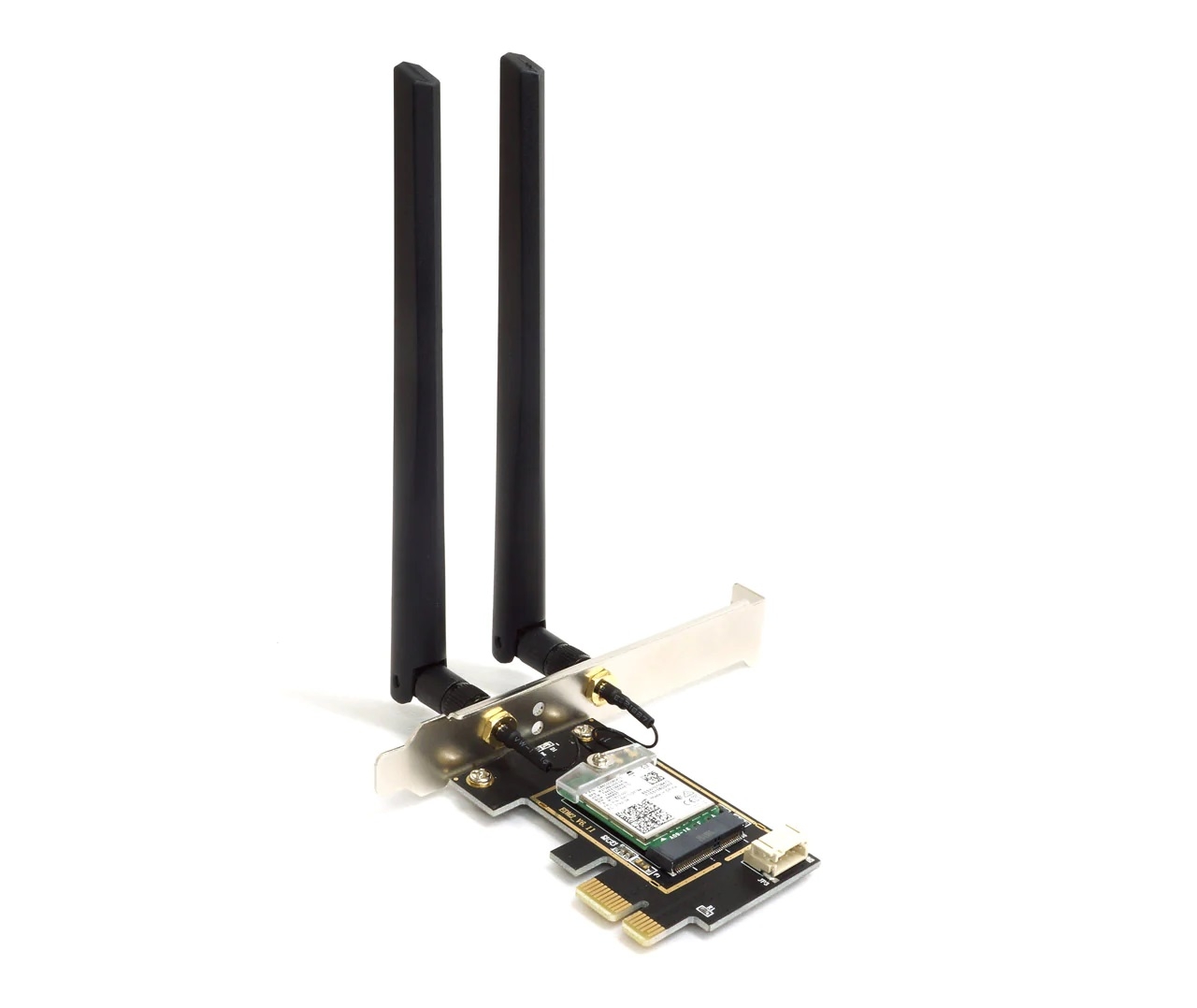

AIT-AX210 is a WiFi 6E PCIe card, based on the Intel AX210 module

AIT-AX210 supports the latest WiFi 6E (IEEE 802.11ax) with special features like OFDMA, 1024QAM and MU-MIMO. Module includes also Bluetooth 5.2, is backward compatible and operates in 2.4, 5 and 6 GHz bands.

The PCI Express ×1 interface allows using this set in any desktop PC equipped with PCIe ×1, ×4, ×8 or ×16 slot.

Produkto specifikacijos:

Parameter Value
Intel product code AX210NGW
Intel WiFi 6E (Gig+)/Typhoon Peak series
IEEE 802.11 standards a/b/g/n/ac/ax
Special features OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT
Frequency 2.4 GHz
5 GHz
6 GHz
Data rate Up to 2.4 Gbps
Bluetooth 5.2
(USB 2.0 cable included)
Antenna type 2× tri-band dipole (5 dBi gain)
Antenna connectors (adapter) 2× RP-SMA (pigtail RF cables included)
Antenna connectors (module) 2× IPEX4 (MHF4)
Interface PCIe x1 (WiFi)
USB 2.0 (Bluetooth)
Operating systems Microsoft Windows 10 and 11
Linux (kernel 5.10 and above)
Form factor (adapter) PCI Express ×1 (compatible with ×4, ×8 and ×16 slot type)
Form factor (module) M.2/NGFF A+E-key 2230
Bundle contents - 1× Intel AX210NGW module
- 1× PCIe ×1 to M.2/NGFF A+E-key 2230 adapter board
- 2× dipole antenna with IPEX4 (MHF4) to RP-SMA female pigtail
- 1× plastic IPEX4 (MHF4) connectors cover
- 1× USB 2.0 cable for Bluetooth
- Assembly accessories (screws, etc.)
