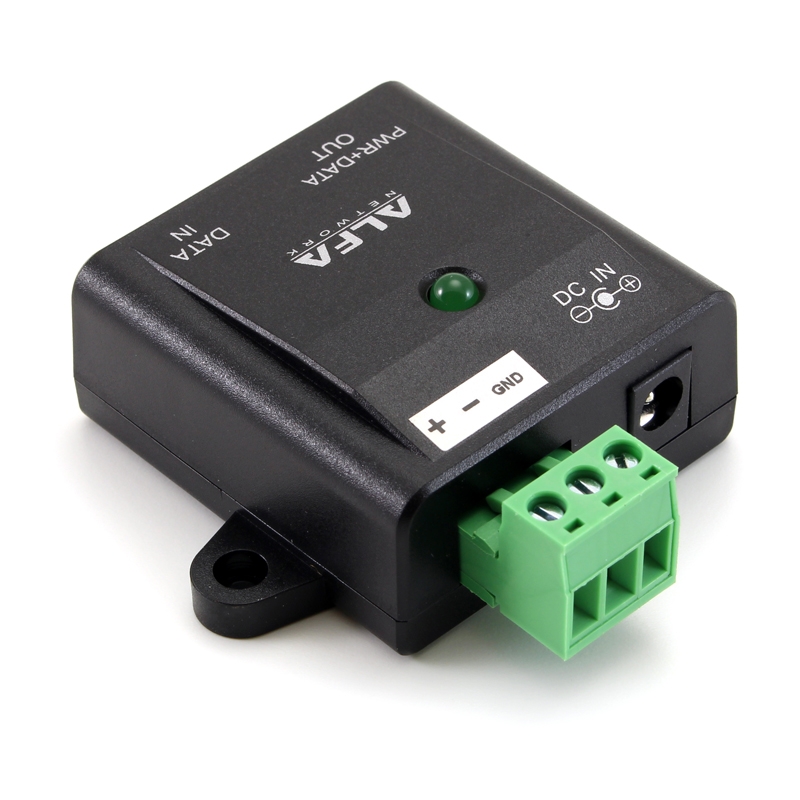

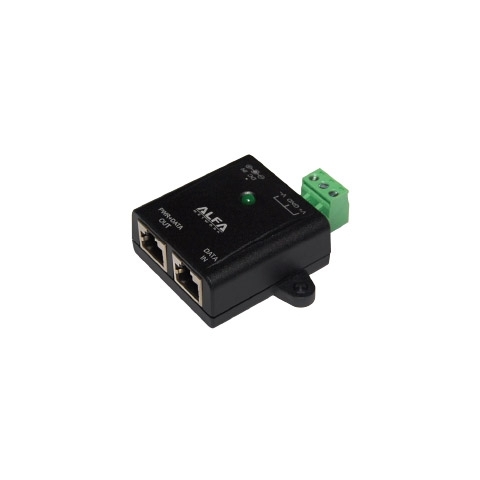

ALFA Redundant Industrial Gigabit PoE Injector (APOE03G)
The APOE03G is the Single-Port Gigabit ( 10/100/1000 Base-T) redundant PoE Midspan/Injector that provides DC power for PoE equipped Network Appliance device. It is compatible with devices that support the IEEE 802.3af/at standard PoE power feed using Mode B (Pins 4/5 and 7/8).

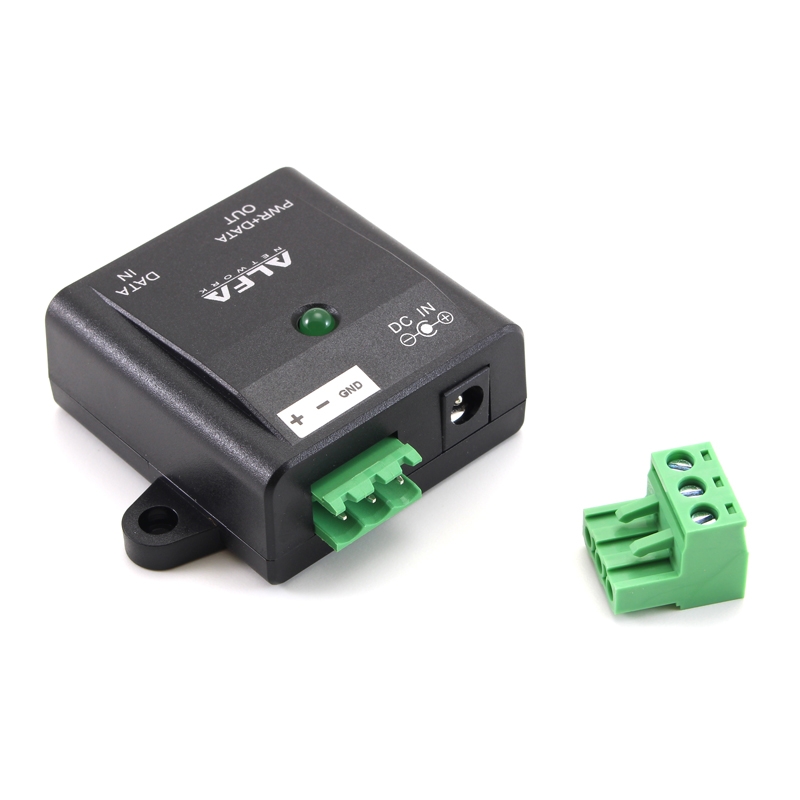

The APOE03G features terminal block for Power redundancy, the power redundancy ensures that vital network capabilities are always available when needed, and also makes life easier for any IT Administrator who just doesn't want to have his sleep or his weekend interrupted by an untimely service call caused by a finicky power supply.

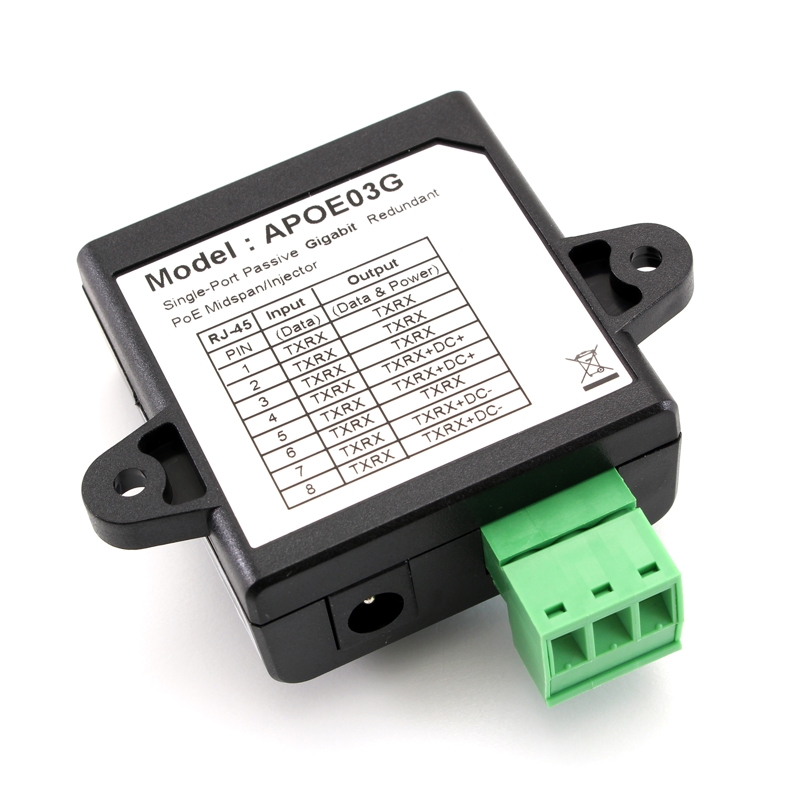

Function: Transform DC through RJ-45 cable PIN# 4,5,7,8, into remote devices such as Wireless AP, IP Phone, IP surveillance Camera, etc. With the terminal block connector can be connected to the UPS allowing redundancy in the power source.
|Input Voltage||5Vdc to 57Vdc, Nominal = 48Vdc|
|Operation Temperature||-0 ~ 40 C*|
|Storage Temperature||-20 ~ 60 C*|
|Operation Humidity||10% ~ 80% Non-Condensing|
|DC Power Plug Diameter||2.1Ø / 5.5Ø , Length: 12 ± 0.5mm|
|DC Power Plug Polarity||Inside (+), Outside (-)|
