ALFA NETWORK belaidžio ryšio praplėtimo paketas su automobiliniu krovikliu 4G CampPro 2+ EU (4GCampPro2plusEU)

Kodas: 4GCampPro2plusEU
ID: #1996

Europietiška versija! „4G CampPro 2“ Naudojantis 4G / LTE paslaugą, teikia nenutrūkstamą ryšį, aktyviai judant kemperiu, laivu arba jachta

naujiena

178.46€ * su PVM

Kaina be PVM: 147.49€

Kiekis:
* geresnės kainos tik prisiregistravusiems klientams


Produkto savybės:

(EU version) Supports most of European 4G LTE services providers.

  • Simple & Comprehensive Setup. QR-Setup via smartphone or setup wizard via web configuration demands no expertise during setting up
  • Scans and connects to WiFi hotspot station and rebroadcasts around your yacht and RV. Instantly share the extended Internet access to your mobile devices, smart TVs, and gaming consoles
  • Swappable SIM card to select better carrier signal add to new or existing data plans from other carriers. More stable and powerful than hotspot sharing on your smartphone Global 4G LTE coverage provides consistent, in-motion connection

ALFA 4G CampPro 2+ Kit - R36AH, Tube-U4Gv2, AOA-4G-5AM plus accessories

The 4G CampPro 2+ kit includes an R36AH USB Wi-Fi and 4G modem extender router, a Tube-U4G outdoor 4G/LTE USB modem, an AOA-4G-5AM outdoor 4G omni antenna and accessories.

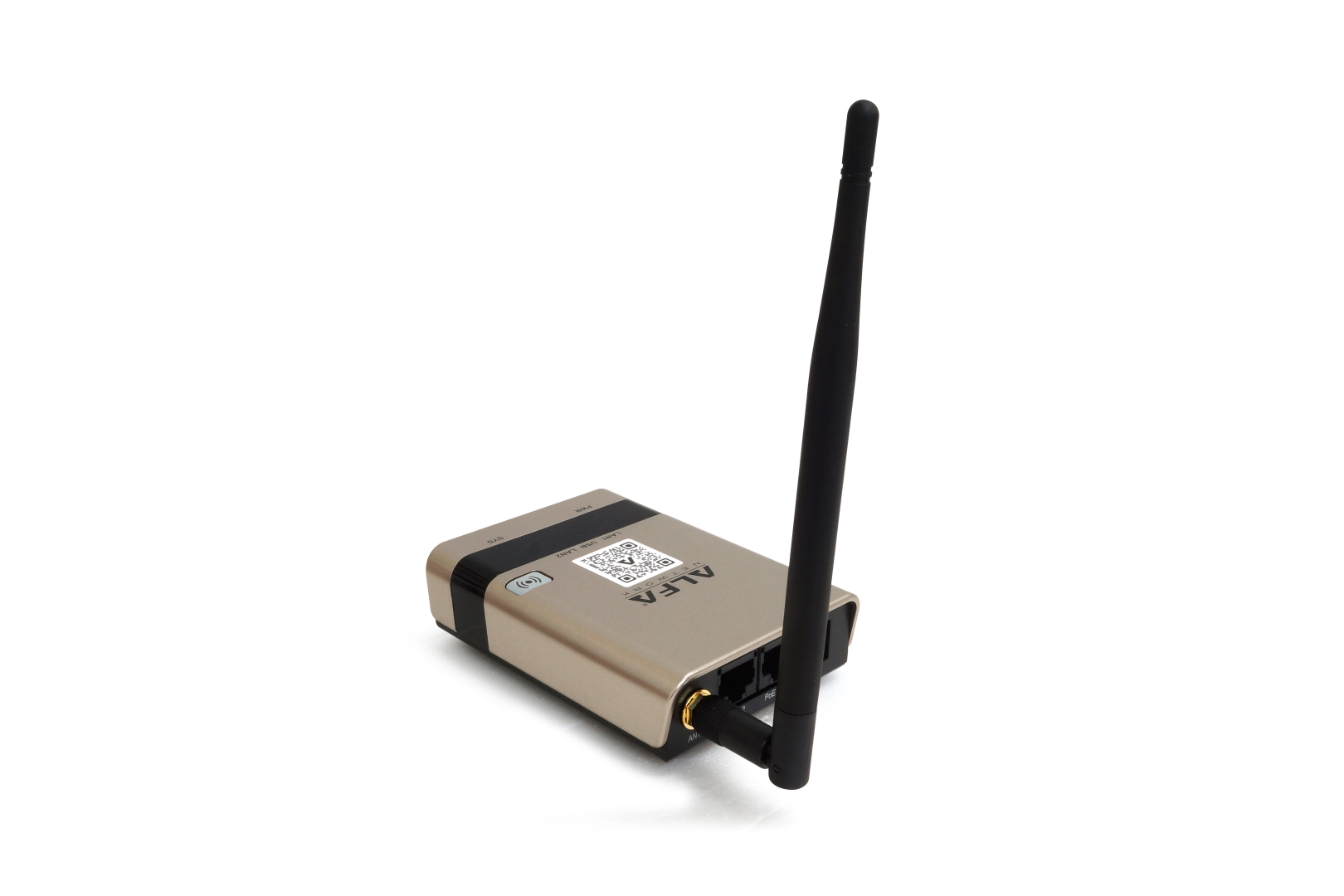

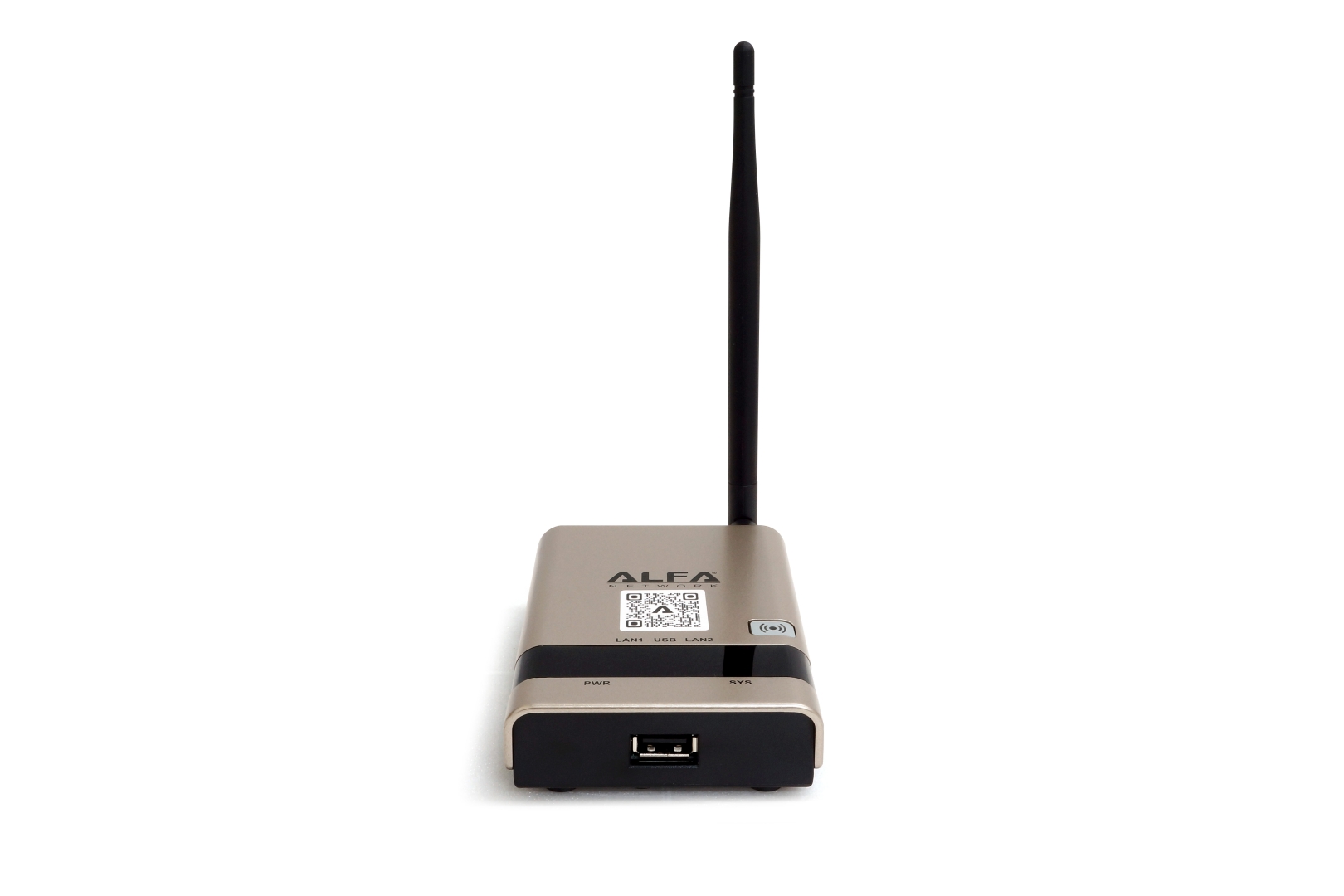

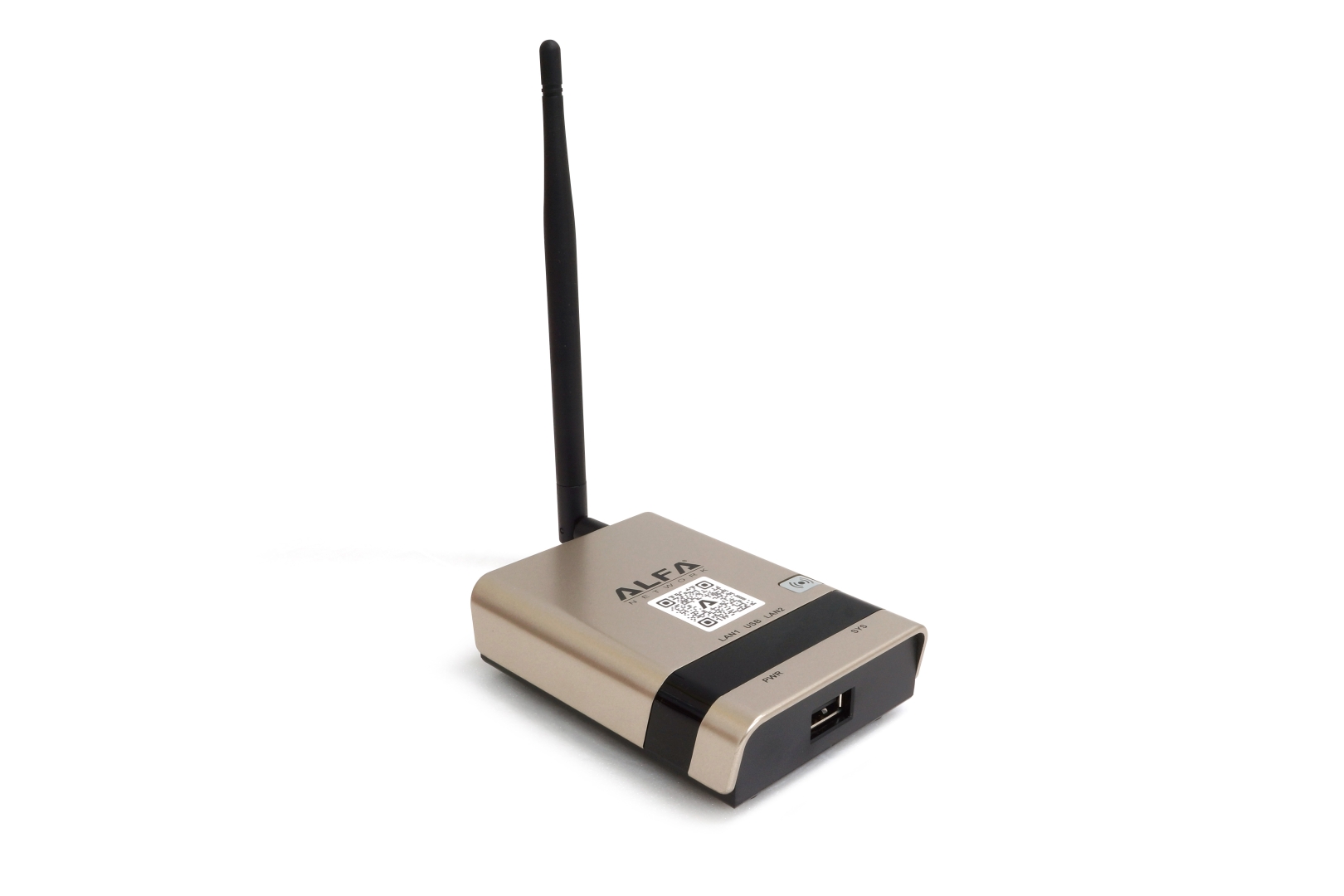

The ALFA R36AH is a USB Wi-Fi and 4G modem extender router that supports OpenWRT and QRcode setup. It offers fast data rates up to 300 Mbps (802.11n) and is compatible with older 802.11b/g devices.

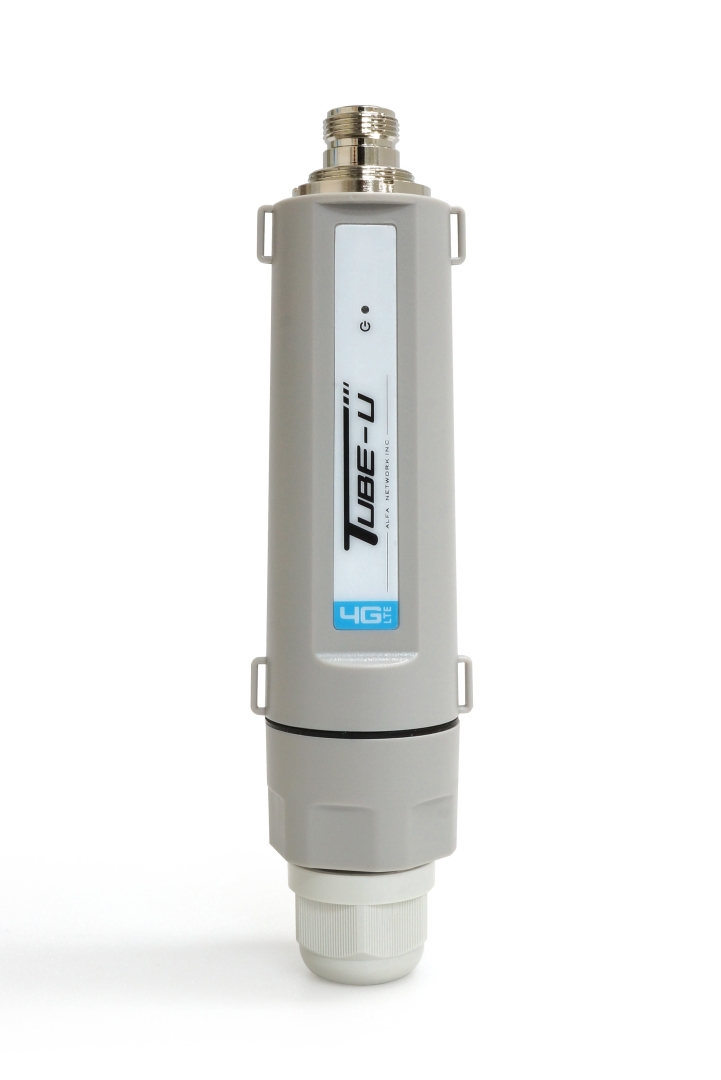

The ALFA Tube-U4Gv2 is a waterproof outdoor 4G/LTE USB modem.

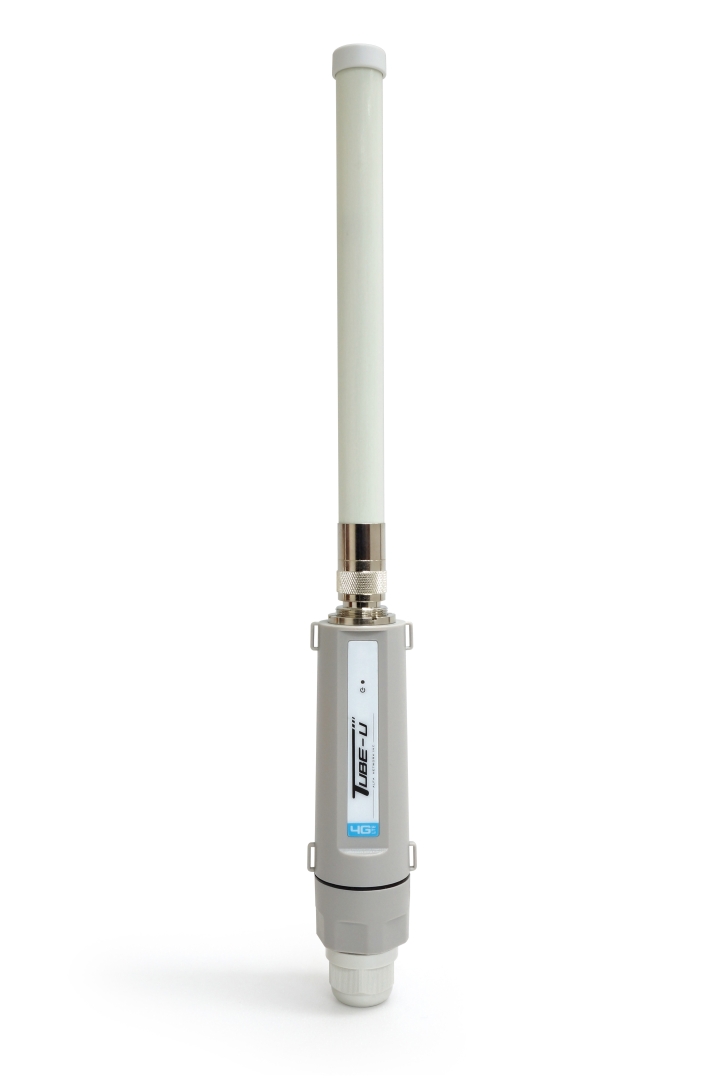

The ALFA AOA-4G-5AM is an outdoor omni directional 4G antenna. It works with different frequencies and is equipped with an N connector. It is made of robust fiberglass.

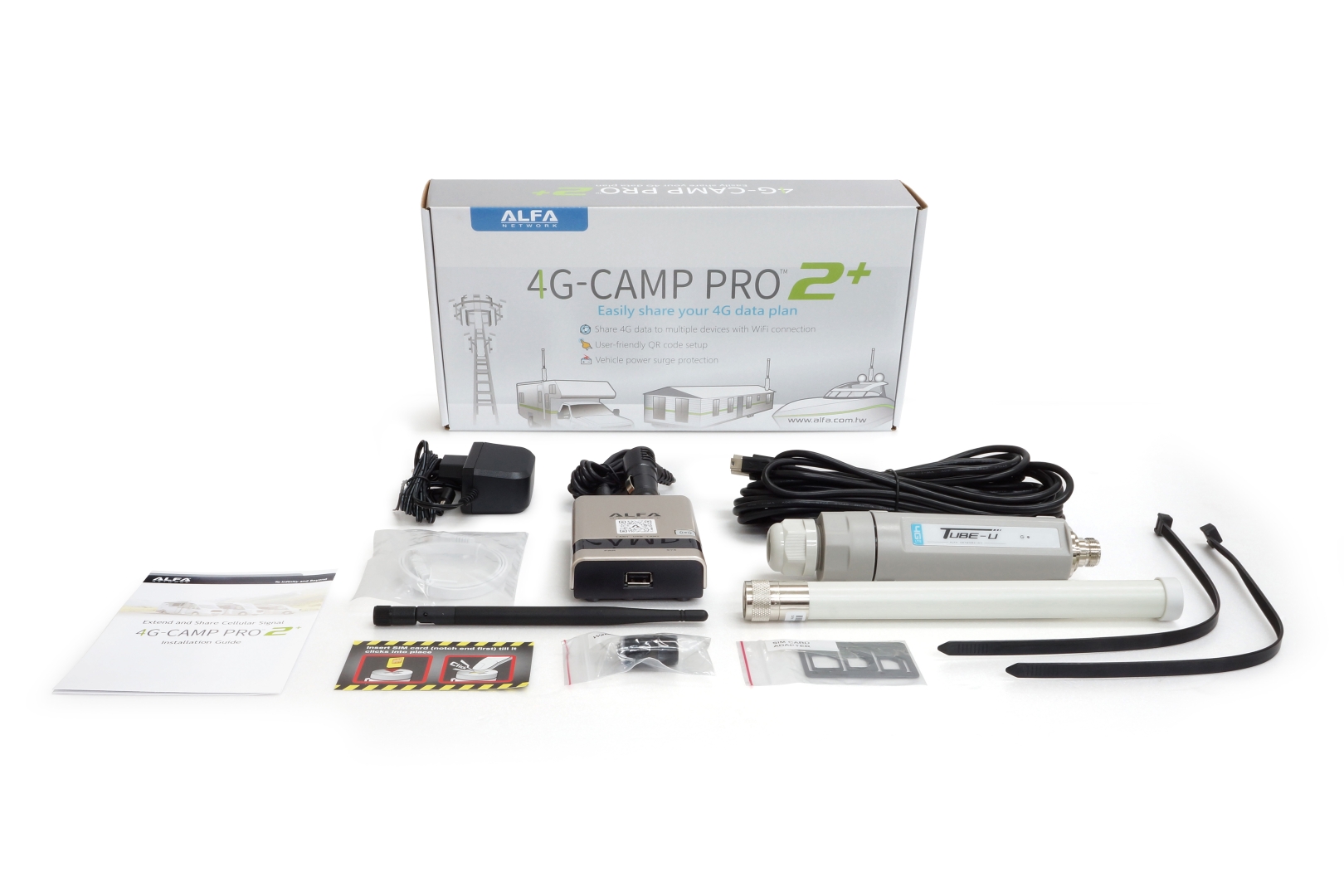

Included inside the box:

  • R36AH USB WLAN/4G modem extender router
  • Tube-U4G outdoor 4G/LTE USB modem
  • AOA-4G-5AM outdoor 4G omni antenna
  • USB cable

Produkto specifikacijos:

R36AH Specifications

Wi-Fi standard IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.142 - 2.472 GHz
Channel width 20/40 MHz
Data rate 802.11b: up to 11 Mbps; 802.11g: up to 54 Mbps; 802.11n: up to 300 Mbps
Antenna 1x internal, 1x external
LED indicators power, LAN, WAN, WiFi, USB
Power requirement 12 V DC
Wi-Fi security key 64/128-bit WEP, WPA-PSK, WPA-EAP (PEAP/TTLS), WPA2-PSK, WPA2-EAP, WPA mixed, 802.1x authentication
Operating temperature -20°C ~ +40°C
Storage humidity 10 ~ 90% (non-condensing)
Dimensions (mm) 93 x 70 x 26
Weight 74 g

Tube-U4Gv2 Specifications

Data LTE FDD: max. 150 Mbps DL/max. 50 Mbps UL; LTE TDD: max. 130 Mbps DL/max. 35 Mbps UL; DC-HSDPA: max. 42 Mbps DL; HSUPA: max. 5.76 Mbps UL; WCDMA: max. 384 Kbps DL/max. 384 Mbps UL; EDGE: max. 296 Kbps DL/max. 236.8 Kbps UL; GPRS: max. 107 Kbps DL/max. 85.6 Kbps UL
Antenna connection N-female
Interface Mini USB 2.0; standard SIM card with 6 pins
LED indicators Power/connection
Required power 5 V +/-5%

Outdoor Antenna Specifications

Model AOA-4G-5AM
Frequency 791-960 MHz; 1710-2170 MHz; 2300-2700 MHz
Impedance 50 ohms
V.S.W.R 3.0: 1
Radiation Omni
Connection N-male
Material Fiberglass

Indoor Antenna Specifications

Model ARS-N05
Frequency 2.4 - 2.5 GHz
Impedance 50 ohms
S.W.R ≤ 2.0
Profit 5 dBi
Radiation Omni
Connection RP-SMA connector
Material Rubber
Length 171.5 mm
