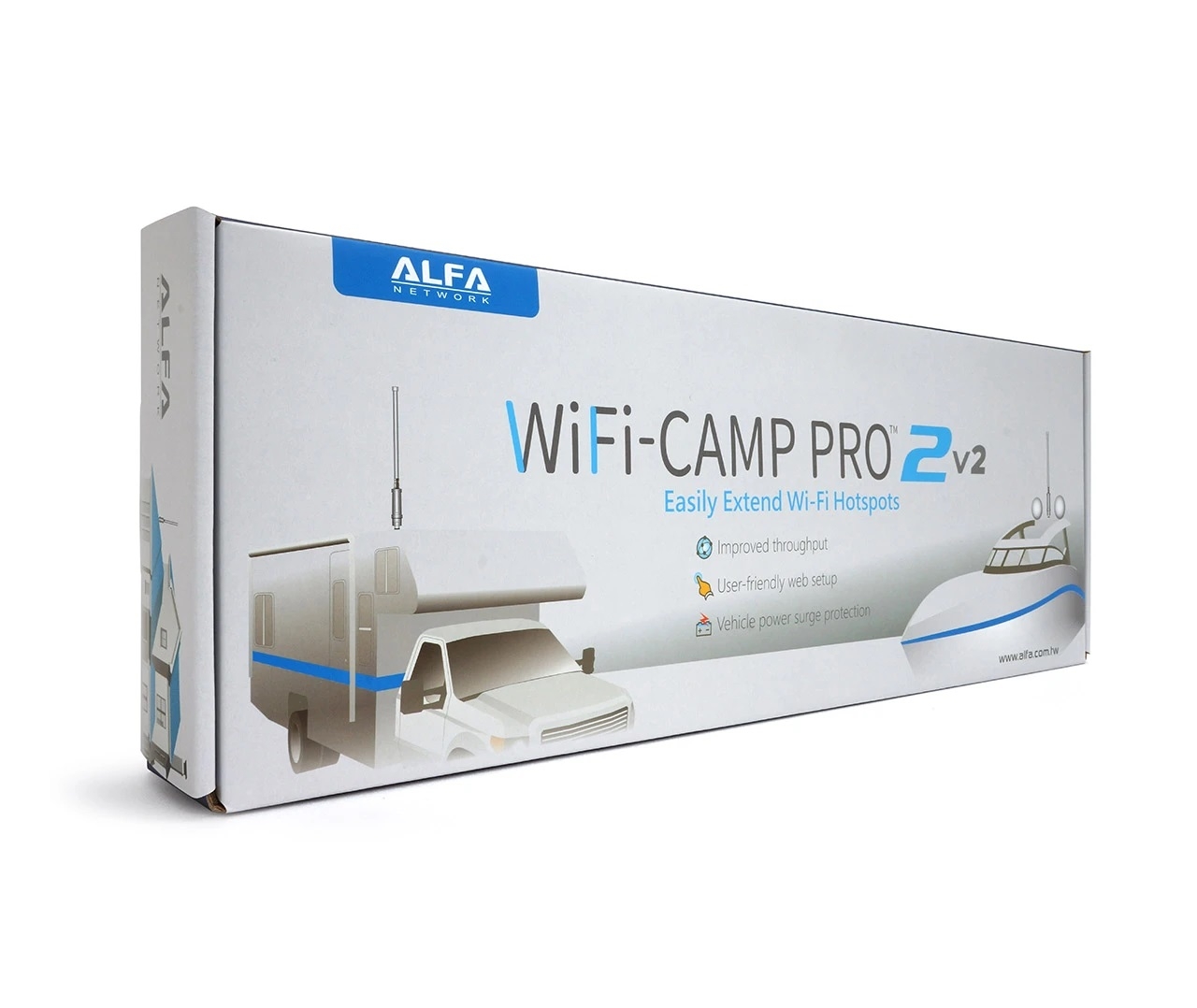

ALFA NETWORK belaidžio ryšio praplėtimo paketas su automobiliniu krovikliu Wifi CampPro 2 v2 (WiFiCamp-Pro2V2)

Kodas: WiFiCamp-Pro2V2
ID: #1990

Prieiga prie interneto kemperiui ir jachtai iš nuotolinių „WiFi“ prieigos taškų

naujiena

138.80€ * su PVM

Kaina be PVM: 114.71€

Kiekis:
* geresnės kainos tik prisiregistravusiems klientams


Produkto savybės:

Wi-Fi 2v2  is a professionally tuned and highly integrated system that and extend Internet access for RV & yacht from remote WiFi hotspots.

  • Simple & Comprehensive Setup
    QR-Setup via smartphone or wizard via web demands no expertise during setting up

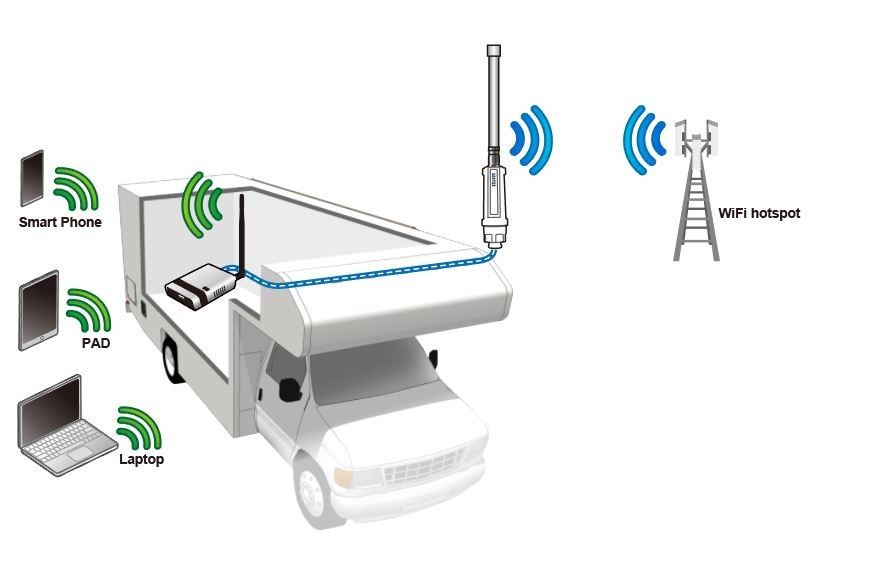

  • Extends WiFi hotspot Internet access from far away, and enhance the WiFi coverage inside your yacht or RV
    Easily make WiFi or VoIP calls when cellular signal is weak.
  • Scans and connects to and rebroadcasts around your yacht and RV
    Instantly share the extended Internet access to your mobile devices, smart TVs, and gaming consoles

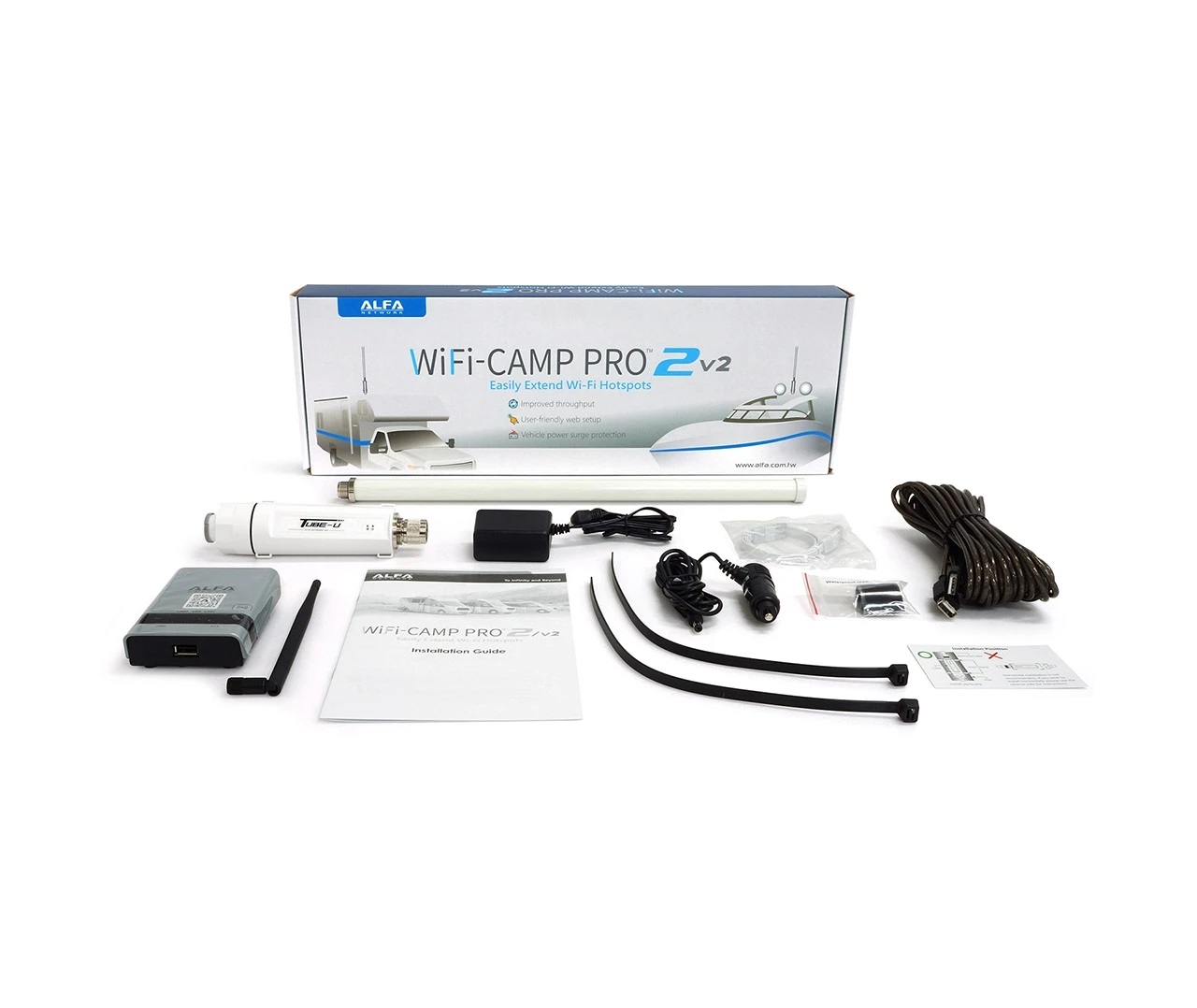

Included in the box:

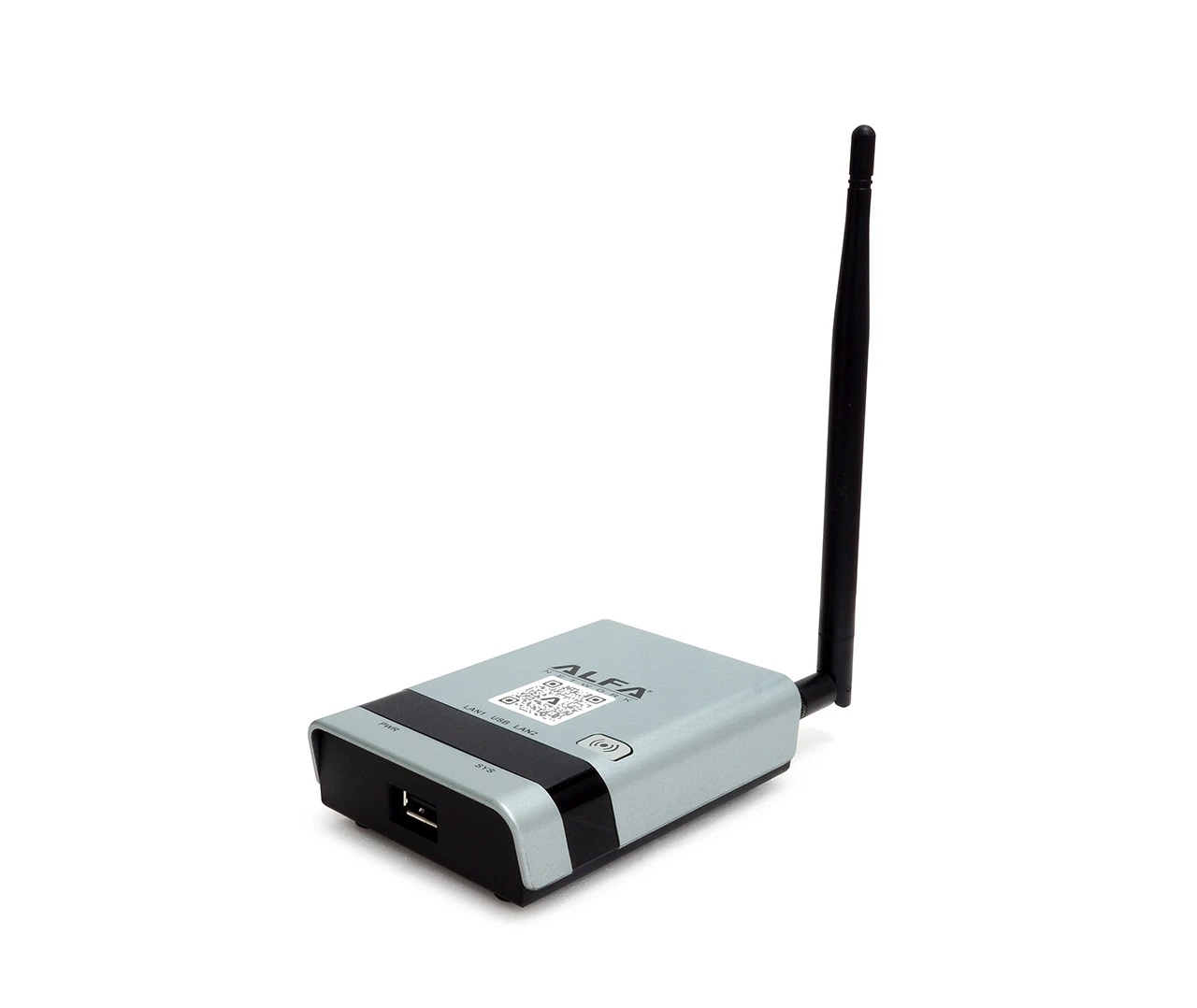

– Alfa R36A USB router
– Indoor Antenna ARS -N05

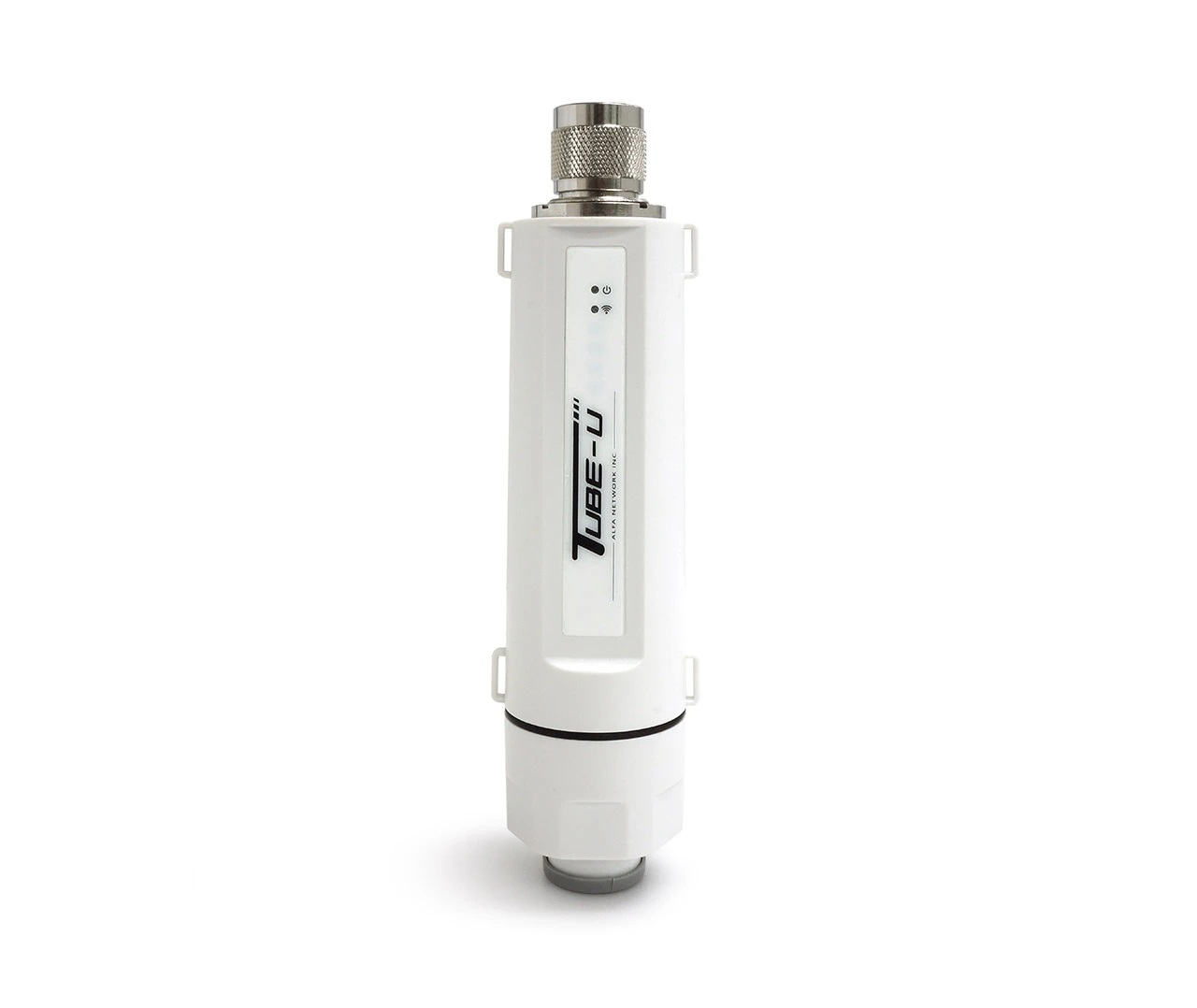

– Tube-4G USB receiver + 8m (26 ft) USB cable
– 12V power supply for R36
– Tube-4G needs no power supply, draws power from the R36 via USB cable
– waterproof tape and wire ties for mounting Tube to pole
– R36 car/vehicle power supply adapter

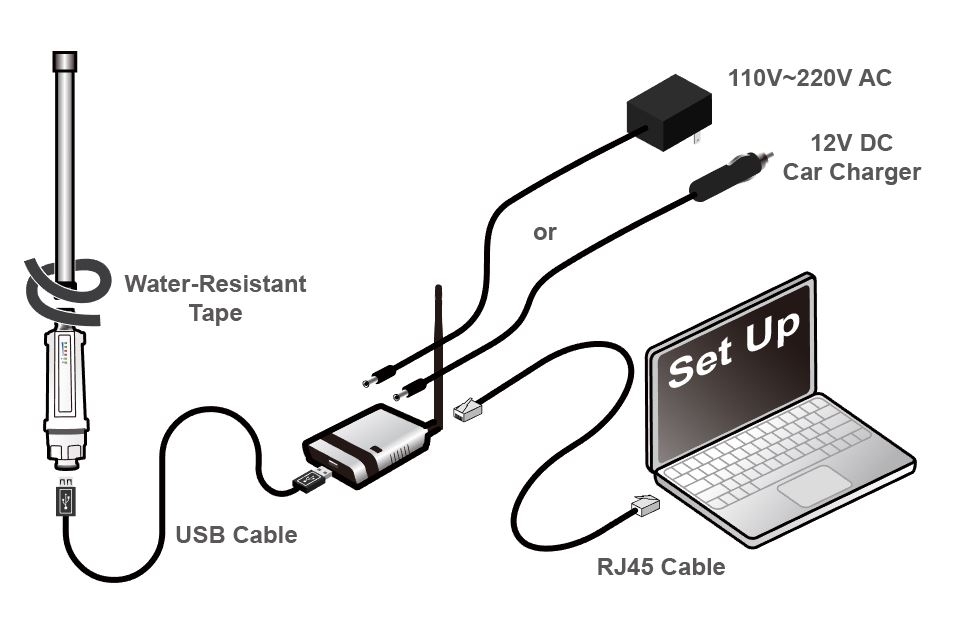

How it works

4G to Wifi Converter Kit – Use all three of these components above together to boost and convert a 4G signal to a Wi-Fi signal. Simply connect your computer to the R36A via Ethernet cable for a one-time configuration and setup. Put a SIM-card to the Tube-4G (make sure the SIM-card is on a 4G plan or recharged). Connect the AOA-M4G antenna to the Tube-4G receiver and then connect the Tube-4G to the USB port on the R36A. Use the Wi-Fi scanning software built-into the R36A that you will see during the setup wizard, so you can scan for and connect to the new wireless networks in your area. Once the R36A has connected to a network, you will be prompted to name and password protect your own new local Wi-Fi network, offering any device within a few hundred feet the ability to use the same distant Wi-Fi signal.

Range

There is no specific range that can be computed as the range can vary greatly based on environment and environmental factors like obstacles and interference. We recommend using this in an area where other devices can at least get a weak signal to the desired network, such as one bar. If the environment is such that your devices cannot even see the desired network from the place of intended use, the Camp Pro may not work well there.



Produkto specifikacijos:

R36A Specification

Memory Flash / SDRAM: 16 MB / 128 MB
Operating Frequency 2.142 – 2.484GHz
Dimensions 93 x 70 x 26 mm
Weight 74g
Antennas 1x detachable antenna
1x internal antenna
Operating Temperature -20°C ~ 60°C
Max. TX Power 23dBm
Encryption 64/128bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
WPA Mixed
802.1x authentication
Wi-Fi Standards IEEE 802.11n/b/g (2x2)
Operating Humidity 17GHz

AOA-M4G Specification

Manufacturer / Model ALFA Networks / AOA-M4G
Type Omni Antenna
Gain 4-6 dBi
Impedance 50 Ohm
Frequency 698-960 MHz (2G, 3G, 4G)
1710 - 2700 MHz (3G, 4G)
VSWR max. 1.5
Beam Width (H) 360° Horizontal
Beam Width (V) 18° Vertical
Cable / Connector N female
Appliance In- and Outdoor
Operating Temperature -40° to 70° C
Dimensions 20cm x 6.3cm x 6.3cm
Weight 1.6kg
Color White

Tube-4G USB receiver.

Operation Frequencies

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B288

LTE TDD: B38/B39/B40/B41

WCDMA: B1/B2/B4/B5/B6/B8/B19

GSM: B2/B3/B5/B8

Supported Countries

Worldwide

Date

LTE FDD: Max 150 Mbps (DL) / Max 50 Mbps (UL)

LTE TDD: Max 130 Mbps (DL) / Max 35 Mbps (UL)

DC-HSDPA: Max 42 Mbps (DL)

HSUPA: Max 5.76 Mbps (UL)

WCDMA: Max 384 Kbps(DL)/Max 384 Mbps(UL)

EDGE: Max 296 Kbps(DL)/Max 236.8 Kbps(UL)

GPRS: Max 107 Kbps(DL)/Max 85.6 Kbps(UL)

Interface

Mini-USB 2.0

Standard 6 PIN SIM card

Antenna Connector

N type female

Antenna

High-gain 4G/LTE Omni Antenna

LED Indicator

Power/Connection

Waterproof IP rate

IP66

Supported System

Windows XP/Vista/7/8/8.1/10

Windows CE 5.0/6.0/7.0

Linux 2.6/3.x/4.1

Temperature Range

-40 °C ~ 80 °C

Storage Humidity

5 % ~ 98 % (Non-condensing)

Dimensions

185 x 47 mm

Weight

135 g
