BDCOM P3310 EPON Optinės linijos stotis 4GE (BDCOM-P3310-EPON-OLT)

ID: #1946

EPON 19" Rack 1U

675.54€ su PVM

Kaina be PVM: 558.30€


Produkto savybės:

Extralink  OLT 4GE complies with IEEE802.3ah and P.R.C intercommunication standard,YD/T 1475-2006, supports CTC20/2.1, automatically discovers and cooperates with ONUs of different manufacturers.

Extralink  OLT 4GE supports the symmetric uplink/downlink1.25Gbps PON transmission rate, efficient bandwidth usage and Ethernetservices, helping carriers to provide reliable services to their users Its coupling ratio, 1:64, and its support ofdifferent hybrid ONU networks minimize the carrier’s investment.

OLT 4GE has strong functions and QoS guarantee ,and supports SLA and DBA.


Produkto specifikacijos:

System’s capacity

Maximum coupling ratio, 1:64

32G backplane bandwidth

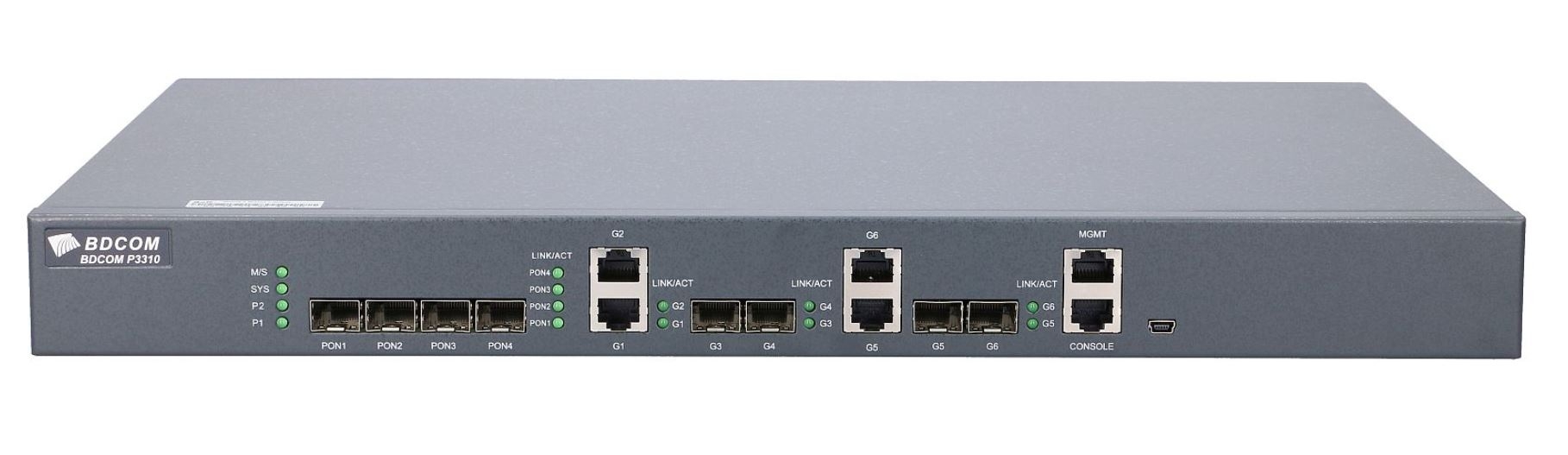

6 GE ports (2 gigabit RJ45 ports, 2 combo ports, 2 gigabit optical ports)

4 fixed EPON ports

PON interface

A 1Gbps transmission rate with downlink and uplink symmetry

Average luminous power on the PON port: +2dbm ~ +7dbm

Optical acceptance senitivity of the PON port: not less than -30dBm

Security: ONU authentication mechanism

Network coverage diameter: 30 kilometers



IEEE 802.1D, Spanning Tree


IEEE 802.1w, RSTP

IEEE 802.3ad physical link static/dynamic aggregation (LACP)

Ethernet – II, Ethernet-SNAP

IEEE 802.3ad  VLAN Stacking( Q in Q)

L3 functions

Supporting static route


Backpressure flow control (half duplex)

IEEE 802.3x flow control (full duplex)

IEEE p802.1p, CoS


Supporting the Mark/Remark priority of 802.1P/DSCP

Limiting the uplink/downlink rate based on each ONU

Supporting DBA and SLA


Port-based VLAN


IEEE802.1Q VLAN relay

Supporting QinQ and flexible QinQ


IGMP v1/v2/v3

IGMP Snooping

Multicast VLAN and limited multicast


Unidirectional Link Detection (UDLD)

Hot swap of the EPON optical module on the expanded slot

EAPS fast loopback protection function

Optical path protection of EPON

Network security

Limiting the maximum number of users on each port

Port isolation

Controlling the storm of packets

Flow-based ACL access control function

Transmission data encryption on the PON interface

Configuration management

Various management modes such as CLI, Web, SNMP, TELNET and cluster

RMONv1, group 1, group 2, group 3 and group 9


Upgrading the software and the bootrom through TFTP and FTP

Local or the server’s syslog logs

Command prompt in English or in Chinese

Network testing tools such as ping and traceroute

Debug output

Physical Characters

442mm(W) x315mm(D) x 44mm(H)

Installation: A 19-inch cabinet

Weight: 2kg

Environment requirements

Working condition: 0?-55?; 10%-85% no condensation

Storage condition: -40?-80?; 5%-95%; no condensation

Power Source

Input voltage: AC100-240V
Input frequency: 47-63Hz

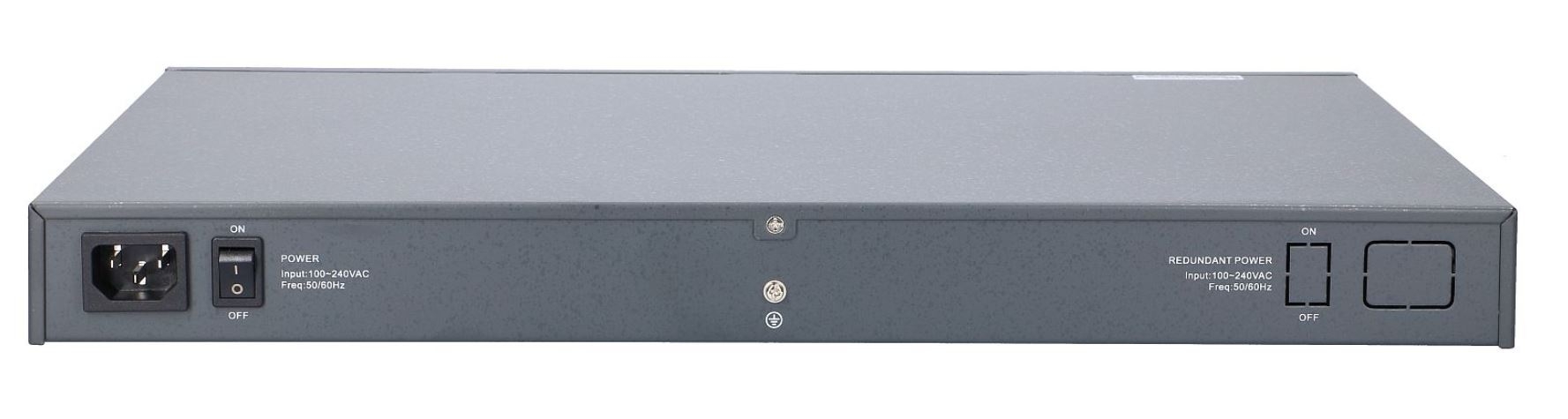

Supporting power input from two power sources

Input current: 1A/230V

Power consumption: Up to 40W
