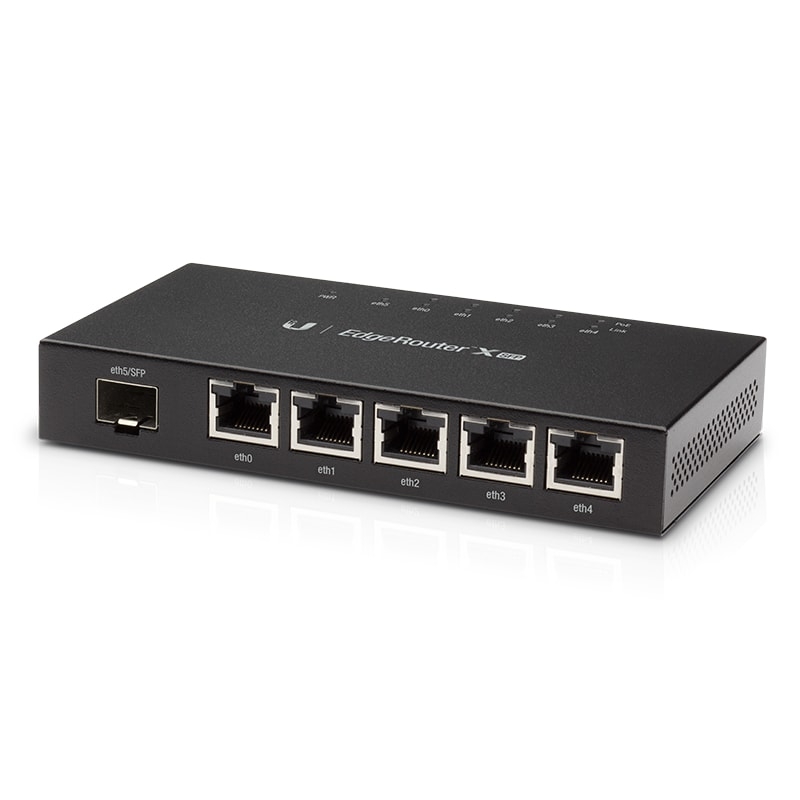

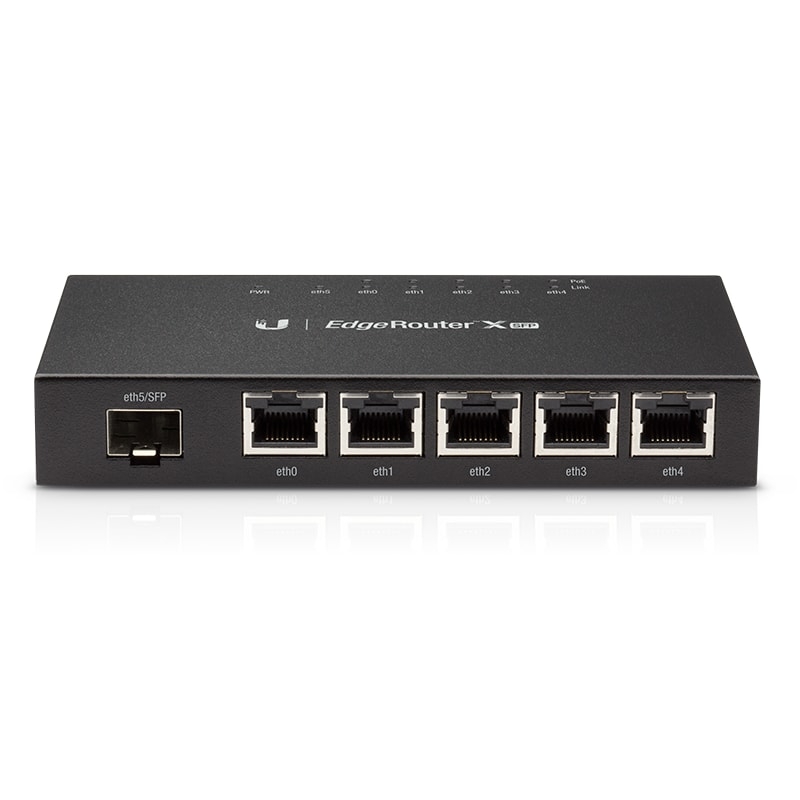

UBIQUITI EdgeRouter X SFP (ER-X-SFP)
UBIQUITI EdgeRouter X SFP, 5x Gigabit LAN Ports, 1 x SFP Port, 1 x POE-IN, 1 x POE Out, 24V Output, 256 MB DDR3 RAM, Processor Dual-Core 880 MHz MIPS1004Kc
Produkto savybės:The EdgeRouter X-SFP (ER-X-SFP) combines cost-effective routing performance with the convenience of passive PoE support in a compact form factor.
Gigabit Connectivity and Optical SFP for Backhaul
The EdgeRouter X-SFP features five independent Gigabit RJ45 ports and one Gigabit SFP port – all six are configurable for switching. The Gigabit SFP port provides fiber connectivity to support backhaul applications for carrier-class networks.
Versatile PoE Capability
The EdgeRouter X-SFP supports 24V passive PoE to power up to five airMAX devices*.
EdgeOS - Advanced UI
The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions.
EdgeOS is a sophisticated operating system with robust features, including:
VLAN interfaces for network segmentation
Static routes and support of routing protocols: OSPF, RIP, and BGP
Firewall policies and NAT rules
Quality of Service (QoS)
Network administration and monitoring tools
Administrator and operator accounts
Comprehensive IPv6 support
*Check your airMAX device’s specifications for voltage and wattage requirements.
Produkto specifikacijos:Dimensions: 142 x 75 x 23 mm (5.59 x 2.95 x 0.91")
Weight: 215 g (7.58 oz)
Max. Power Consumption: 5W
Max. Total PoE Output: 50W @ 24V
PoE Output Passive: 24V (Pins 4, 5+; 7, 8-)
Power Input: 24VDC, 2.5A Power Adapter (Included)
Power Supply: External AC/DC Adapter
Supported Voltage Range: 9 to 26VDC

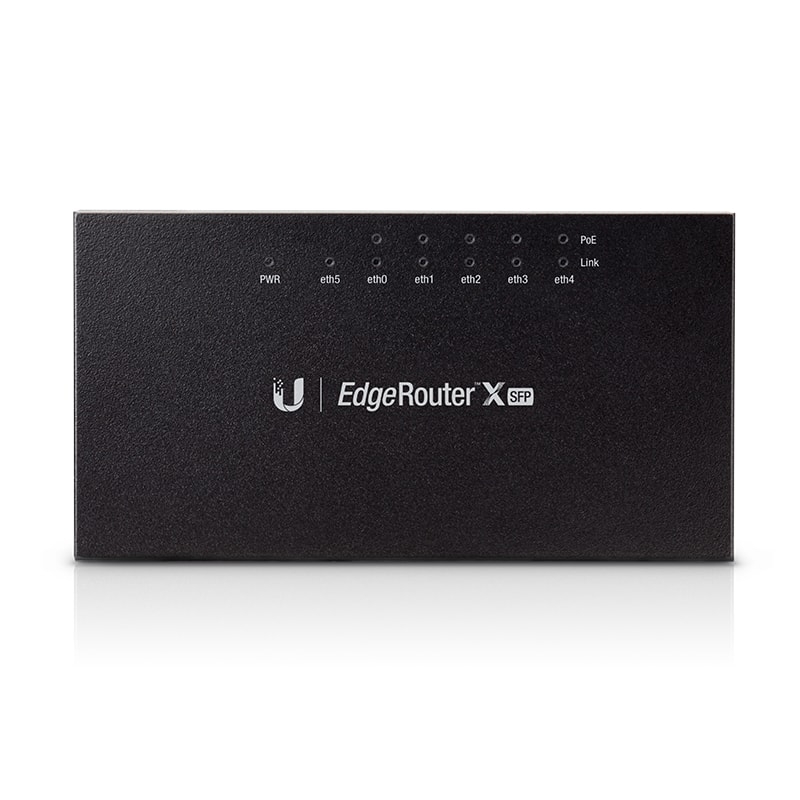

LEDs: Power, Link/Activity (6), PoE (5)
Processor: Dual-Core 880 MHz, MIPS1004Kc
System Memory: 256 MB DDR3 RAM
Code Storage: 256 MB NAND
Certifications: CE, FCC, IC
Operating Temperature: -10 to 45° C (14 to 113° F)
Operating Humidity: 10 - 90% Noncondensing

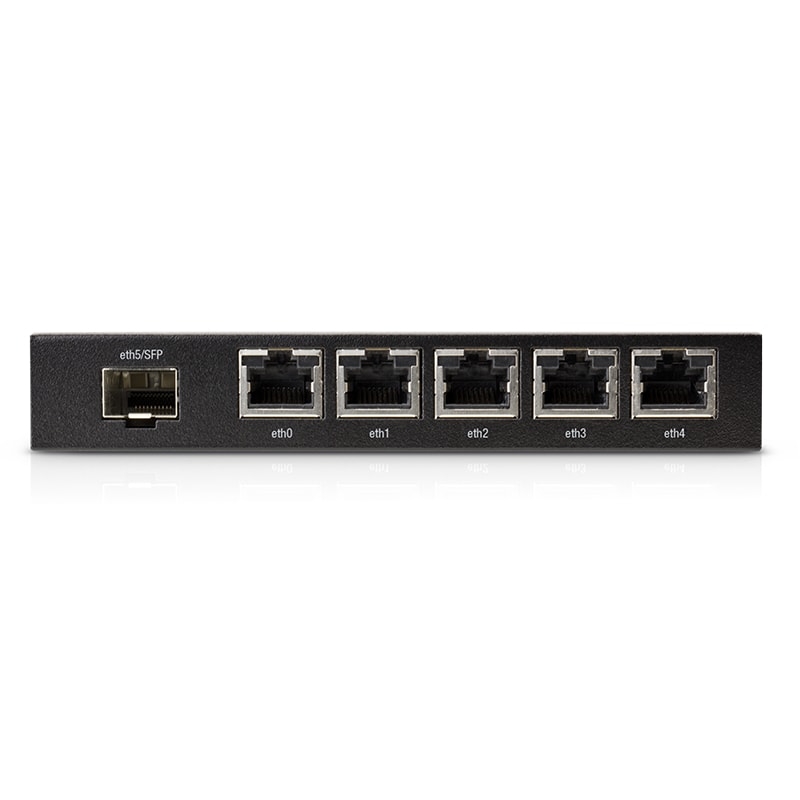

LAN - Data/PoE Passthrough Port (5) 10/100/1000 RJ45 Port
SFP - Data Port (1) 100/1000 SFP Port
