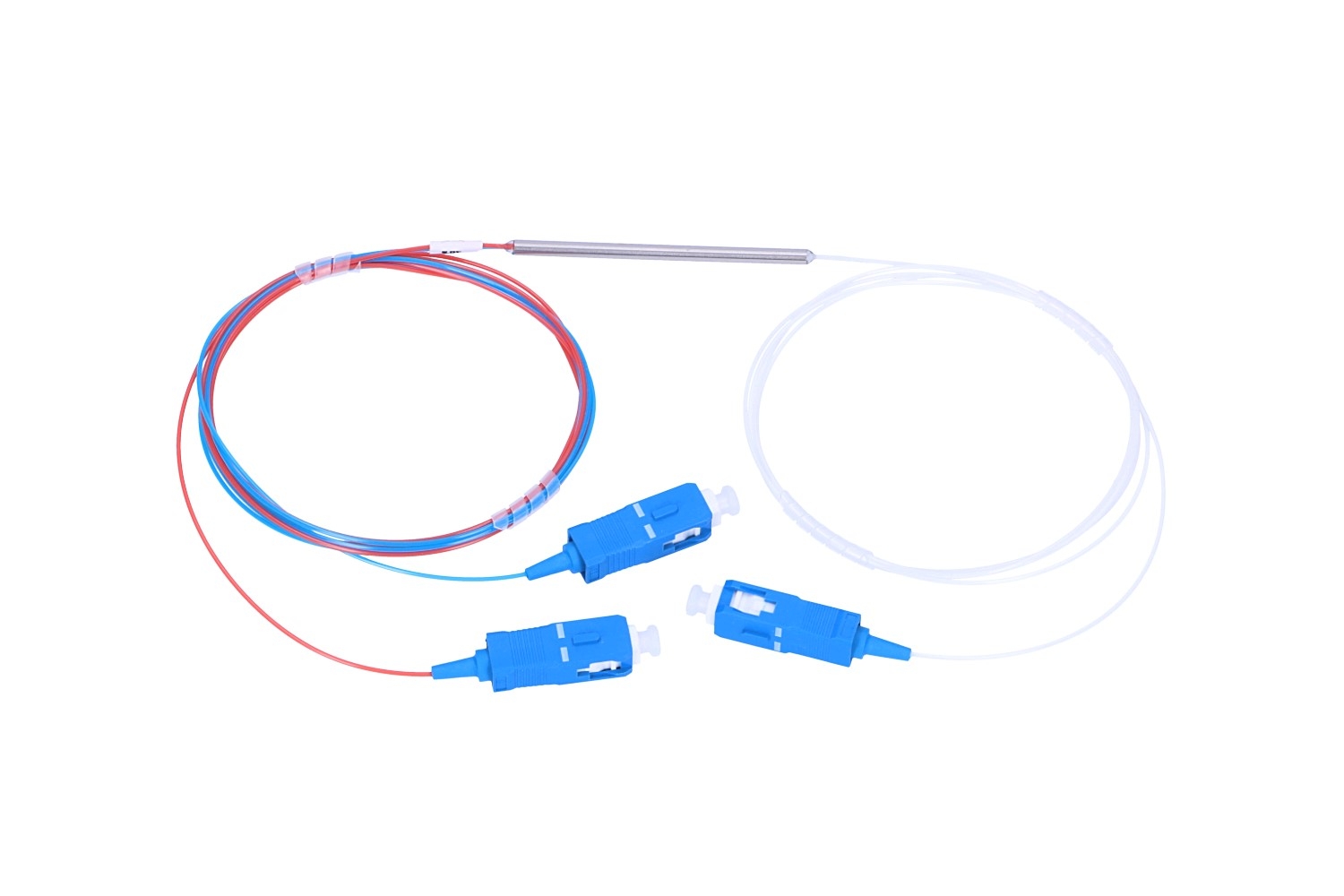

EXTRALINK 1:2 FBT Optinis daliklis 20:80 SC/UPC 900UM 1M Steel Tube (EL-SCUPC-FBT-20:80)

Kodas: EL-SCUPC-FBT-20:80
ID: #1845

naujiena

55.65€ su PVM

Kaina be PVM: 45.99€

Kiekis:


Produkto specifikacijos:

TYPE FBT-2P20T1SM22TSP
Test Wavelength nm 1310/ 1490/ 1550
Coupling Ratio   80/20
OutPut   1310 1490 1550
Out1 Out2 Out1 Out2 Out1 Out2
Insertion Loss dB ~ 1.15 ~ 7.3 ~ 1.16 ~ 7.32 ~ 1.2 ~ 7.35
Coupling Ratio % ~ 80% ~ 20% ~ 81% ~ 19% ~ 80% ~ 20%
PDL dB < 0.15
Directional dB > 55
Operating Temperature °C -20 ~ +70
Storage Temperature °C -40 ~ +85
Fiber Length m >1.00
Dimension mm ɸ 3.0x54
Fiber Type   SM-28E 900um
Connector   SC/UPC

Splitt: 1x2
Connectors: SC/UPC
Technology: FBT·
Cable diameter: 0,9mm·
Length: 1m
