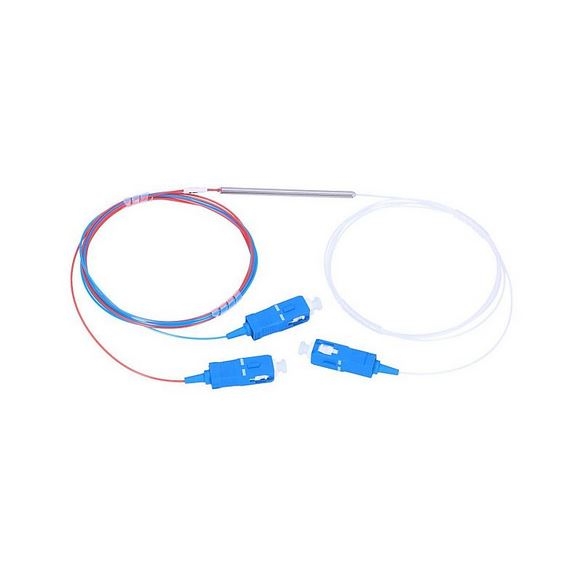

EXTRALINK 1:2 FBT Optinis daliklis 45:55 SC/UPC 900UM 1m ilgio (EL-SCUPC-FBT-45:55)
Kodas:
EL-SCUPC-FBT-45:55
ID:
#1944
14.51€ su PVMKaina be PVM: 11.99€ |
Produkto specifikacijos:
• Splitt: 1x2;
• Connectors: SC/UPC;
• Technology: FBT;
• Cable diameter: 0,9mm;
• Length: 1m.
|
TYPE |
FBT-2P45T1SM22TSP |
||||||
|
Test Wavelength |
nm |
1310/ 1490/ 1550 |
|||||
|
Coupling Ratio |
|
55/45 |
|||||
|
OutPut |
|
1310 |
1490 |
1550 |
|||
|
Out1 |
Out2 |
Out1 |
Out2 |
Out1 |
Out2 |
||
|
Insertion Loss |
dB |
~ 2.8 |
~ 3.7 |
~ 2.8 |
~ 3.71 |
~ 2.9 |
~ 3.65 |
|
Coupling Ratio |
% |
~ 56% |
~ 44% |
~ 55% |
~ 45% |
~ 54% |
~ 46% |
|
PDL |
dB |
< 0.15 |
|||||
|
Directional |
dB |
> 55 |
|||||
|
Operating Temperature |
°C |
-20 ~ +70 |
|||||
|
Storage Temperature |
°C |
-40 ~ +85 |
|||||
|
Fiber Length |
m |
>1.00 |
|||||
|
Dimension |
mm |
ɸ 3.0x54 |
|||||
|
Fiber Type |
|
Corning SMF-28e 9/125 900um |
|||||
|
Connector |
|
SC/UPC |
|||||
