EXTRALINK 1:2 FBT Optinis daliklis 5:95 SC/UPC 900UM 1M(EL-SCUPC-FBT-5:95)

Kodas: EL-SCUPC-FBT-5:95
ID: #1857

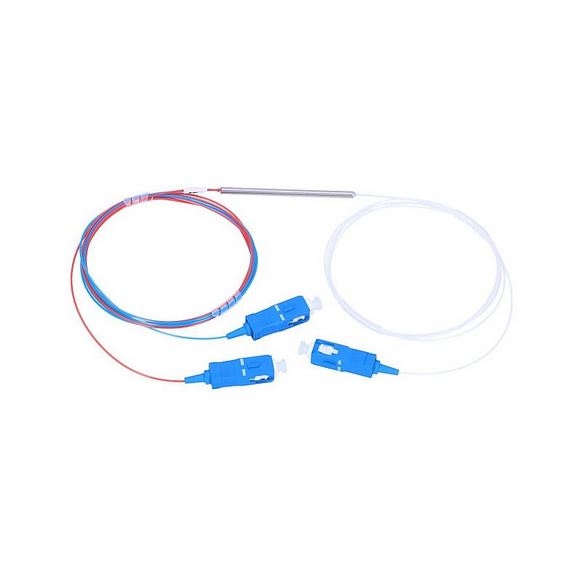

1:2 FBT SPLITTER 5:95 SC/UPC

naujiena

11.71€ su PVM

Kaina be PVM: 9.68€

Kiekis:


Produkto specifikacijos:

Test Wavelength [nm] :    1310/1490/1550

Coupling Ratio [%] :    5:95

Insertion Loss - 1310nm [dB] :    0.34 (red); 14.10 (blue)

Insertion Loss - 1490nm [dB] :    0.34 (red); 14.09 (blue)

Insertion Loss - 1550nm [dB] :    0.32 (red); 14 (blue)

PDL [dB] :    ≤ 0.15

Directivity [dB] :    ≥ 55

Operating Temperature [°C] :    -20 to 70

Storage Temperature [°C] :    -40 to +85

Fiber Length [m] :    ≥ 1.0

Dimension [mm] :    3 x 54

Pigtail Type :    0.9 Loose Tube

Fiber Type :    SM-28E 900um

Connector :    SC/UPC
