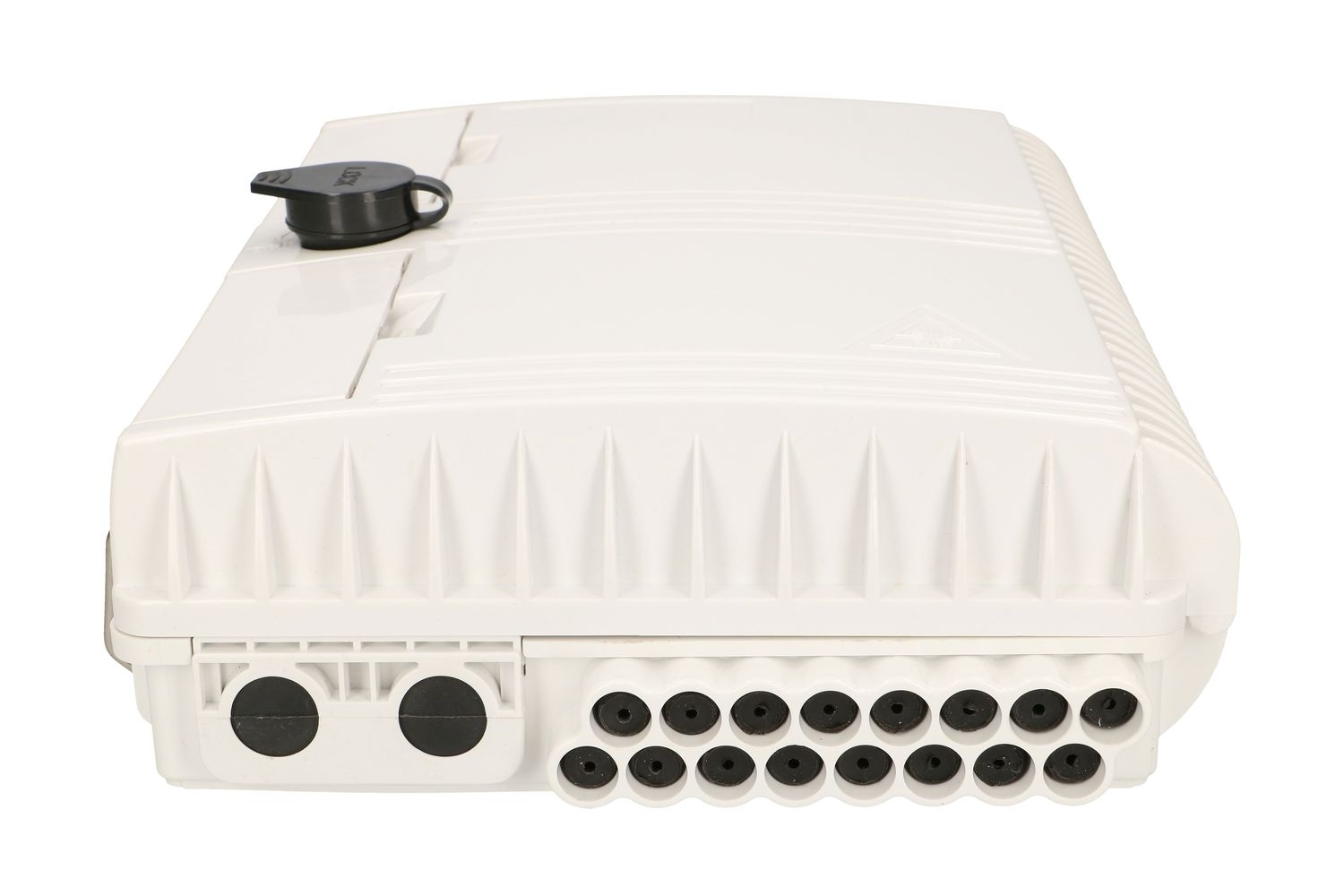

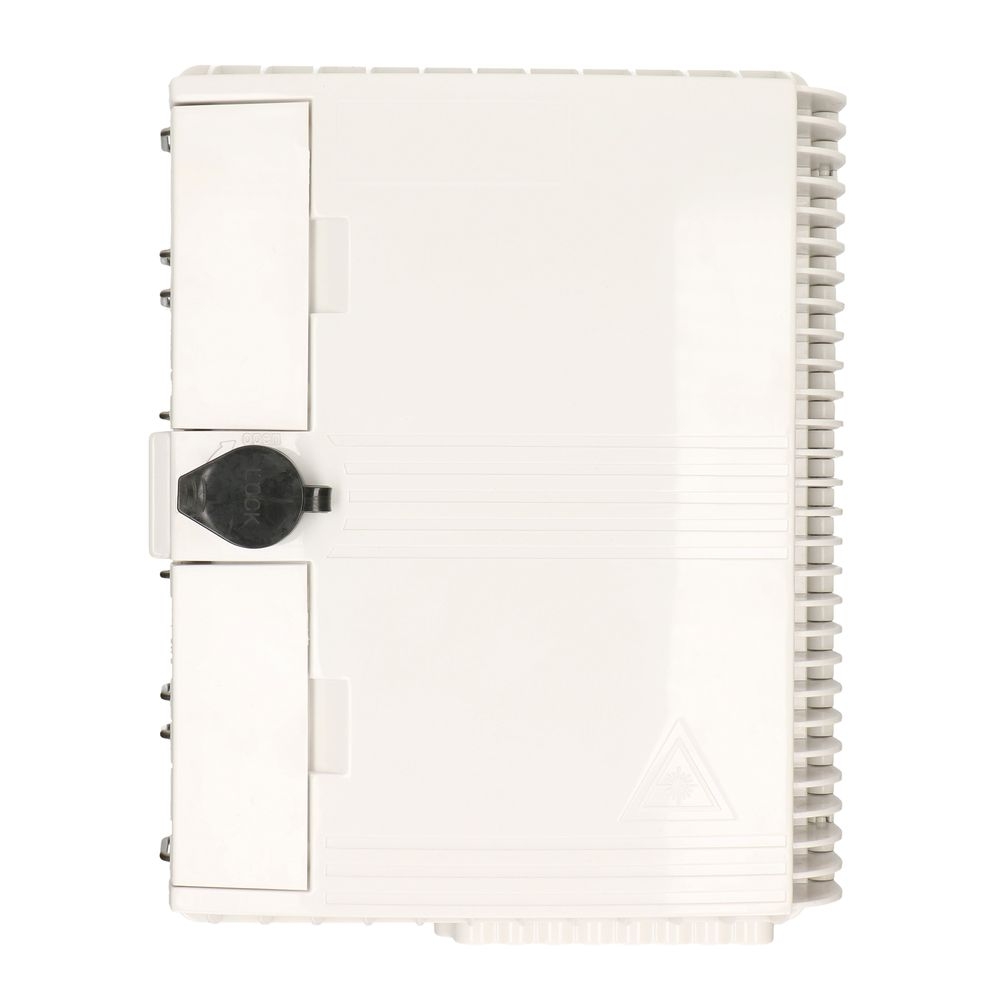

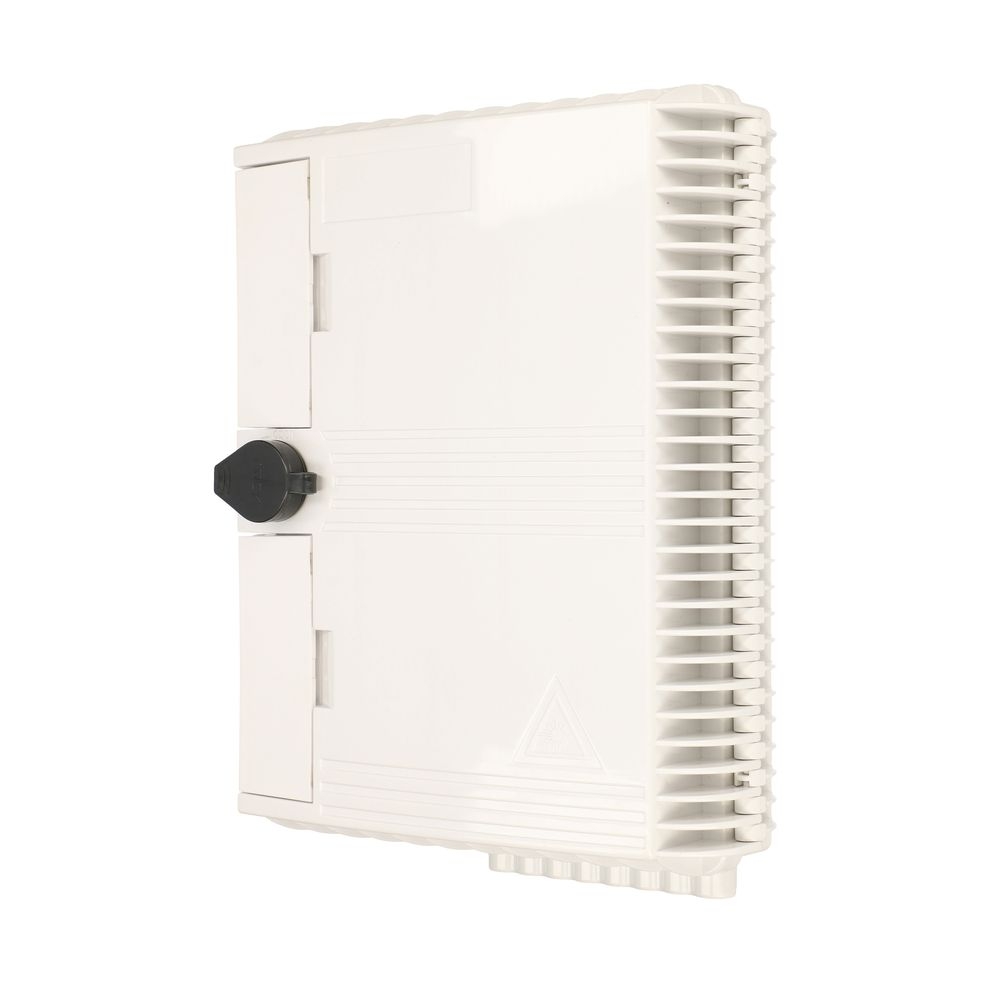

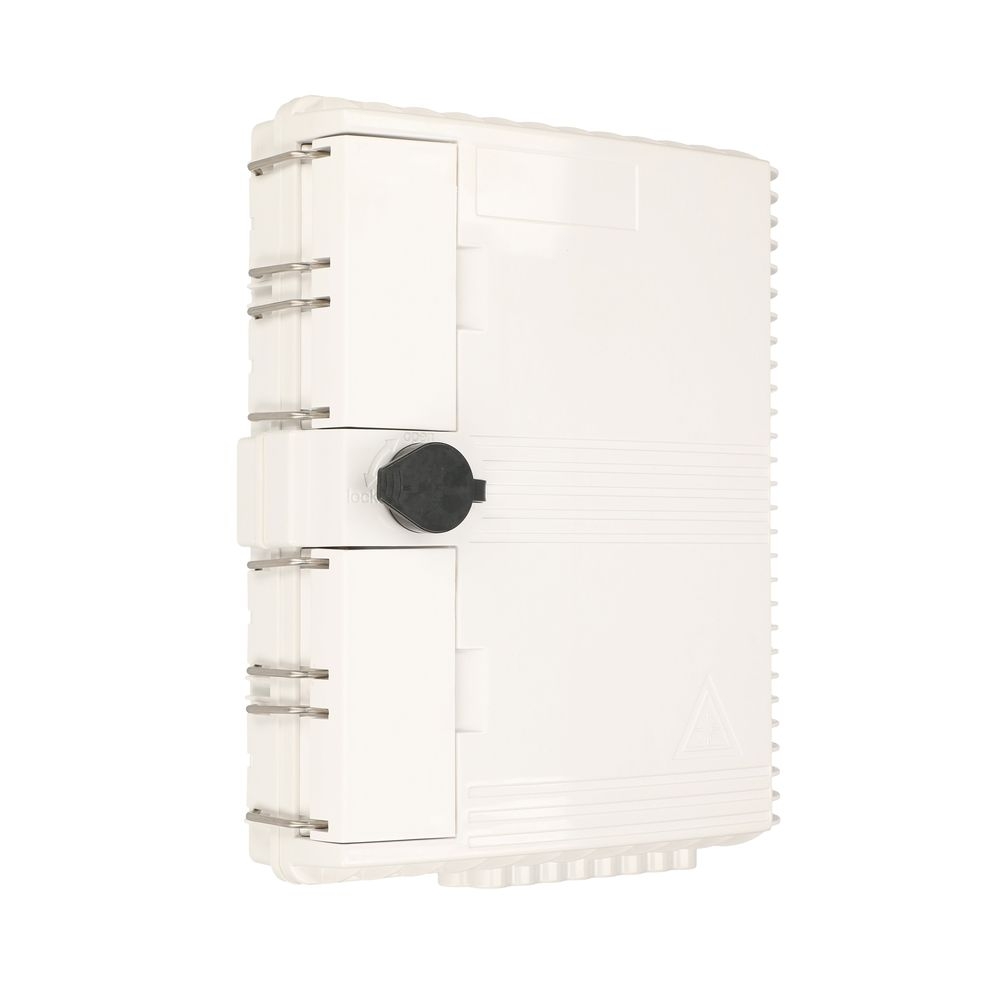

EXTRALINK 16 Core Fiber Optic Distribution Box PABLO (EL-FO-DB-16-WT-PABLO)

OEM kodas: EX.12622
Kodas: EL-FO-DB-16-WT-PABLO
ID: #3516

Distribution box for professional installations, suitable for both indoor and outdoor uses

22.30€ su PVM

Kaina be PVM: 18.43€

Kiekis:


Produkto savybės:

Extralink Pablo 16 core is the equipment used in the point of separation of the main fiber optic cable into client cables (in PON technology). Welds, splitter and other mounting accessories can be placed in the housing while maintaining protection and transparency of the network. In this version, the commutation field is abandoned in favour of a pocket splitter holder with integrated SC adapters.

  • 16 fibres can be installed

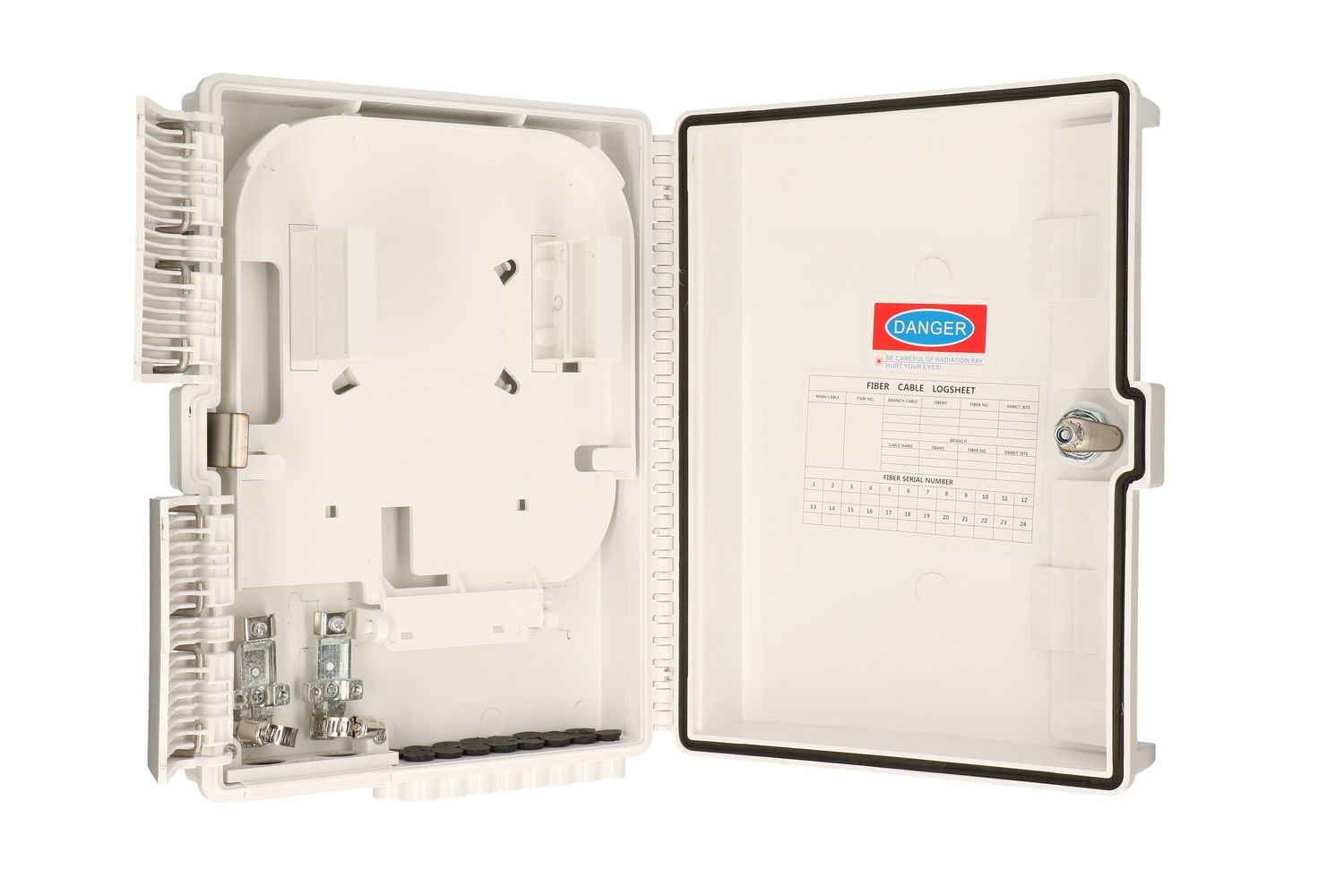

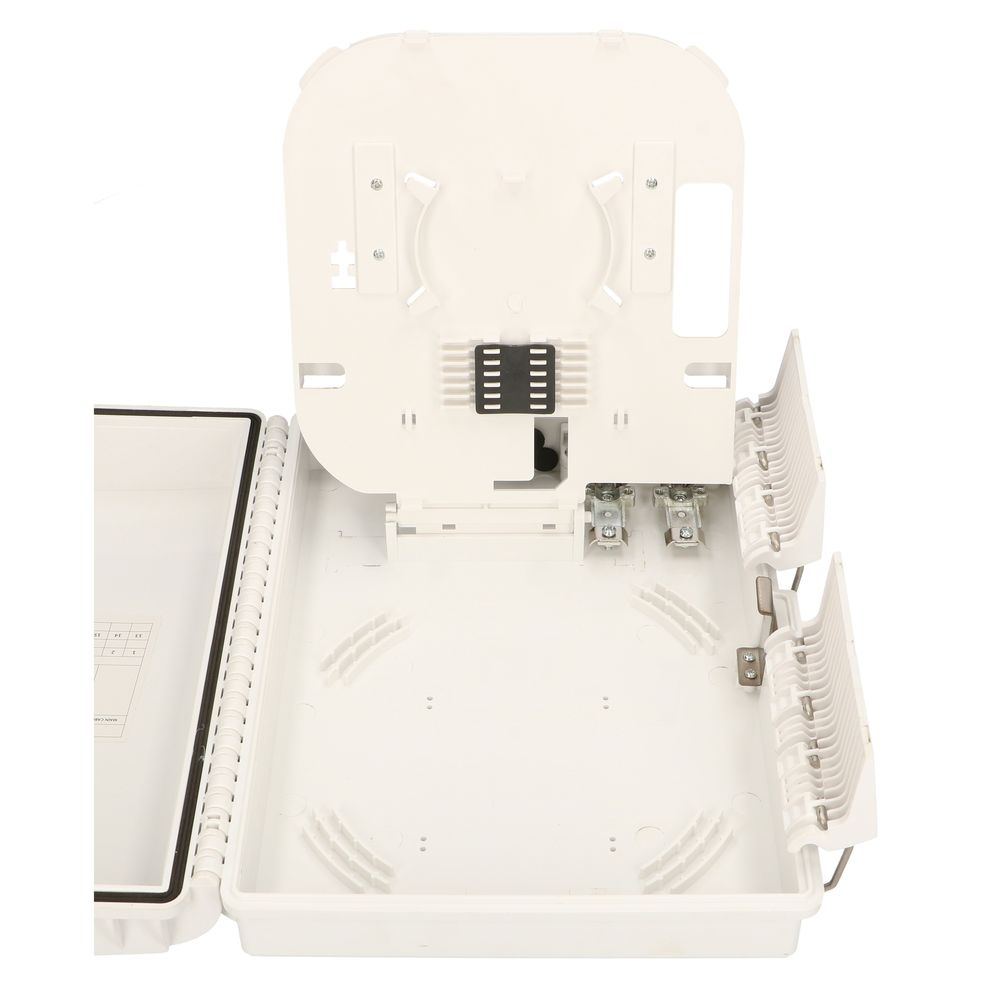

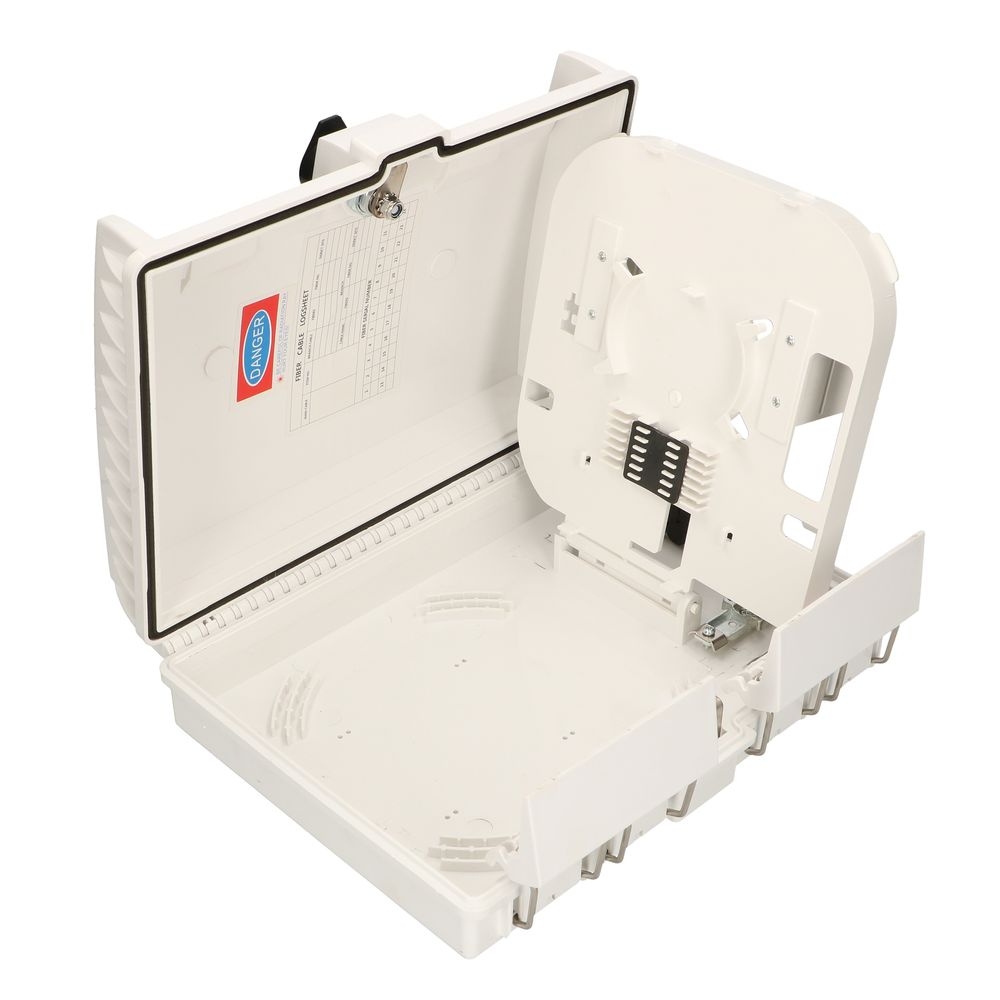

  • Removable connection tray for easy installation
  • Many adaptor options are available
  • It accepts, among other things, distribution cables and cables with pre-clips.
  • Protection against bending radius
  • Removable door for easy installation
  • Can supplied with 16 heat shrink welds and other components

Application:

  • Data centres, premises installations, telecommunications networks
  • Ethernet, fiber channel, ATM, LAN, MAN and WAN
  • ICT and telecommunications networks

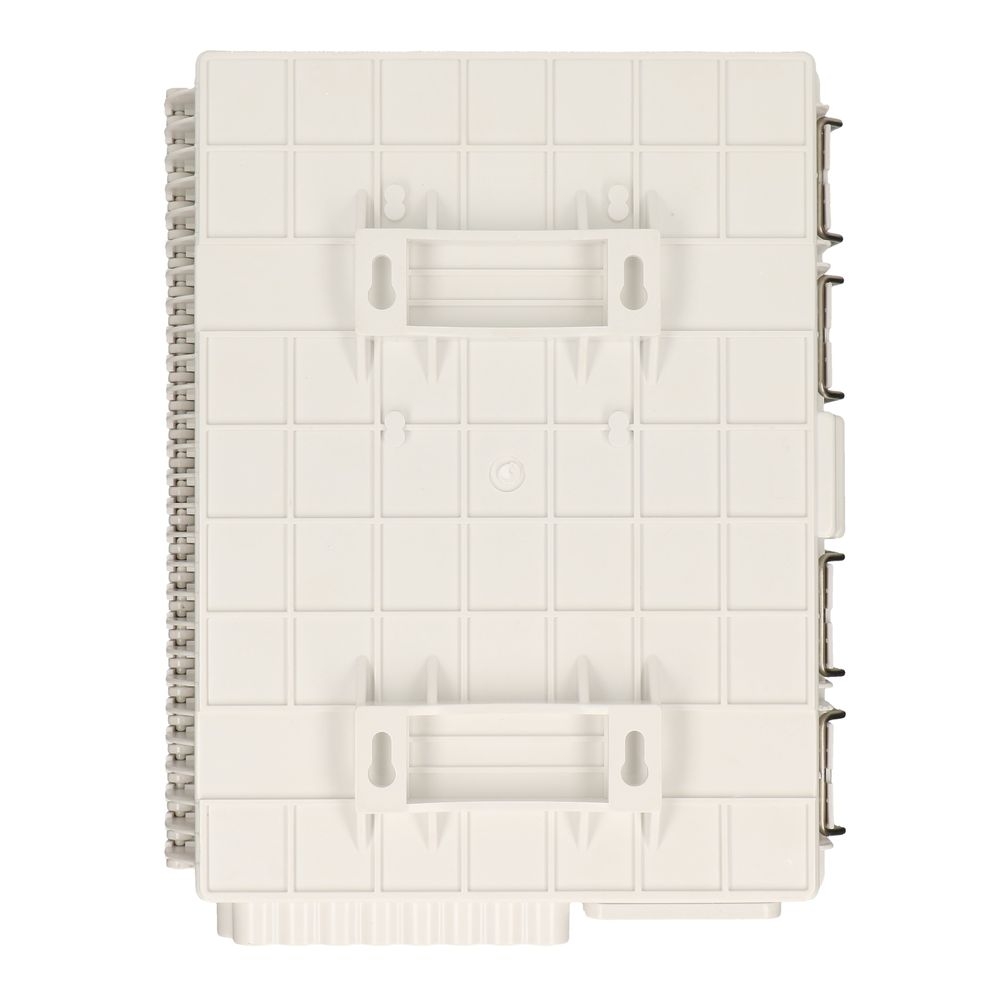

  • Wall/post mounting
  • Internal and external use

Produkto specifikacijos:

Fiber optic muff mounting type Pole
Max. numbers of welds 16 Core
Colour Grey
Mid-Span input Yes
Splitter holder in muff Yes
Dimensions 315*235*100mm
Capacity 16 fibres
Adapters 16*SC Simplex, 16*LC Duplex (not included)
Temperature -40°C~+60°C
Net weight 1.25KG
Gross weight 1.35KG
