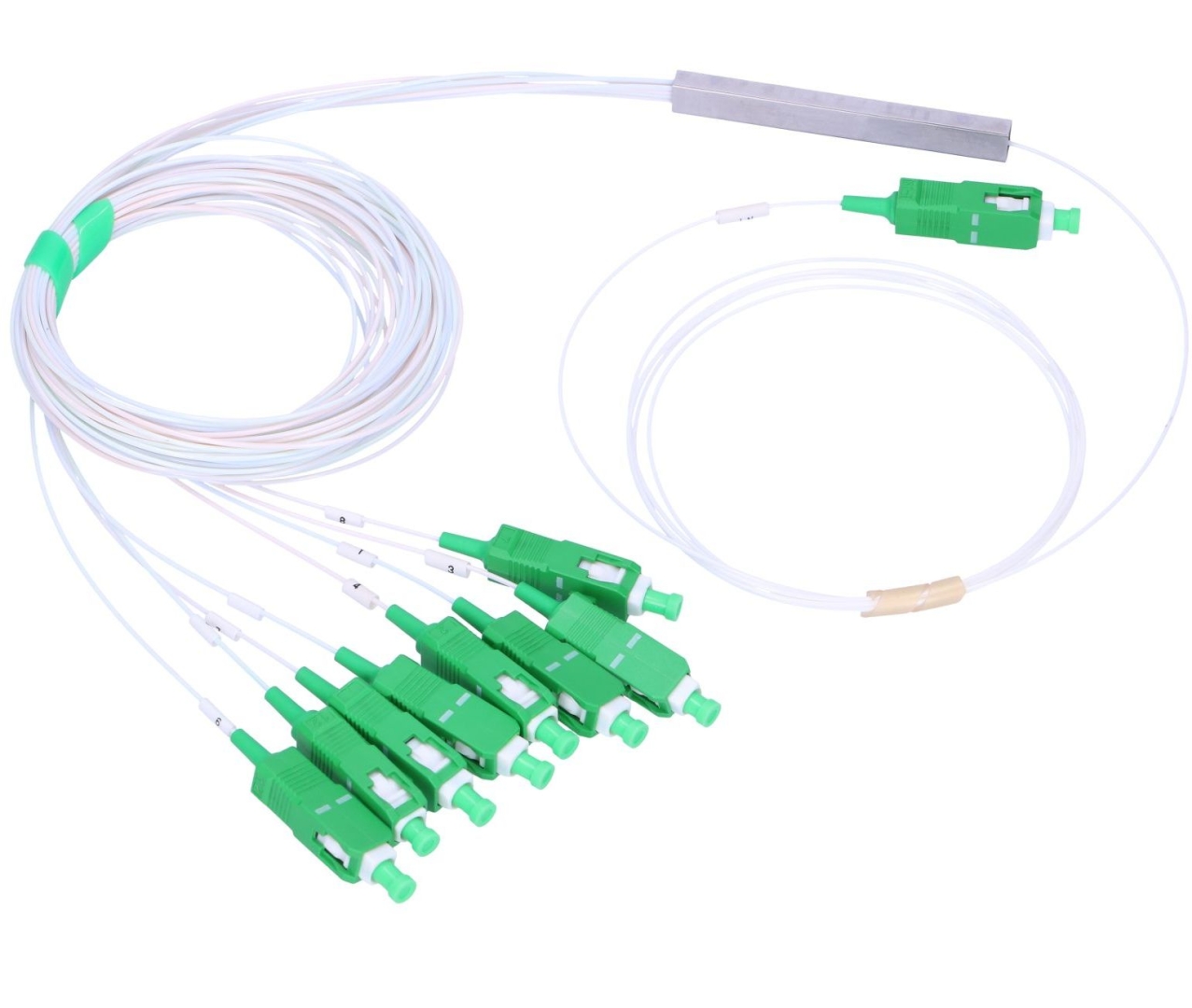

EXTRALINK 1:8 PLC Optinis daliklis SC/APC 900UM (EL-SCAPC-SPLT-1-8)
Kodas:
EL-SCAPC-SPLT-1-8
ID:
#1744
EAN kodas:
5902560363487
Šviesolaidžio tipas: G.657.A. Ilgis: 1m. Kabelio skersmuo: 0.9 mm. Maksimalus IL: <7.4 dB, RL: >50 dB
11.74€ su PVMKaina be PVM: 9.70€ |
Produkto specifikacijos:
• Splitter: 1x8;

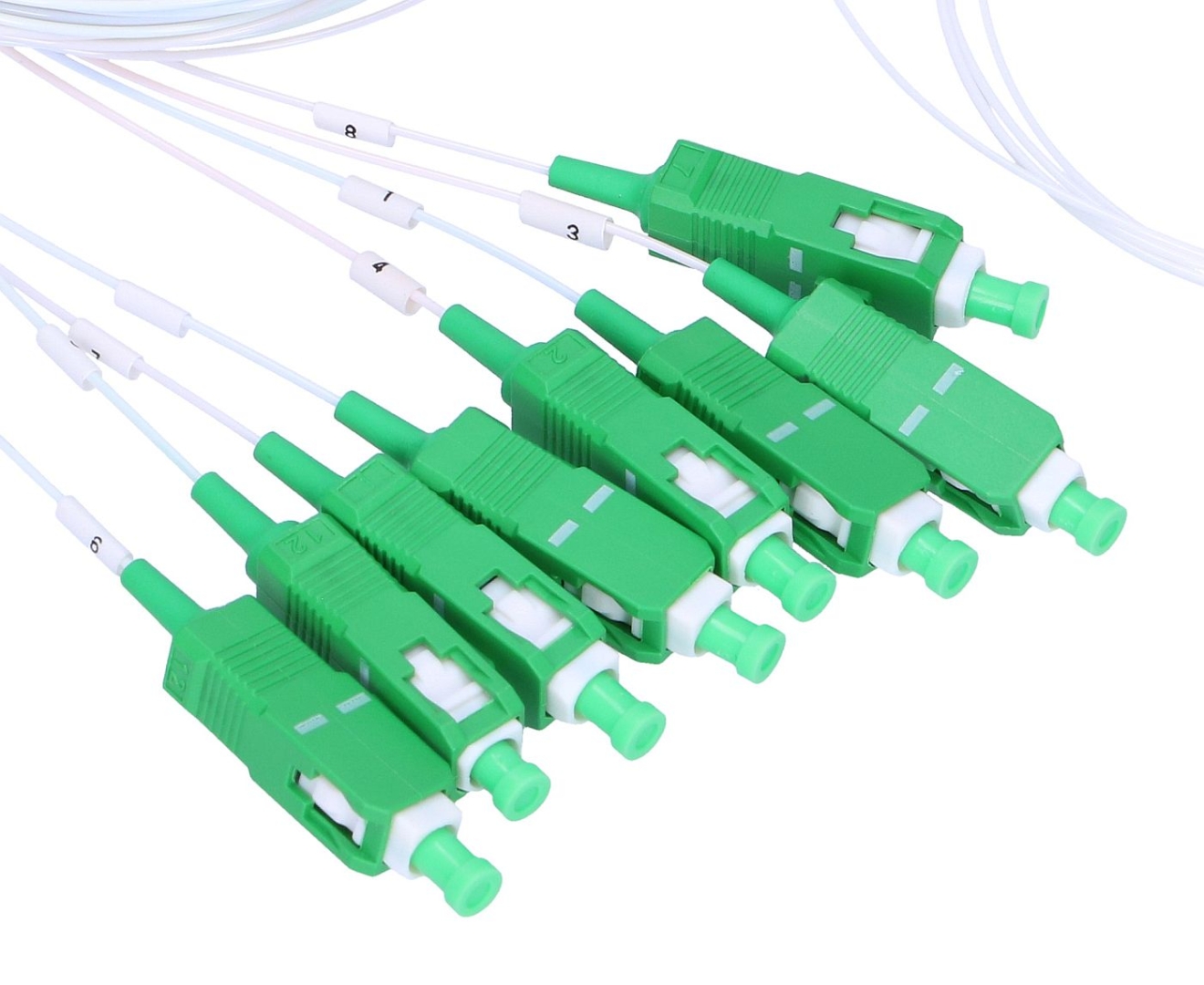

• Connectors: SC/APC;

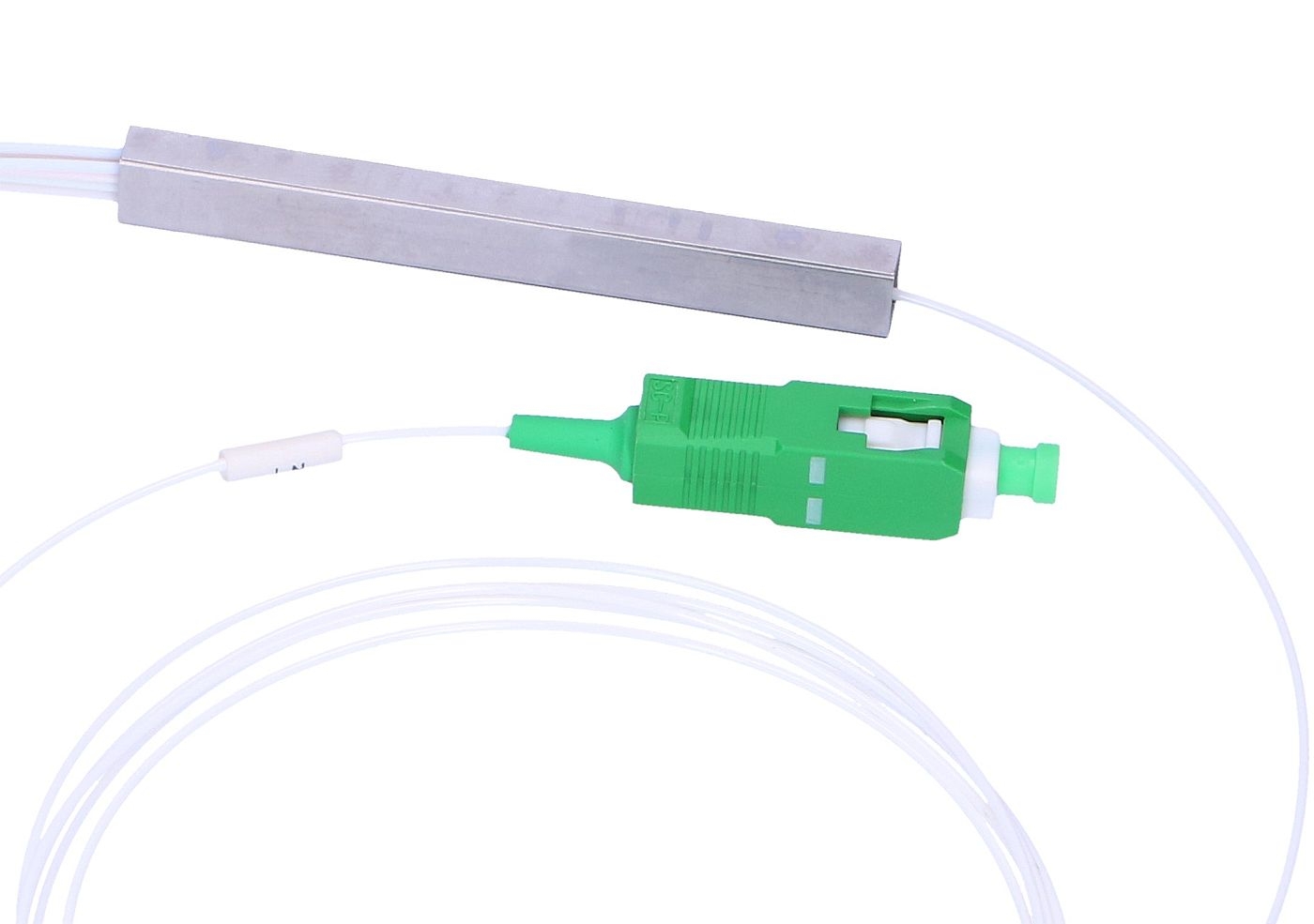

• Technology: PLC;
• Cable diameter: 0,9mm;
• Length: 1m.
• Fiber Type: G.657.A;
• Working Wavelength: 1260nm~1650nm;
• Max. Insertion Loss (dB): ≤10.5;
• Uniformity (dB): ≤0.8;
• Wavelength Dependent Loss (dB): ≤0.8;
• Return Loss (dB): ≥50;
• Directivity (dB): ≥55.
Note: The above parameters is for Splitter with connector. If w/o connector, insertion loss will reduce by 0.2dB.
