EXTRALINK 1 šviesolaidžio “drop” kabelis 1J, G.657B2, 1 km (EL-FO-1F-1000)

OEM kodas: EX.17252
Kodas: EL-FO-1F-1000
ID: #1711

Šviesolaidžio tipas: G.657B2, skersmuo: 3,0 mm.

196.55€ su PVM

Kaina be PVM: 162.44€

Kiekis:


Produkto savybės:

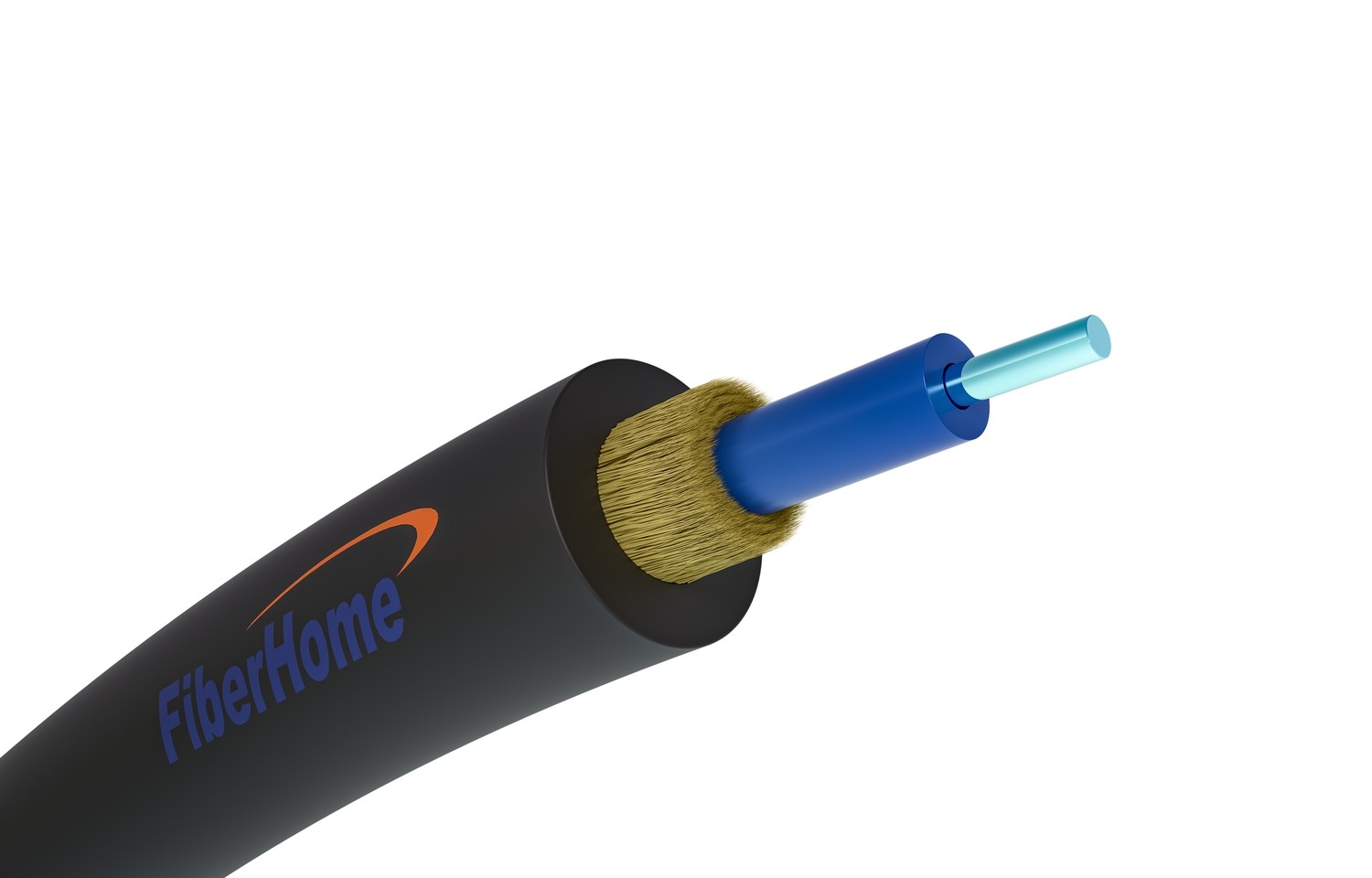

„Extralink“ 1F round drop cable is an universal fibre cable for outdoor and indoor mounting. It has a lot of aramid fibers and very strong buffer coating. Diameter of this cable is 3mm.

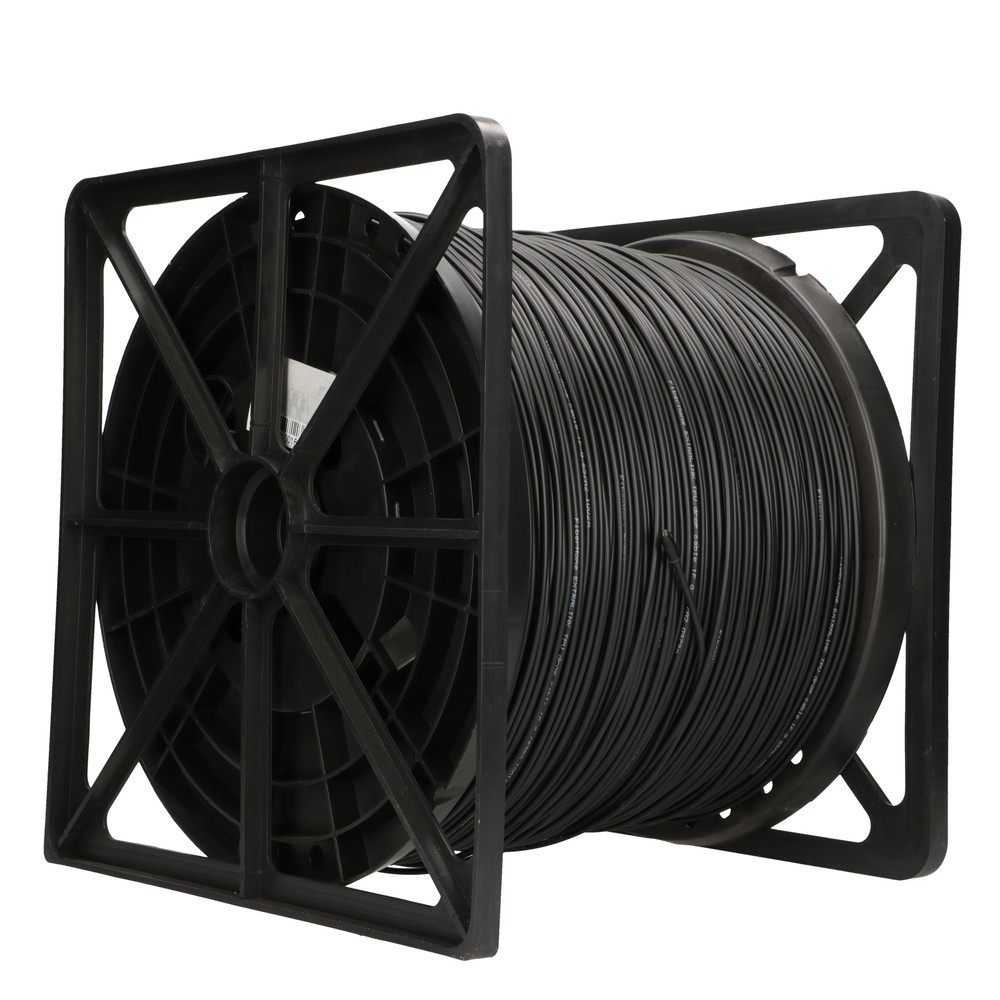

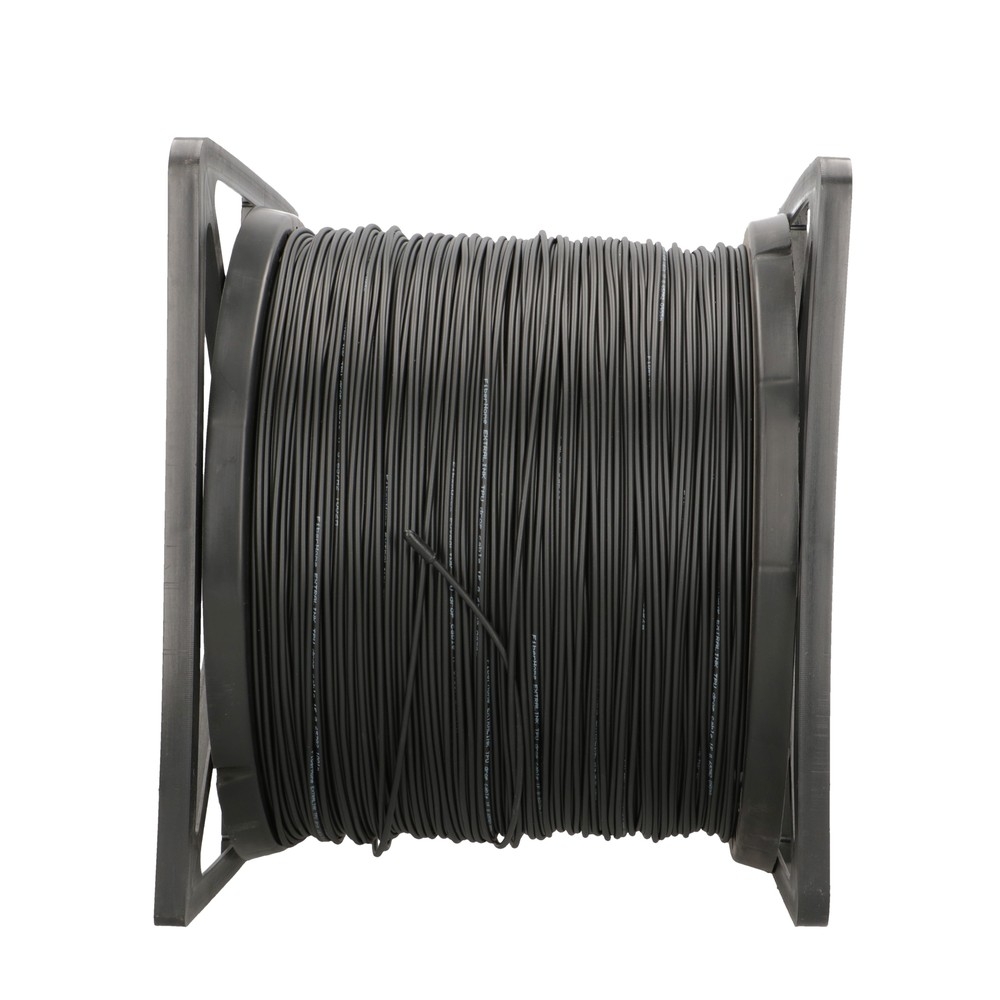

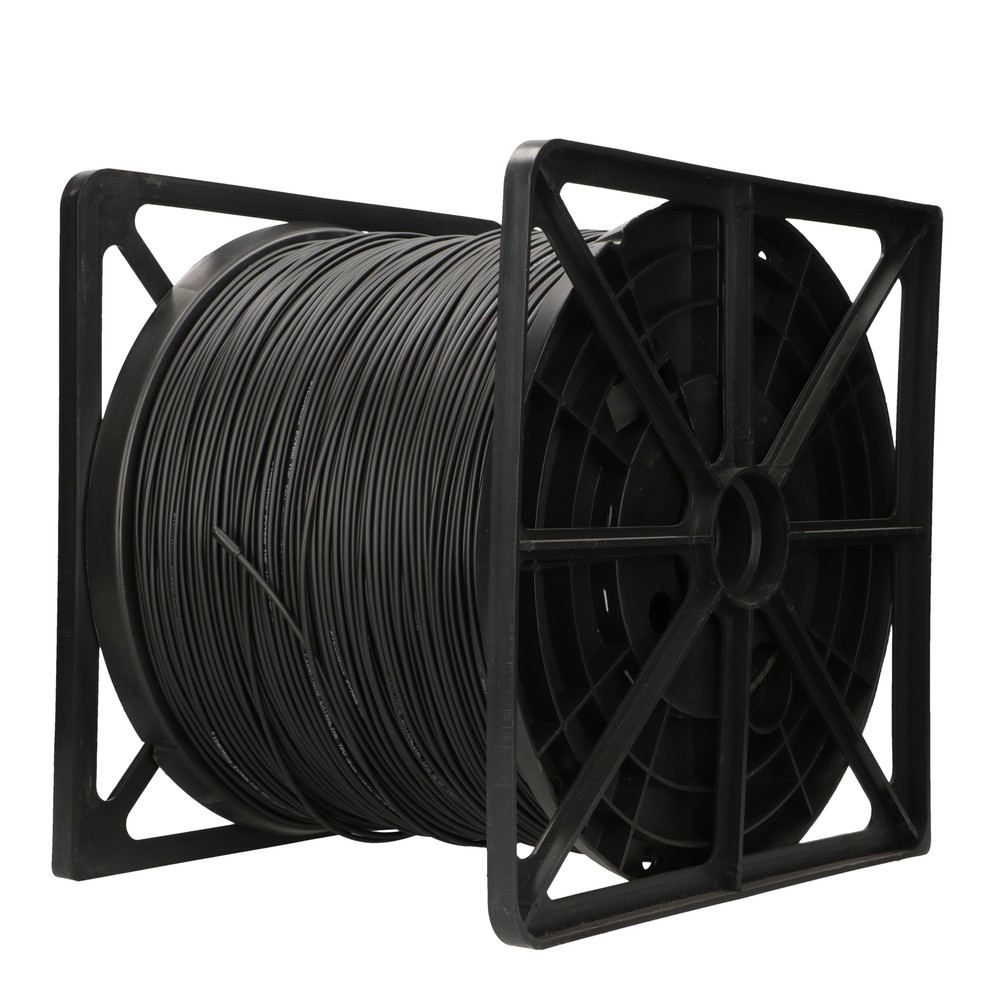

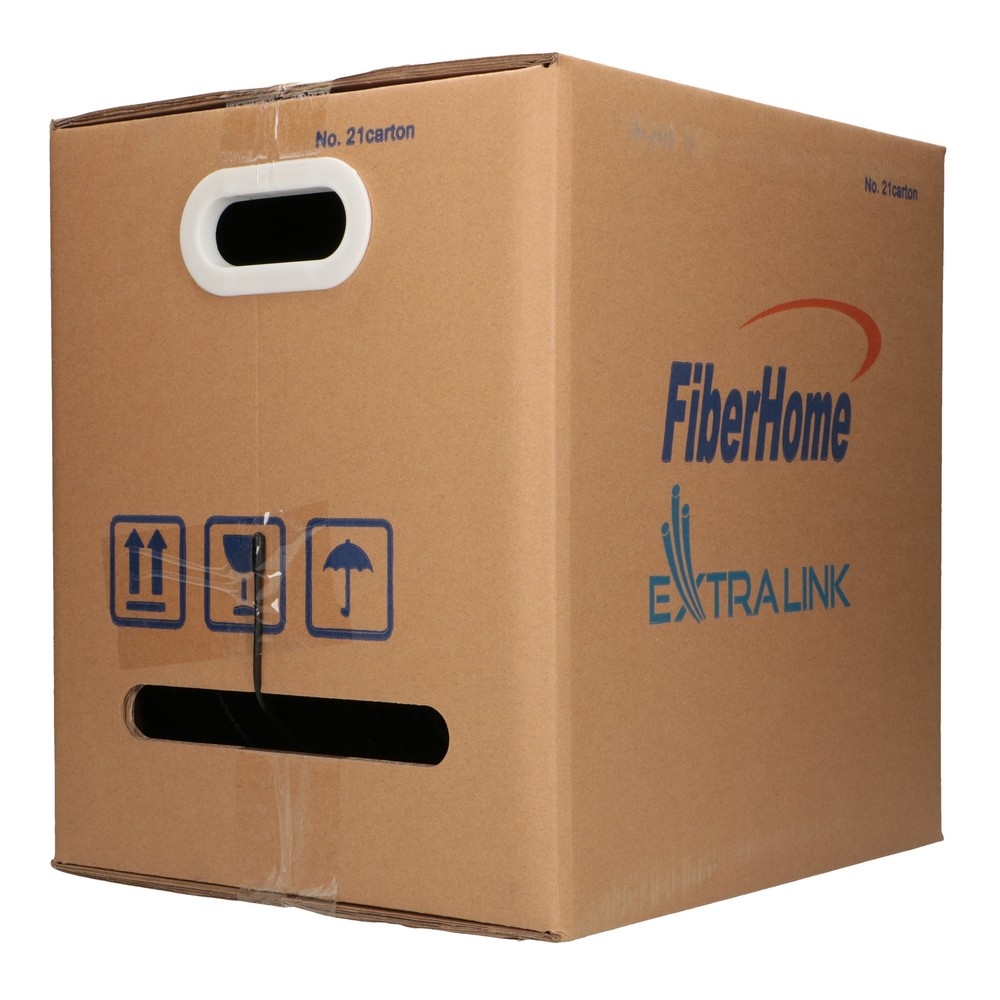

Cable is delivered in carton box equipped with a plastic spool - 1km long.

• Fiber optic cable for outdoor or indoor use;
• Fibre surrounded by tight buffered coating;
• Aramid yarns to protect fiber;
• Outer sheath color: Black;
• Color of fibre: Blue;
• Type of fiber: G.657B2;
• Outer sheath material : Flame retardant TPU;
• Cable diameter: 3.0 ± 0.2 mm;
• Standard lenght on spool: 1 ± 10% km;
• Max. operating temperature: -10 °C to +75 °C.

Produkto specifikacijos:

Fibre Properties:
• Attenuation:
* 1310 nm - < 0.40 dB/km;
* 1383 nm - < 0.40 dB/km;
* 1550 nm - < 0.30 dB/km;
• Attenuation vs. Bending (15mm radius x 10 turns):
* 1550 nm - < 0.03 dB;
* 1625 nm - < 0.1 dB;
• Attenuation vs. Bending (10mm radius x 1 turn):
* 1550 nm - < 0.1 dB;
* 1625 nm - < 0.2 dB;
• Attenuation vs. Bending (7.5mm radius x 1 turn):
* 1550 nm - < 0.5 dB;
* 1625 nm - < 1.0 dB;
• Chromatic Dispension
* 1285-1330 nm - < 3.5 ps/ nm.km;
* at 1550 nm - < 18.0 ps/ nm.km;
• Zero Dispersion Wavelenght: 1300 to 1324 nm;
• Zero Dispersion Slope: < 0.092 ps/ nm2.km;
• Cable Cut Off Wavelenght: < 1260 nm;
• Cable PMD (PMDQ): < 0.2 (section link) ps/ √ km;
• Mode Field Diameter at 1310nm: 8.6 +- 0.4 um;
• Core-cladding Concentricity Error: < 0.5 um;
• Cladding Non Circularity: < 1.0 %;
• Cladding Diameter: 125 + 0.7 um;
• Coating Diameter: 245 + 10 um;
• Proof Test: > 0.69 Gpa.

Mechanical & Environmental Properties:
• Storage/Shipping Temperature Range: -30°C to 75°C;
• Max. Operating/Installation Temperature: -20°C to 75°C;
• Relative Humidity: 100%.

Physical & Dimensions Properties:
• No. Of Fibres: 1F;
• Tight Buffer Coating:
* Outer diameter: 900 + 50 um;
* Normally strip length 50~200 mm AT once shall be easily removable;
* The buffered coating is stripped without the fiber coating;
• Strenght Member: Aramid Yarns;
• Colour of Fibre: Blue;
• Outer Sheath Material: Flame retardant TPU;
• Outer Cable Diameter: 3.0 ± 0.2 mm;
• Standart Lenght: 1 ± 1% KMS.
