EXTRALINK 24 Port Cat5e UTP Gigabit Patch Panel V2 (EL-UTP-PP-5E-24)

Kodas: EL-UTP-PP-5E-24
ID: #1717

19 inch rack mountable RJ45 jack panels for Cat.5e

naujiena

13.78€ su PVM

Kaina be PVM: 11.39€

  Turime sandėlyje
Kiekis:


Produkto savybės:

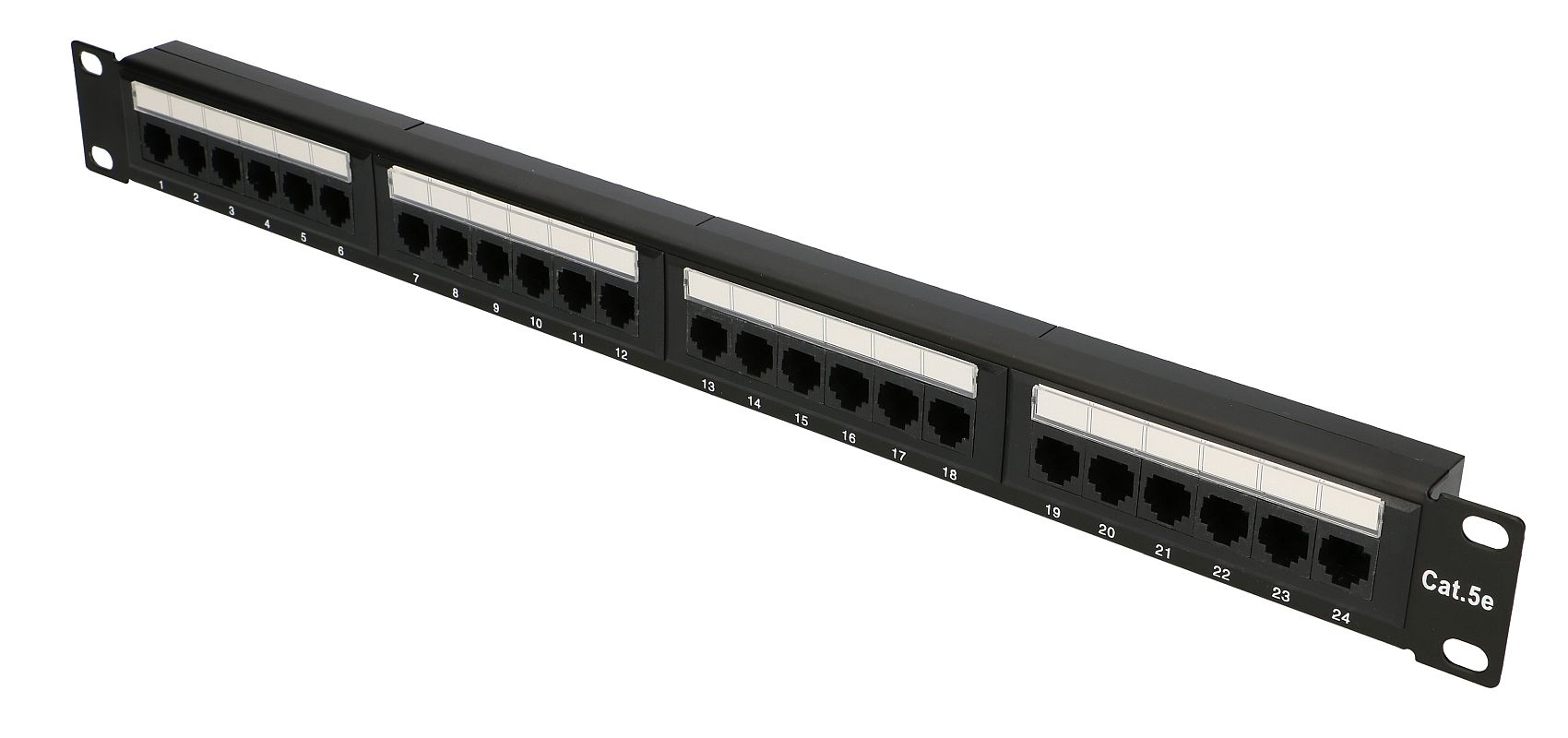

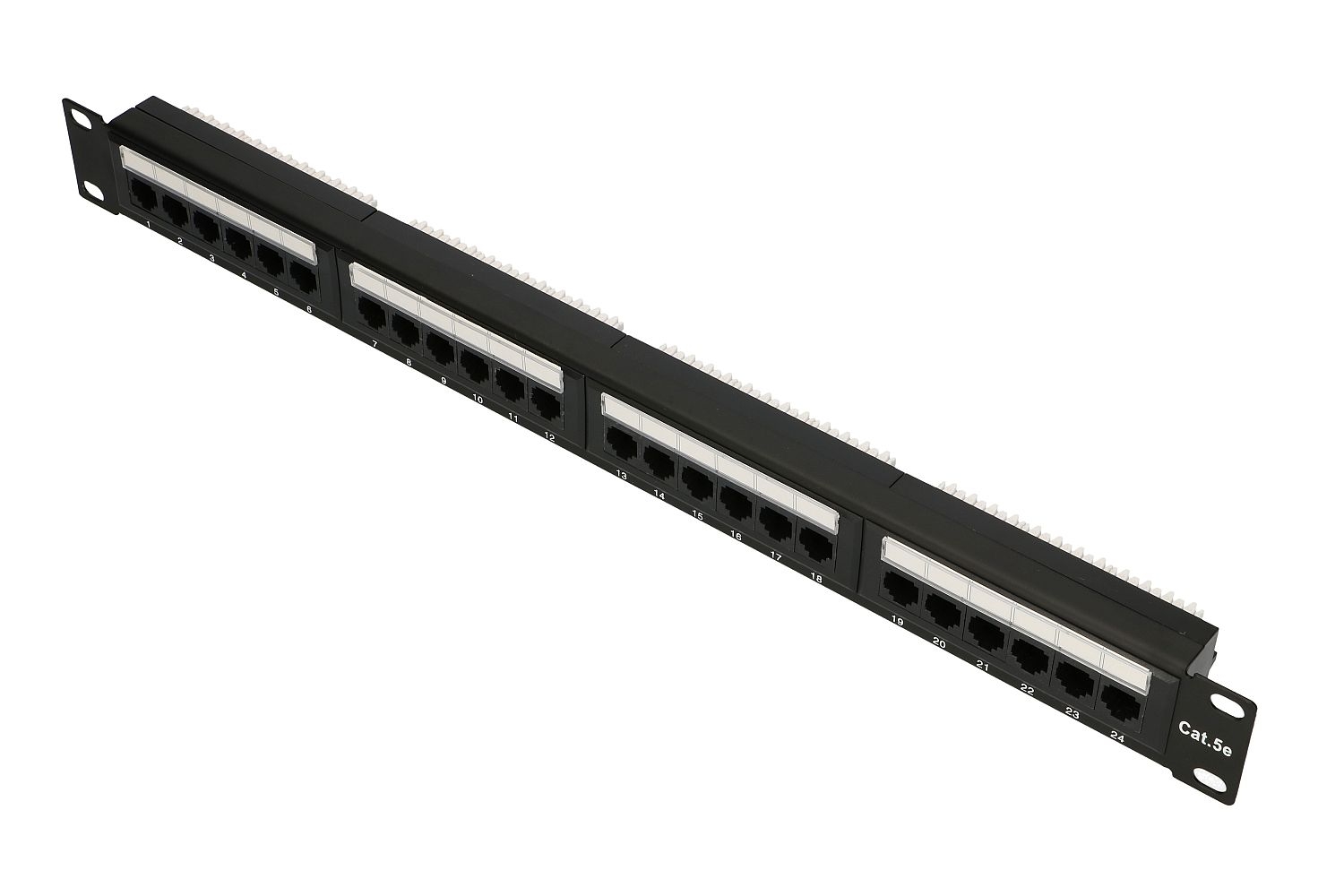

Patch Panel  is a 19 inch rack mountable RJ45 jack panels for Cat.5e.

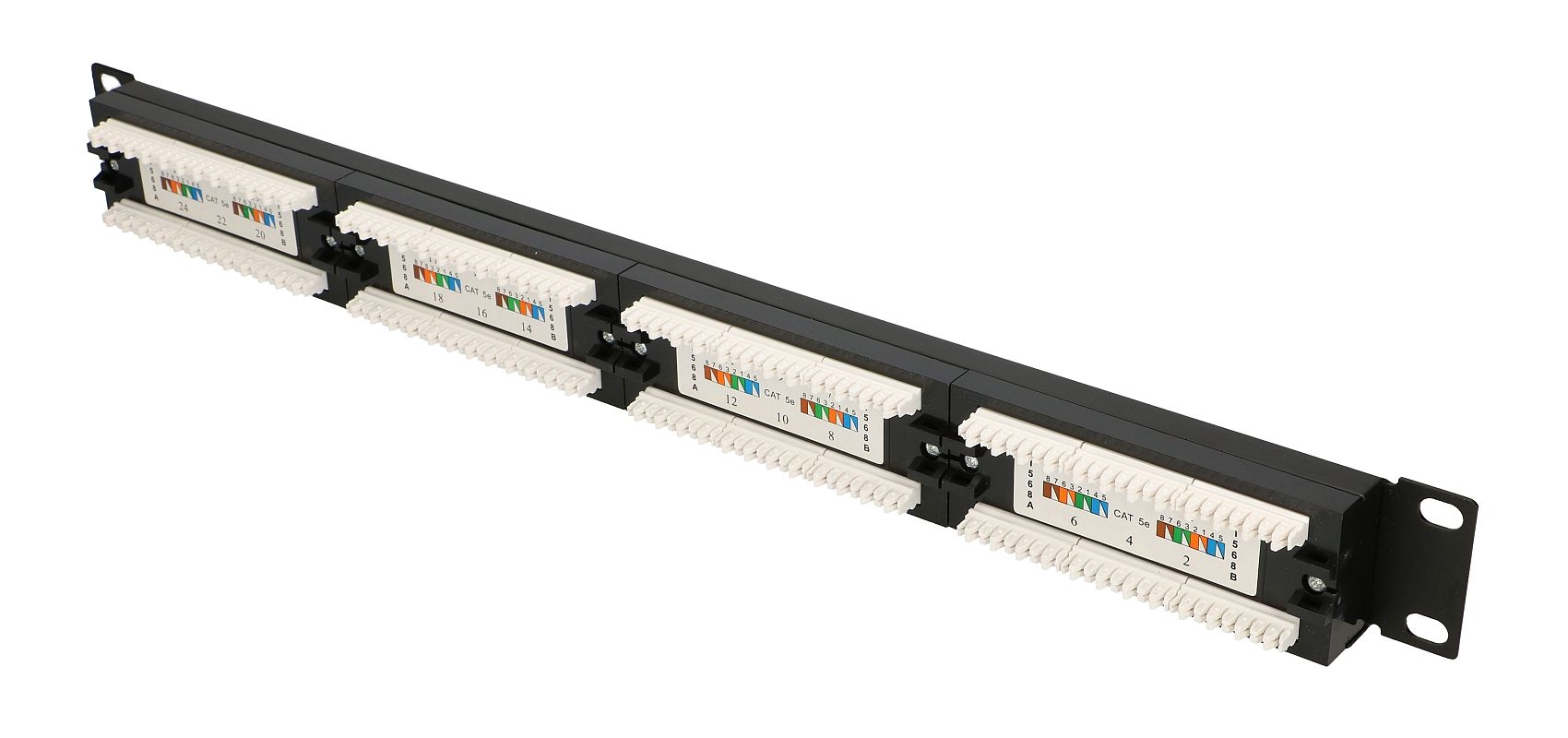

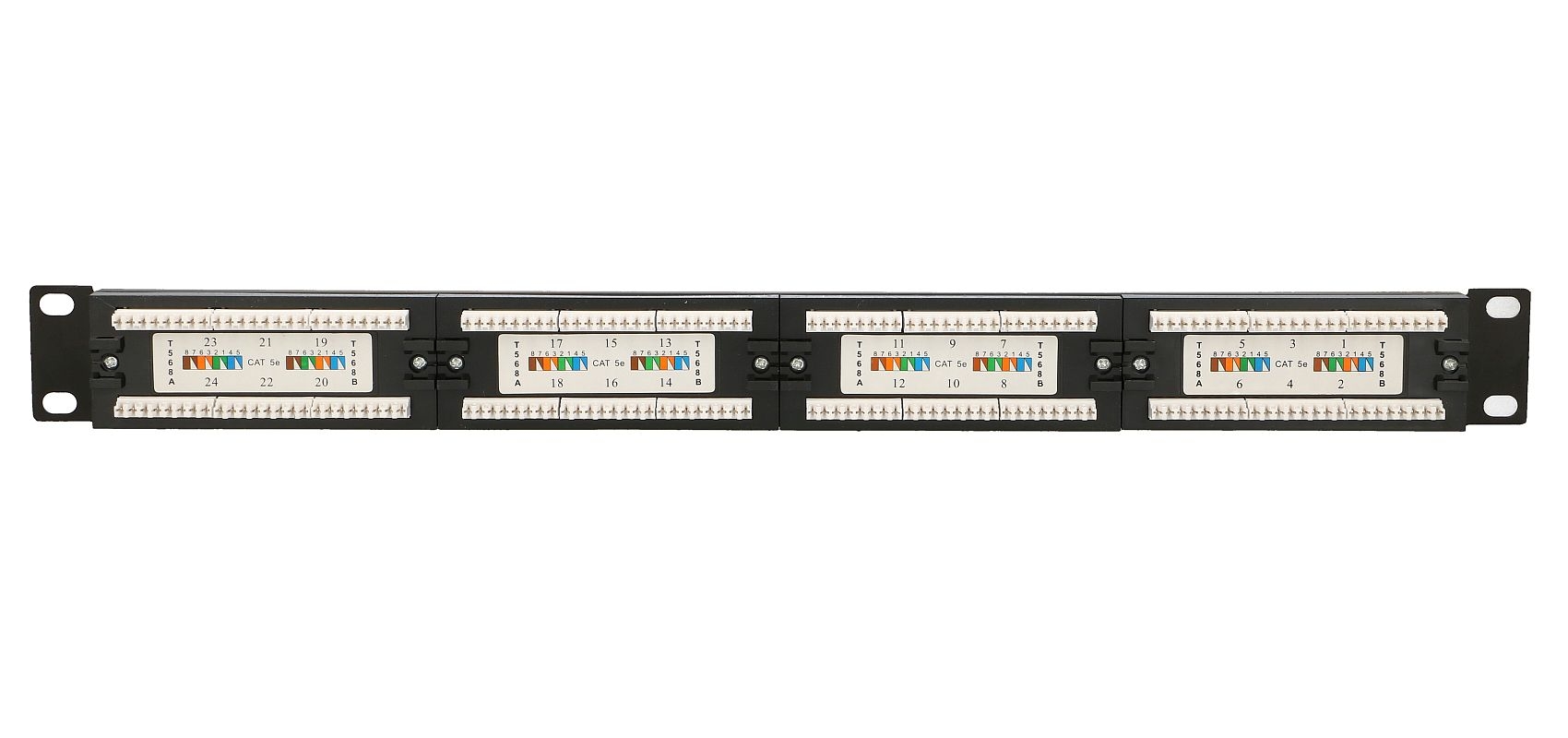

Numerical markings are put on the ports at the front of the panel. At the back of the panel contacts contain colour and numerical markings. There are areas for additional marking.

Applications:

 •  Horizontal distribution or equipment termination on long-distance communication;

 •  Interactive termination on merger point;

 •  Multi-user communication jack in working area.

Features

•  Apply to install standard 19" equipment bracket, case and wall mounted tow rack;

•  Various information modules provide more choice for cabling system operation;

•  Universal sequence-T568A and T568B color sequence labeled on modules clearly;

•  The design of other information modules goes beyond expected grade demand;

•  Label and embedded icons are convenient to label and manage;

•  Single-cord and multi-line pair impact tools are available.

Produkto specifikacijos:

Current Rating: 1.5 Amps
Insulation Resistance: 500 Megaohm
DC Resistance: 0.1 ohm MAX
Contact Resistance: 20 Mili-ohm
Voltage: 150 VAC MAX
Insertion Life: ≥ 1000 Mating Cycles
Plug Retention Force: 89N
Temperature: — 60~80°C
Humidity: 10%-90% RH
IDC Accept: 22-26 AWG Solid Wire
Wire Scheme: T568A/B

Materials

Panel: Cold rolled steel(thickness1.5mm)
Back Bar: Cold rolled steel(thickness1.5mm)
Housing: ABS
Spring Wire: Phosphor Bronze With Gold-plated 3u -50 u"
IDC Contact: Phosphor Bronze with tinned
IDC Holder: High Impact PC

Meets Standards

TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements
TIA/EIA TSB-40
ISO/IEC Generic Cabling Standard 11801
CENELEC Generic Cabling Standard EN50173
