PoE komutatorius/šakotuvas EXTRALINK EUROS V2 (EL-EUROS-V2), 4x port PoE + 2x uplink RJ45

OEM kodas: EUROS V2
Kodas: EL-EUROS-V2
ID: #1697

Jungtys: 6x 100Mbps, PoE jungtys: 4 (kiekvienos jungtes galia: 36W), PoE standartas (IEEE): 802.3af/at. 4 darbiniai režimai: VLAN, AI išplėtimas (net iki 250m PoE maitinimo galimybė ), AI PoE (automatiškai perkraunamas maitinamasis įrenginys, jei per nustatytą laiką neperduodami jokie duomenys), AI QOS (pirmenybė teikiama tinklo pralaidumui pagal naudojimo istoriją ir analizę).

32.23€ su PVM

Kaina be PVM: 26.64€

  Turime sandėlyje
Kiekis:


Produkto savybės:

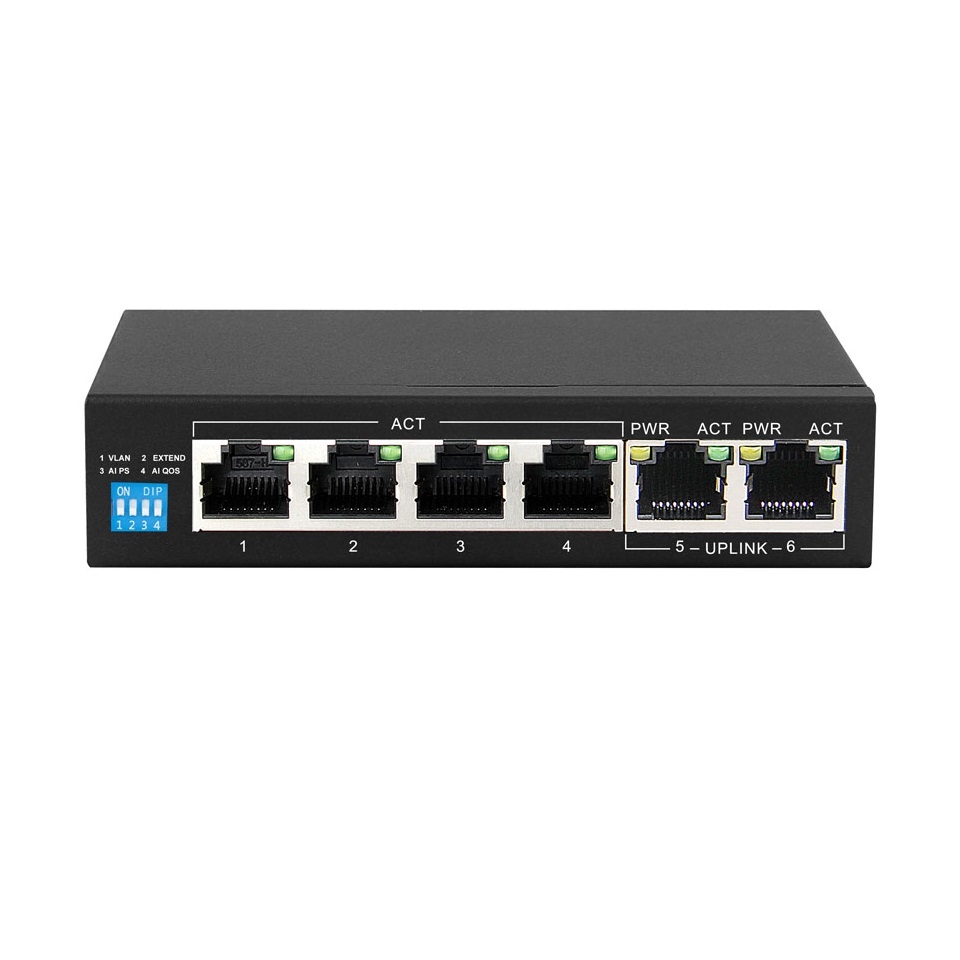

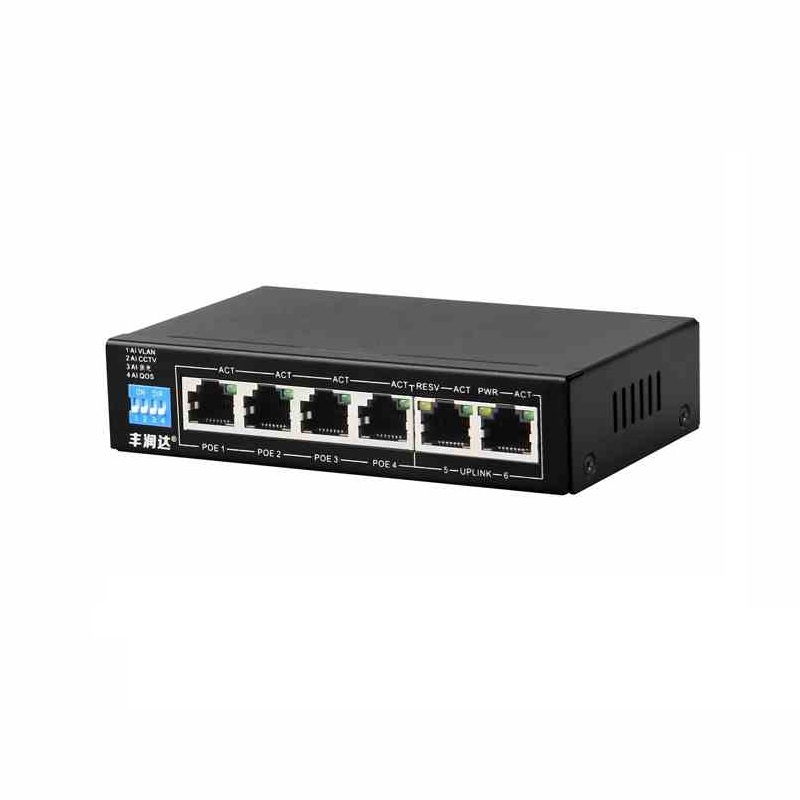

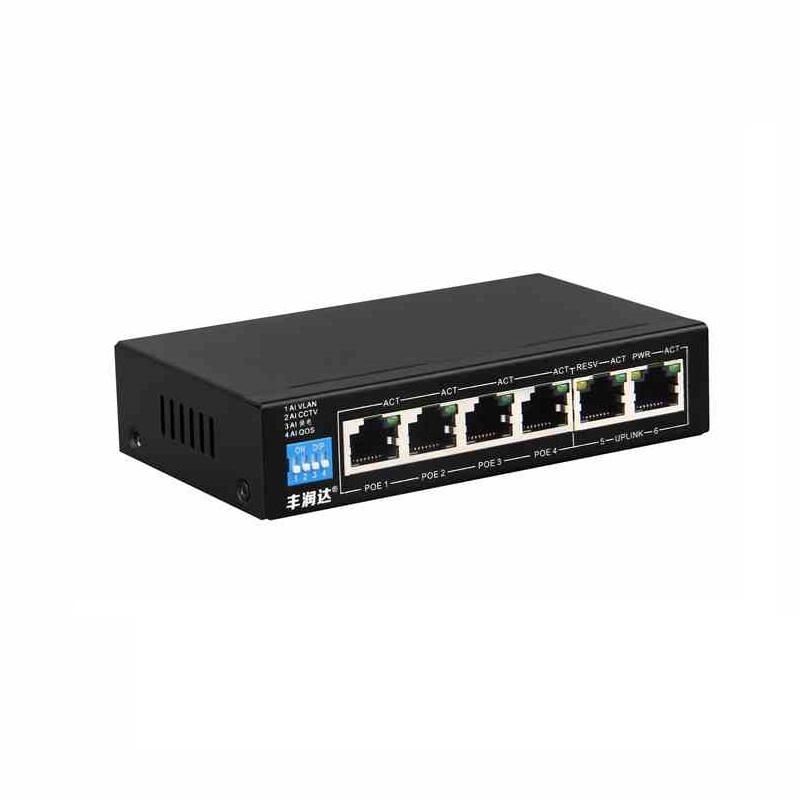

EUROS V2 is 6 port intelligent PoE switch with 4 working modes, AI VLAN mode, AI Extend mode, AI power mode, AI QoS mode. By default, all ports are free to communicate; when AI VLAN mode is enabled, 1-4 ports are isolated from each other, which can effectively suppress network storms and improve network performance. In the AI Extend mode 1-4 ports can effectively transmit distances up to 250 meters, which is suitable for remote monitoring and power supply. In the AI power mode, the switch automatically detects the working status of the PD device and finds that the abnormal device automatically restarts the device. In the AI QoS mode, when the device is congested, the video data is processed preferentially to make the video smooth. The device supports the standard IEEE802.3af/at protocol, which can automatically detect and identify the PDs that comply with the IEEE802.3af/at standard and provide power for them, so there is no need to worry about PoE or non-PoE devices that can damage private standards.

Main characteristics:
• AI Extend: 1-4 ports support 250 meters long distance power supply (should be use cat5e or cat6 cable);
• AI VLAN: Isolating ports 1-4 to each other can effectively suppress network storms and improve network performance;
• AI QoS: Customize application priority to improve network sensitivity. For example, video priority, monitoring transmission is more smooth;
• AI power: Automatically detect the power receiving port, find the dead device, power off and restart the device;
• Support wireless access points (APs) and network surveillance cameras via Cat 5 cables;
• Support IEEE802.3af/at standard PD device;
• Supports uplink port auto-flip (Auto MDI/MDIX);
• Adopt store-and-forward exchange mechanism;
• Intelligent power supply, lowest power consumption, ensure the power demand of the PD terminal;
• With power circuit protection, it can protect the security of the back-end equipment;
• Zero configuration feature power is automatically supplied to the adaptive device;
• No fan design to achieve energy saving and environmental protection;
• Support port no link power saving function.

Produkto specifikacijos:

• Network Ports:
* x4 10/100Mbps PoE RJ45 port ( Port 1~ port4);
* x2 10/100Mbps RJ45 port uplink(Port5~port 6);
• Transfer Rate: 100Mbps full Duplex, 10 or 100Mbps Half Duplex;
• Network protocol and standard: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at;
• Performance:
• Bandwidth:1.2Gbps (no block);
* Network delay (100 to 100Mbps):maximum 20 μs (using 64 byte packet);
* Frame filtering and transmission rate:
1) 10M port maximum 14,800pps;
2) 100M port maximum 148,800pps;
• LED indicators:
* Power;
* LINK/ACT;
• POE pin: 1/2(+), 3/6(-);
• Power:
* Max power for single port: 36W;

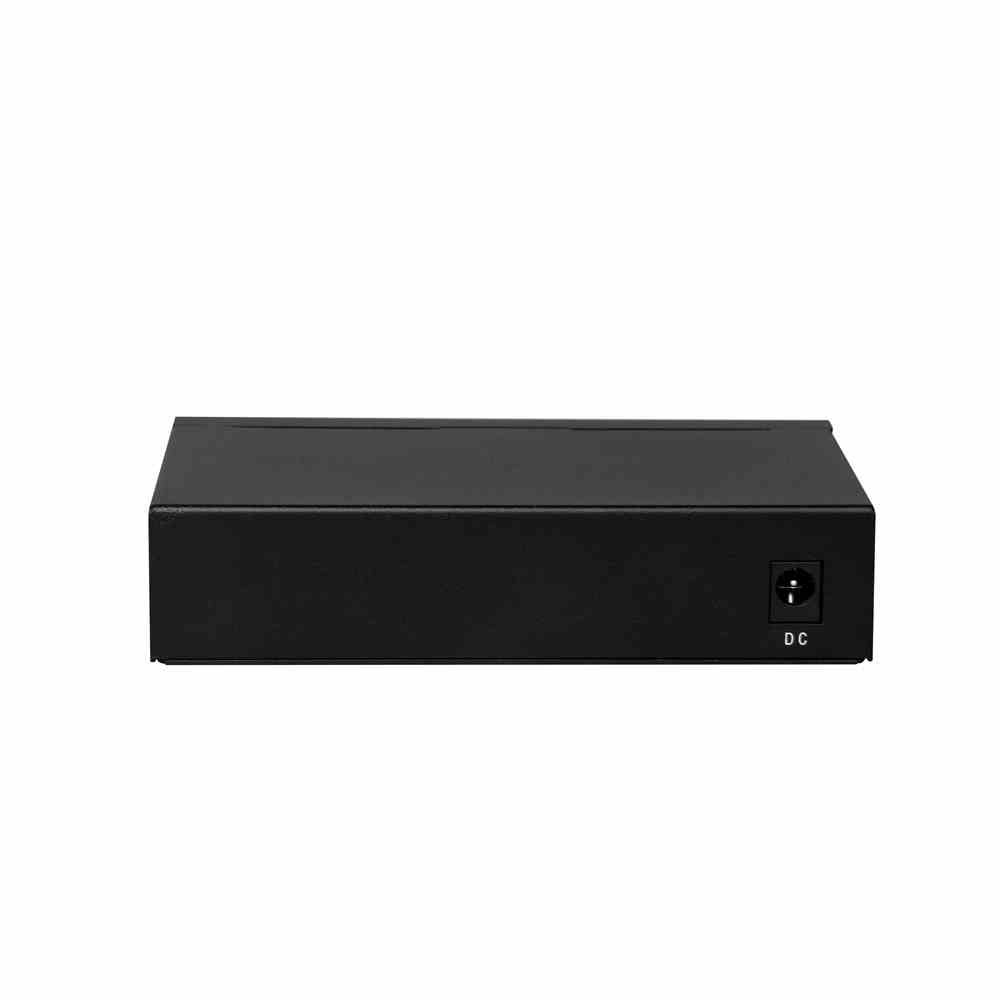

* External power adapter: 60W;
• Dimensions(LxWxH):125mm x 75mm x 27mm;
• Weight:0.5kg;
• Environment:
* Operating Temperature:0°~40°C;
* Operating Humidity:10%~ 90%,Non-condensing;
• EMC:
* CE Class B;
* FCC Part 15,Class B;
* VCCI Class B;
* C-Tick;
• Safety regulation: CE/ROHS/FCC/CCC.
