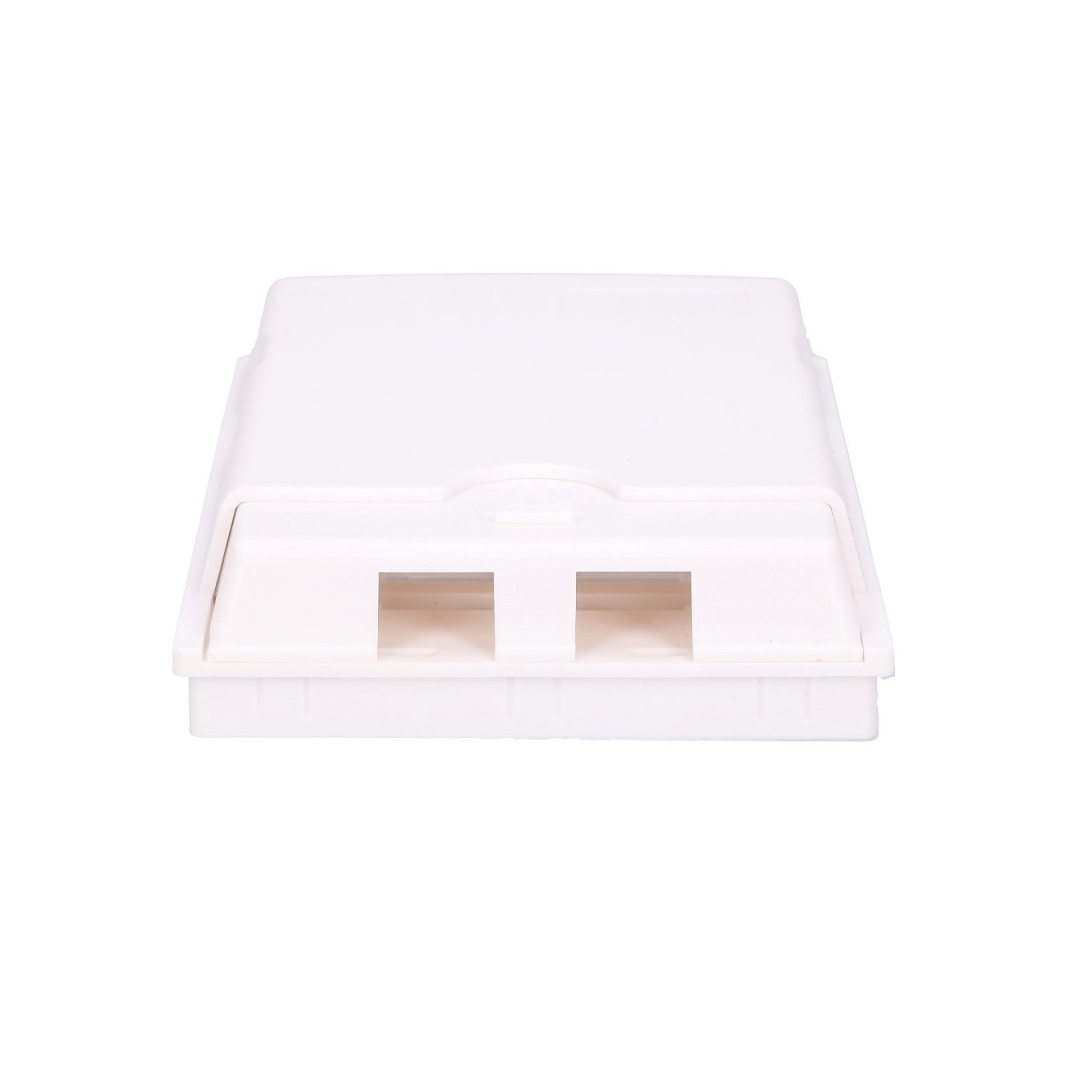

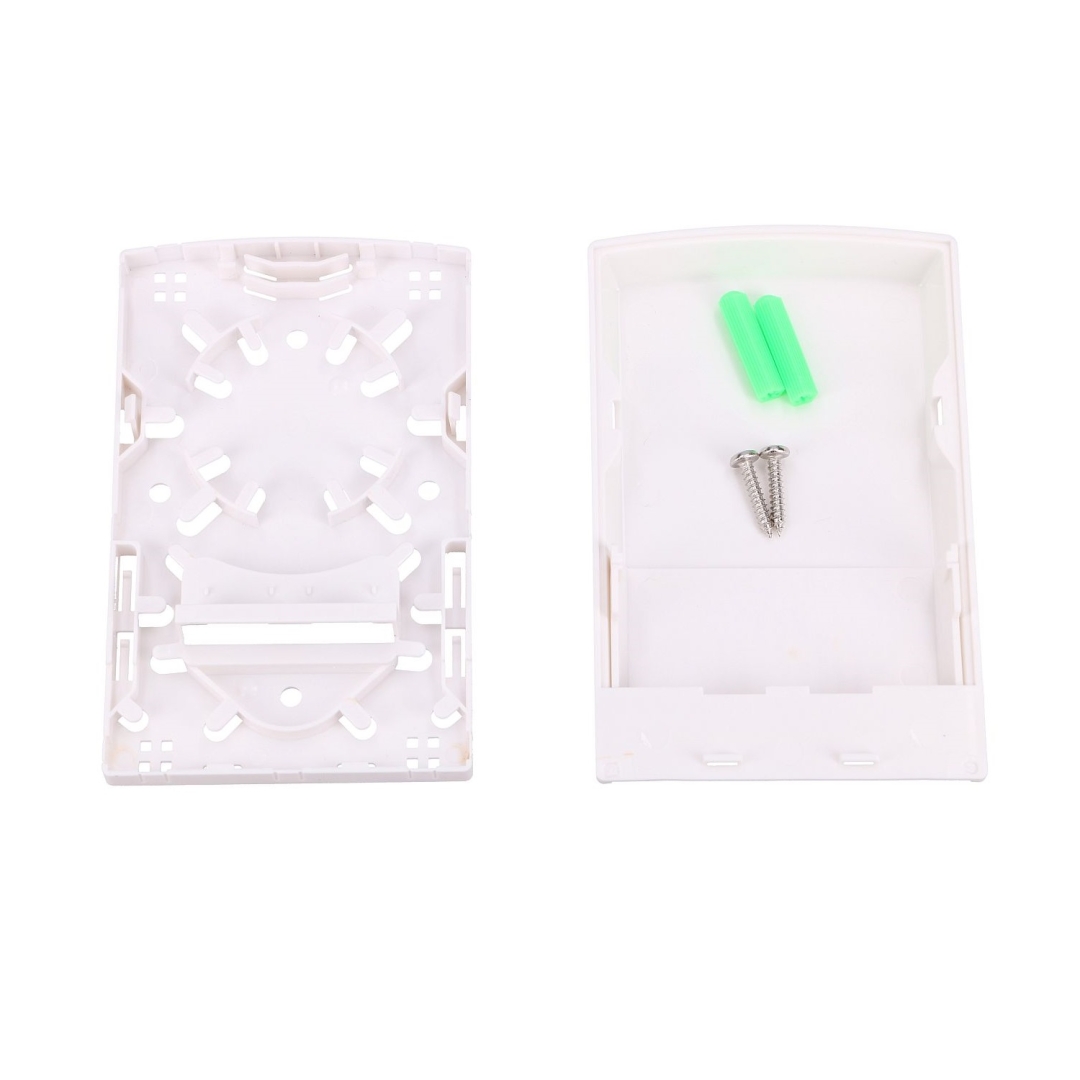

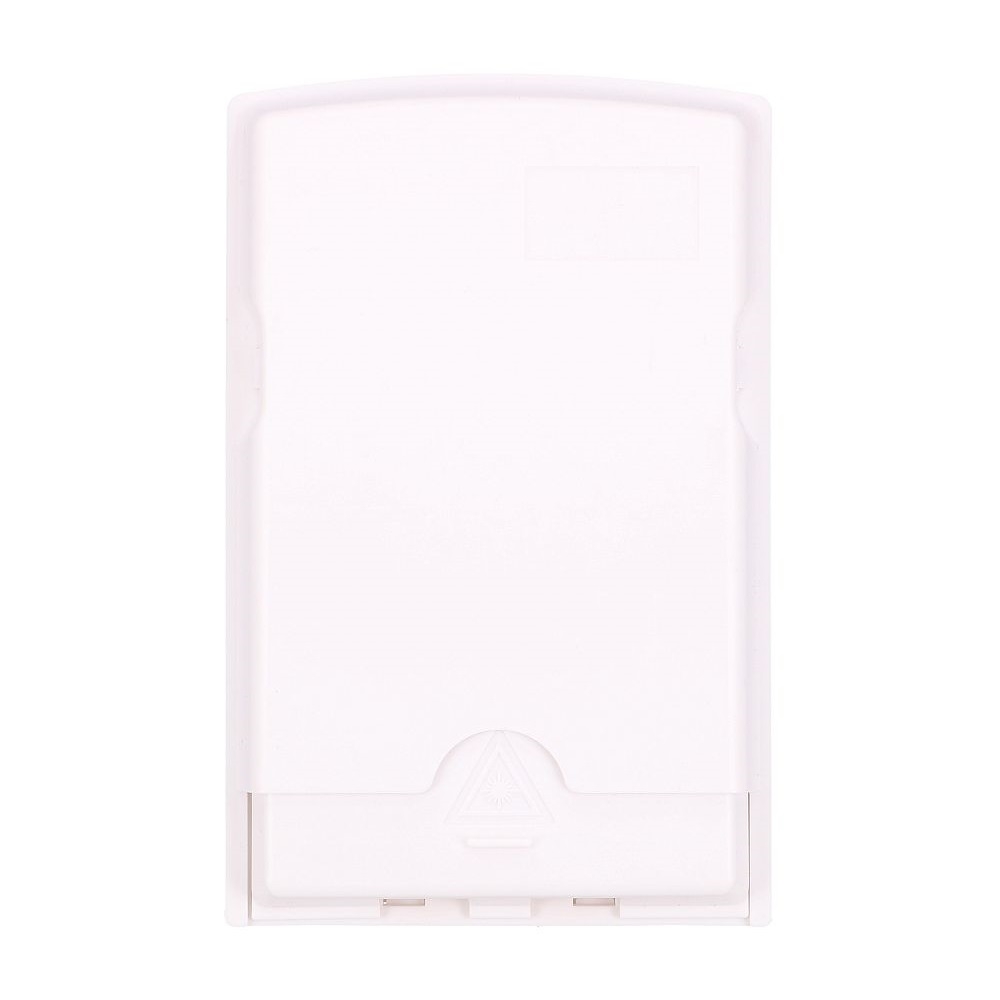

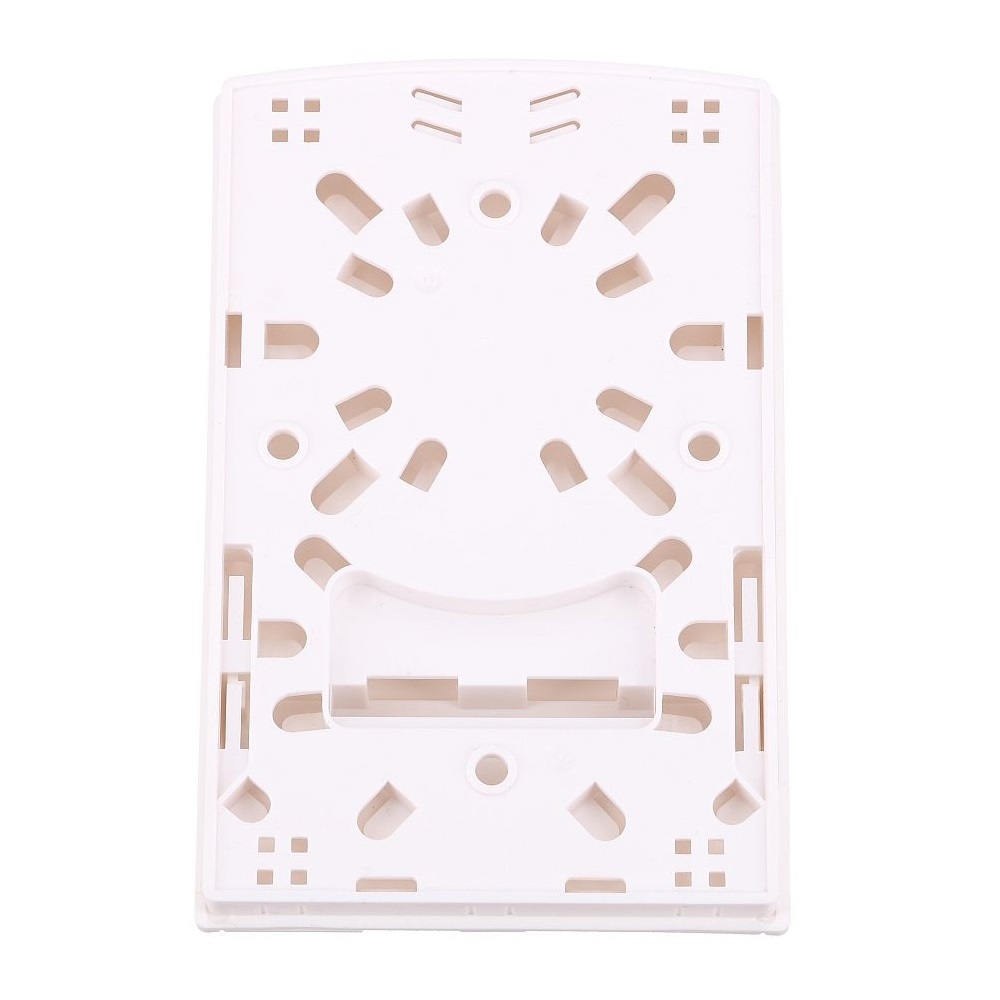

EXTRALINK Adele 2 intarpų optinio pluošto (šviesolaidžio) išvadų dėžutė, baltos spalvos (EL-TERMB-2CFO)
Su apsauginėmis durelėmis, dulkių apsauga. Tinka daugelio tipų moduliams. Tinka “SC simplex“ arba “LC duplex“ šviesolaidžiams. Gali būti montuojamas išorėje arba “paslėptas“.
Produkto savybės:
• With protective doors, dustproof;
• Suitable for many types of modules, used in cabling work area subsystem;
• Embedded type surface, easy for installation and removal;
• Available for fiber optic SC simplex or LC duplex and can be used in both surface mounted installation and concealed panel installation;
• All modules are solderless mode.
Produkto specifikacijos:
Applications:
• Optical fiber communication system;
• Fiber optic CATV, FTTH Fiber to the Home;
• Optical fiber access network;
• Testing instruments, fiber optical sensors;
• Fiber optic patch panels, cabinet type or wall-mounted type fiber optic distribution units.
Technical Data:
Scope of application |
3.0 x 2.0 mm drop cable or indoor cable |
Fiber Cladding Diameter |
125μm ( 652 & 657 ) |
TBF Diameter |
250μm & 900μm |
Applicable Mode |
Singlemode & Multimode |
Tensile strength |
>50 N |
Operating temperature |
-40~+85℃ |
Configuration table
Model |
Size |
Max Capacity |
||
A*B*C(mm) |
SC |
LC |
PLC |
|
JZ-1322-2H |
83.4*130*24.1 |
2 |
4 |
4(LC) |
