EXTRALINK AGM 12V 18Ah akumuliatorius/baterija (EL-AGM-BAT-12V-18AH)

Kodas: EL-AGM-BAT-12V-18AH
ID: #1751

Sandarus švino rūgšties akumuliatorius. Elektrolitas įspraustas separatoriuje su stiklo plaušeliais

25.48€ su PVM

Kaina be PVM: 21.06€

  Turime sandėlyje
Kiekis:


Produkto savybės:

Purpose:
• Alarm systems and access control;
• Communication, telecommunication and wireless Wi-Fi;
• Supply for mobile devices;
• Industry and energy.

Technology:
Extralink acid maintenance-free batteries, the electrolyte is trapped in the separator with glass mat. Type: sealed lead-acid batteries, with safety valve.

Features:
Design life of 3-5 years - more than 600 cycles at a depth of discharge to 50%.

Produkto specifikacijos:

BATTERY CONSTRUCTION
Component  Positive plate Negative plate Container  Safety valve Terminal Separator Electrolyte
Raw Material Lead dioxide Lead  ABS Rubber  Copper  Fiberglass  Sulfuric acid
CHARACTERISTIC
Nominal Voltage 12V
Nominal Capacity (20 hour rate) 18Ah
  20 hour rate (0.36A) 18Ah
Capacity  10 hour rate (0.684A) 17.1Ah
25ᵒC(77°F) 5 hour rate (1.152A) 14.4Ah
  1 hour rate    (4.68A) 11.7Ah
Internal Resistance Full Charged Battery 25ᵒC(77°F) <25m Ω
Cyclic Life 50%(C20) Depth of discharge 600 Times
Float Life 25℃(77°F) Float charge at 13.8V About 3 Years
  40ᵒC (104°F) 102%
Capacity affected by Temperature (20 hour ) 25ᵒC (77°F) 100%
  0ᵒC (32°F) 85%
  -15ᵒC (5°F) 65%
  Capacity after 3 month storage 90%
Self-Discharge  Capacity after 6 month storage 80%
25ᵒC (77°F) Capacity after 12 month storage 62%
Charge (Constant Voltage) 25ᵒC (77°F) Cycle  Initial Charging Current Less than 5.4A Voltage 14.6-15.0V
Float  Voltage 13.5-13.8V



DISCHARGE CHARACTERISTICS
   Run Time (Constant Current and Power 25ᵒC 77ᵒF)
Voltage  3 min 5 min 15 min 30 min 45 min 1h 2h 3h 5h 8h 10h 20h
9.6 V 777 687 398 241 168 134 72,5 52,7 35,8 23,6 19,6 10,7
10.2V 700 628 358 221 164 132 71,5 52,2 35,5 23,6 19,6 10,7
10.5V 583 551 339 209 162 130 70,5 51,5 35,5 23,2 19,5 10,5
10.8V 543 491 319 180 160 128 68,4 50,1 35,2 23,2 19,1 10,3

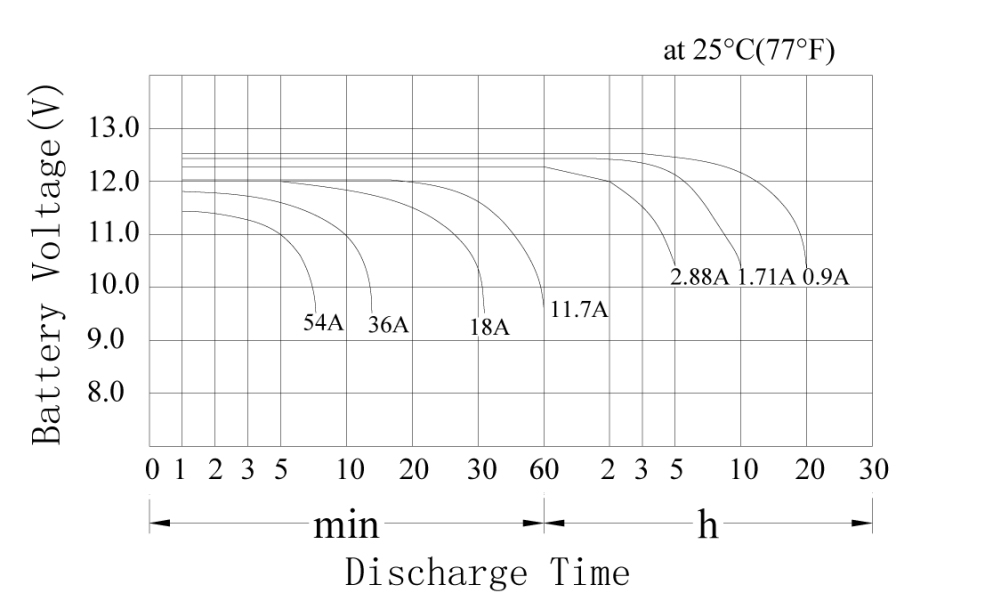

Find discharge curve in photos
