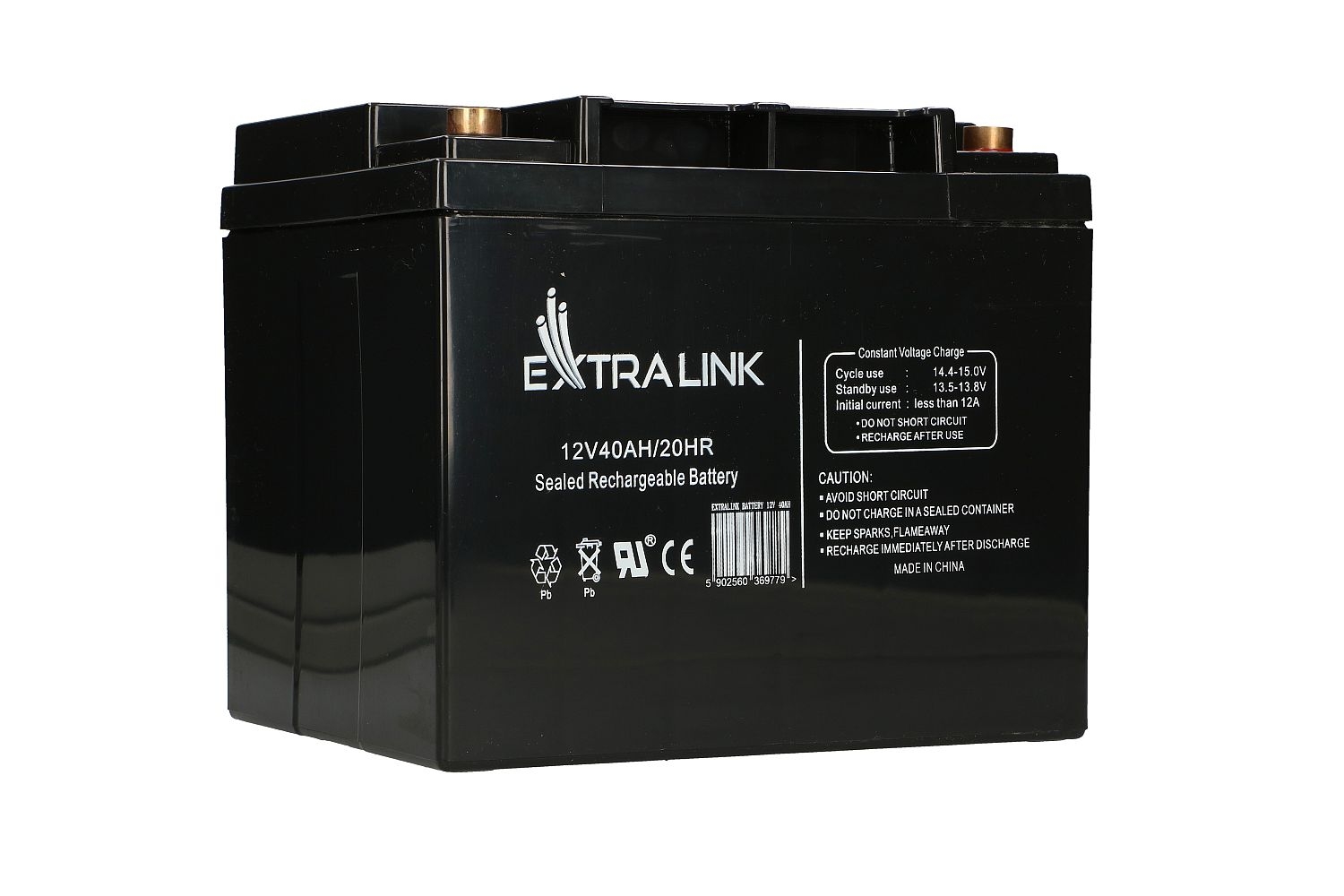

EXTRALINK AGM 12V 40Ah akumuliatorius/baterija (EL-AGM-BAT-12V-40AH)

Kodas: EL-AGM-BAT-12V-40AH
ID: #1750

Sandarus švino rūgšties akumuliatorius. Elektrolitas įspraustas separatoriuje su stiklo plaušeliais

84.95€ su PVM

Kaina be PVM: 70.21€


Produkto savybės:

• Uninterruptable Power Supply (UPS);
• Electric Power System (EPS);
• Emergency backup power supply;
• Emergency light;
• Railway signal;
• Aircraft signal;
• Alarm and security systems;
• Electronic apparatus and equipment;
• Communication power supply;
• DC power supply;
• Auto control system.

„Extralink“ acid maintenance-free batteries, the electrolyte is trapped in the separator with glass mat. Type: sealed lead-acid batteries, with safety valve.

Produkto specifikacijos:

Nominal Voltage


Nomial Capacity (10HR)



Length: 197 + 2mm (7.76 inches)

Width: 165 + 2mm (6.50 inches)

Container Height: 176 + 2mm (6.92 inches)

Total Height (with Terminal): 176 + 2mm (6.92 inches)

Approx Weight

Approx 12.2 kg (26.89 lbs)


T6 / T12

Container Material


Rated Capacity

40 AH/2.0A              (20hr ,1.80V/cell,25°C/77°F)

38.0 AH/3.8A           (10hr,1.80V/cell,25°C /77°F)

32.7 AH/6.55A         (5hr,1.75V/cell,25°C /77°F)

29.7 AH/9.89A         (3hr,1.75V/cell,25°C /77°F)

23.2 AH/23.2A         (1hr,1.60V/cell,25°C /77°F)

Max. Discharge Current

456A (5s)

Internal Resistance

Approx 10 mΩ

Operating Temp.Range

Discharge : -15~50°C (5~122°F)

Charge : 0~40°C (32~104°F)

Storage : -15~40° C (5~104°F)

Nominal Operating Temp. Range

25 + 3℃ (77 + 5°F )

Cycle Use

Initial Charging Current less than 11.4 A.

Voltage 14.4V~15.0V at 25°C (77°F)Temp.

Coefficient -30mV/°C

Standby Use

No limit on Initial Charging Current Voltage

13.5V~13.8V at 25°C(77°F)Temp.

Coefficient -20mV/°C

Capacity affected by Temperature

40°C (104 °F)       103%

25°C ( 77 °F )       100%

0°C ( 32 °F )         86%

Self Discharge

Extralink series batteries may be stored for up to 6 months at 25°C (77°F) and then a freshening charge is required. For higher temperatures the time interval will be shorter.

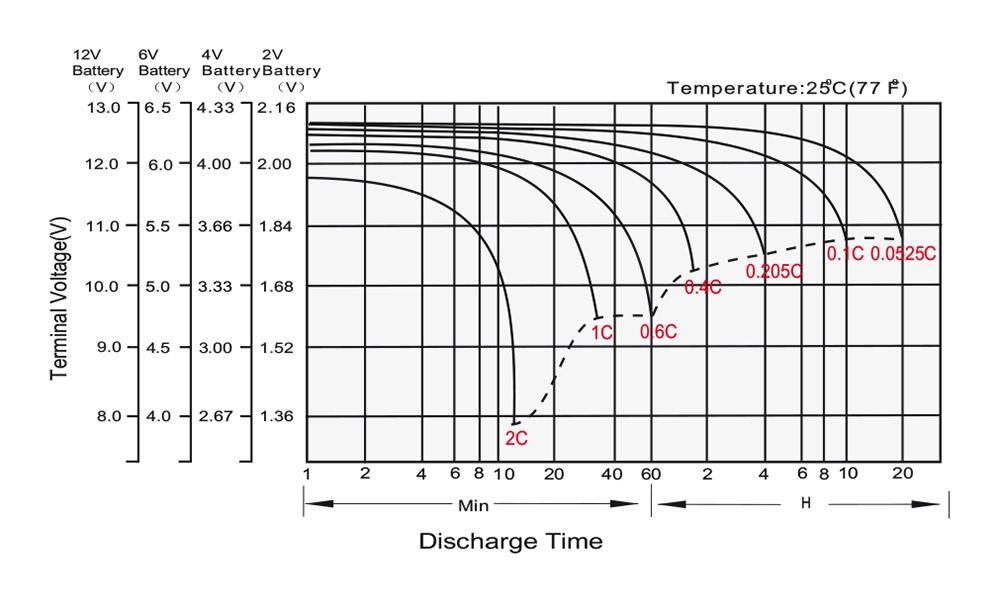

Find discharge curves in photos
