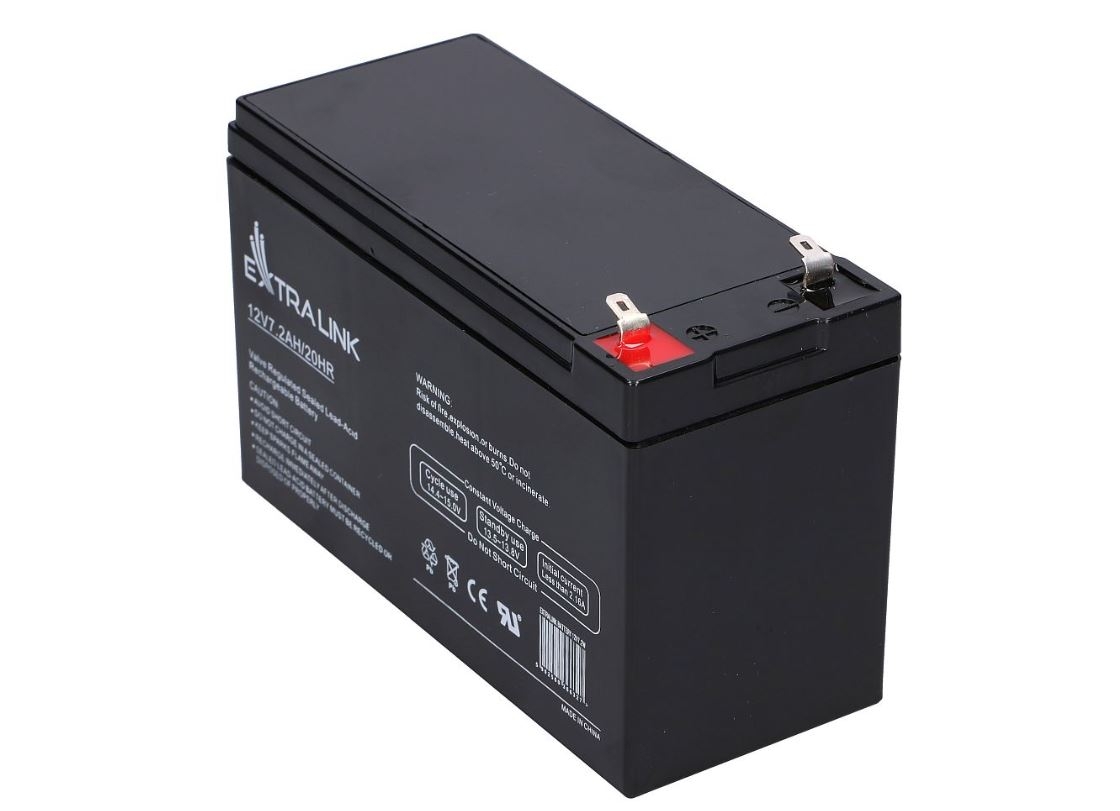

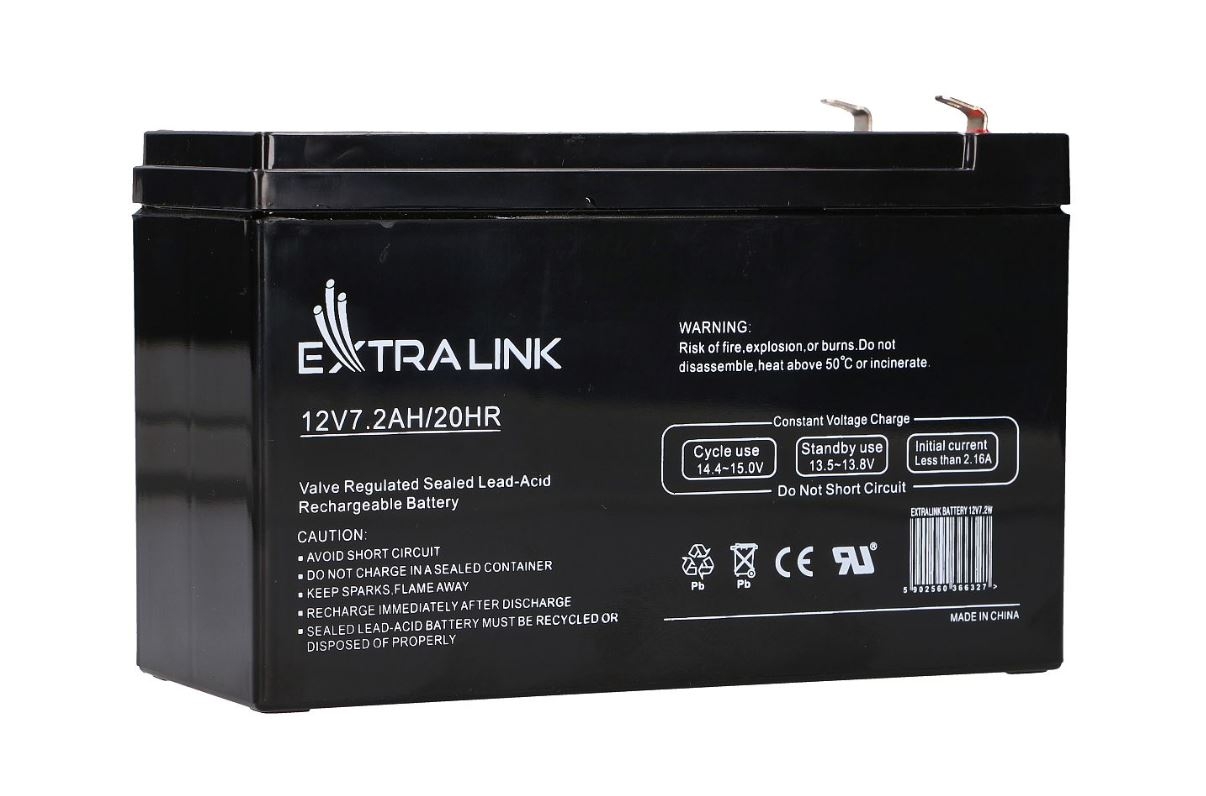

EXTRALINK AKUMULATOR BATTERY ACCUMULATOR AGM 12V 7,2AH 7AH151X65X93MM 2.1KG T1(EL-AGM-BAT-12V-7AH)

Kodas: EL-AGM-BAT-12V-7AH
ID: #1900

Maintenance-free battery 12V-7,2Ah

naujiena

13.18€ su PVM

Kaina be PVM: 10.89€

Kiekis:


Produkto savybės:

Purpose:
Alarm systems and access control, communication, telecommunication and wireless Wi-Fi. Supply of mobile devices, industry and energy.

Technology:
AGM acid maintenance-free batteries, the electrolyte is trapped in the separator with glass mat. Type: sealed lead-acid batteries, with safety valve

Features:
Design life of 3-5 years - more than 600 cycles at a depth of discharge to 50%.

Produkto specifikacijos:

Battery construction :

Lead dioxide Positive plate
Lead Negative plate
ABS Container
Rubber Safety valve
Copper Terminal
Fiberglass Separator
Sulfuric acid Electrolyte

Nominal Voltage :

12V

Nominal Capacity (20 hour rate) :

7.2Ah

Capacity 25°C (77°F) :

20 hour rate (0.36A) - 7.2Ah
10 hour rate (0.684A) - 6.84Ah
5 hour rate (1.152A) - 5.76Ah
1 hour rate (4.68A) - 4.68Ah

Internal Resistance :

Full Charged Battery 25°C(77°F) - <30mΩ

Cyclic Life :

50%(C20) Depth of discharge - 600 Times

Float Life :

25°C(77°F) Float charge at 13.8V - About 3 Years

Capacity affected by Temperature (20 hour) :

40°C (104°F) - 102%
25°C (77°F) - 100%
0°C (32°F) - 85%
-15°C (5°F) - 65%

Self-Discharge 25°C (77°F) :

Capacity after 3 month storage - 90%
Capacity after 6 month storage - 80%
Capacity after 12 month storage - 62%

Charge (Constant Voltage) 25°C (77°F) - Cycle :

Initial Charging Current Less than 2.16A Voltage 14.6-15.0V

Charge (Constant Voltage) 25°C (77°F) - Float :

Voltage 13.5-13.8V
