EXTRALINK Betty 4 Core Fiber Optic Distribution Box (EL-DB-BETTY)

Kodas: EL-DB-BETTY
ID: #2353

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building

naujiena

6.78€ su PVM

Kaina be PVM: 5.60€

Kiekis:


Produkto savybės:

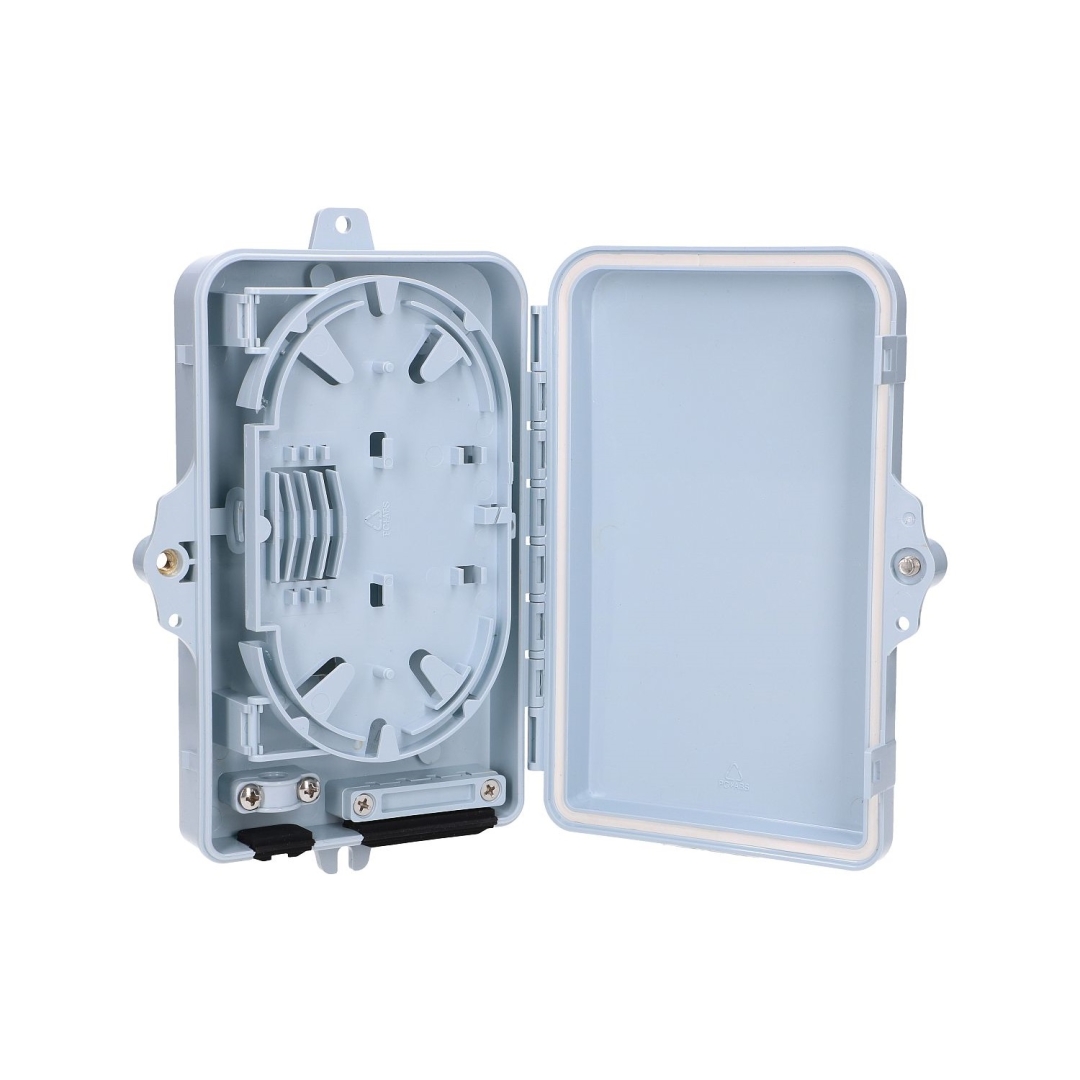

  • Total enclosed structure, nice shape
  • Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc. All in one
  • Cable, pigtails, patch cords are running through own path without disturbing each other. Sassette type. SC adapter installation, easy maintenance

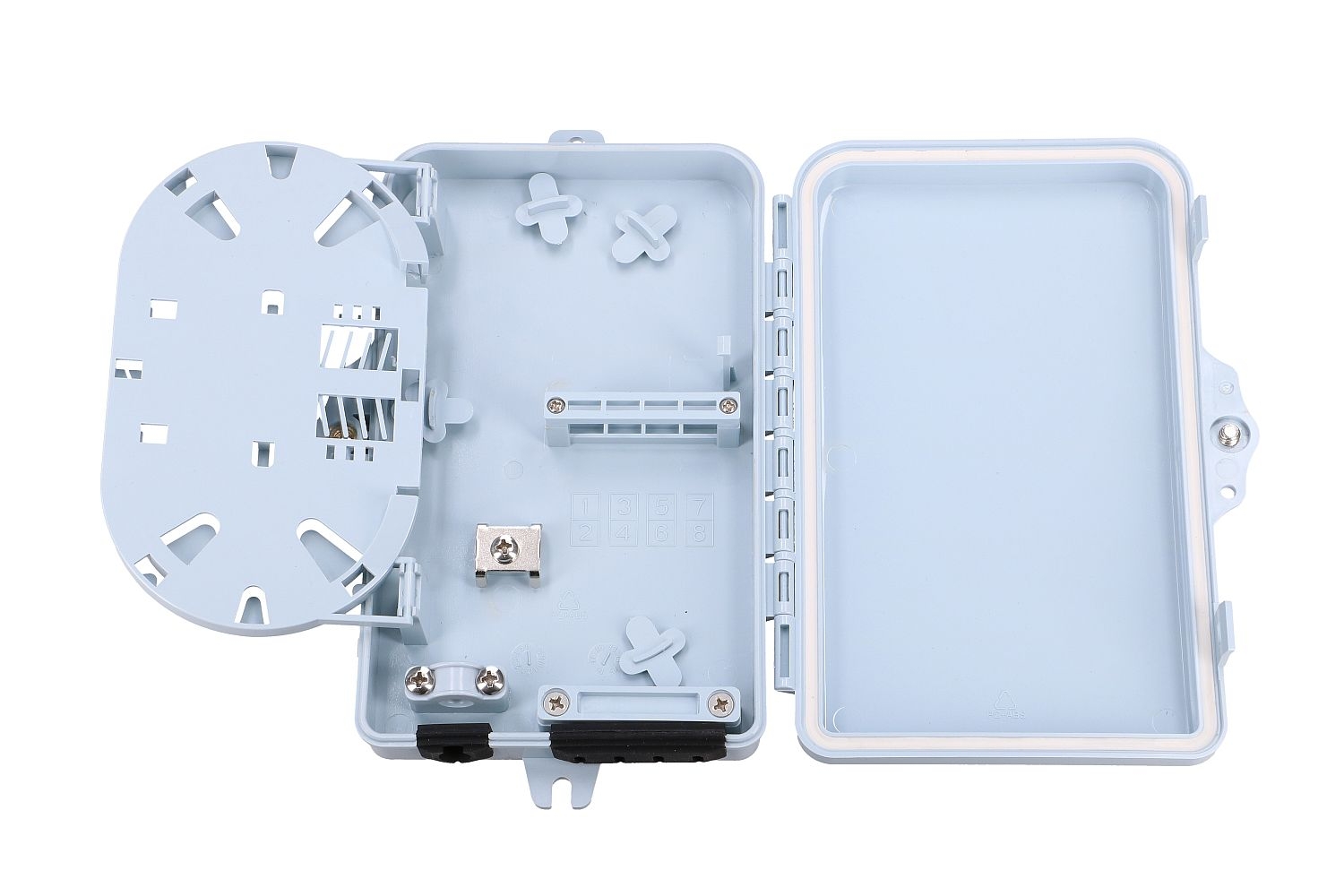

  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

Produkto specifikacijos:

Working temperature : -40°C~+85°C

Relative humidity : ≤85%(+30°C)

Atmospheric pressure : 70KPa~106Kpa

Insertion loss : ≤0.2dB

UPC return loss : ≥50dB

APC return loss : ≥60dB

Life of insertion and extraction : >1000 times

Thunder-proof Technical Data

The grounding device is isolated with the cabinet, isolation resistance is no less than 2 MΩ/500V(DC);IR≥2 MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover; U≥3000V
