EXTRALINK CAT5E FTP (F/UTP) V2 lauko, susuktos poros LAN kabelis, 305 m (EL-LAN-FTP-5E-305)

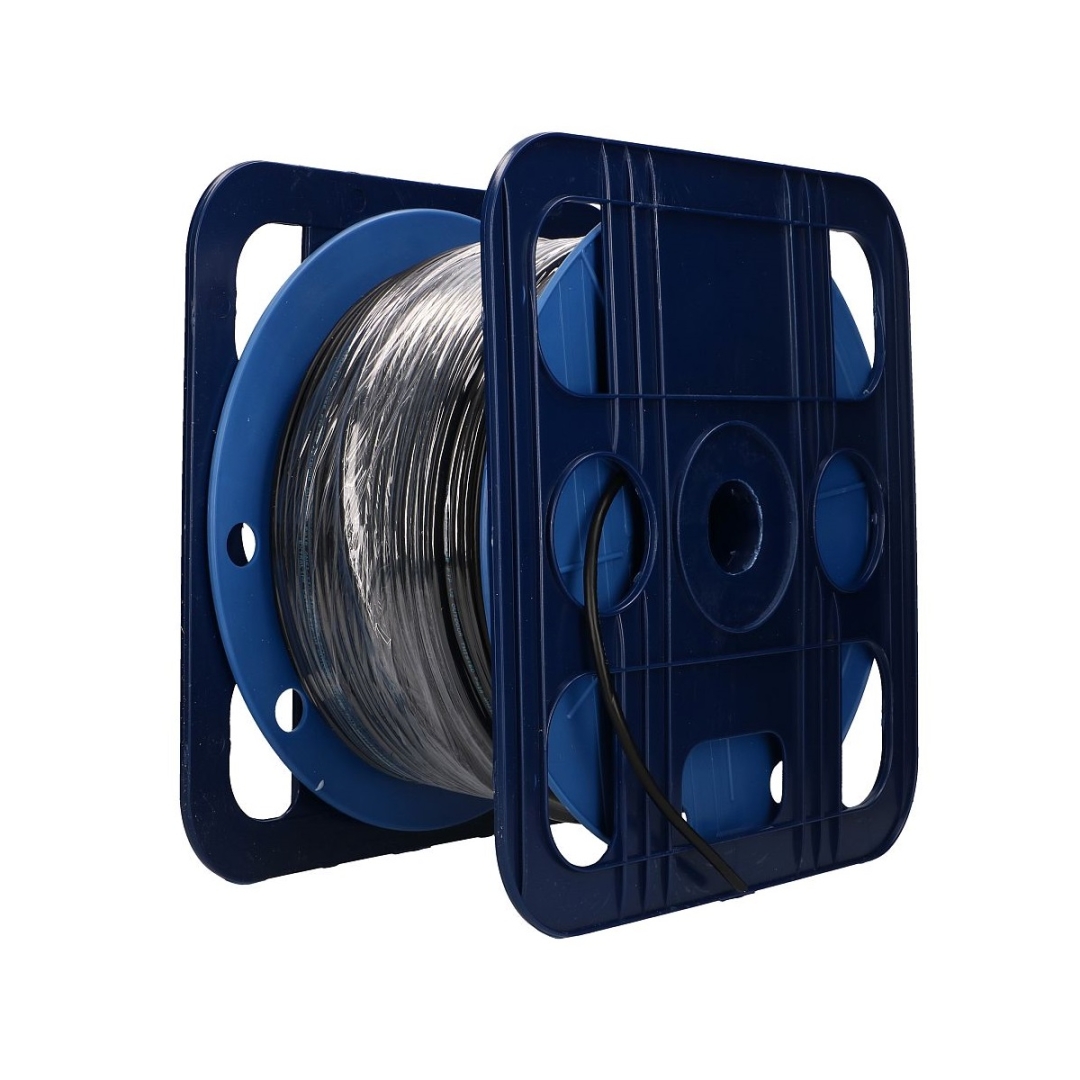

Lauko tinklo FTP Cat.5e kabelis. Kabelis supakuotas į 1000 ft. (304,8 m).

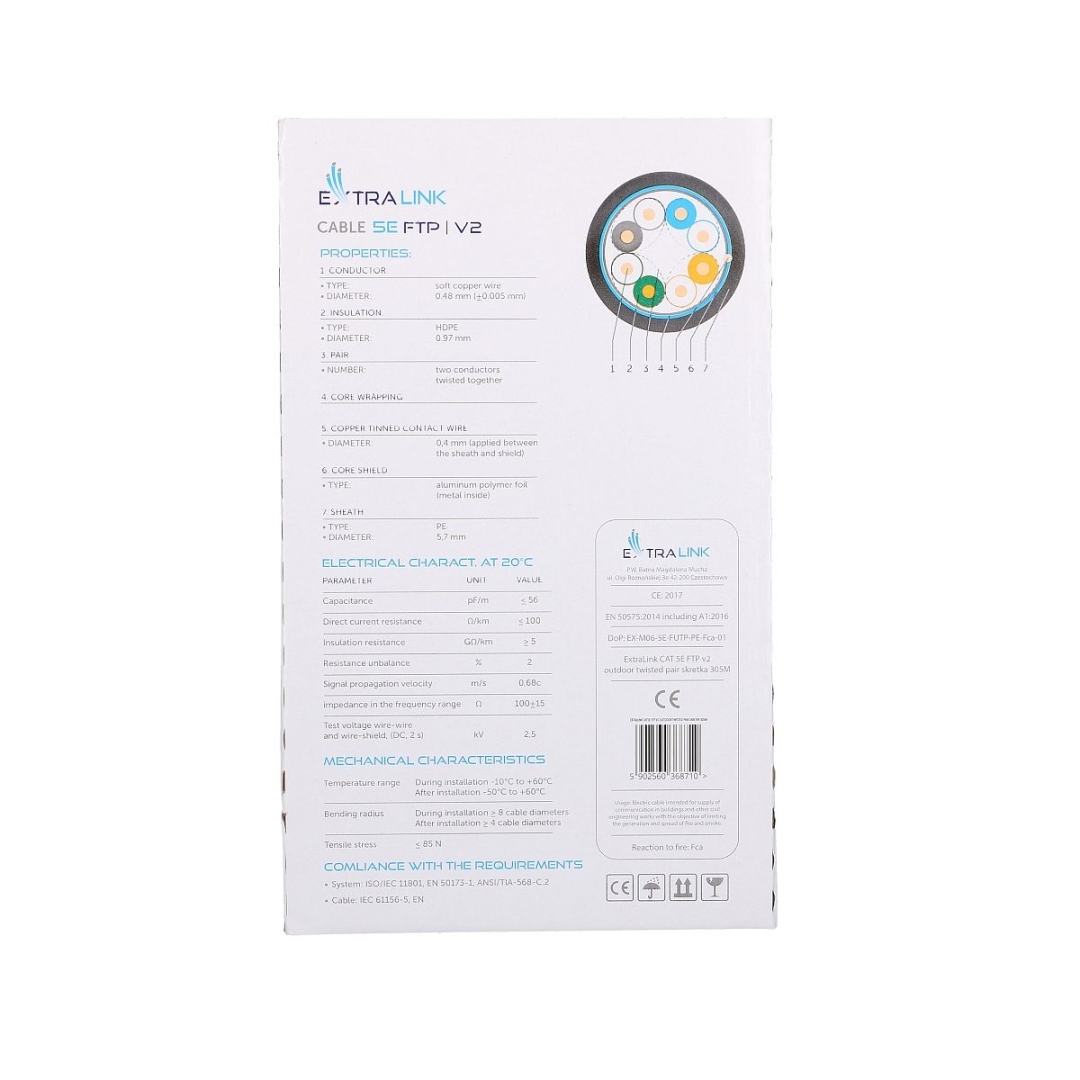

Produkto specifikacijos:
Conductor:
• Type: Soft copper wire;
• Diameter: 0,48 mm (±0,005 mm);
• AWG: 24.
Insulation:
• Type: PE;
• Diameter: 0.97mm.

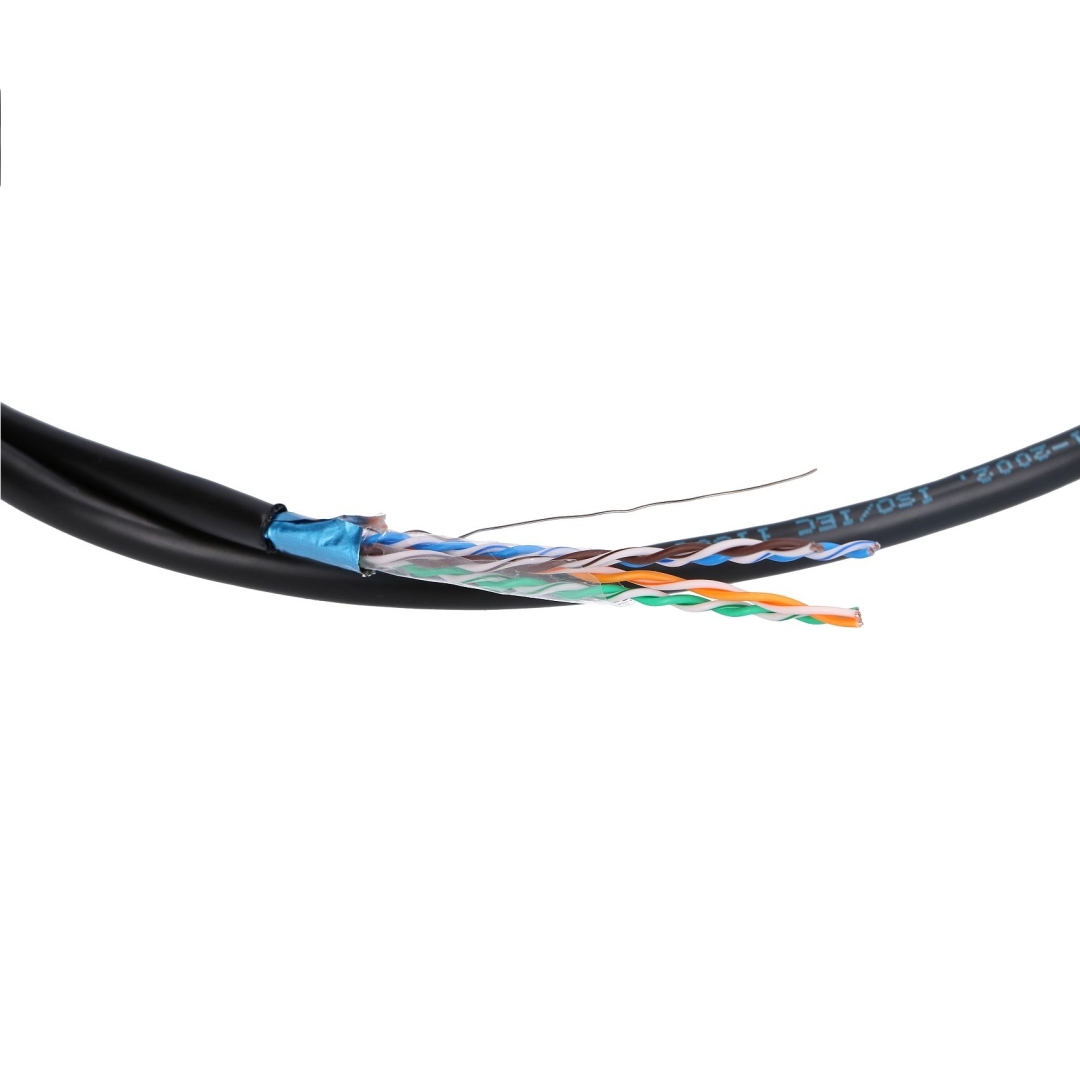

Pair: two conductors twisted together.
Core Wrapping.
Copper Tinned Contact Wire: diameter 0,4 mm is applied between the sheath and shield.
Core Shield: aluminum polymer foil (metal inside).

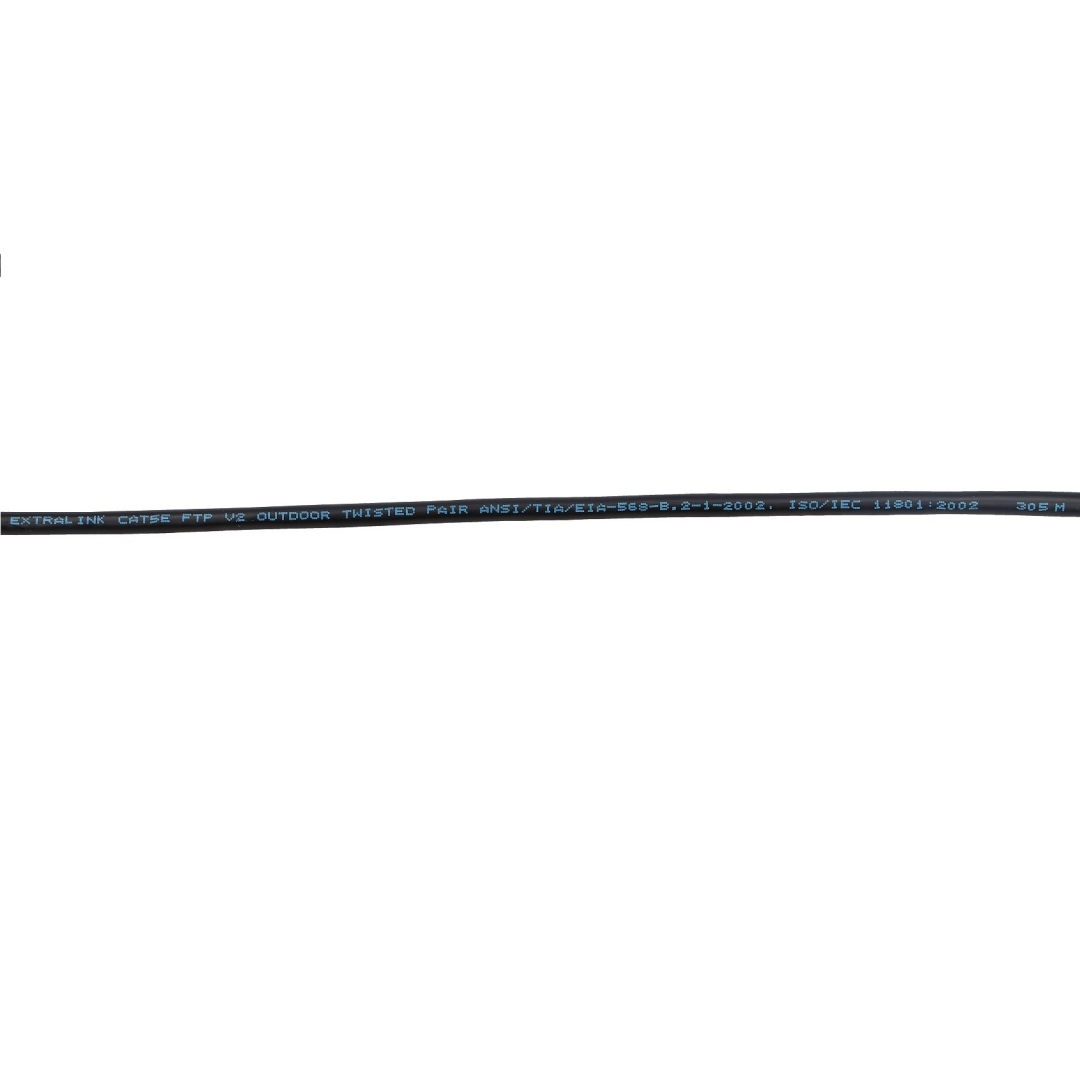

Sheath: PE, nominal cable diameter: 5,7 mm.
Temperature Range:
• During installation -10°C to +60°C;
• After installation -50°C to +60°C.
Bending Radius:
• During installation ≥ 8 cable diameters;
• After installation ≥ 4 cable diameters.
Tensile Stress: ≤ 85 N.
Electrical Characteristics at 20°C:
• Capacitance: ≤ 56 pF/m;
• Direct current resistance: ≤ 108 Ω/km;
• Insulation resistance: ≥ 5 GΩ/km;
• Resistance unbalance: 2 %;
• Signal propagation velocity: 0,68cm/s;
• Characteristic impedance in the frequency range: 100±15Ω;
• Test voltage wire-wire and wire-shield, (DC, 2 s): 2,5 kV.
