EXTRALINK CAT5E SFTP (SF/UTP) V2 lauko, susuktos poros LAN kabelis, 305m (EL-LAN-SFTP-5E-305)

Kodas: EL-LAN-SFTP-5E-305
ID: #1705

Lauko tinklo SFTP Cat.5e kabelis. Pagamintas iš 24 AWG vario laidų porų, padengtų 1,02 mm HDPE. Poros izoliuotos, padengtos 0,05 mm aliuminio folija ir tinkleliu. Kabelis padengtas 0,55 mm storio PE išoriniu aptraukalu. Pakuotėje 1000ft. (304,8 m) ilgio kabelis.

128.14€ su PVM

Kaina be PVM: 105.90€


Produkto savybės:

Outdoor Network SFTP Cat.5e cable. Built from 24 AWG copper conductor pairs coated by 1.02mm HDPE . Pairs isolated by anti-crosstalk divider, shielded 0.05mm aluminum foil and secondary braid. Additional drain wire helps ground ESD attacks. All coated PE outer jacket 0.55mm thick, designed to work in every weather and environment.

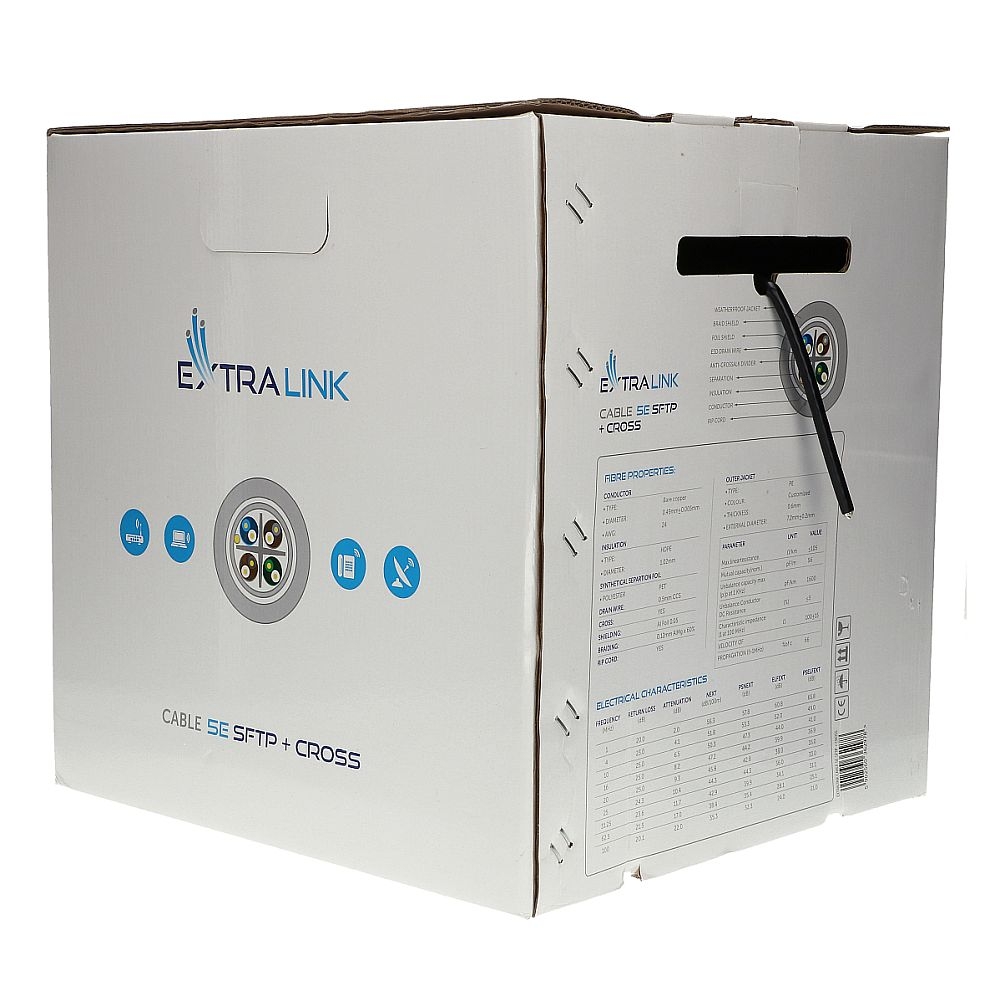

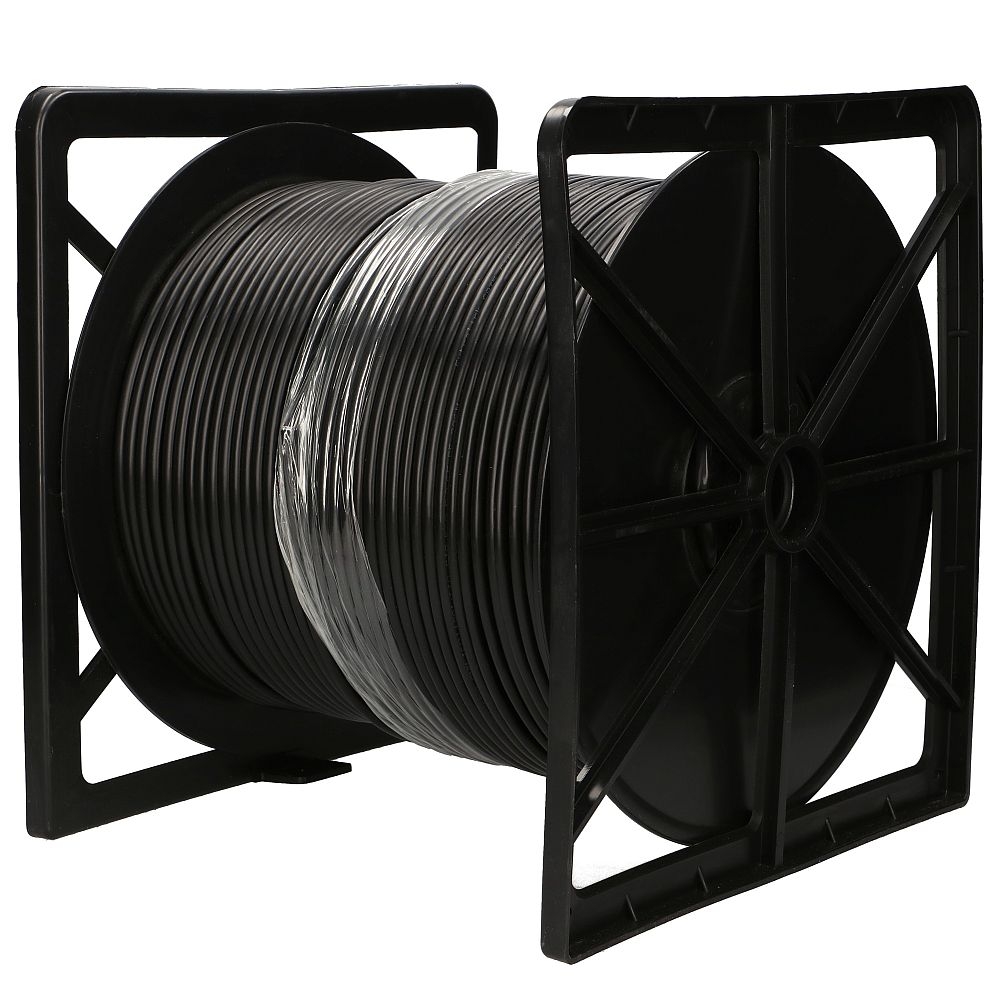

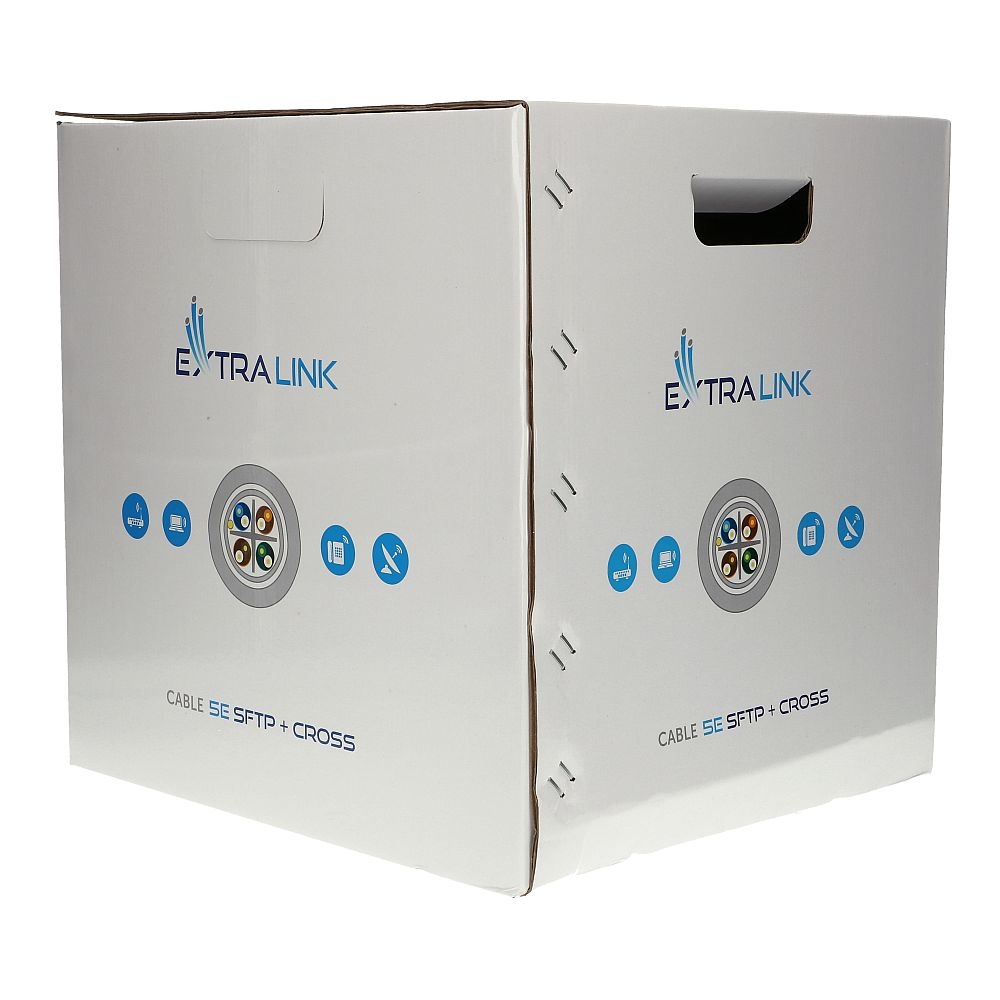

Cable packed in to 1000ft. (304.8m) easy to use rolls. Special internal rotating mechanism prevents cable damage while unrolling.

Produkto specifikacijos:

• Type: Bare copper;
• Diameter: 0.49mm±0.005mm;
• AWG: 24.

• Type: HDPE;
• Diameter: 1.02mm.

Synthetical Separtion Foil: polyester (PET).

Drain Wire: 0.5mm CCS.

Cross: YES.

Shielding: Al Foil 0.05.

Braiding: 0.12mm AlMg x 60.

Rip Cord: YES.

Outer Jacket:
• Type: PE;
• Colour: Black;
• Thickness: 0.6mm;
• External diameter:7.2mm±0.2mm.

• Max.linear tesistance: ≤105 Ω/km.
• Mutual capacity(nom.): 56 pF/m.
• Unbalance capacity max (p/p at 1 KHz): 1600 pF/km.
• Unbalance Conductor DC Resistance: ≤3(%).
• Characteristic impedance (1 at 100 MHz): 100±15 Ω.
• Velocity of propagation (f>1MHz): 66%of c.
