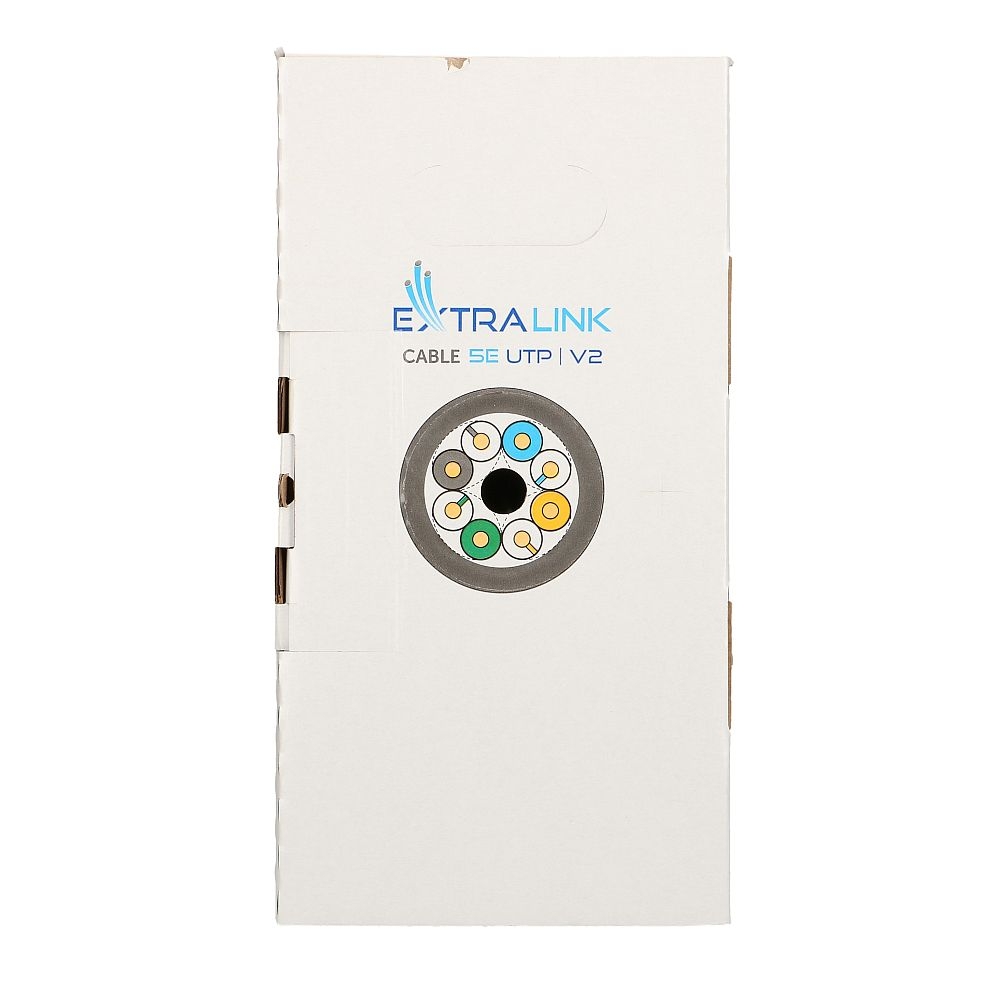

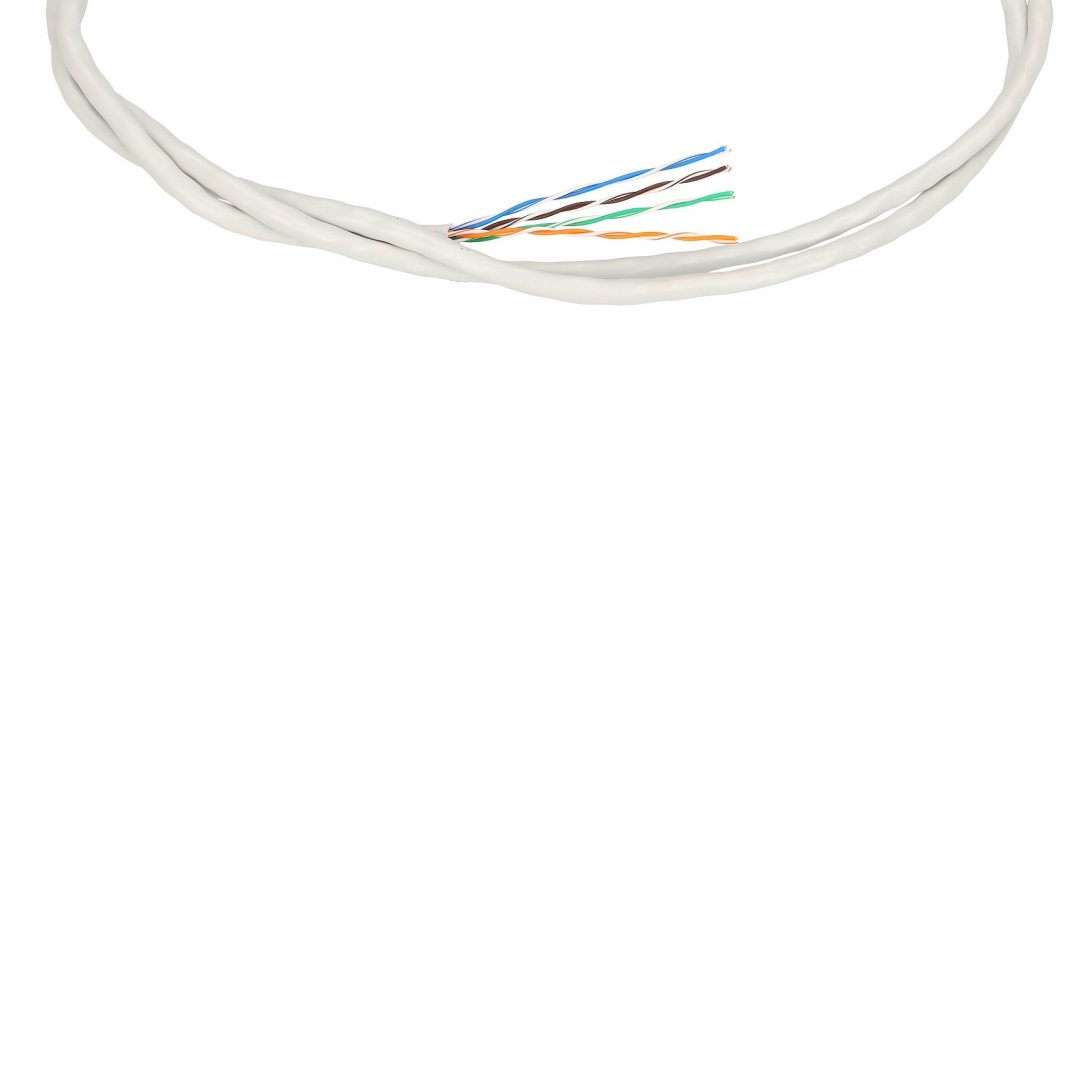

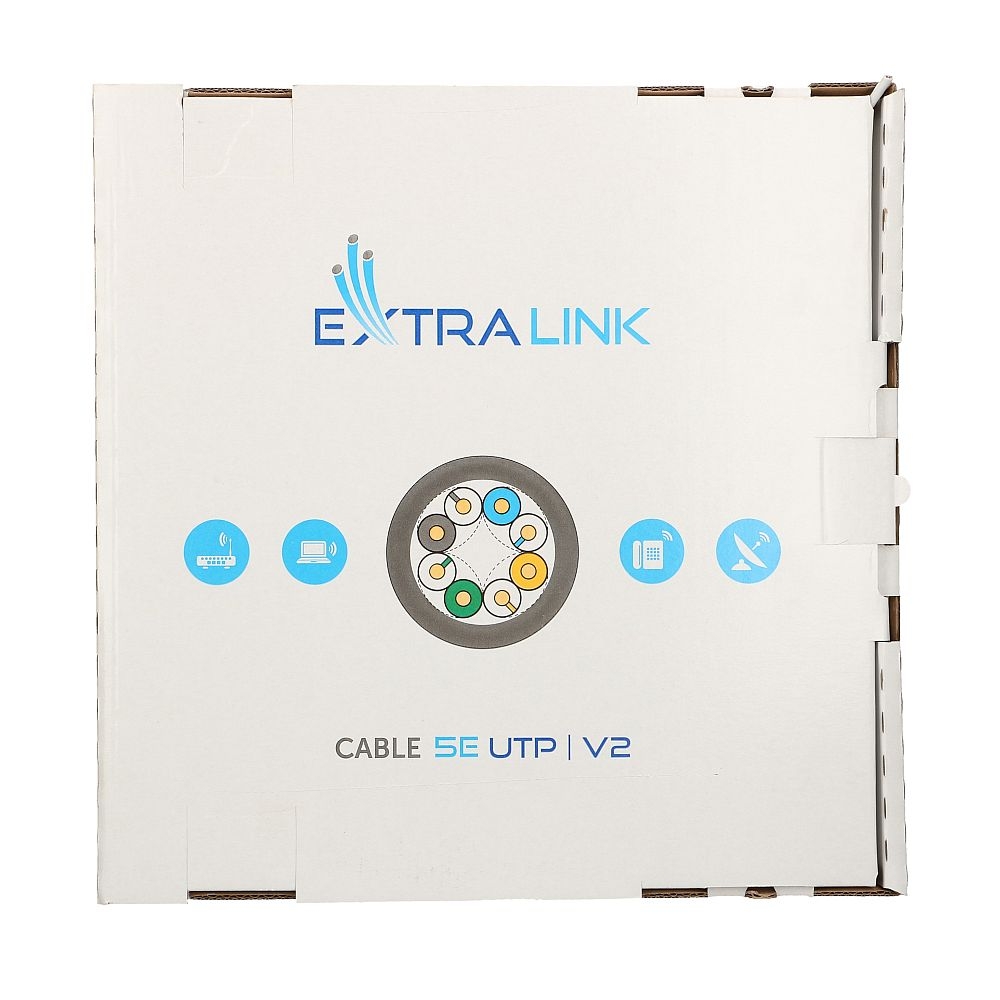

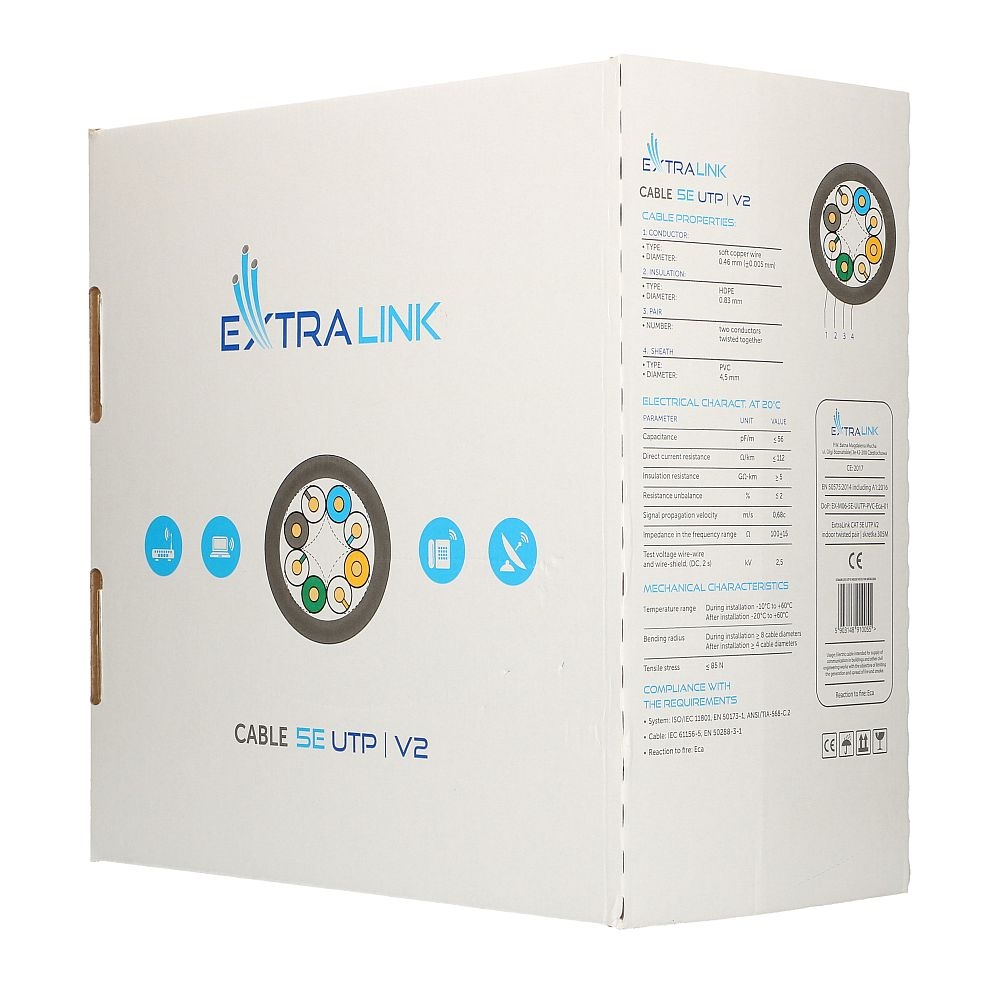

EXTRALINK CAT5E UTP (U/UTP) V2 Indoor Twisted Pair LAN cable, 305m (EL-LAN-UUTP-5E-305)

Kodas: EL-LAN-UUTP-5E-305
ID: #1704

Indoor Network UTP Cat.5e cable. Built from 24 AWG copper conductor pairs coated by 0,9mm PE. All coated PVC outer jacket 0.5mm thick. Cable packed in to 1000ft. (304.8m).

naujiena

57.46€ su PVM

Kaina be PVM: 47.49€

  Turime sandėlyje
Kiekis:


Produkto specifikacijos:

CONDUCTOR
Type: Solid Bare copper
Diameter: 0.47mm±0.005mm
AWG: 24

INSULATION
Type: PE solid
Diameter: 0.90mm±0.03mm

SYNTHETICAL SEPARTION FOIL: polyester

RIP CORD: Yes

OUTER JACKET
Type: PVC
Colour: GREY
Thickness: 0.5mm
External diameter: 5.0mm±0.2mm

ELECTRICAL CHARACTERISTICS AT 20°C
Max.linear resistance: ≤115 Ω/km
Mutual capacity(nom.): 56 pF/m
Unbalance capacity max (p/p at 1 KHz): 1600 pF/km
Characteristic impedance (1 at 100 MHz): 100±15 Ω
Velocity of propagation (f>1MHz): 66%of c
