EXTRALINK CAT6 FTP (F/UTP) V2 Vytų poros lauko kabelis 305M (EL-LAN-FUTP-CAT6-305)
Cat.6 FTP tinklo kabelis. 305 metrų ilgio.
Produkto savybės:

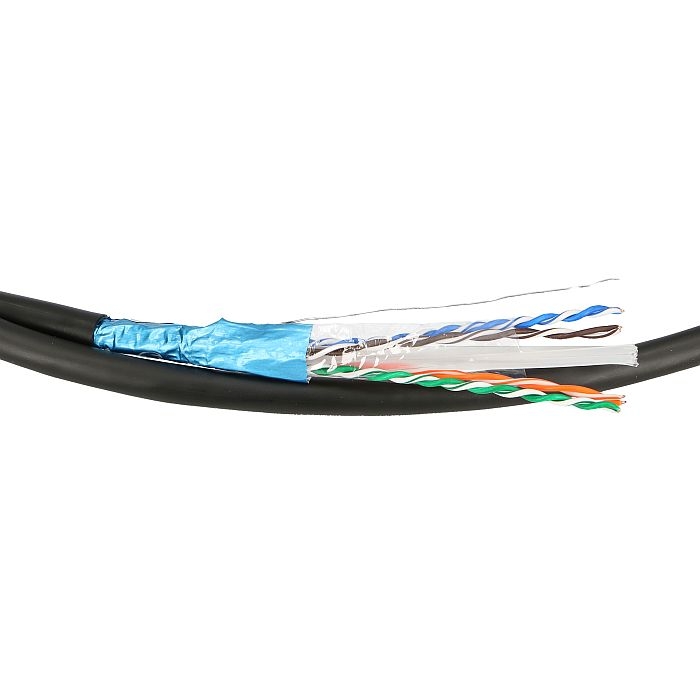

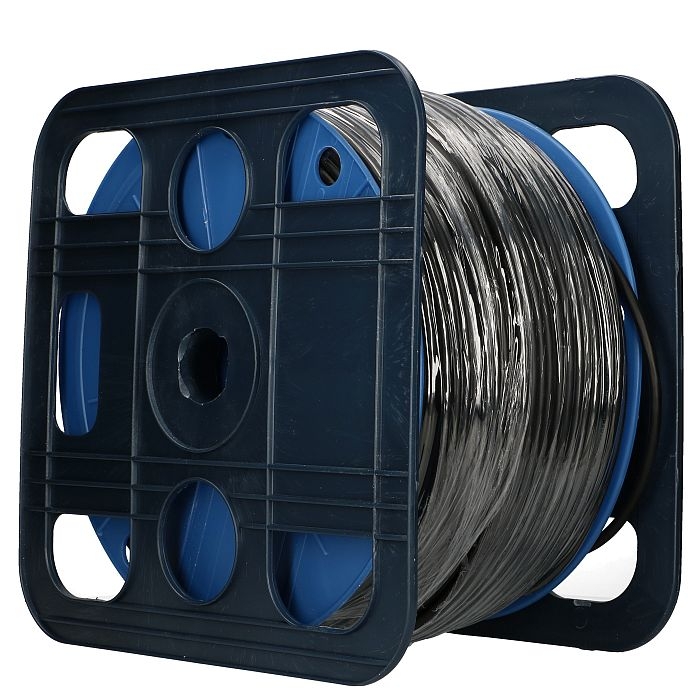

The wires are made of pure copper and are surrounded by PE sheath with a diameter of 1.08mm. The cable is shielded with aluminum foil and has an additional grounding wire. External PE sheath is 0,60mm thick. The packaging is equipped with a self-reeling roller, which allows you for convenient cable unwinding so a cable won't tangle. It's designed for outdoor use, and it's resistant to harsh weather conditions and mechanical damage.
Produkto specifikacijos:
Wires |
|
Type |
Wire - pure copper |
Diameter |
0.56mm±0.005mm |
AWG |
23 |
Sheath |
|
Type |
PE |
Diameter |
1.08mm±0.03mm |
Separation foil |
polyester |
Grounding wire |
0.5mm CCS |
Shielded |
yes |
RIP CORD |
yes |
Outer sheath |
|
Type |
PE |
Color |
black |
Thickness |
0.6mm±0.05mm |
Outer diameter |
7.5mm±0.2m |
Parameter |
Unit |
Value |
Max. linear resistance |
Ω/km |
?80 |
Capacity (nom.) |
pF/m |
56 |
Unbalance capacity max (p/p at 1 KHz) |
pF/km |
1600 |
Characteristic impedance (1 at 100 MHz) |
Ω |
100±15 |
Propagation speed (f>1MHz) |
%of c |
66 |
