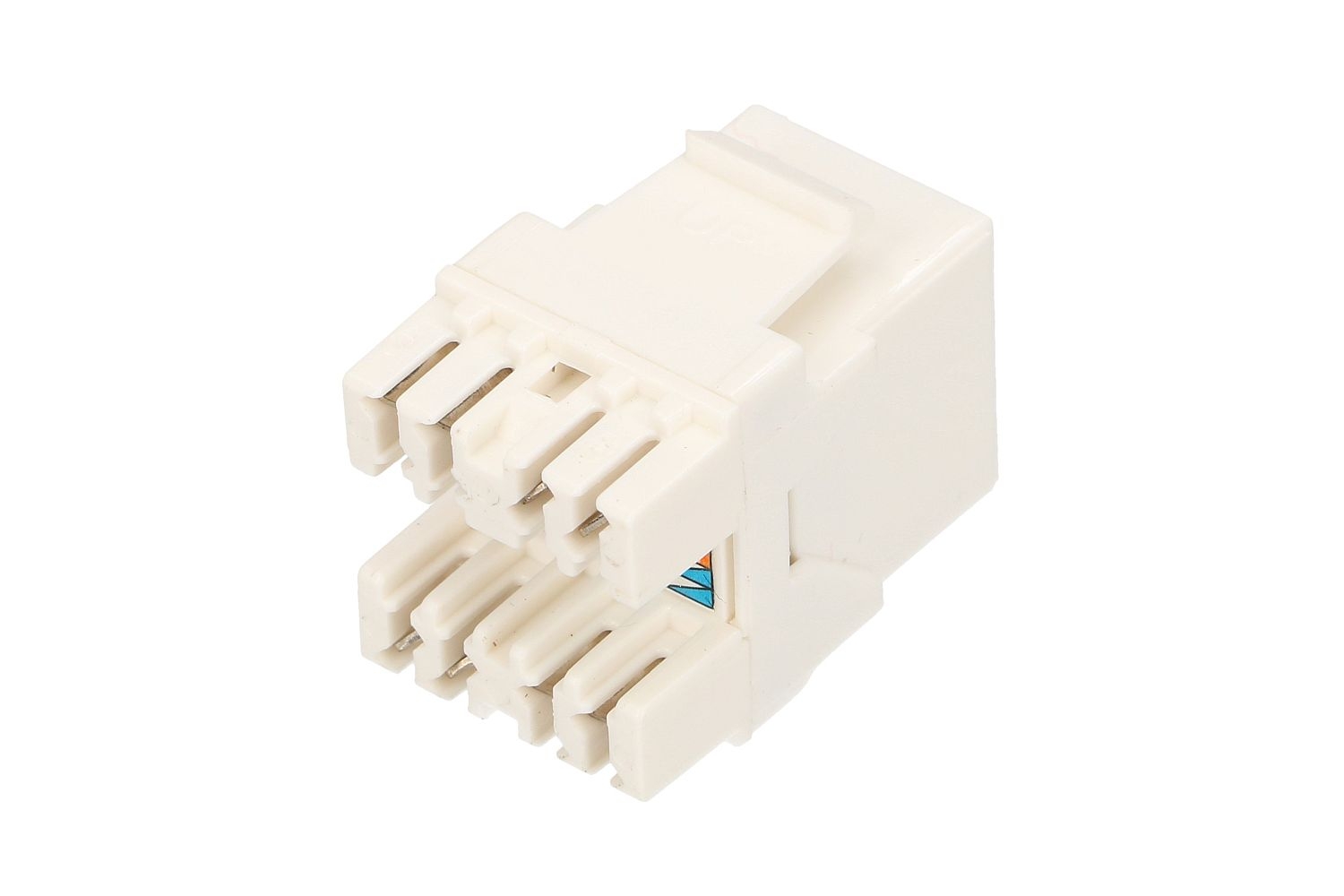

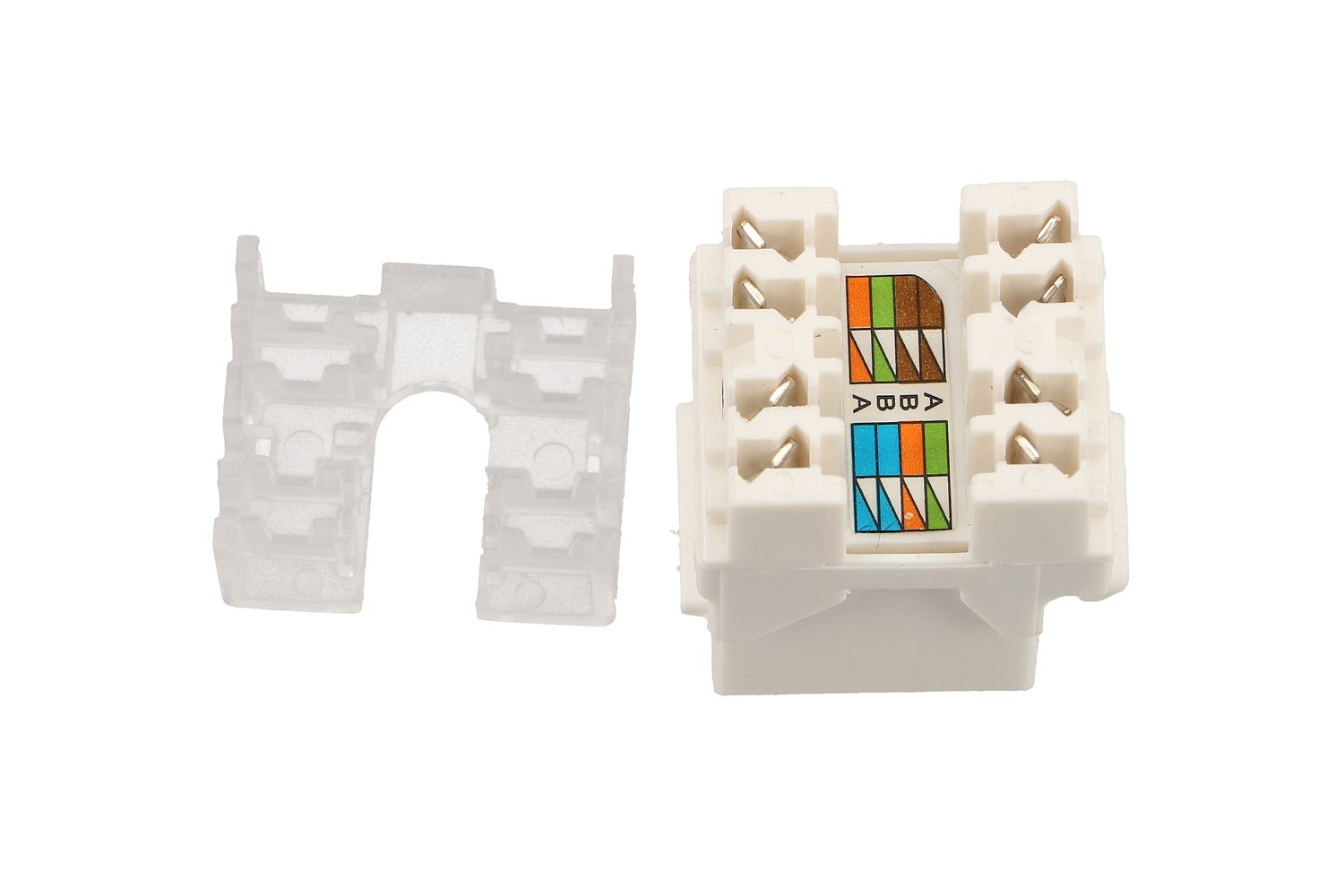

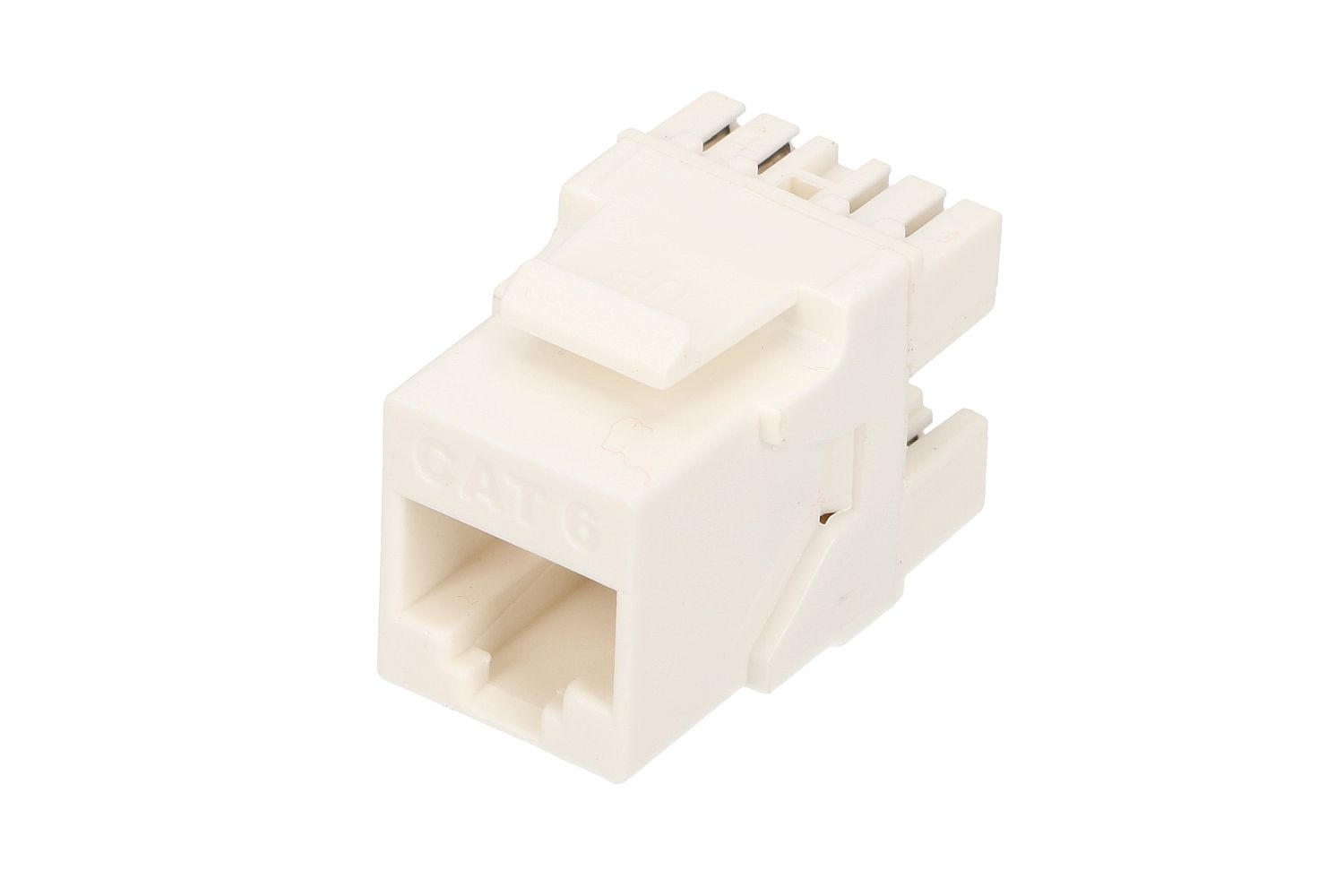

EXTRALINK CAT6 UTP RJ45 Keystone (EL-CAT6UTP-KEYSTONE)
Kodas:
EL-CAT6UTP-KEYSTONE
ID:
#2435
1.45€ su PVMKaina be PVM: 1.20€ |
Produkto specifikacijos:
Contact Material: Phosphor Bronze stamping pin at thickness of 0.35mm
Contact Mating Area Plating Material: Gold plating option (3U",6U",15U",30U",50U") over Nickel
PCB material: FR-4 T=1.6mm
IDC contact material: Phospor Bronze at thickness of 0.5mm and Nickel plating
Housing Color: White
Housing Material: ABS or PC
Housing Flammability Rating: UL 94V-0
Workable wire gauge: AWG 22~26
Industry Standards: RoHS compliant, 568A/568B
Angle: 90 Degree, fit for loading a full STP/UTP 24/48 port patch panel
Termination: Krone Type
Voltage Rating: 125 VAC RMS
Current Rating: 1.5 A
Contact Resistance: 110 MΩ
Storage temperature: -40~85°C
Operating temperature: 0~70°C
