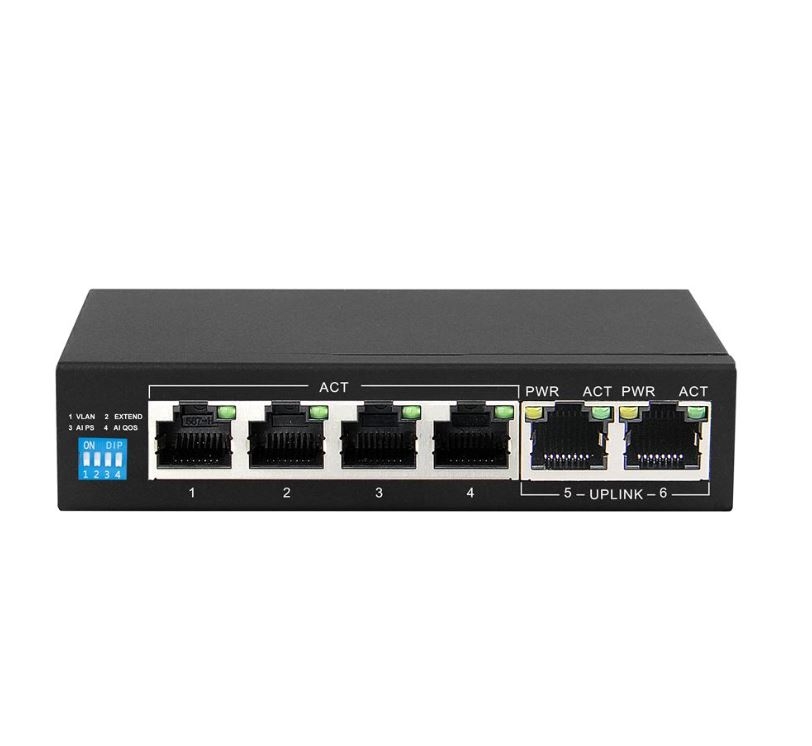

EXTRALINK KRIOS EX-SG1005P 6 GIGABIT lizdų POE komutatorius/šakotuvas (4X lizdai POE) 802.3AF/AT 60W MAX 30W PER PORT(EL-EX-SG1005P-KRIOS)

Produkto savybės:

EXTRALINK KRIOS is 6 port AI PoE switch with 4 working modes, AI VLAN mode, AI Extend  mode, AI power mode and AI QoS mode. By default, all ports are free to communicate; when AI VLAN mode is enabled, 1-4 ports are isolated from each other, which can effectively suppress network storms and improve network performance. In the AI Extend  mode 1-4 ports can effectively transmit distances up to 250 meters, which is suitable for remote monitoring and power supply. In the AI power  mode, the switch automatically detects the working status of the PD device and finds that the abnormal device automatically restarts the device. In the AI QoS mode, when the device is congested, the video data is processed preferentially to make the video smooth. The device supports the standard IEEE 802 af/at protocol, which can automatically detect and identify the PDs that comply with the IEEE 802 af/at standard and provide power for them, so there is no need to worry about PoE or non-PoE devices that can damage private standards.

Key Features:

- Extend: 1-4 ports support 250 meters long distance power supply (should be use cat5e or cat6 cable)

- VLAN: Isolating ports 1-4 to each other can effectively suppress network storms and improve network performance.

- AI QoS: Customize application priority to improve network sensitivity. For example, video priority, monitoring transmission is more smooth

- AI PS:   Automatically detect the power receiving port, find the dead device, power off and  restart the device

- Support wireless access points (APs) and network surveillance cameras via Cat 5 cables;

- Support IEEE802.3af/at standard PD device；

- Supports uplink port auto-flip (Auto MDI/MDIX)

- Adopt store-and-forward exchange mechanism

- Intelligent power supply, lowest power consumption,  ensure the power demand of the PD terminal

- With power circuit protection, it can protect the security of the back-end equipment;

- Zero configuration feature power is automatically supplied to the adaptive device;

- No fan design to achieve energy saving and environmental protection;

- Support port no link power saving function;

Produkto specifikacijos:

Network Port:

- 4x  10/100/1000Mbps PoE RJ45 port ( Port 1~ port4)

- 2x 10/100/1000Mbps RJ45 port uplink (Port5~port 6)

Transfer Rate: 1000Mbps full Duplex

Network protocols: IEEE 802.3i, IEEE 802.3u,IEEE 802.3x,IEEE 802.3af, IEEE 802.3at

Performance:

- Bandwidth: 12Gbps (no block)

- Frame filtering and transmission rate

- 10M port maximum 14,800pps

- 100M port maximum 148,800pps

- 1000M port maximum 1,488,000pps

LED indicator

- Power

- LINK/ACT

PoE pins: 1/2(+), 3/6(-)

Power:

- Max power for single port: 30W .

- External power adapter: 60W

Dimensions

- Size(LxWxH): 125mm x 75mm x 27mm

- Weight: 0.75kg

Environment

- Operating Temperature: 0°~40°C

- Operating Humidity: 10%~ 90%, Non-condensing

EMC:

- CE Class B

- FCC Part 15, Class B

- VCCI Class B

- C-Tick

Safety regulations: CE/ROHS/FCC/CCC
