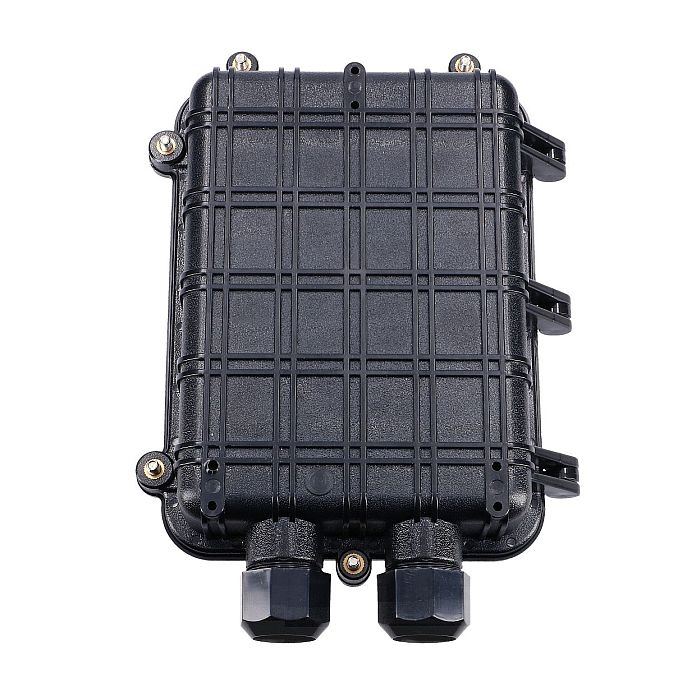

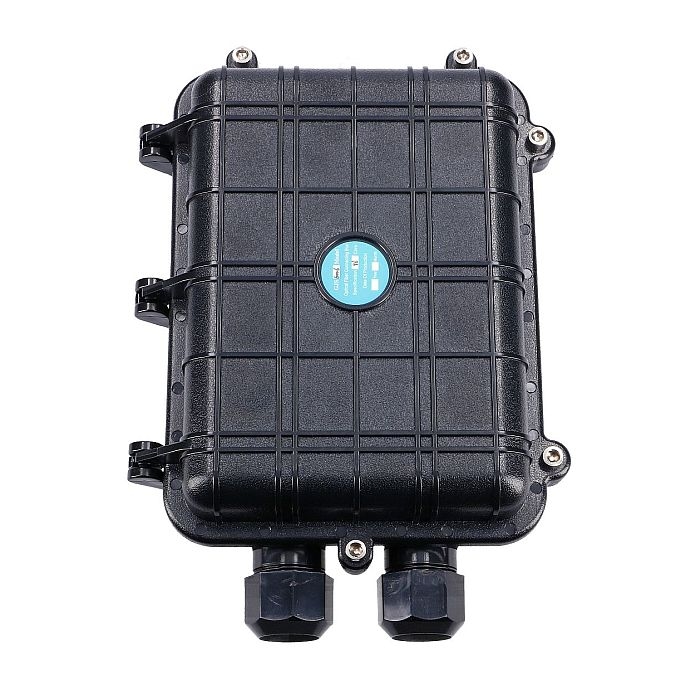

EXTRALINK OUTDOOR FTTX CLOSURE 4 TRAYS 96 CORE BRUCE (EL-FTTX-BRUCE-96)
For professional outdoor installations
The closures are made of tough anti-corrosive polycarbonate that makes the closures ideal for aerial, cable duct, direct burial and well applications.

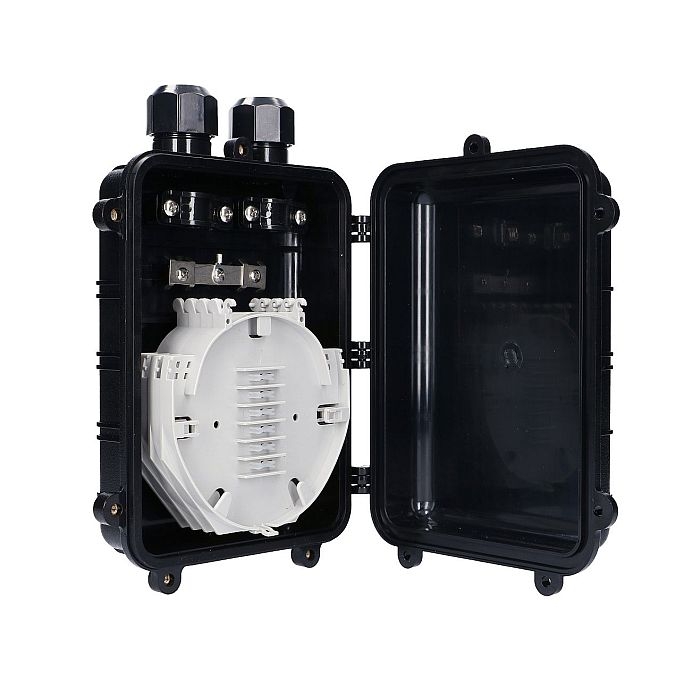

The BRUCE closure can accommodate up to 4x 24-fiber splice trays.
The closures employ gasket-sealing technology that enables easy of instalation and re-entry requiring no special tools.
- Reliable gasket saling
- Easy installation with no special tool required
- Re-enterable with no re-entry kit needed
- High compressive strength
- Suitable for Ribbon and non-ribbon fibers
- Cable duct
- Direct burial

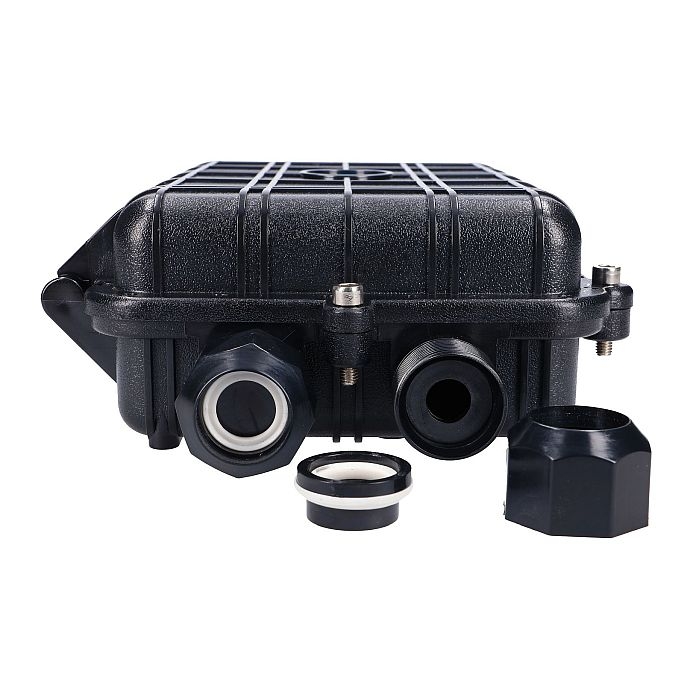

No. of Cable Port: 2
Max. Cable Diameter allowed: 14mm/12mm
Weight : 1.2~1.5kg
Operating temperature: -40~+60ºC
Fiber Bend Radius: 30mm
Max. No. of Splice Trays: 4
Max. Capacity (single fiber splice): 96
