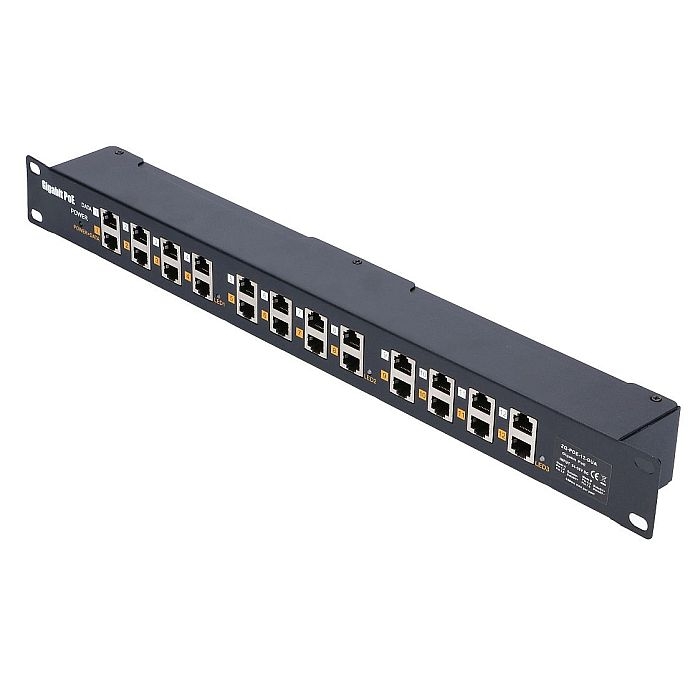

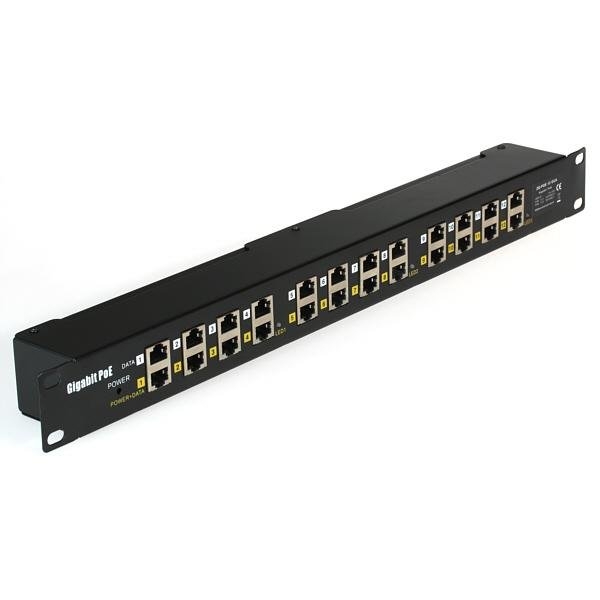

EXTRALINK Passive Gigabit PoE Rack Mount Injector/Shielded Panel, 12 port (POE-INJ-12-G-RM)
12 port Gigabit PoE injector panel with metal case, 1U high standard rack mount, Shielded, 2x input power jacks
Professional panel which integrates 12 gigabit passive POE injectors and so it is suitable for powering up to 12 devices with integrated PoE splitter. Output power range 24 - 57V.
Very appropriate solutions to power wireless devices, IP phones, IP cameras, etc. with gigabit ethernet. In case that powered device does not have a PoE extractor can be combined with passive POE splitter.
LED indicates port currents.
• 0-20mA (no signal
• 20-400mA (gree led)
• >400mA (red led)
The main advantages of this device are :
• 19" rack design
• LED control for visual monitoring of traffic
• outgoing ground component for surge filtering on the back panel
• reversible insurance against electric current fluctuation (OCP protection 650 mA) on each port

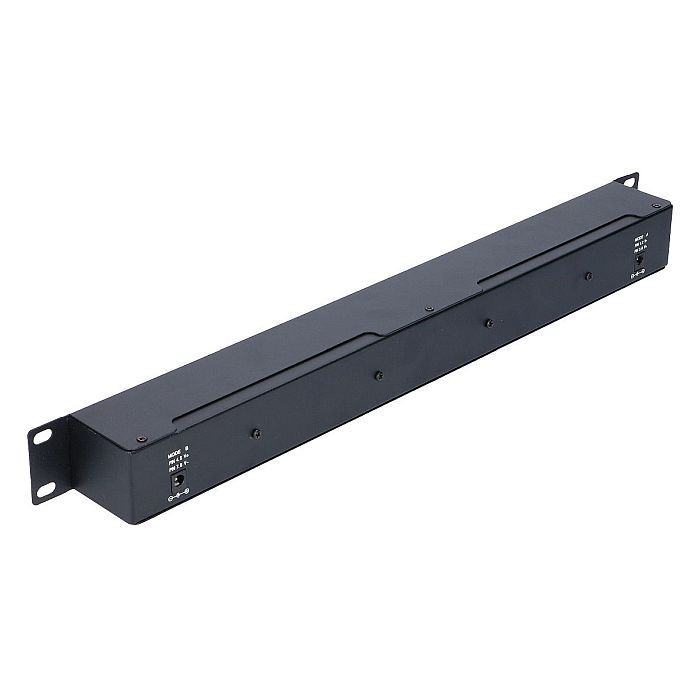

• 2x power input connectors (2.1 mm jack, max 60W each)
100-240V AC 50/60Hz
18 TO 57 V 120W
3/6+ & 1/2-, 4/5+ & 7/8-
482.6mm x 44.3mm x 52mm
Metal work material
TIA/EIA 568 Cat. 5
0°C ~ 40°C
