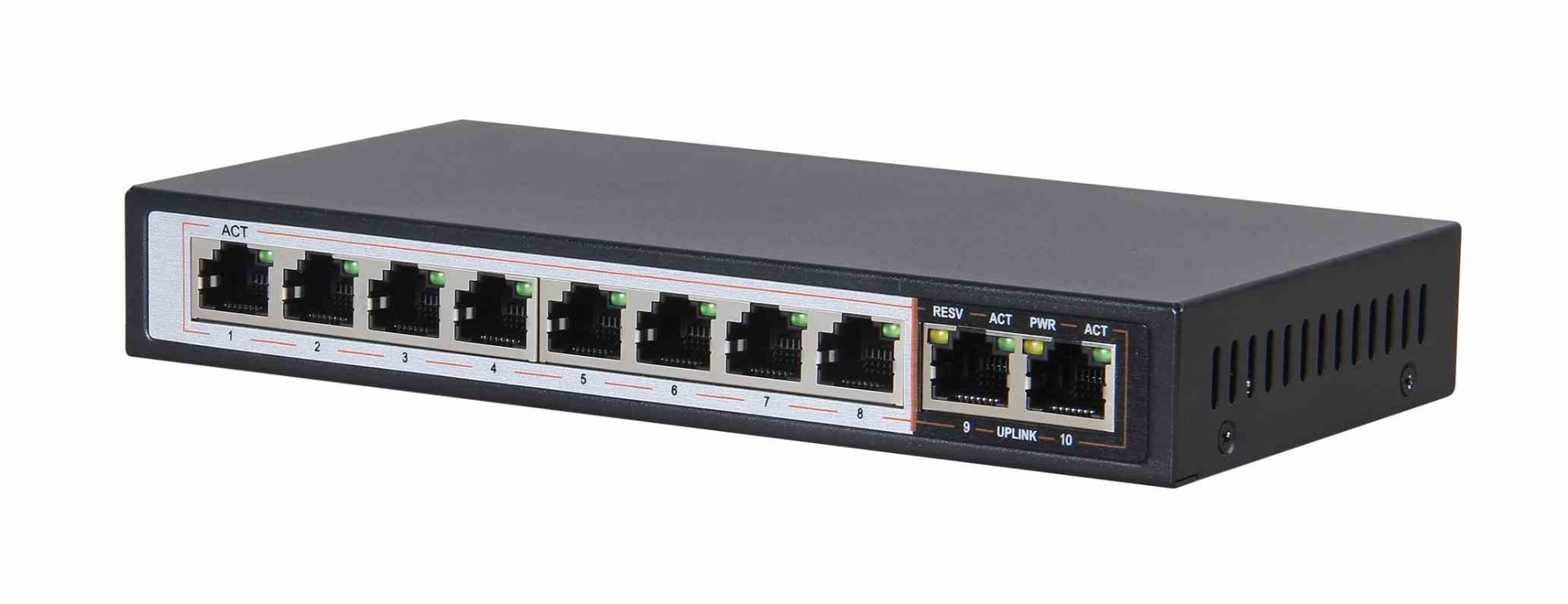

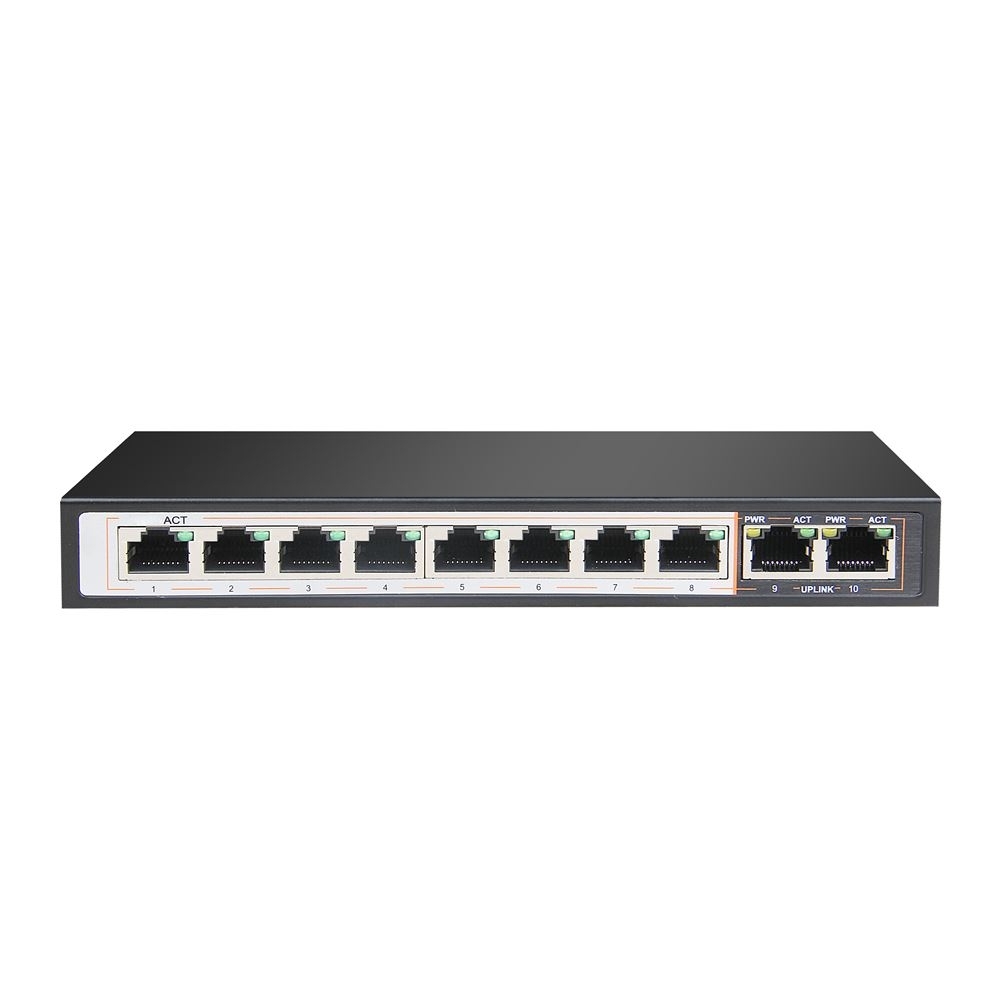

EXTRALINK PERSES EX-SG1008P 10 prievadų Gigabit PoE komutatorius (EL-PERSES)
10x 10/100/1000Mbps Gigabit PoE komutatorius | 4 darbo režimai| Palaiko PoE 802.3af/at

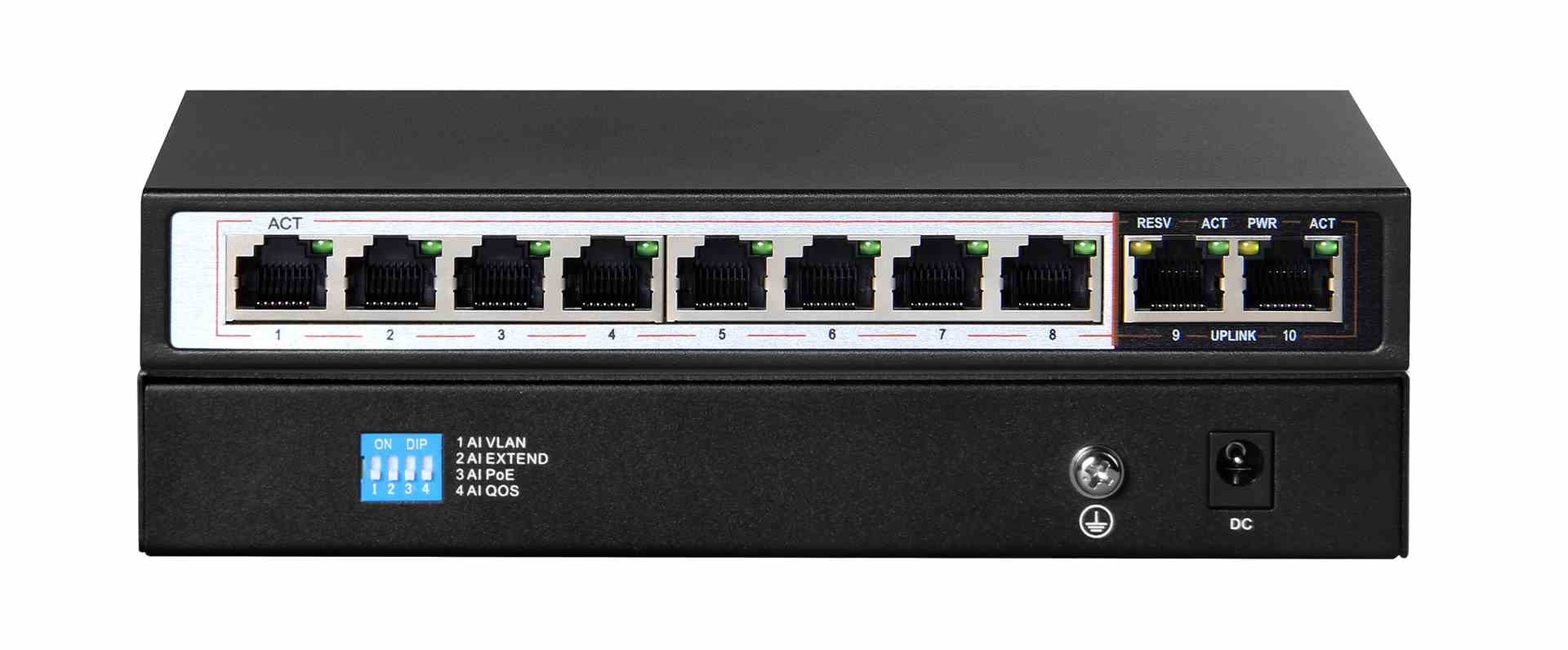

PERSES is a 10-port Gigabit AI PoE switch, It's supports 4 working modes: AI VLAN , AI Extend, AI PoE mode, AI QoS. All ports are freely communicated by default:
AI VLAN mode: 1-8 ports are isolated from each other, which can effectively restrain network storms and improve network performance.
AI Extend mode: the effective transmission distance of 1-8 ports can reach 250 meters, which is suitable for remote monitoring and power supply.
AI PoE mode: the switch automatically detects the working status of the PD device and finds that the device abnormal automatically restarts the device.
AI QOS mode: the video data will be processed preferentially when the device is congested to make the video smooth.
PERSES supports IEEE 802 af/at standard, which can automatically detect and identify the PDs that comply with the IEEE 802 af/at standard and provide power for them, so there is no need to worry about PoE or non-PoE devices that can damage private standards.
- AI Extend: 1-8 port supports 250M meters long distance power supply (recommended cat 5 or above)
- AI VLAN: Isolating ports 1-8 from each other, restrain network storms effectively and improve network performance.
- AI QOS: Customize application prioritization and increase network sensitivity. For example, video priority, monitoring transmission more smoothly.
- AI PoE: Automatic detection power of port, power off and restart the device if find dead machine.
- Supports IEEE 802.3af/at standard, automatically detects and identifies devices that comply with the IEEE 802.3af/at standard and supply power to it.
- Support Auto MDI/MDIX.
- Adopt store-and-forward exchange method.
- AI power supply, the lowest power consumption, ensure PD power needs.
- With power circuit protection, protect the safety of PD.
- No configuration characteristics of the power supply is automatically supplied to the adaptive equipment.
- Fanless design, energy saving and environmental protection; no noise, reduce the impact on the environment.
- Compact size design.
- Support port without link power saving function.
- All ports have wire-speed forwarding capability.
- Plug and play, easy to use.
· 8 10/100/1000Mbps PoE RJ45 port (port 1～port 8)
· 2 10/100/1000Mbps non-POE RJ45 port(port 9~port 10)
Transfer Rate: 1000Mbps full Duplex
Network protocol: IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE802.3at
- Bandwidth: 20Gbps(no block)
- Frame filtering and transmission rate: 1000M port maximum 1,488,000pps
PoE Pins: 1/2/4/5(+), 3/6/7/8(-)
- Max. output power single port: 30W

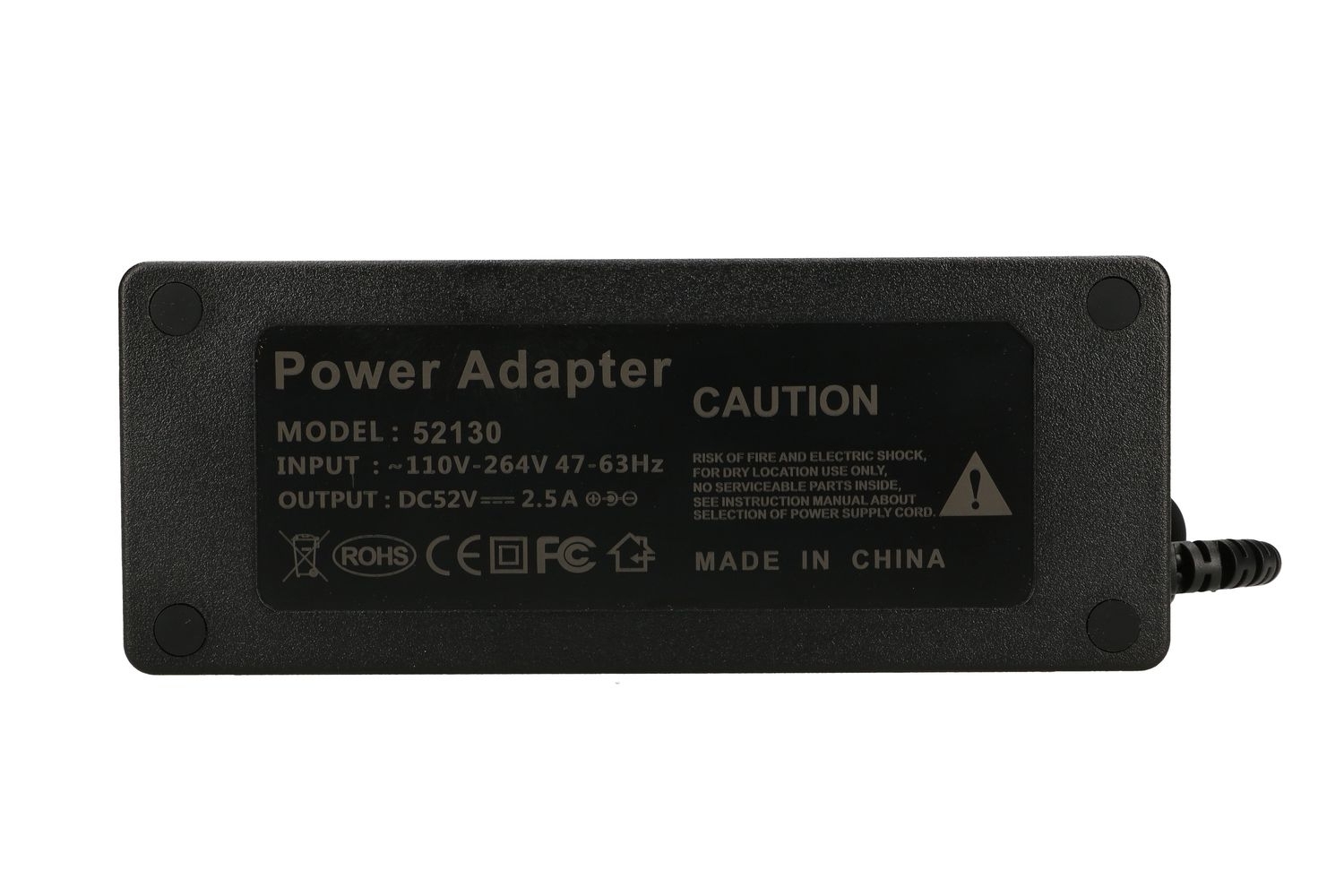

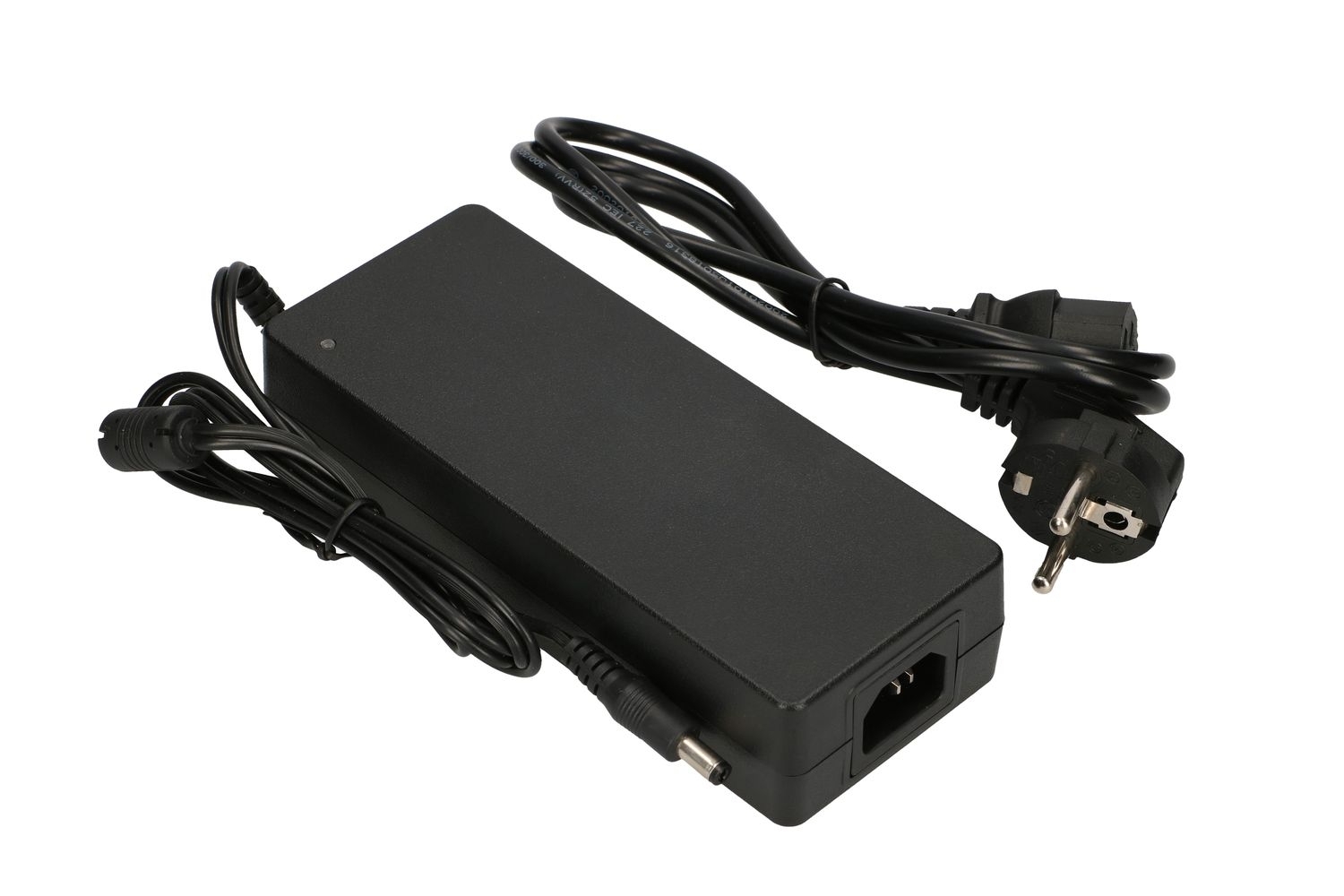

- Power supply: 96W
- Size (LxWxH): 184mm*94mm*27mm
- Weight: 1.1kg
- Operating Temperature: 0°~40°C
- Operating Humidity:: 10%~90%, Non-condensing
- FCCPart15, ClassB
Safety regulations: CE/ROHS/FCC/CCC
