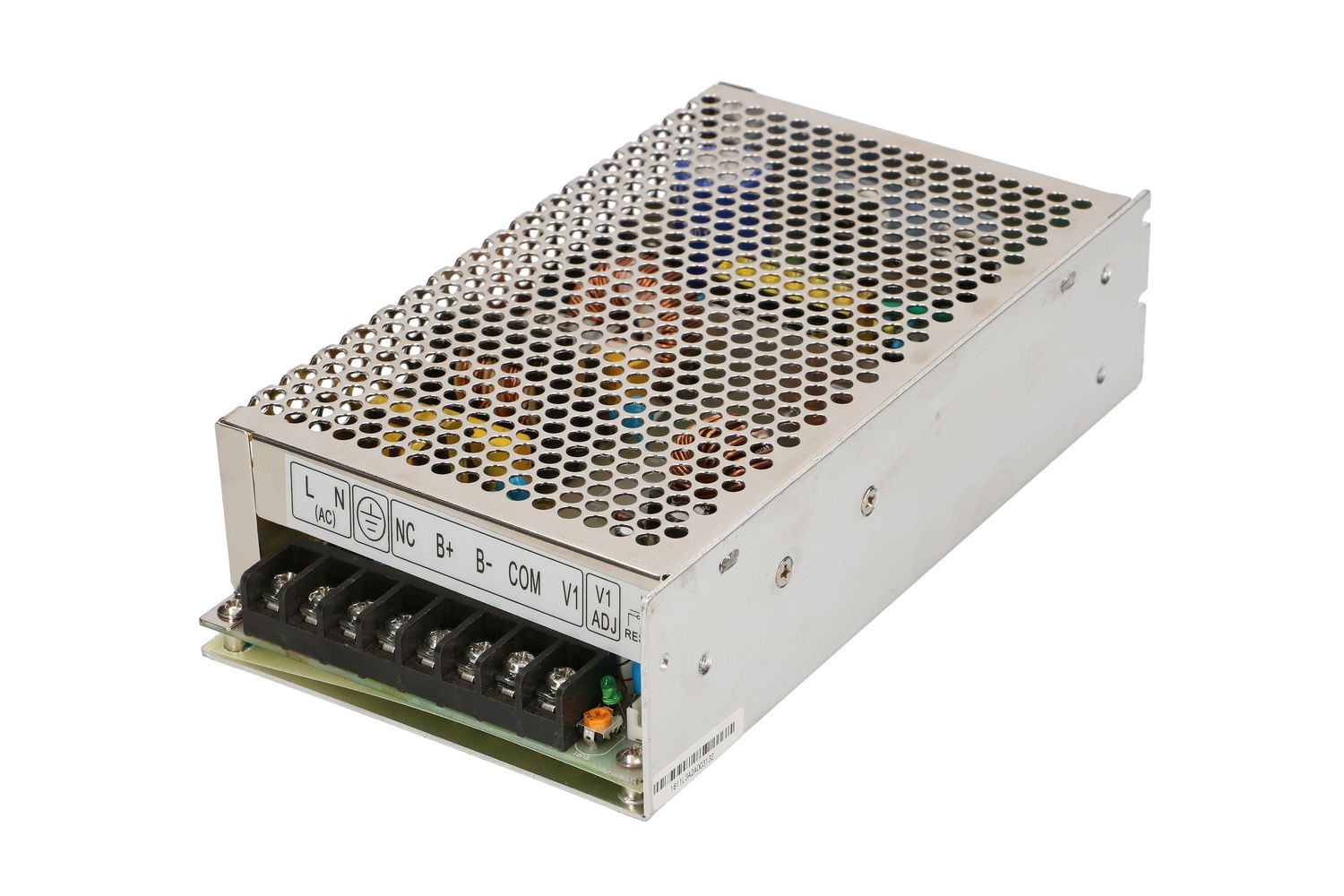

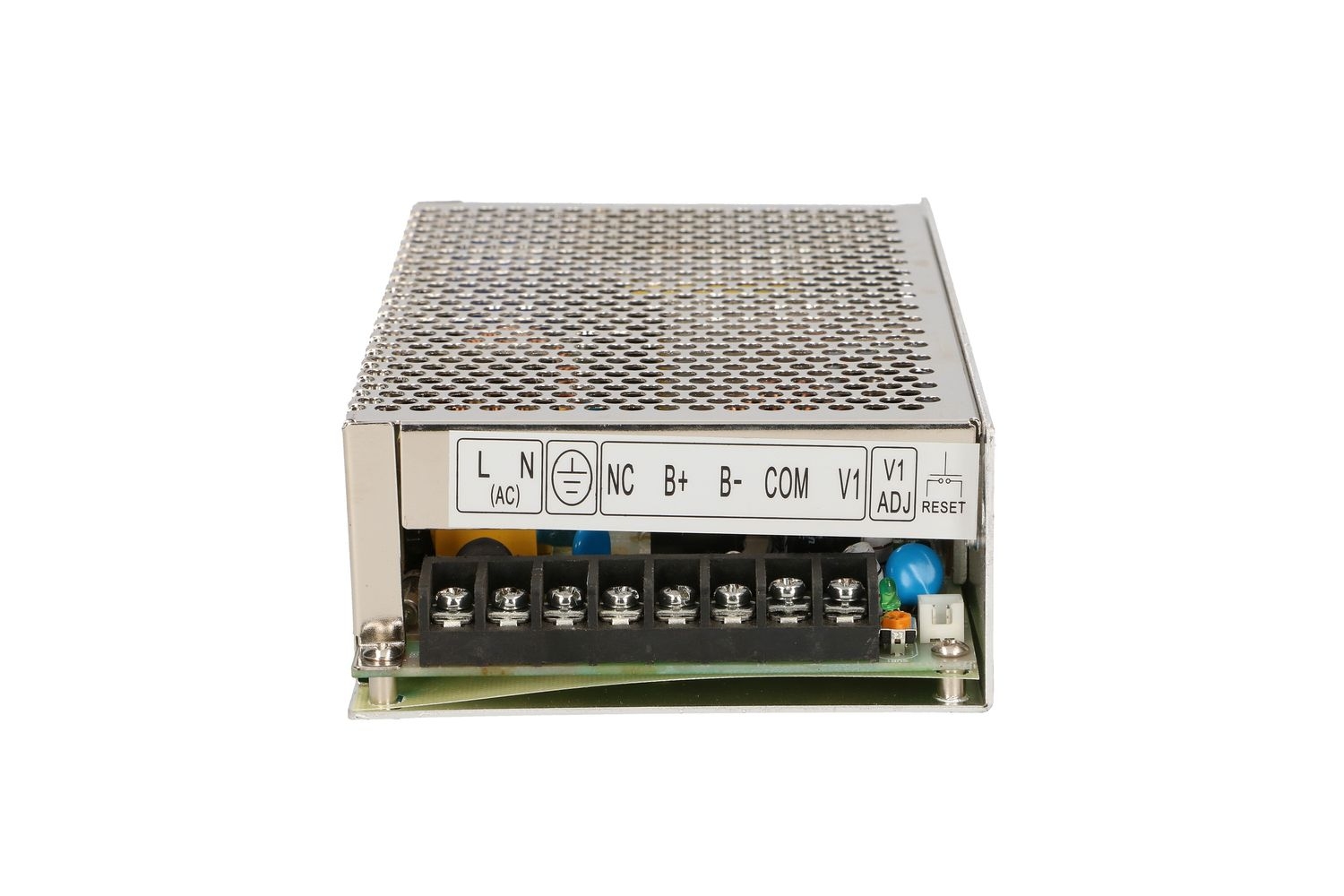

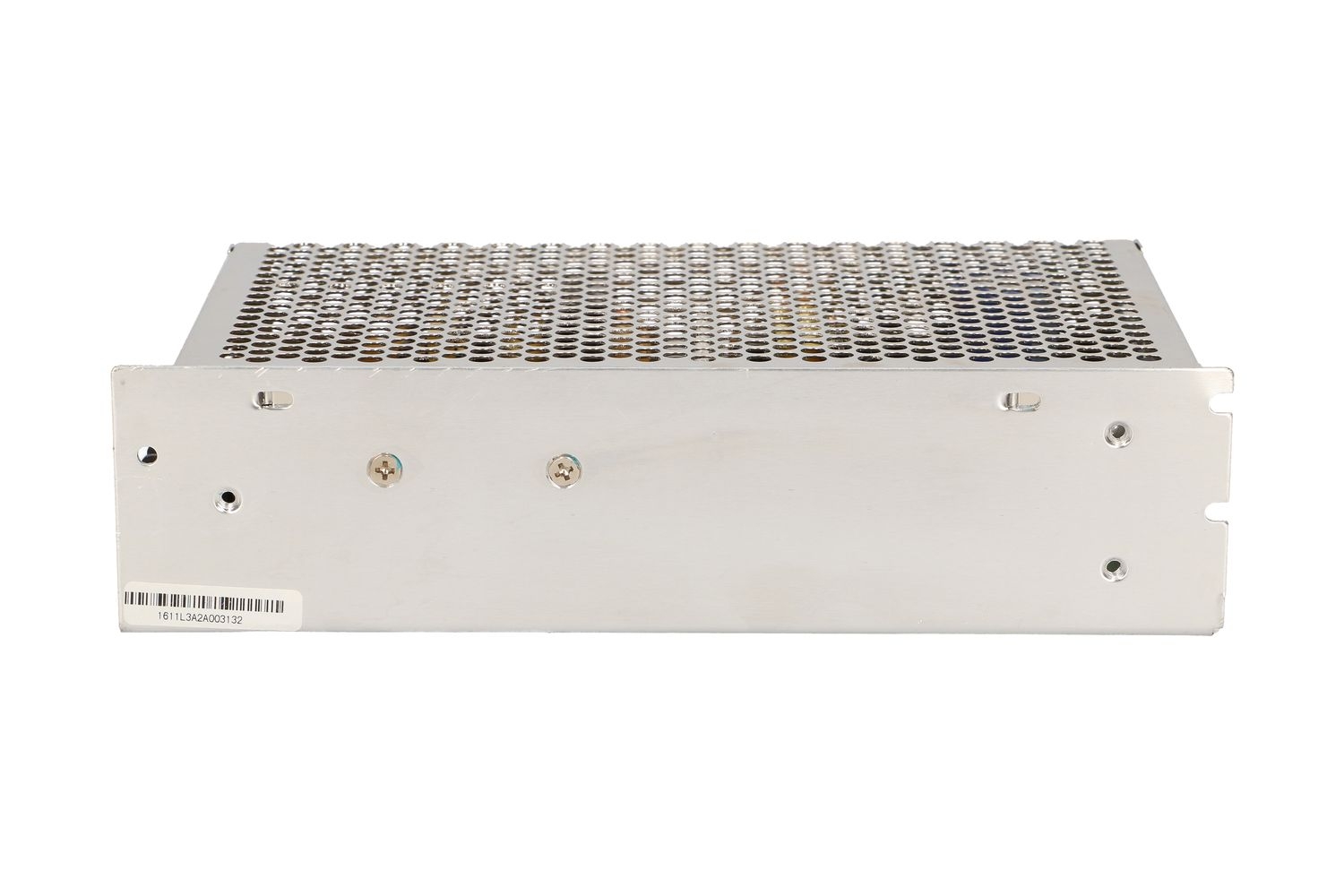

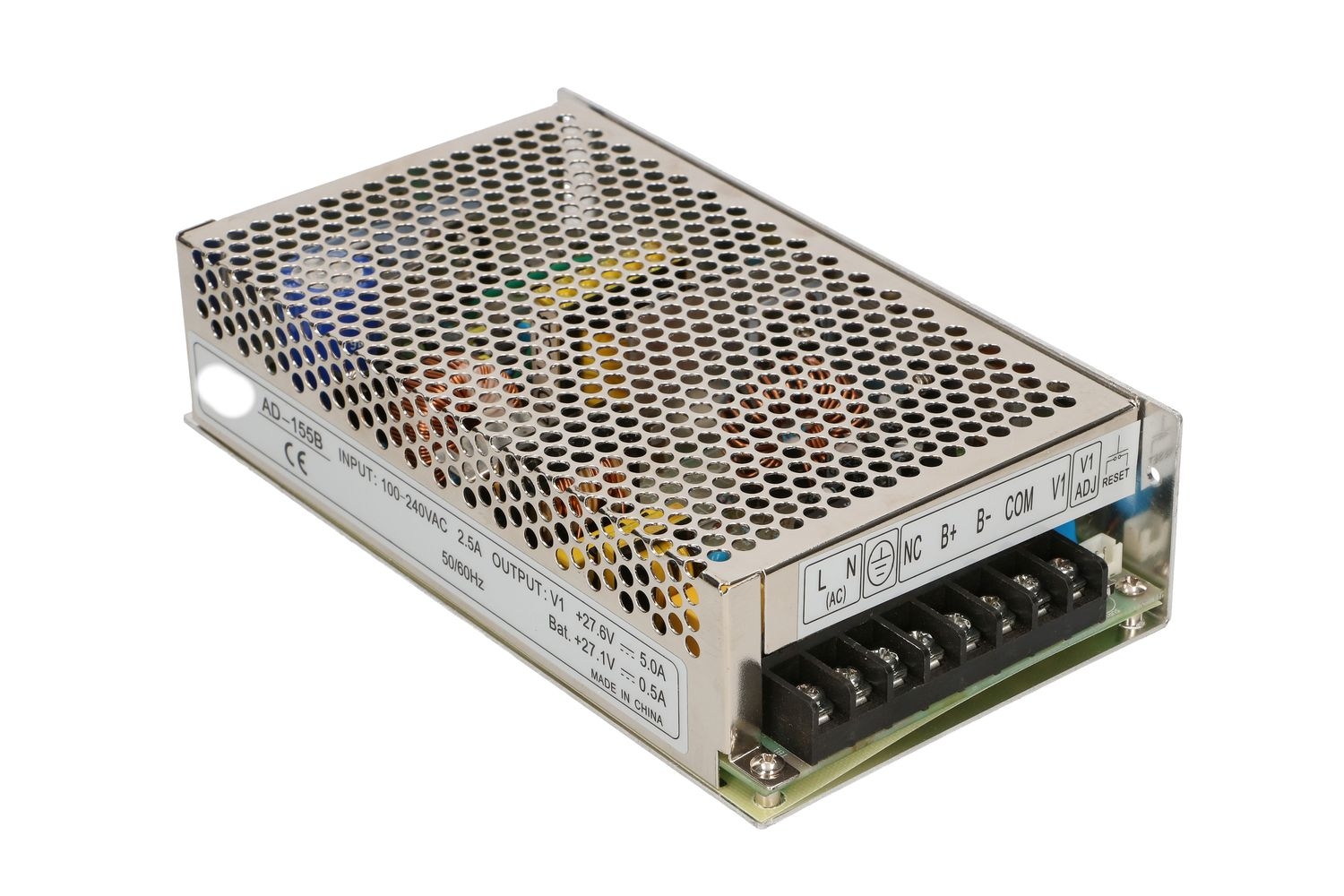

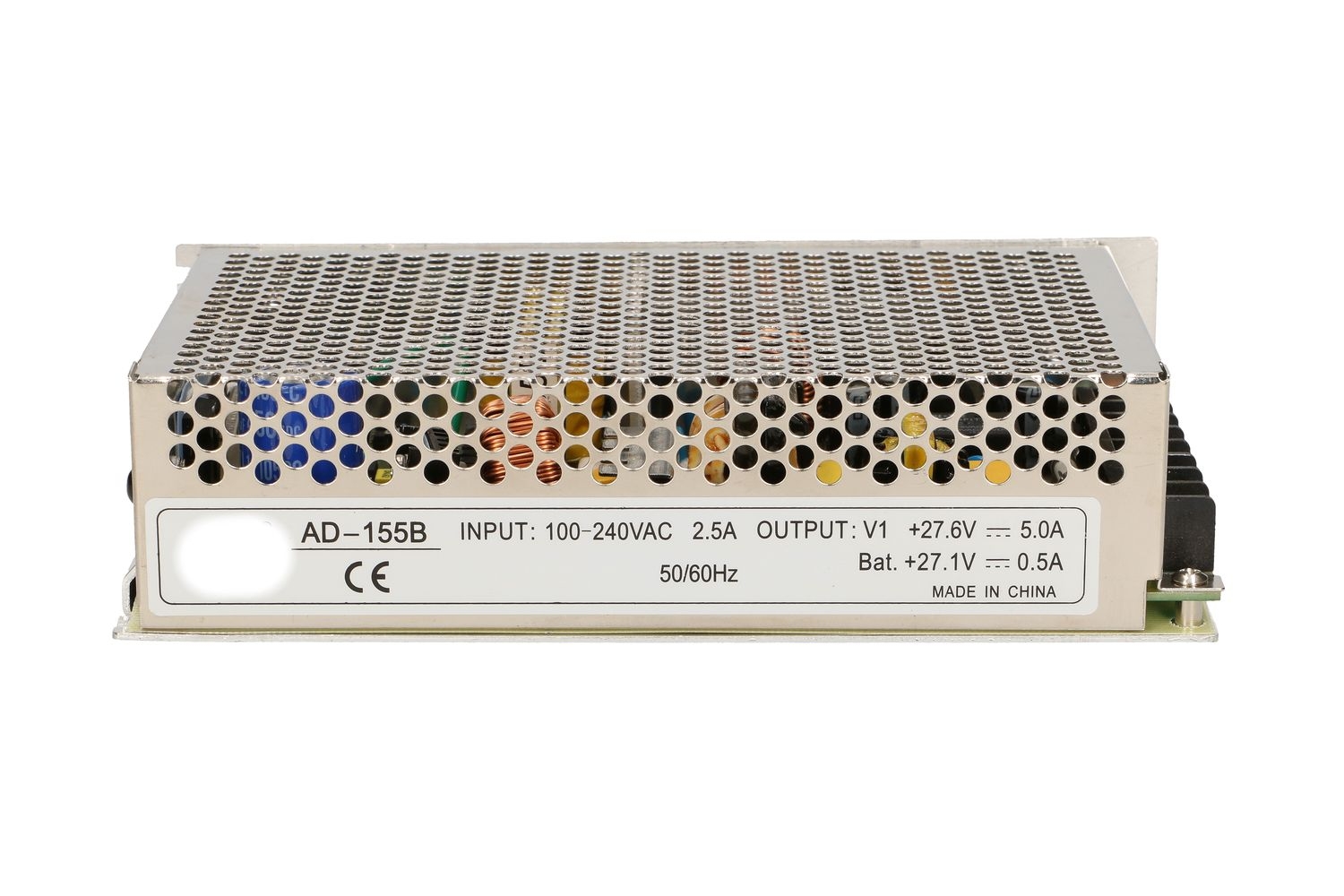

EXTRALINK 24V/27.6V 155W maitinimo šaltinis su akumuliatoriaus/baterijos įkrovikliu (EL-PSUPPLY-AD-155B)
Kodas:
EL-PSUPPLY-AD-155B
ID:
#1749
Trumpo jungimo/perkrovos/viršįtampio apsauga. Apsauga nuo baterijos išsekimo ir poliškumo
Produkto savybės:
• Universal AC input / Full range;
• Protections: Short circuit / Overload / Over voltage;
• Battery low and battery polarity protection;
• Cooling by free air convection;
• 100% full load burn-in test;
• Fixed switching frequency at PFC 67KHz, PWM 134KHz.
Produkto specifikacijos:
MODEL | AD-155B | |
OUTPUT | ||
Output number | CH1 | CH2 |
DC voltage | 27.6V | 27.1V |
Rated Current | 5A | 0.5A |
Current Range | 0~5.5A | 0-0.5A |
Rated Power | 151.55W | |
Ripple & Noise | 150mVp-p | -------- |
Voltage Adj. Range | CH1:24~29V | |
Voltage Tolerance | ±1.0% | -------- |
Line Regulation | ±0.5% | -------- |
Load Regulation | ±0.5% | -------- |
Setup, Rise Time | 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load | |
Hold Up Time | 24ms/230VAC 20ms/115VAC at full load | |
INPUT | ||
Voltage Range | 88~264VAC 47~63Hz; 124~370VDC | |
AC Current | 2.5A/115VAC 1.5A/230VAC | |
Efficiency | 84% | |
Inrush Current | Cold start 20A/115VAC 40A/230VAC | |
Leakage Current | <1mA /240VAC | |
PROTECTION | ||
Over Load | CH1:105 ~ 135% CH2:0.51 ~ 0.9A rated output power | |
Protection type: AC Charging Mode: Hiccup mode, recovers automatically after fault condition is removed UPS Mode: Protected by internal fuse | ||
Over Voltage | CH1:31.74~37.26V | |
Protection type:Shut down o/p voltage, re-power on to recover | ||
Battery Low | 19.5V(+1.5V,-1V ) | |
ENVIRONMENT | ||
Working Temp. | -10~+60℃ (Refer to “Derating Curve”) | |
Working Humidity | 20~90%RH non-condensing | |
Storage Temp., Humidity | -20~+85℃,10~95%RH | |
Temp. Coefficient | ±0.03%/ ℃(0~50℃ ) | |
Vibration | 10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes | |
SAFETY &EMC | ||
Safety Standards | UL60950-1, TUV EN60950-1 | |
Withstand Voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
Isolation Resistance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC /25℃ /70%RH | |
EMC Emission | Compliance to EN55022(CISPR22) Class B, EN61000-3-2,-3 | |
EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A | |
OTHERS | ||
Dimension | 199*110*50mm (L*W*H) | |
Weight | 0.72Kg |
