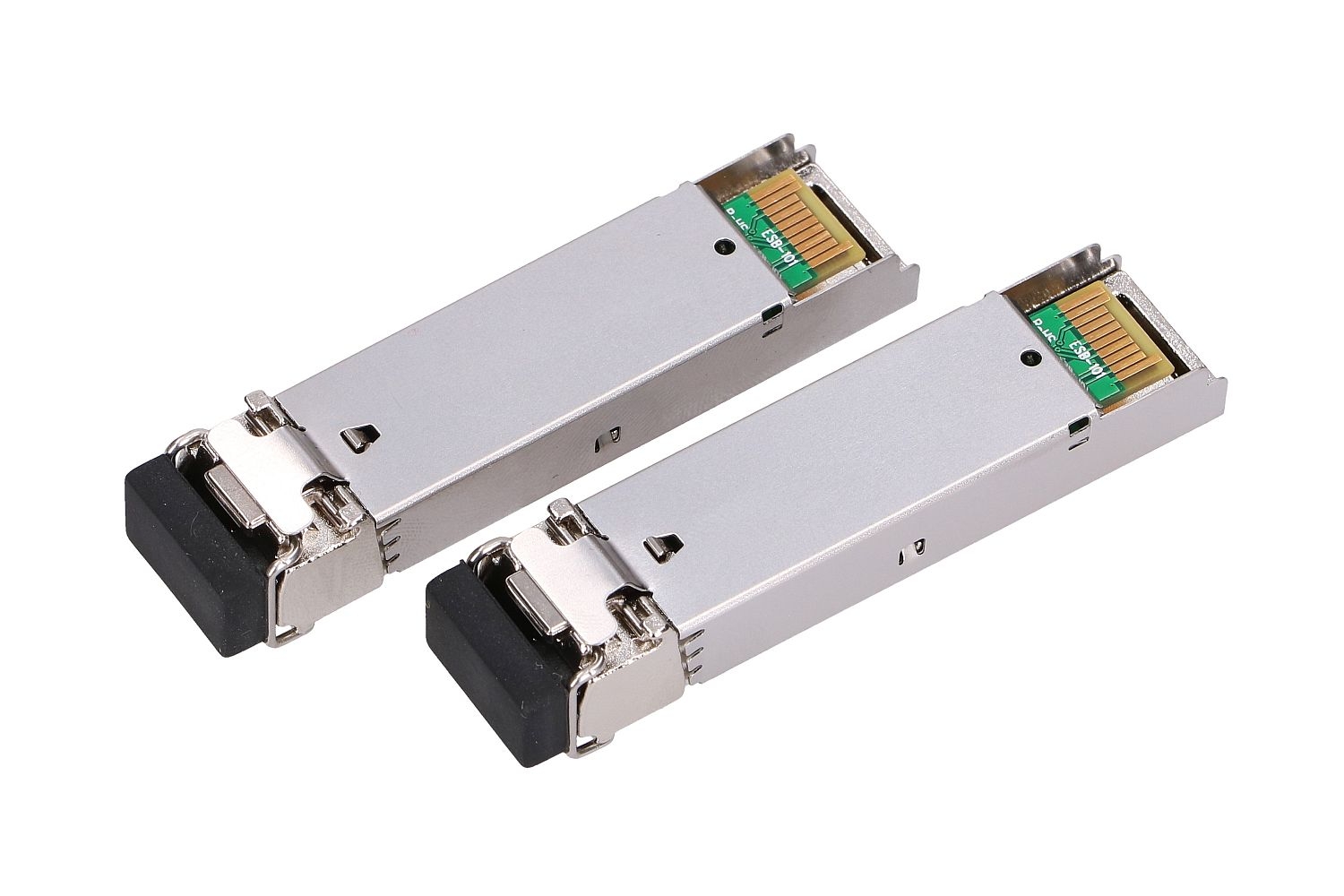

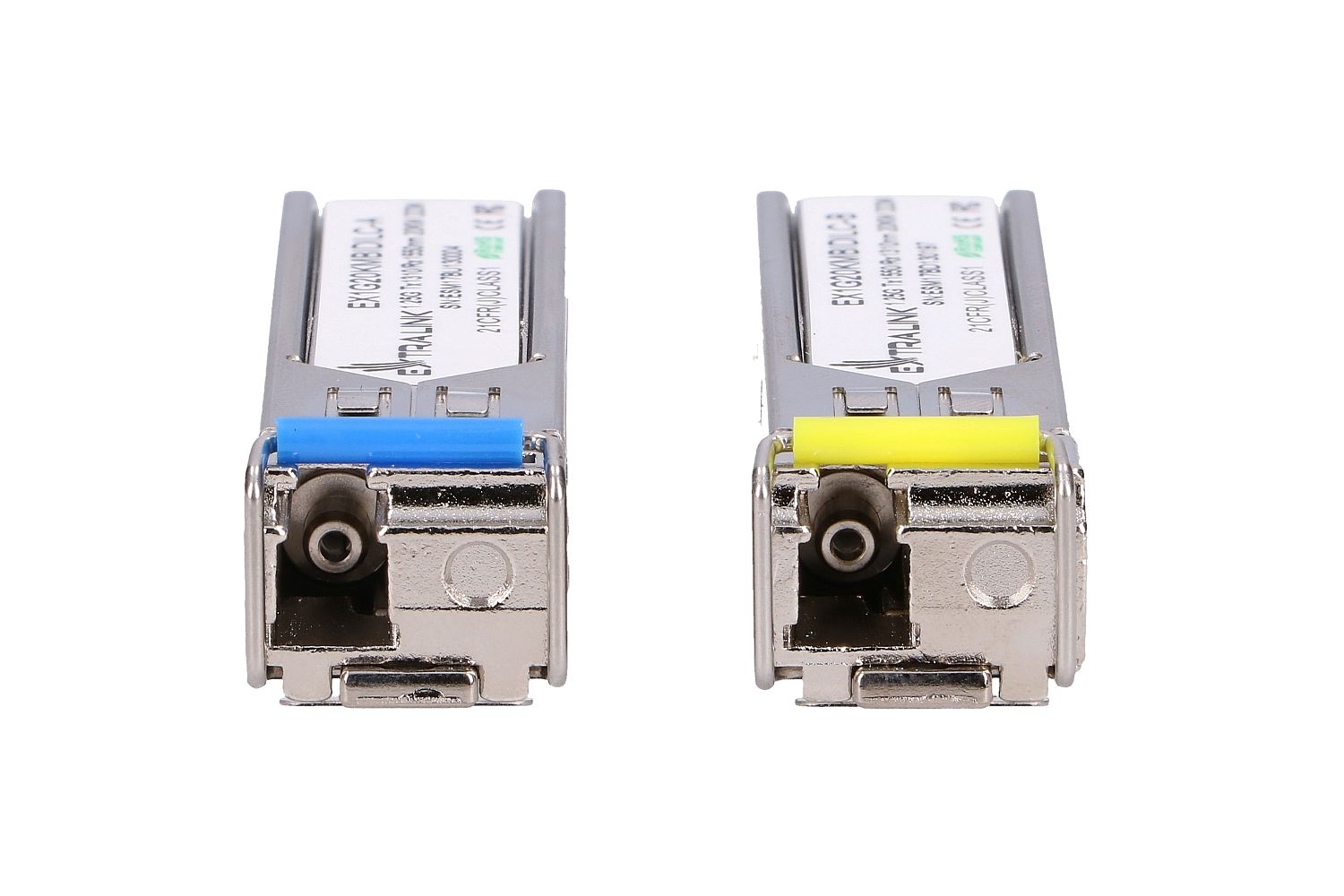

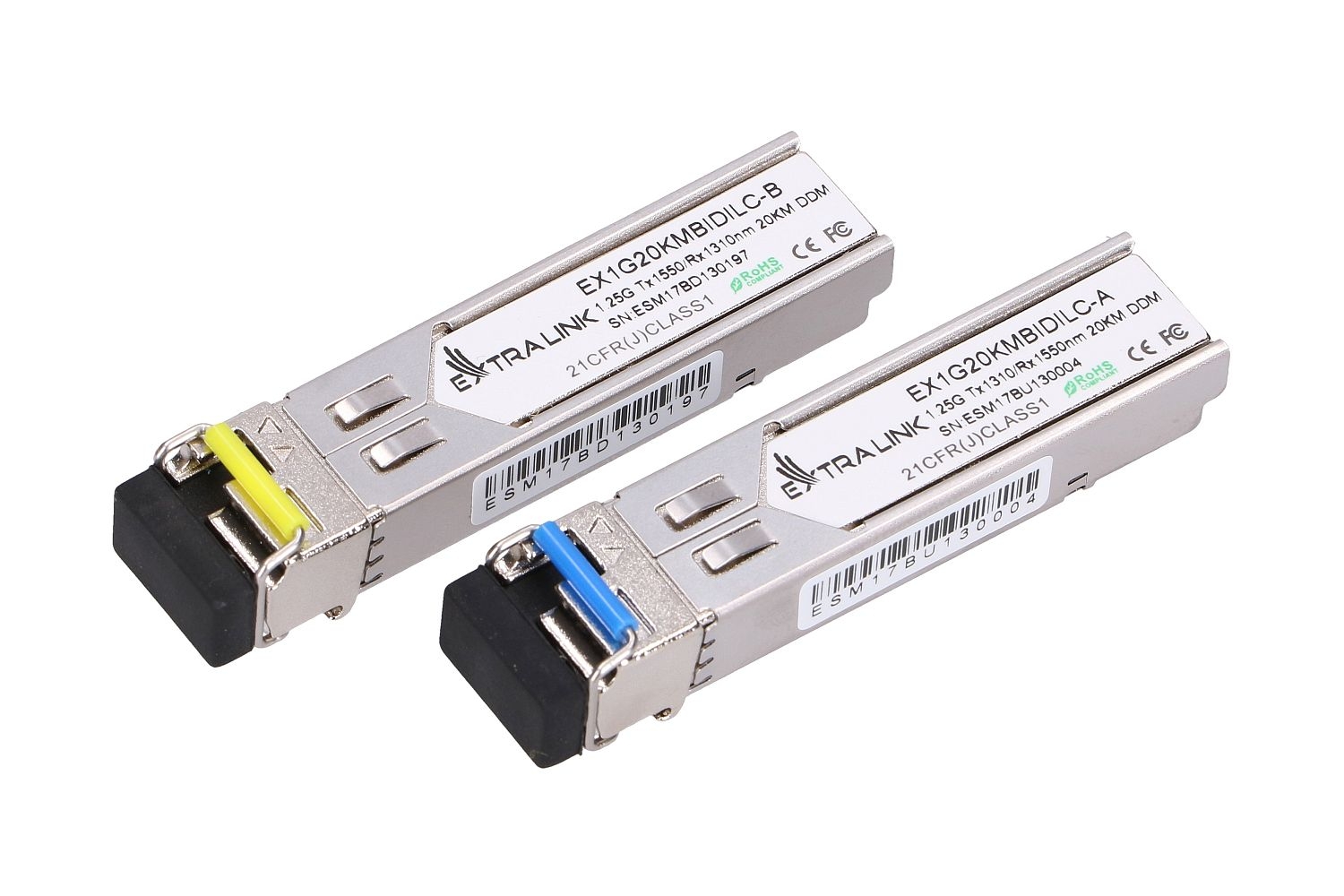

EXTRALINK SFP modulis 1.25G WDM 1310/1550NM SM LC DDM, 2 vnt (EL-SFP-SM-1G)
SFP single-mode modulis, 1,25 Gbps, RX/TX bangos ilgis: 1310/550nm, sąsajai iki 20 km.
Produkto savybės:
Applications:
• Gigabit Ethernet;
• Fiber Channel;
• Switch to Switch interface;
• Switched backplane applications;
• Router/Server interface;
• Other optical transmission systems.
Produkto specifikacijos:
• Transmission speed: 1 Gbps (Dual data-rate of 1.25Gbps/1.063Gbps operation);
• Distance: 4-20 km;
• Type: SFP;
• Output connector: LC;
• Transmission type: Single-Mode;
• Duplex type: Waving(WDM);
• Power supply: +3.3V single power supply;
• Operating case temperature:
* Standard : 0 to +70°C;
* Industrial : -40 to +85°C.
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compliant with:
• SFP MSA and SFF-8472 with LC receptacle;
• SONET OC-24-LR-1;
• RoHS.
