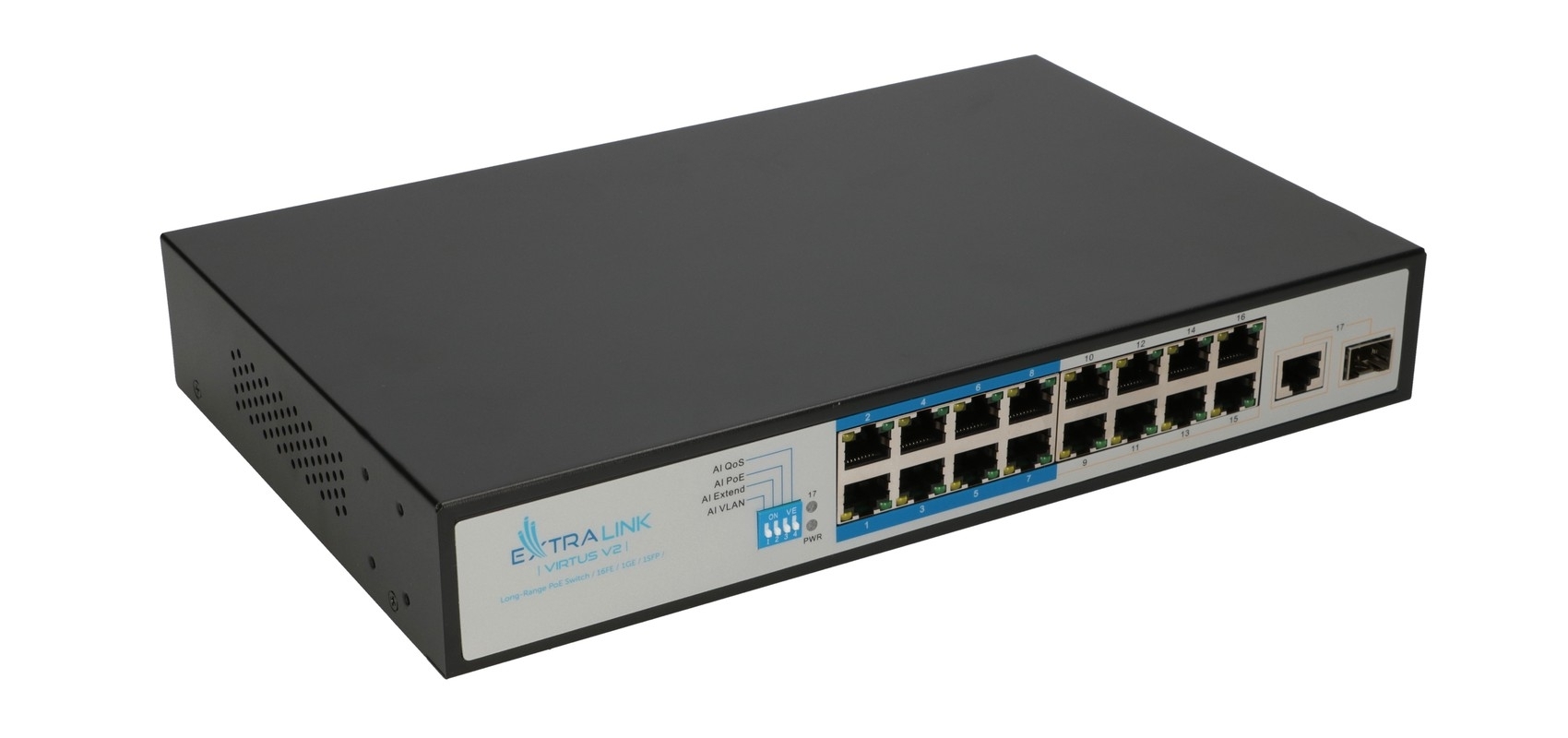

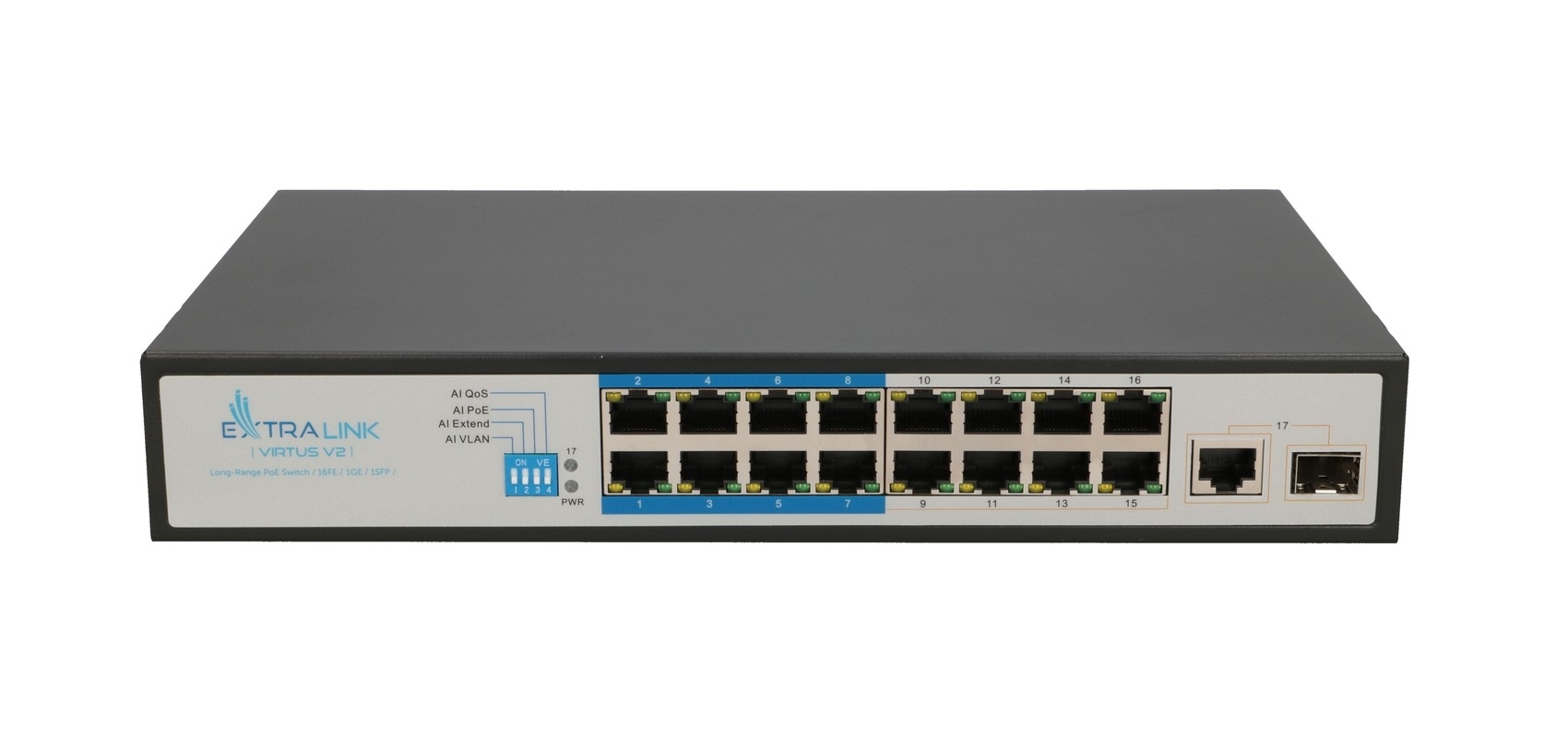

EXTRALINK ''Fast Ethernet'' nevaldomas, PoE 802.3af/at komutatorius (EL-VIRTUS)

Kodas: EL-VIRTUS
ID: #2169

16x 10/100Mbps, 1x 10/100/1000Mbps, 1x SFP prievadų, PoE 802.3af/at komutatorius | 4 darbo režimai | Kompaktiškas dizainas | Komutacinės spintos laikikliai komplekte !!

naujiena

131.04€ su PVM

Kaina be PVM: 108.30€

Kiekis:


Produkto savybės:

VIRTUS V2 is AI POE switch 16x 10/100Mbps POE ports with 1 Gigabit combo port.

VIRTUS V2 can carry power to IP camera, wireless AP, wireless bridge, IP phone. VIRTUS V2 have 4 working modes. Using AI VLAN mode - 1 -16 ports are isolated from each other, which can effectively restrain network storms and improve network performance. In AI Extend mode - the effective transmission distance of 1-8 ports can reach 250 meters, which is suitable for remote monitoring and power supply. AI power supply mode - the switch automatically detects the working status of the PD device and finds that the device abnormal automatically restarts the device. Also in AI QOS mode - the video data will be processed preferentially when the device is congested to make the video smoother. VIRTUS V2 support IEEE802.3af/at , auto identification power device, so don’t worry it will destroy the private standard POE or non-POE device.

Working mode keys

AI Extend: 1-8 port supports 250M meters long distance power supply. (recommended cat 5 or above)

AI VLAN: Isolating ports 1-16 from each other, restrain network storms effectively and improve network performance.

AI QOS: Prioritize the identified video data to make video transmission smoother.

AI PoE: Automatic detection power of port, power off and restart the device if find.

Key Features:

- Ports 1-8 supports 250m long distance supply power (suggestion using Cat.5 or above network cable).

- Support One key VLAN, ports 1-16 mutual isolation, can effect suppress network storm, promotion network performance.

- Support IEEE802.3af/at standard, automatically identify  IEEE802.3af/at standard device and supply power.

- Support uplink port auto MDI/MDIX.

- Adopt  storage forwarding.

- Smart powered, the lowest power dissipation, guarantee PD power requirement.

- With power circuit protection function, can protect back-end device safety.

- Zero configuration power supply can auto provide the self-adapting device.

- Without fan design , saving energy and protection environment,  without noise, reduction the affect of environment.

- Compact, delicate designed.

- Support port without link saving power function.

- All of port has link speed forwarding ability.

- Plug and play, no need configuration, easy to use.

Produkto specifikacijos:

Standard

IEEE 802.3i IEEE 802.3u IEEE 802.3x
IEEE 802.3ab   IEEE 802.3af  IEEE 802.3at

Port

16 10/100Mbps RJ45 port

1 10/100/1000Mbps RJ45 port

1 gigabit SFP port

PoE

16 10/100Mbps RJ45 PoE port

Total power budget: 150W

Single port max. 30W

Indicator

17 Link/Act  indicator light

16 POE indicator light

1 Power indicator light

Performance

forwarding mode: storage forwarding

Bandwidth: 5.2Gbps

Packet forwarding rate: 3.868Mpps

Support 16K MAC address list depth

Input power

AC 100-240V/50-60Hz

Dimensions

(L×W×H)



285mm×180mm×44mm

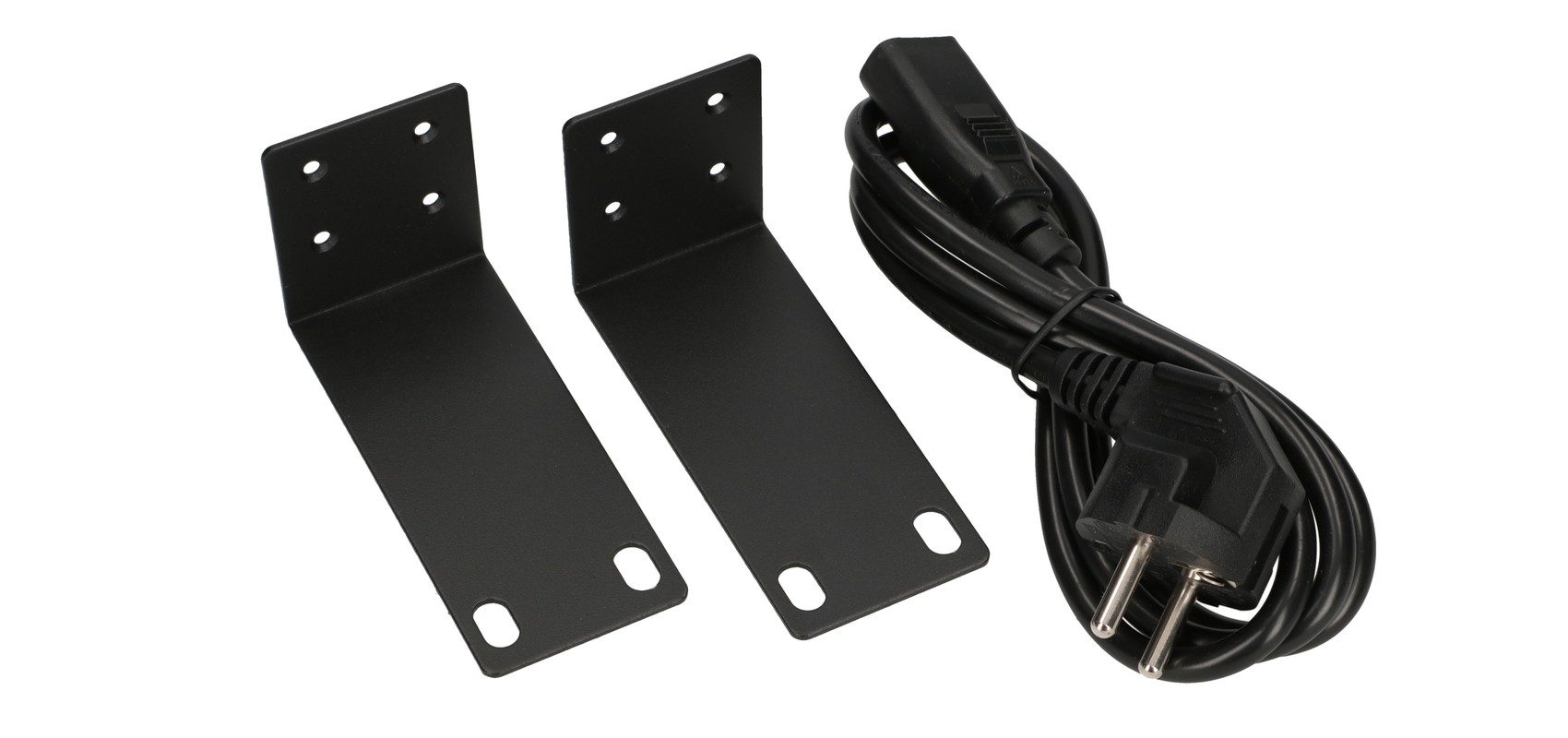

RACKMOUNT EARS WITH SCREWS INCLUDED!
