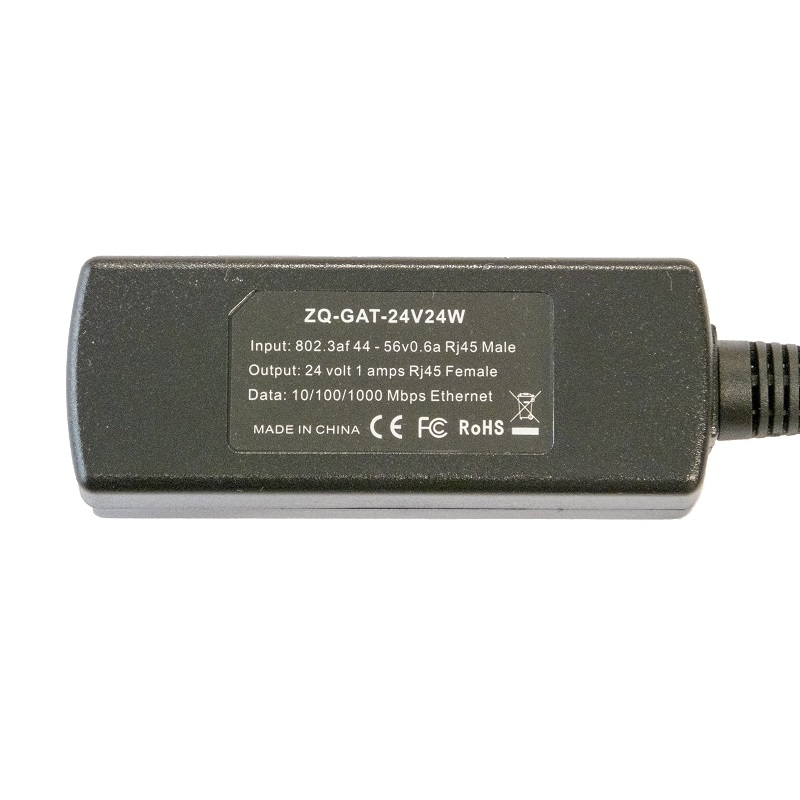

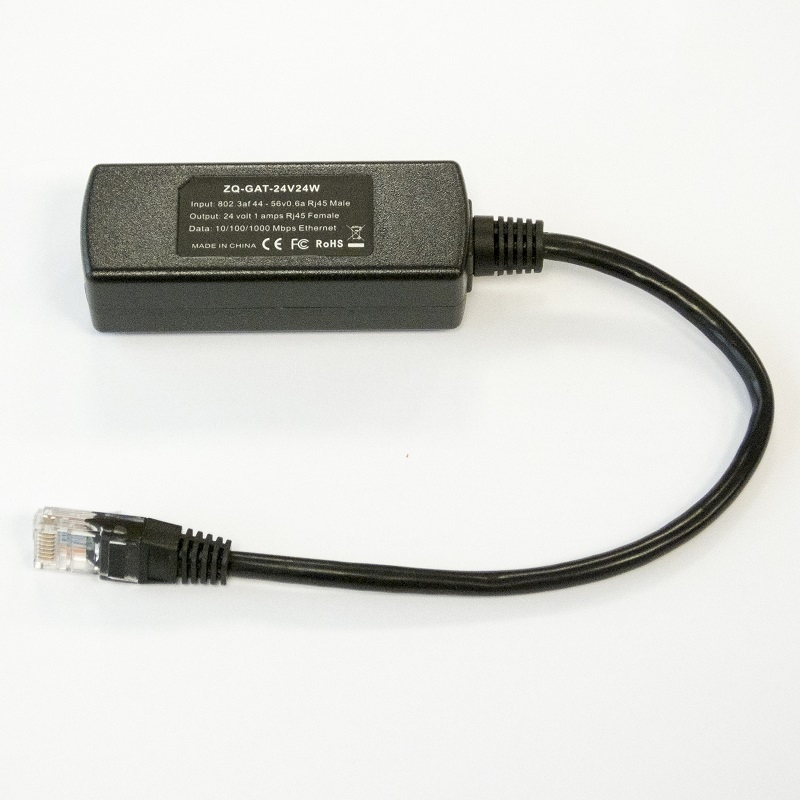

Gigabit 802.3af/at 44V-56V to 24 V (24 W) poe converter (ZQ-GAT-24V24W)

OEM kodas: ZQ-GAT-24V24W
Kodas: ZQ-GAT-24V24W
ID: #1506

Indoor Gigabit 802.3af to 24v (1A) poe converter, up to 24W output

Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
7.10€ 8.59€ >0€
6.86€ 8.30€ >100€
6.75€ 8.17€ >300€
Kiekis:
  Turime sandėlyje


Produkto savybės:

Features
IEEE802.3at/af Compliant
Input(RJ45 Male) voltage range 44V to 56V
10/100/1000Mbps fast Ethernet
Maximum 15W output power
Integral high efficiency DC/DC converter
Low output ripple and noise
High performance with low price
Short-circuit protection
Transformer isolation,1500V isolation (input to output)
Easy to use, with a minimum number of external components

Application
IP Cameras(Passive Poe)
Security and alarm systems(Passive PoE)
Wireless access point(Passive PoE)
VOIP telephone( Passive PoE)
Point of sale network terminal equipment(Passive PoE)

Description
   This device lets you use any 48V PoE source (including Passive PoE, Telecom PoE, 802.3af and 802.3at) to power RouterBOARD,UBNT,MTK,devices. Simply plug any 48V PoE powered ethernet cable into one port, and any 8-30V capable RouterBOARD, UBNT, MikroTik device into the other. This device is capable to provide
high power output - up to 15W.
   You can power it with virtually any 36-57V PoE solutions available on market today (Passive, Telecom, 802.3af and 802.3at)
    Ethernet shield pins are inside the Ethernet connectors, so that shielded Eethernet can be used, to ground either at the converter itself, or at the devices at both ends.
   Supports 10/100/1000Mbps Ethernet.

LED Indicator
RJ45 Green LED ----Output power
RJ45 Yellow LED ----Input power

Produkto specifikacijos:

Input(RJ45 Male) : 36-57V DC
Output(RJ45 Female): 12/24V(15W )
Data:1/2&3/6&4/5&7/8
Power:P12/36&P45/78(Input),P45+/78-(Output)
Data&Power In :PoE ADAPTER/PoE Switch
Weight : 55g
Dimensions: 350mm(Cable L=200mm)
Cable : TIA/EIA 568 Cat. 5
Data rate :10/100/1000Mbps
Connector: RJ-45
Operating Temperature : 0°C ~ 40°C
Storage Temperature :-40°C~+70°C
Operating Humidity :10%~80%RH
Storage Humidity : 5%~90%RH
Certification: CE , FCC

Papildoma informacija apie produktą:

Brochure
