Gigabit Passive PoE Rack Mount Injector/Panel, 24 port (POE-INJ-24-G-RM)
OEM kodas:
GPOE-24-1U
Kodas:
POE-INJ-24-G-RM
ID:
#2357
24 port Gigabit PoE injector panel with metal case, 1U high standard rack mount, 650 ma automatic resettable fuse on each port
95.30€ su PVMKaina be PVM: 78.76€ |
Produkto savybės:
Passive PoE means versatility. Save big on network upgrades and installations using this 24 port gigabit midspan PoE injector. Use it to power up to 24 IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.
Product Features:
- Extend power up to 328 feet (100 meters)
- Mode B (pins 4,5 7,8) Passive Power is "Always on"
- 650mA fuse limit per port
- 10/100/1000 Gigabit data capability
- 1U rack mount
!!! DC Power adapter is NOT Included !!!
Produkto specifikacijos:
| Certifications | UL/CE/FCC |
| Data + PoE Ports | 24 Ports |
| Data Ports | 24 Ports |
| Data Rate | Gigabit |

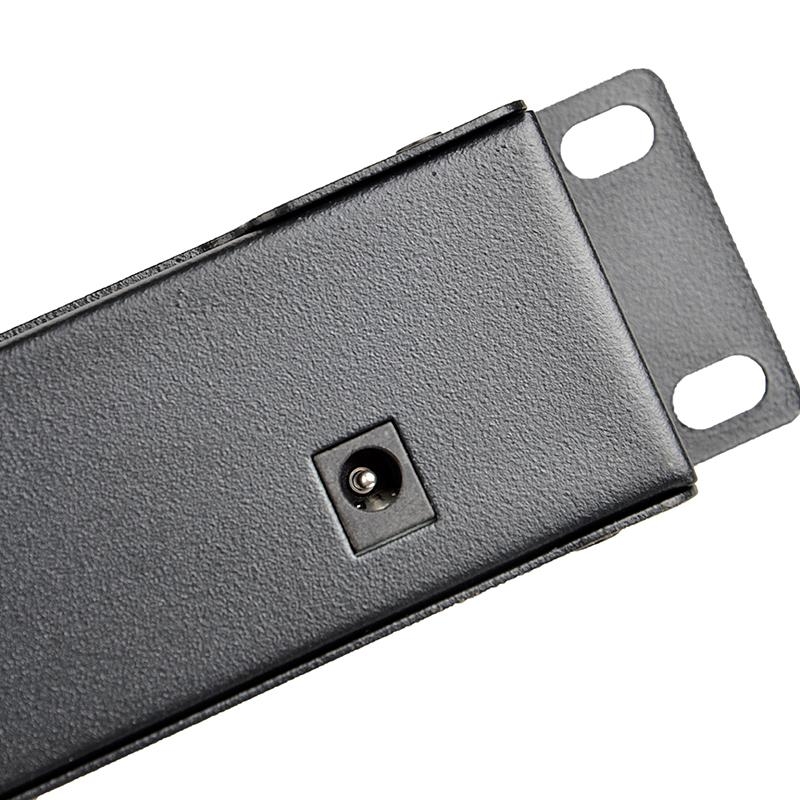

| DC connector | 2.1 x 5.5 mm DC (x2) |
| Dimensions | 19 x 2 x1.75 Inches |
| Input Voltage Range | 18-57 Volts DC |
| Max. Amps Per Port | 650 mA |
| Mount Type | 1U Rack |
| Operating Humidity | 5% to 90% |
| Operating Temperature Range | -10 - 60C |
| Output Voltage | Passive - Equal to input voltage |
| PoE Mode/Pinout | Mode B (-4,5 / +7,8) |
