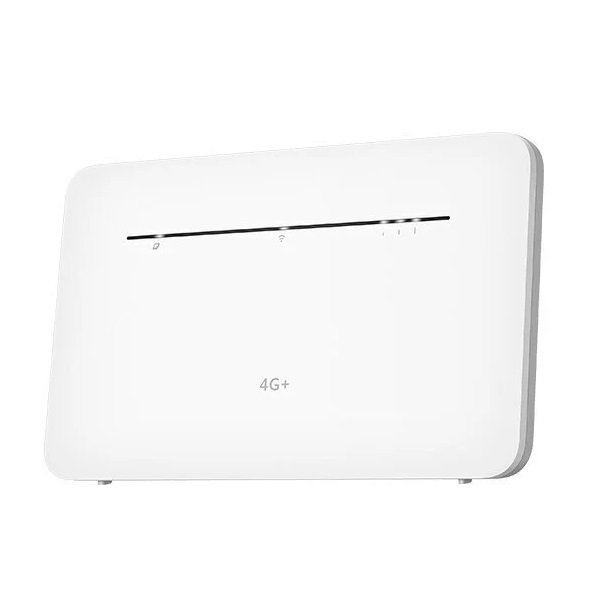

HUAWEI LTE Cat.7 WiFi Router (B535-232A)
OEM kodas:
B535-232A
Kodas:
B535-232A
ID:
#3837
4G LTE Cat7 | Up to 300Mbps download and 100Mbps upload speeds | WiFi 802.11 a/b/g/n/ac 2x2 MIMO in the 2.4Ghz/5Ghz bands | Up to 64 devices simultaneously | 4x Gigabit LAN ports | 2x External LTE antenna ports (SMA) | UNLOCKED
112.53€ su PVMKaina be PVM: 93.00€ |
Produkto savybės:
Huawei B535 is a 4G LTE WiFi router designed for multiple users in a home or small office environment. It allows users to access the Internet.
- LTE 300Mbps / 100Mbps (LTE cat7)
- Supported bands: LTE: B1/B3/B7/B8/B20/B28/B32/B38, UMTS: B1/B8
- Wi-Fi: 802.11 b/g/n/a/ac. 2.4GHz 2x2 MIMO Wi-Fi up to 300Mbps, 5GHz 2x2 MIMO Wi-Fi up to 867Mbps, maximum users: 64
- Number of LAN ports: 1 Gigabit port for LAN/WAN, 3 Gigabit ports for LAN
- Multi APN function (optional) for data, services TR-069
- Routing mode: NAT enabled (default) / Pass-through IP (optional)
- VPN client service (L2TP, PPTP)
- Client management via WebUI or HUAWEI SmartHome APP (iOS or Android)
- Operator maintenance via TR-069 (optional) and TR-143 (optional)
- Huawei Firmware Over the Air (HOTA)
- Micro SIM card slot
Produkto specifikacijos:
| Communication type | Wi-Fi, 4G/LTE |
| LTE category | Cat.7 (300Mb/s Download, 150Mb/s Upload) |
| Maximum wireless transmission speed | 1200 Mb/s |
| Number of LAN ports | 4x 10/100/1000BaseTX (RJ45) |
| Operating frequency | Dual Band (2.4GHz, 5GHz), LTE |
| Wireless network standards | IEEE 802.11ac, IEEE 802.11n |
| Additional connectors / interfaces | 2x SMA |
| LTE bands | B1 (2100MHz), B3 (1800MHz), B7 (2600MHz), B8 (900MHz), B20 (800MHz), B28 (700MHz), B32 (1500 MHz), B38 (2600MHz) |
| Type of device power supply | Power supply |
| Basic technical data | |
| WAN | 3GPP Release 11 |
| LAN | IEEE 802.3/802.3u |
| Wi-Fi | IEEE 802.11a/b/g/n/ac |
| Supported bands / frequencies | |
| LTE | B1/B3/B7/B8/B20/B28/B32/B38 |
| UMTS | B1/B8 |
| Wi-Fi | 2.4 GHz: 2.4 GHz - 2.473 GHz, 5 GHz: 5.15 GHz - 5.35 GHz & 5.47 GHz - 5.725 GHz |

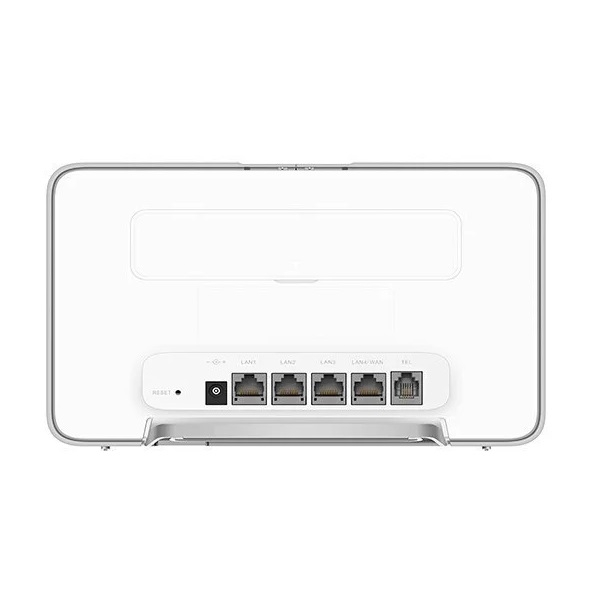

| Ports | One power supply port One LAN/WAN port (RJ45), 3 LAN ports (RJ45) Two external LTE antenna ports (SMA) One SIM card slot (Micro-SIM) |
| Antennas | Built-in LTE/UMTS main antenna Built-in additional LTE/UMTS antenna Built-in 2.4 GHz WLAN antenna Built-in 5 GHz WLAN antenna |
| LED signalling | One power indicator (white) One Internet status indicator Cyan: Access to the LTE network Blue: UMTS network access Yellow: GSM network access Green: Ethernet access Red: No SIM card was inserted or detected, or the SIM card does not have a sufficient balance One Wi-Fi/WPS/Hi indicator (white) Slow flashing: A passive HiLink is detected. Fast flashing: Pairing of the HiLink continues. Off: WiFi is turned off. The indicator starts flashing slowly only when B311-221 detects a new HiLink. HiLink devices include Honor routers, Honor configuration boxes, Honor headphones (EMUI 5.0 and newer) and others. One LAN indicator (white) One group of signal strength indicators (white) |
| Buttons | One power on/off switch One WPS/Hi button The Wi-Fi indicator flashes slowly when the router detects HiLink. Press the WPS button to connect HiLink to the Wi-Fi network in your router. When the Wi-Fi indicator is on, press the WPS button to enable WPS. One Reset button |
| Maximum transmission power | |
| LTE | B1/B8/B20/B28/B38: 22.5 dBm B3/B7: 22 dBm |
| UMTS | B1/B8: 22.5 dBm |
| Wi-Fi | 802.11b: 14.5 dBm 802.11g: 15.5 dBm 802.11n: 15.5 dBm 802.11a: 18 dBm 802.11ac: 18 dBm |
| Other | |
| Energy consumption | < 12 W |
| AC/DC power supply | AC (input): 100V-240V 50Hz/60Hz DC (output): 12V/1A |
| Dimensions (Maximum) | 219 mm (width) x 138 mm (height) x 25.6 mm (depth) (not included the socket) 219 mm (width) x 138 mm (height) x 60.66 mm (depth) (including socket) |
| Weight | Approximately 325 g (without power supply) |
| Temperature | Operating temperature: 0°C to 40°C Storage temperature: -20°C to +70°C |
| Humidity | 5% - 95% (non-condensing) |
| Certification/conformity | CE, Wi-Fi, ERP, ROHS, REACH, GCF |
| LTE | |
| LTE bands | FDD LTE B1: 1920-1980 MHz 2110-2170 MHz B3: 1710-1785 MHz 1805-1880 MHz B7: 2500-2570 MHz 2620-2690 MHz B8: 880-915 MHz 925-960 MHz B20: 832-862 MHz 791-821 MHz B28: 703-748 MHz 758-803 MHz B32: NA 1452-1496 MHz TDD LTE B38: 2570-2620 MHz 2570-2620 MHz UMTS B1: 1920-1980 MHz 2110-2170 MHz B8: 880-915 MHz 925-960 MHz |
| 2.4 GHz WiFi antenna | |
| Frequency | 2.4 GHz-2.473 GHz |
| Input impedance | 50 Ω |
| Standing wave | < 2 |
| Effectiveness | -3 dB |
| Strengthening | 3.5 dBi |
| Polarization | Linear |
| 5 GHz WiFi antenna | |
| Frequency | 5.15 GHz - 5.35 GHz & 5.47 GHz - 5.725 GHz |
| Input impedance | 50 Ω |
| Standing wave | < 2 |
| Effectiveness | -3 dB |
| Strengthening | 3.5 dBi |
| Polarization | line |
| Software | |
| Router | Supports the default route: 0.0.0.0.0. Supports manual configuration of LAN IP addresses. Supports Address Resolution Protocol (ARP). |
| DHCP server | The DHCP server can be enabled or disabled. The DHCP server address pool can be configured. Lease can be configured. The DNS relay under the DHCP server can be enabled or disabled. |
| NAT | Supports NAT and NAPT (compliant with RFC2663, RFC3022 and RFC3027). Supports cone NAT. Supports Symmetric NAT |
| ARP | Supported |
| ICMP | Supported |
| IPv4 and IPv6 | IPv4v6 double stack IPv6 only (optional, CLAT for LAN side Internet access on IPv4 side) IPv4 only (optional) When CLAT is enabled, the Internet access service of the IPv4 device cannot reach its maximum capacity. Only in IPv6 is not available NAT database service (e.g. port forwarding and port triggering). |
| VPN pass-through | Supported |
| VPN client | Support L2TP VPN client Support PPTP VPN client |
| SMS | Writing/Sending/Receiving Writing/sending/receiving very long messages |
| Date service | LTE : DL 300 Mbps, UL 100 Mbps DC-HSPA+: DL 42 Mbps, UL 5.76 Mbps HSPA+: DL 21 Mbps (64QAM), UL 5.76 Mbps HSPA: DL 14.4 Mbps, UL 5.76 Mbps WCDMA PS: DL 384 Kbps, UL 384 Kbps Wi-Fi 802.11b/g/n/a/ac Supports multi APNs (Optional, one for data and one for TR-069). |
| Firewall configuration | Firewall activation/deactivation URL filtering IP filtering in LAN Port forwarding (Virtual server) Triggering ports (special application) DMZ service UPnP service ALG settings |
| LAN | 10/100/1000 Mbps auto-negotiation Automatic MDI/MDIX detection Compliant with IEEE 802.3/802.3u |
| Wi-Fi | Sets and hides service set identifiers (SSIDs) Compliant with IEEE 802.11b/g/n/a/ac WPS WMM |
| Encryption | WEP, AES, and TKIP + AES |
| Security Modes | Open WPA2-PSK WPA/WPA2-PSK WEP |
| MAC Address Authentication | Supports white MAC address authentication list. Supports black MAC address authentication list. Supports up to 10 MAC address entries. |
| STA | Supports the STA status query. Supports up to 64 connected stations. |
