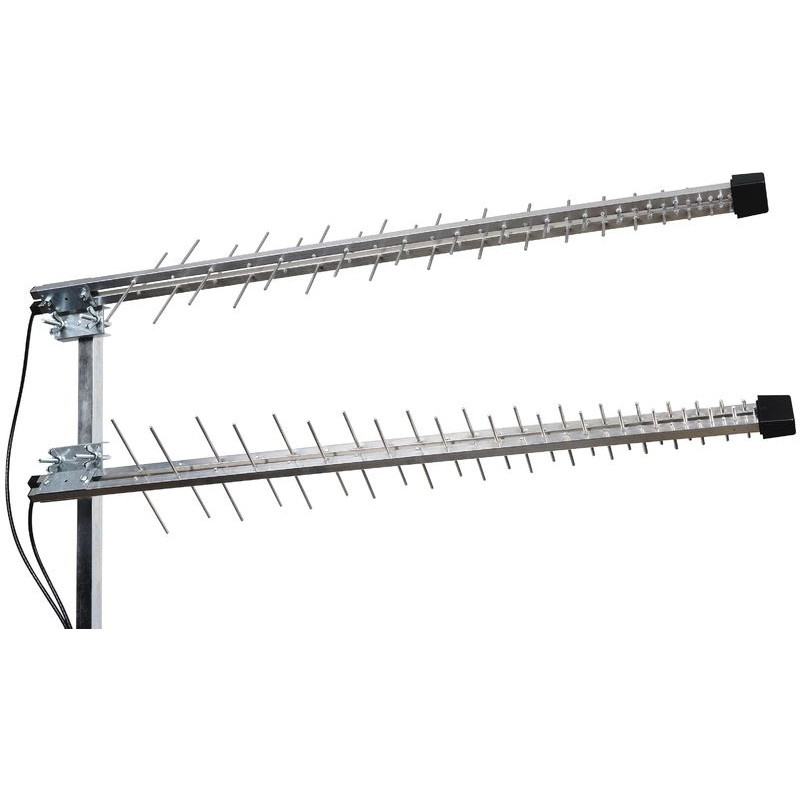

ISKRA U-MIMO 3G 4G LTE High Gain 700-2700MHz Antenna with 10m cables, SMA Male Connectors (P-58-L700-10)

OEM kodas: P-58-L700-10
Kodas: P-58-L700-10
ID: #1528

11 dBi LTE/3G/WiFi (WLAN) antennas, dual polarization. Wtih 10m cables included, SMA Male Connectors

Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
53.60€ 64.86€ >0€
53.11€ 64.26€ >100€
52.62€ 63.67€ >300€
Kiekis:
  Sandėlyje neturime


Produkto specifikacijos:

Antenna Gain: 9–11 dBi
Cable length: 10 m

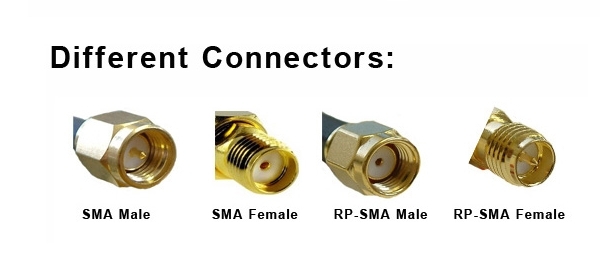

Connector: SMA male
Impedance: 50 oHm
Max. power connection: 50 W
Antenna length: 1070 mm
Number of elements: 58
Polarization: 2 × 45 degrees
Front-back ratio: 23 dB
Beam width H/V: 54/46°
VSWR: <1.6

Frequency ranges:
LTE 700 & 800: 698-862MHz / 9.5 dBi
LTE 1800: 1710-1880MHz / 11 dBi
LTE 2600: 2500-2700MHz / 11 dBi
3G 900: 880-960MHz / 10 dBi
3G 2100: 1920-2170MHz / 11 dBi
Wi-Fi (WLAN): 2401-2495MHz / 11 dBi

Papildoma informacija apie produktą:

Datasheet
