JIROUS 10/11 GHz 680 mm parabolinė antena (JRMD-680-10/11Ra)

Produkto savybės:

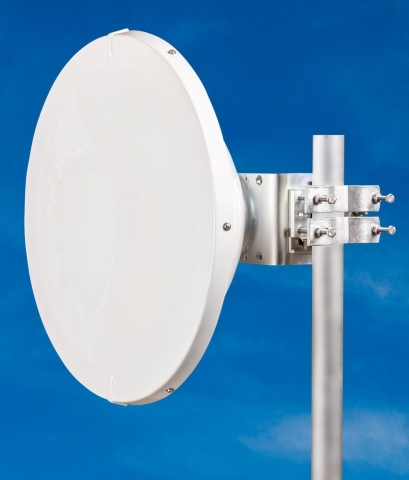

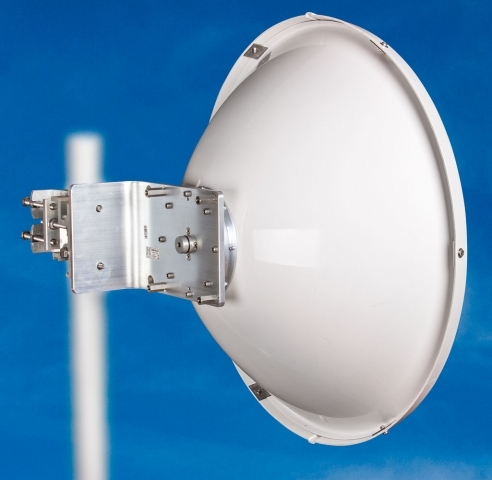

Antenna JRMD – 680 – 10/11 is designed for microwave links at the frequency band 10 and 11 GHz. The new generation is coming in a deep reflector dish design with a massive holder.

Usage:
- deep parabola for better parameters
- easy to assembly: first the holder and then the antenna only by 2 screws
- fine setting elevation (of gradient) and azimuth ± 20°
- extreme wind stability

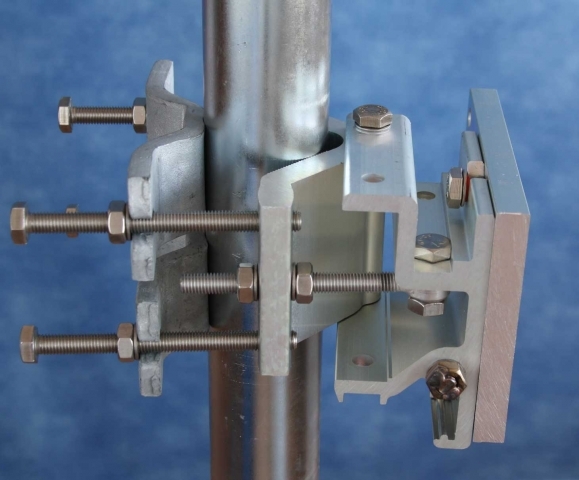

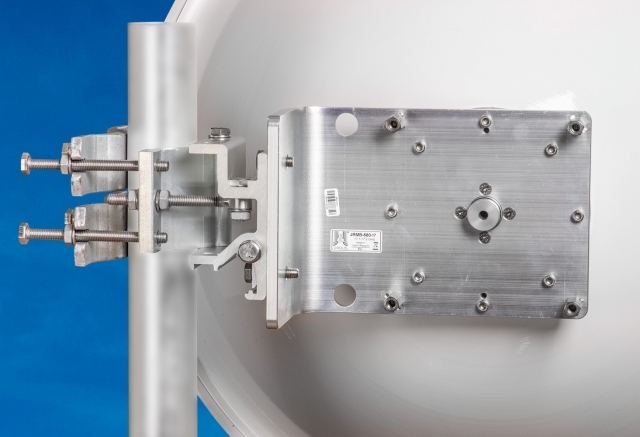

The antenna is supplied with a holder JDMW-900 AR that allows easy mounting on a mast. The holder can be installed separately on the mast. Subsequently, you can simply hang up the antenna with microwave unit into it. The holder allows precise adjustment in both directions. Ready for right and left side mounting.
In the areas with the expected occurrence of the strong winds mounting on the mast with minimal ø 50 mm is recommended.

Produkto specifikacijos:

Electrical parameters
Frequency range: 10.0 – 12.0 GHz
Gain – Low frequency: 33.6 ± 1 dBi
Gain – High frequency: 35.5 ± 1 dBi
Front to back ratio: ≥ 55.5 dB
Beamwidth-3 dB: 3° ± 0.5°
Return loss: ≥ 18 dB/10.3 – 11.7 GHz
Polarization: Linear, vertical/horizontal
Electrical Compliance:
     US FCC Part 101A | 10.550 – 10.680 GHz
     US FCC Part 101B | 10.7 – 11.7 GHz
     Class 2 ETSI EN 302-217-4-2

Mechanical parameters
Parabola: ø 68 cm, Aluminium alloy
Radome: UV steady plastic ABS
Input/output: Circle waveguide Ø 19 mm
Installation on mast: ø 40 - 120 mm
Operating wind load: 180 km/h (112 mph)
Survival wind load: 240 km/h (149 mph)
Weight: antenna - 5.7 kg (12.5 lbs.), holder - 3.2 kg (7.0 lbs.)
Shipping dimension: antenna - 800 x 800 x 435 mm/ 9.4 kg (20.7 lbs.), holder - 180 x 170 x 165 mm/ 3.5 kg (7.7 lbs.)
