JIROUS antena JRC-32 DuplEX SMA Precision

OEM kodas: JRC-32 DuplEX SMA Precision
Kodas: JRC-32 DuplEX SMA Pr
ID: #1359

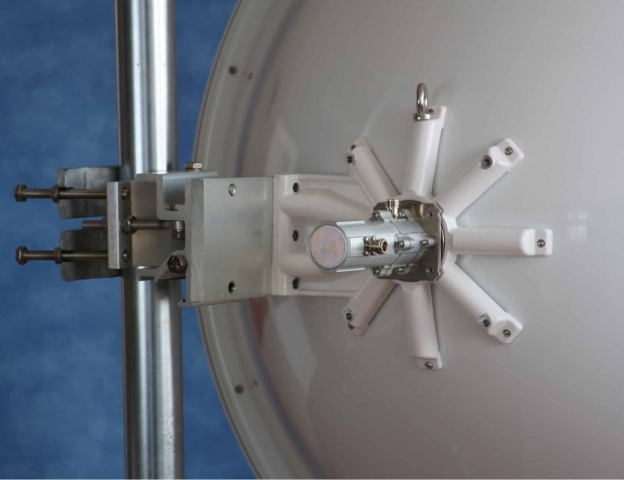

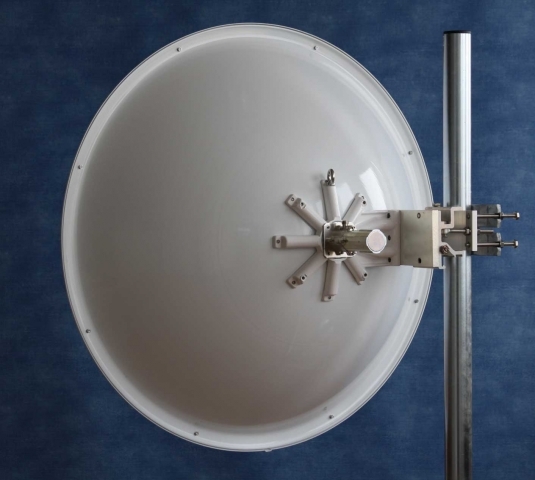

5 GHz dvipolinė parabolinė Dish antena JRC-32 Duplex SMA Precision, tinkama bet kokiu oru. Plastikinis dangtelis, tikslus reguliavimo kronšteinas, R-SMA jungtys.

479.12€ su PVM

Kaina be PVM: 395.97€


Produkto savybės:

  •     Dual-polarized antenna, horizontal and vertical polarization
  •     The highest isolation! 53 dB
  •     Only 1 antenna instead 2 save money for mast!
  •     Extra high front to back ratio
  •     Special deep parabola for excellent parameters
  •     Easy to assembly: first only the holder and then the antenna only by 2 screws
  •     Fine setting elevation (of gradient) and azimuth ± 20°
  •     Right and left assembling
  •     eExtreme wind stability
  •     VSWR and isolation are measured during the manufacture of every piece
  •     Outdoor usage
  •     Radom (plastic parabola cover) for each antenna free!

Produkto specifikacijos:

Technical parameters
Frequency range    5,45 - 5,85 GHz
Gain    32,2 ±0,6dBi
VSWR     ≤ 1,5
Isolation between connectors    53dB (≥45dB)
Front to back ratio    ≥ 52 dB
Beamwidth-3 dB    4,1°
Connector    N - Female - JRC-32DuplEX
Polarization    linear, horizontal and vertical or 45°
Parabola    ø 90 cm
aluminium alloy with baking colour
Cover    UV steady plastic ABS
Instalation for mast     ø 40 - 120 mm
weight of antenna     10,65 kg
weight of holder     3,25 kg
