JIROUS JRC-35 DuplEX SMA Precision
OEM kodas:
JRC-35 DuplEX SMA Precision
Kodas:
JRC-35 DuplEX SMA Pr
ID:
#1358

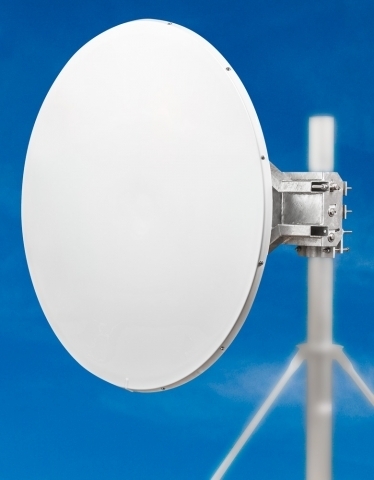

5Ghz Dual-polarized Parabolic Dish antenna JRC-35 Duplex SMA Precision with allweather Plastic cover, precise adjustment bracket, R-SMA connectors
Produkto savybės:
professional directional antennadeep parabola with great resistance to interference and high mechanical strength
high neighbouring links isolation
radom included
massive bracket with accurate elevation and azimuth setting
right and left side mounting
strong wind stability
Produkto specifikacijos:
Technical parameters:Frequency range: 5.45 - 5.85 GHz
Gain: 34 ±0.6 dBi
Beamwidth: -3 dB 3.1°
Front-to-back ratio: ≥ 53 dB
VSWR: ≥ 1.5 dB
Isolation between connectors: 50 dB (≥45 dB)
Polarization: linear vertical and horizontal or 45°
Mechanical parameters:
Parabola ø 120 cm - Aluminium alloy
Connector N - female, R-SMA
Radom UV resistant composite material
Installation on mast:
ø 80 - 120 mm
ø 60 - 80 mm - with adjustable wind bracing set
Operating wind load:
without wind bracing - max. 110 km/h
with wind bracing - max. 140 km/h
Survival wind load max. 210 km/h
