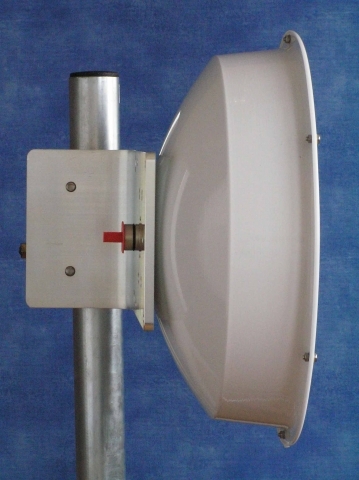

Jirous parabolinė antena 10,3-11,7GHz (JRMA-380 10/11)

Kodas: JRMA-380-10/11Ra
ID: #1293

Jirous Microwave Parabolic antenna JRMA-380 10/11 - frequency range 10.3 - 11.7Ghz, gain 29dbi, parabola 380 mm, radom and bracket included. Designed for MW units UBNT AF-11, MIMOSA, ALCOMA, SUMMIT

216.15€ su PVM

Kaina be PVM: 178.64€


Produkto savybės:

professional microwave antenna
metal parabola collar with absorbing material for the high resistance to interference
high neighbouring links isolation
radom included
massive bracket JDMW-900 with accurate elevation and azimuth setting
right and left side mounting
extreme wind stability

Designed for MW units:
UBNT AF-11 - necessary to use with JXAF-11 adapter (sold separate)
custom modifications possible

assembled antenna with radom (1pcs)
massive mount bracket JDMW-900

Produkto specifikacijos:

Frequency range 10,3 - 11,7 GHz
Gain 10,3 GHz    28 dBi
Gain 11,7 GHz    29 dBi
VSWR    ≤ 1,3
Beamwidth -3 dB / 10,1 GHz    6,0°
Beamwidth -3 dB / 11,7 GHz    5,2°
ETSI standard    EN 302-217-4-2 class 2
Polarization    depends on the Unit installation
Parabola    ø 380 mm - Aluminium alloy
Radom    UV resistant plastic ABS
Conection    waveguide ø 19 mm
Installation on mast    ø 40 - 120 mm
Operating wind load    max. 180 km/h
Survival wind load    max. 240 km/h

For use with Ubiquiti AF-11 - necessary to use JXAF-11 adapter (sold separate)
