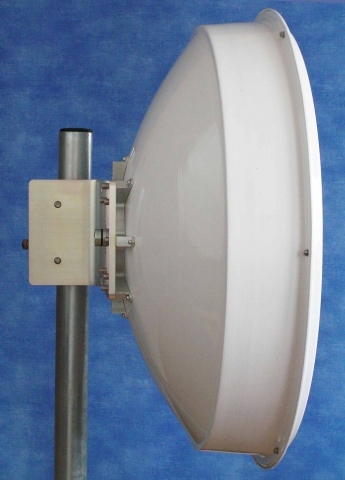

Jirous Parabolic 10,1-11,7Ghz antena JRMA-650 10/11
Jirous mikrobangų parabolinė antena JRMA-650 10/11 - dažnių diapazonas 10,1–11,7 GHz, stiprumas 35 dbi, parabolė 650 mm, „Radom“ ir laikiklis. Skirta MW agregatams: UBNT AF-11, MIMOSA, ALCOMA, SUMMIT
Produkto savybės:
profesional microwave antenna
metal parabola collar with absorbing material for the high resistance to interference
high neighbouring links isolation
radom included
masive bracket JDMW-900 with accurate elevation and azimuth setting
right and left side mounting
extreme wind stability
Design for MW units:
Racom
Alcoma
Mimosa
Summit
UBNT AF-11 - necessary to use JXAF-11 adapter (sold separate)
Package:
assembled antenna (1pcs)
massive bracket JDMW-900
Produkto specifikacijos:
Frequency range 10,1 - 11,7 GHz
Gain 10,1 GHz 34,1 dBi
Gain 11,7 GHz 35,5 dBi
VSWR ≤ 1,3
Beamwidth -3 dB / 10,1 GHz 3,4°
Beamwidth -3 dB / 11,7 GHz 2,9°
ETSI standard EN 302-217-4-2 class 2
Polarization depends on the Unit installation
Parabola ø 650 mm - Aluminium alloy
Radom UV resistant plastic ABS
Conection waveguide ø 19 mm
Installation on mast ø 40 - 120 mm
Operating wind load max. 180 km/h
Survival wind load max. 240 km/h
For use with Ubiquiti AF-11 - necessary to use JXAF-11 adapter (sold separately)
