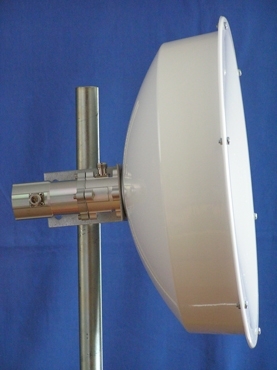

JIROUS JRC-24 DuplEX

Produkto savybės:

dual-polarized antenna, horizontal and vertical polarization
    the highest isolation! 53 dB
    only 1 antenna instead 2 save money for mast!
    extra high front to back ratio
    metallic collar assures increased isolation between antenna on mast = lower interference between links
    direction links for medium distance, also short in difficult conditions
    setting elevation (of gradient) and azimuth has independent adjustment
    VSWR and isolation are measured during the manufacture of every piece
    outdoor usage
    radom (plastic parabola cover) for each antenna free!

Produkto specifikacijos:

Frequency range    5,45 - 5,9 GHz
Gain    23,6 ±0,6dBi
VSWR     ≤ 1,5
Isolation between connectors    53dB (≥50dB)
Front to back ratio    ≥ 38 dB
Beamwith-3 dB    9°
Connector    N - Female - JRC-24DuplEX
Polarization    linear, horizontal and vertical
Parabola    ø 38 cm
aluminium alloy with baking colour
Cover    UV steady plastic ABS
Instalation for mast     ø 27 - 74 mm
