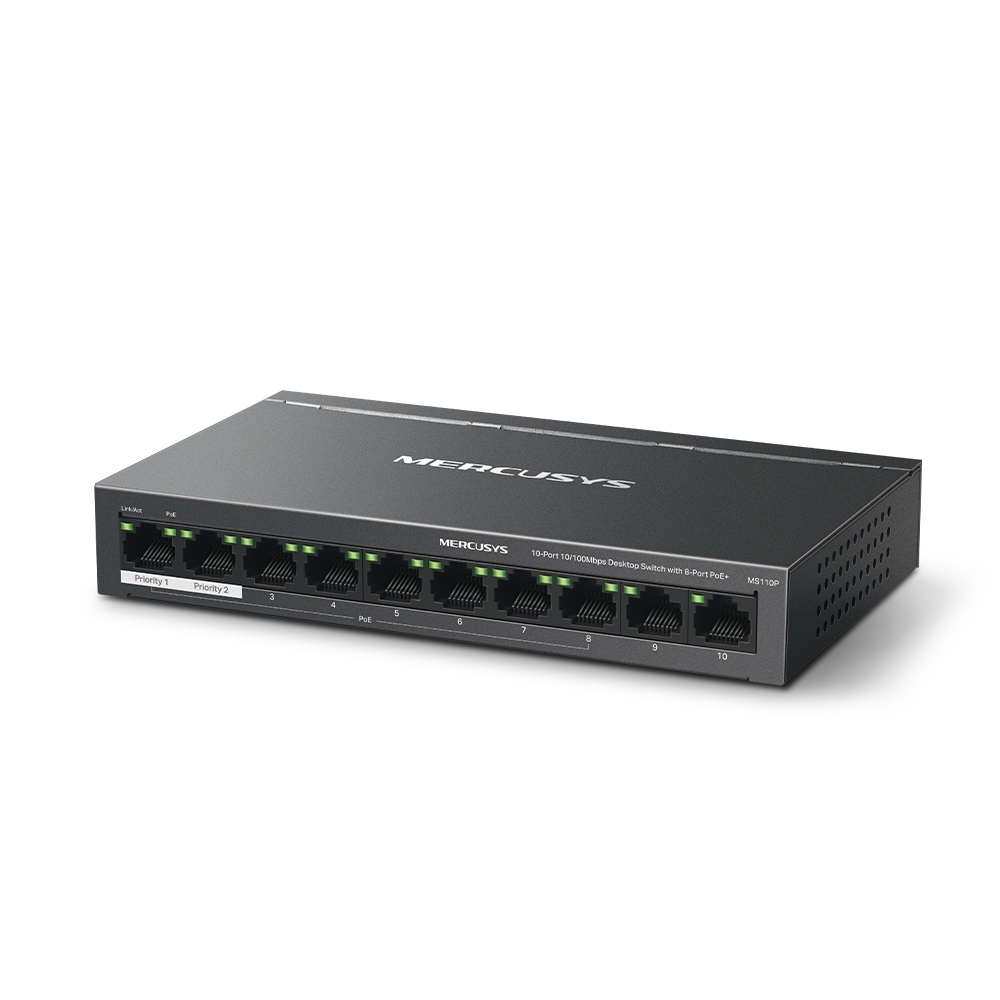

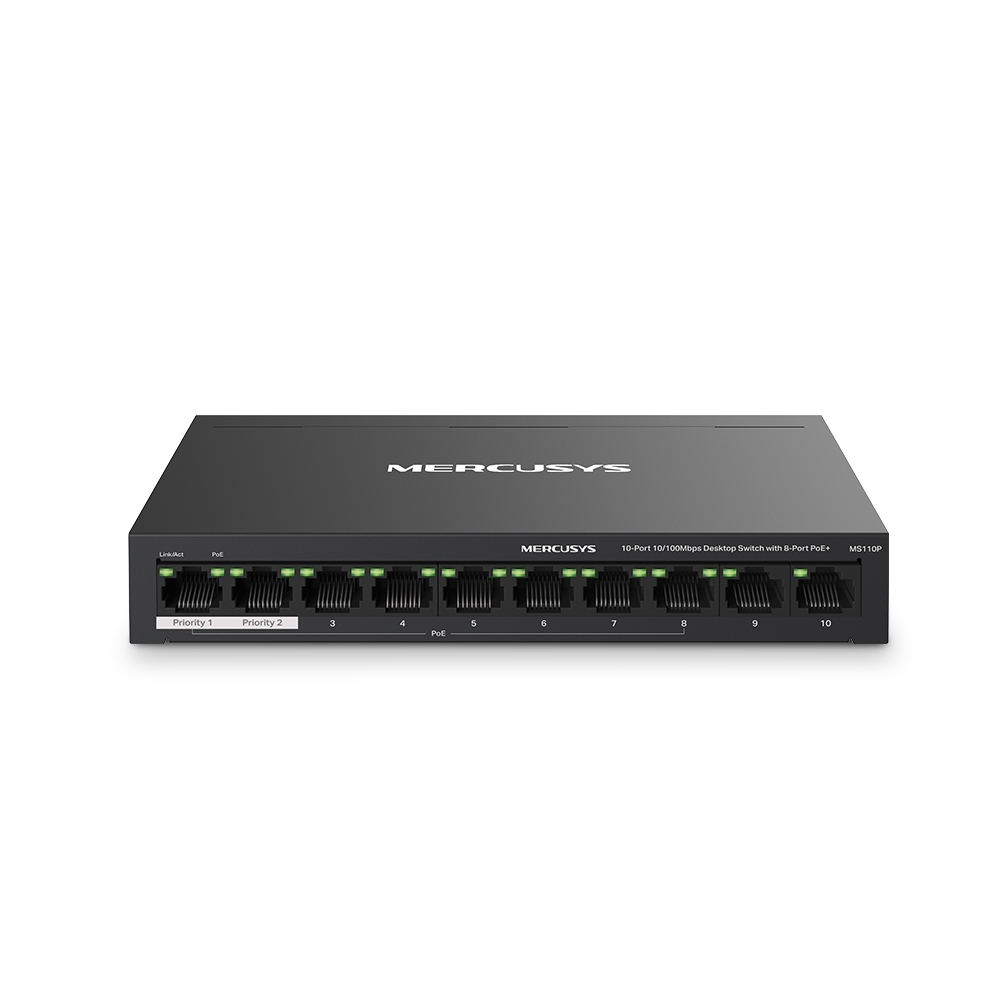

MERCUSYS 10 prievadų 10/100Mbps Desktop Komutatorius su 8 prievadais PoE+ (MS110P)

OEM kodas: MS110P

Kodas: MS110P

ID: #4458

10x 10/100 Mbps RJ45 LAN prievadai (8x 802.3at/af atitinkantys (iki 30W per prievadą, 65W bendras biudžetas)) | Iki 250 m PoE perdavimas | PoE automatinis atkūrimas | Izoliacijos režimas | Tyli veikla (be ventiliatoriaus dizainas) | Metalinis korpusas | Stalinis / Montuojamas ant sienos dizainas | Plug and Play

25.19€ su PVM Kaina be PVM: 20.82€
Kiekis:

Produkto savybės:

10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports

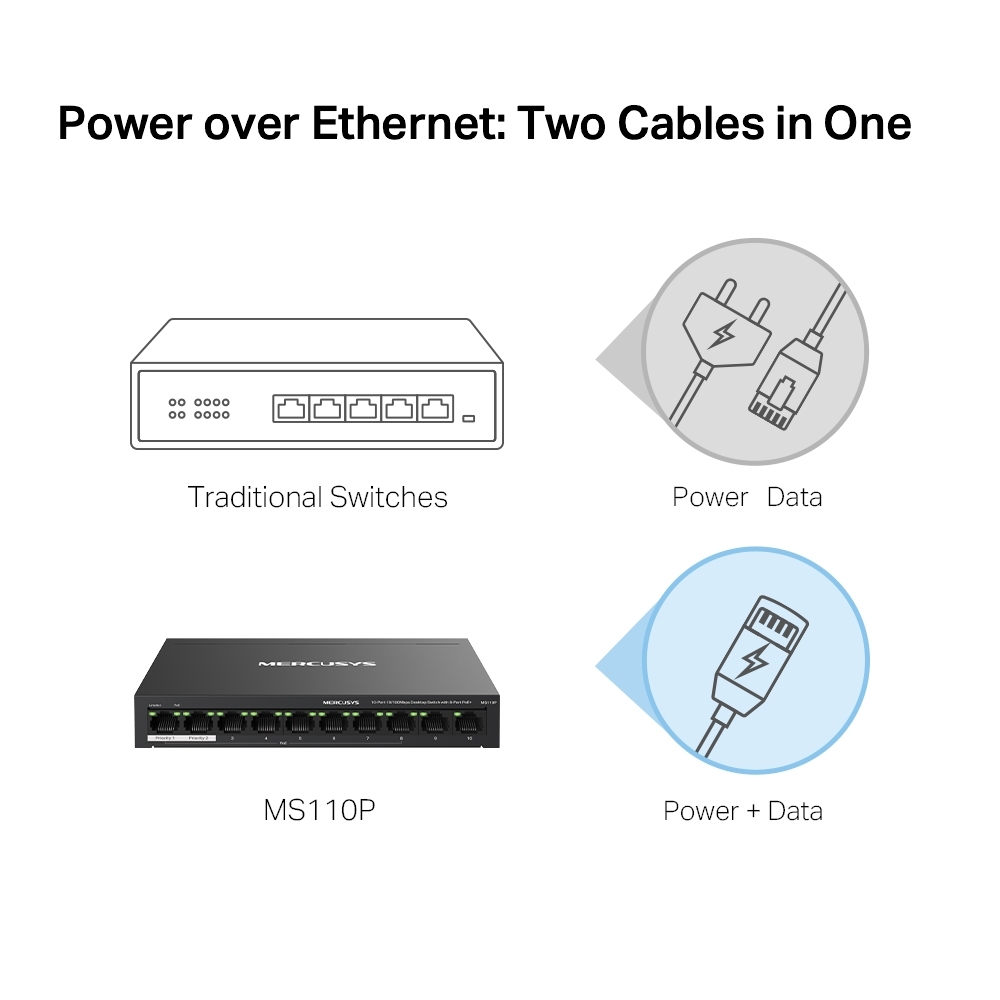

Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports
2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

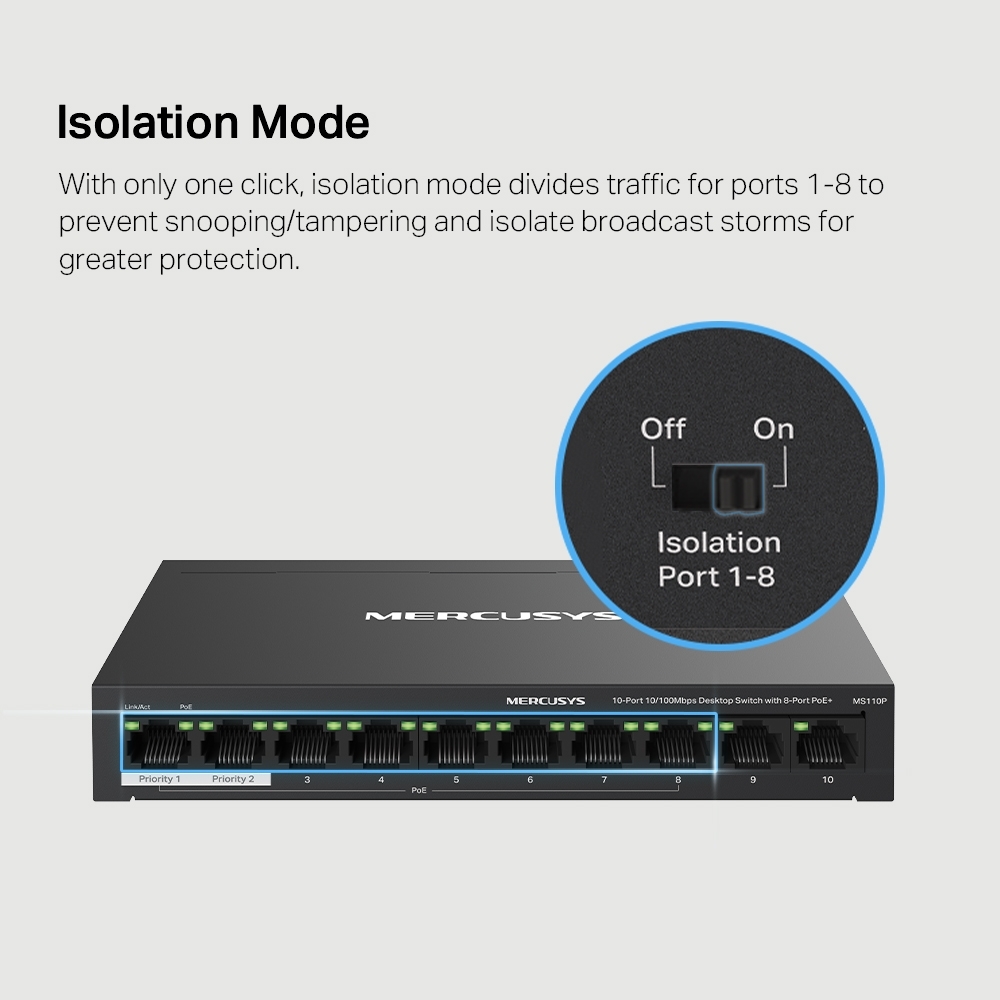

Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life

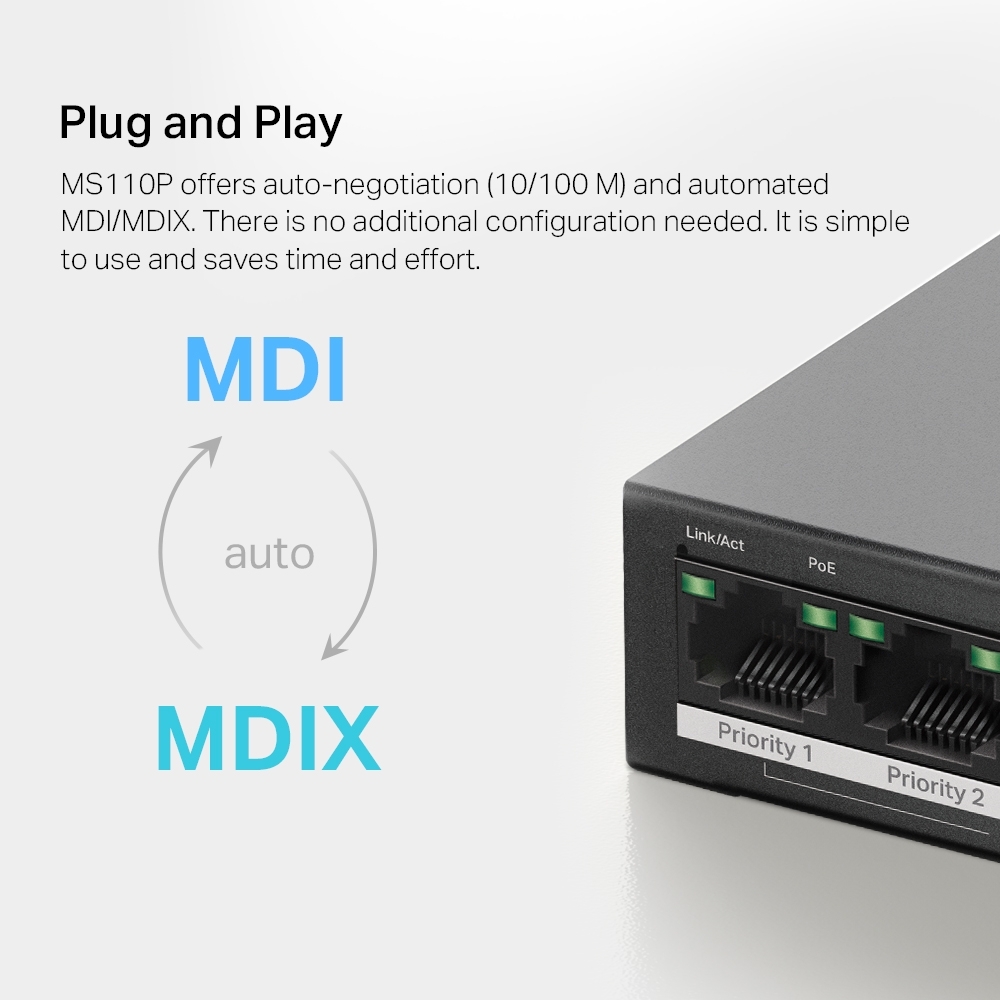

Plug and Play: Simple to use and saves time and effort
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

Produkto specifikacijos:

Hardware

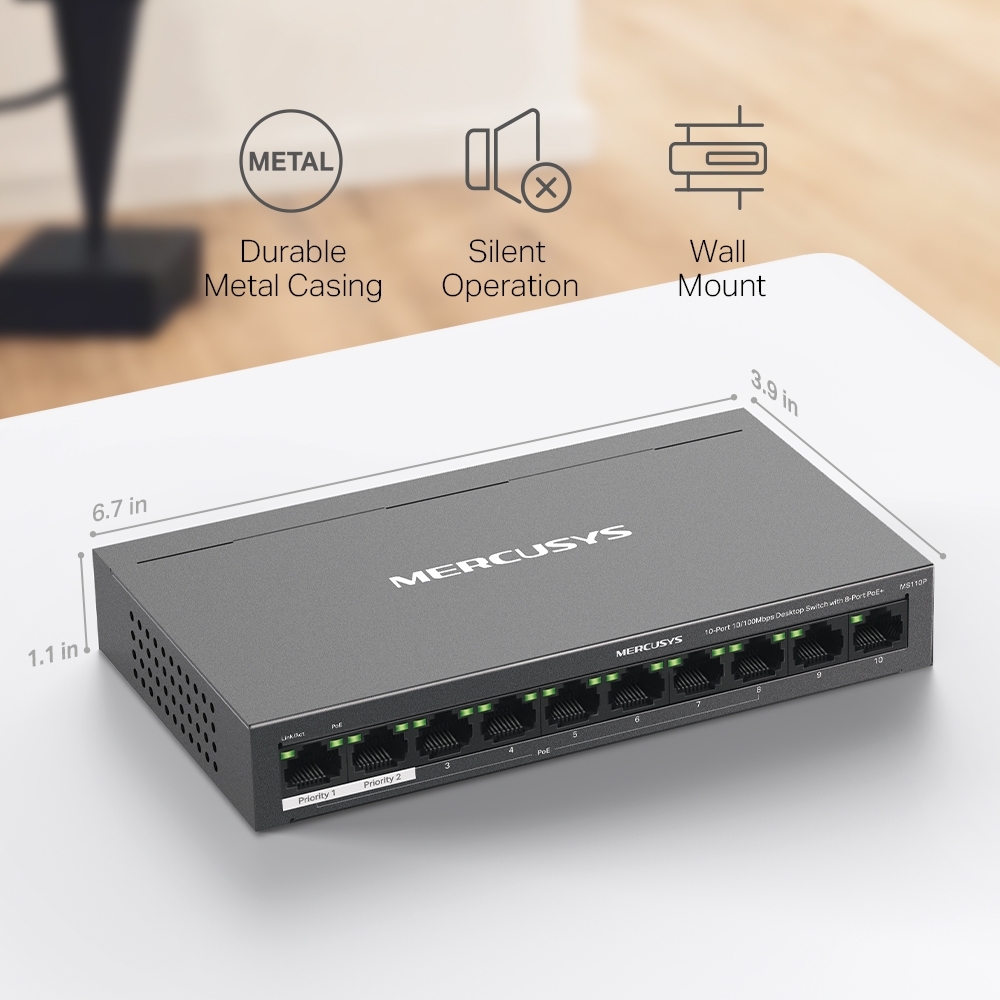

Dimensions: 171*98*27 mm
PoE Ports:
   RJ45
   Standard: Compliant with 802.3 af/at Powered Devices
   PoE Ports: Port 1- Port 8
   PoE Power Budget: 65 W
Interfaces: 10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

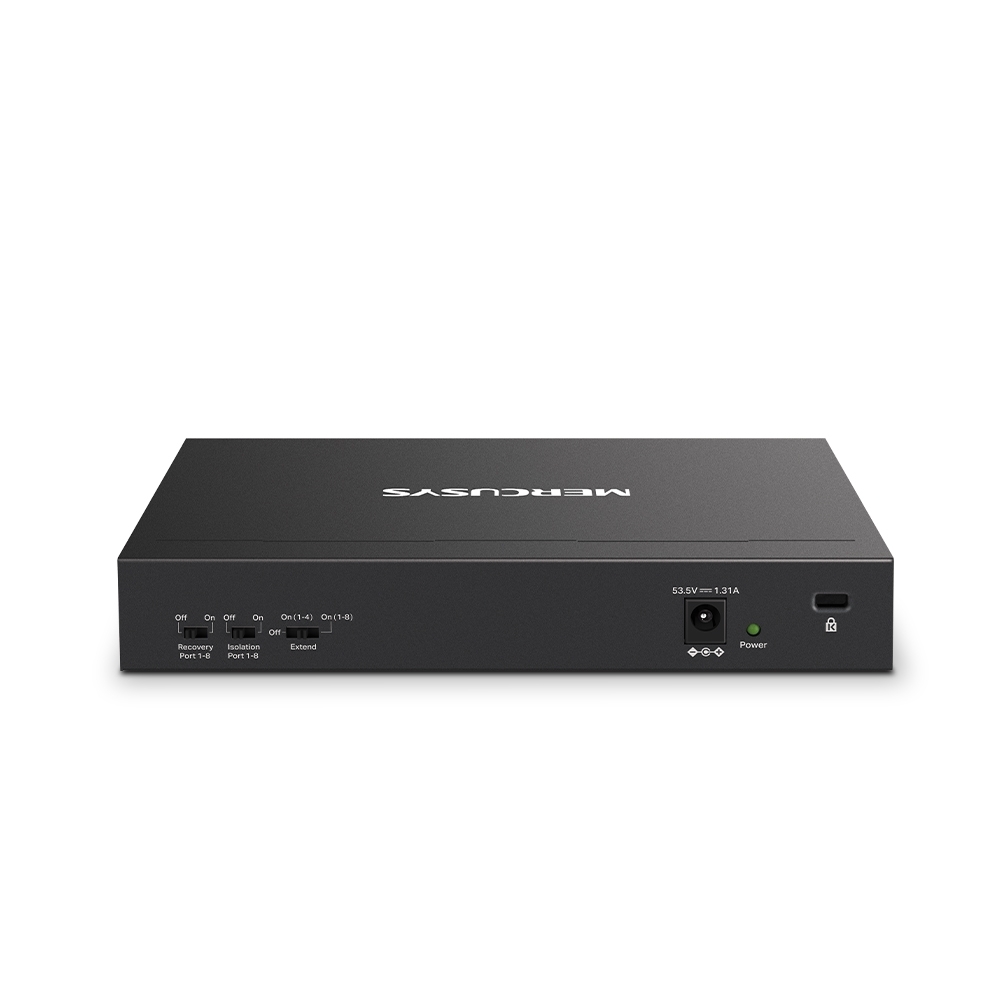

External Power Supply: External Power Adapter (Output: 53.5V/1.31A)
Installation: Desktop/Wall Mount
Standards and Protocols: IEEE 802.3x Flow Control
Data Rates:
   10/100 Mbps at Half Duplex
   20/200 Mbps at Full Duplex
Jumbo Frame: 2 KB
Mac Address Table: 2K
Max Power Consumption:
   2.96W (220 V / 50 Hz, no PD connected)
   77.52W( 220 V / 50 Hz, with 65W PD connected)
Max Power Consumption:
   10.064 BTH/h (no PD connected)
   263.568 BTH/h (with 65W PD connected)

Others

Package Contents:
   • 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
   • Power Adapter
   • Quick Installation Guide
Environment:
   Operating Temperature: 0℃~40℃ (32℉~104℉)
   Storage Temperature: -40℃~70℃ (-40℉~158℉)
   Operating Humidity: 10%~90% RH non-condensing
   Storage Humidity: 5%~95% RH non-condensing
