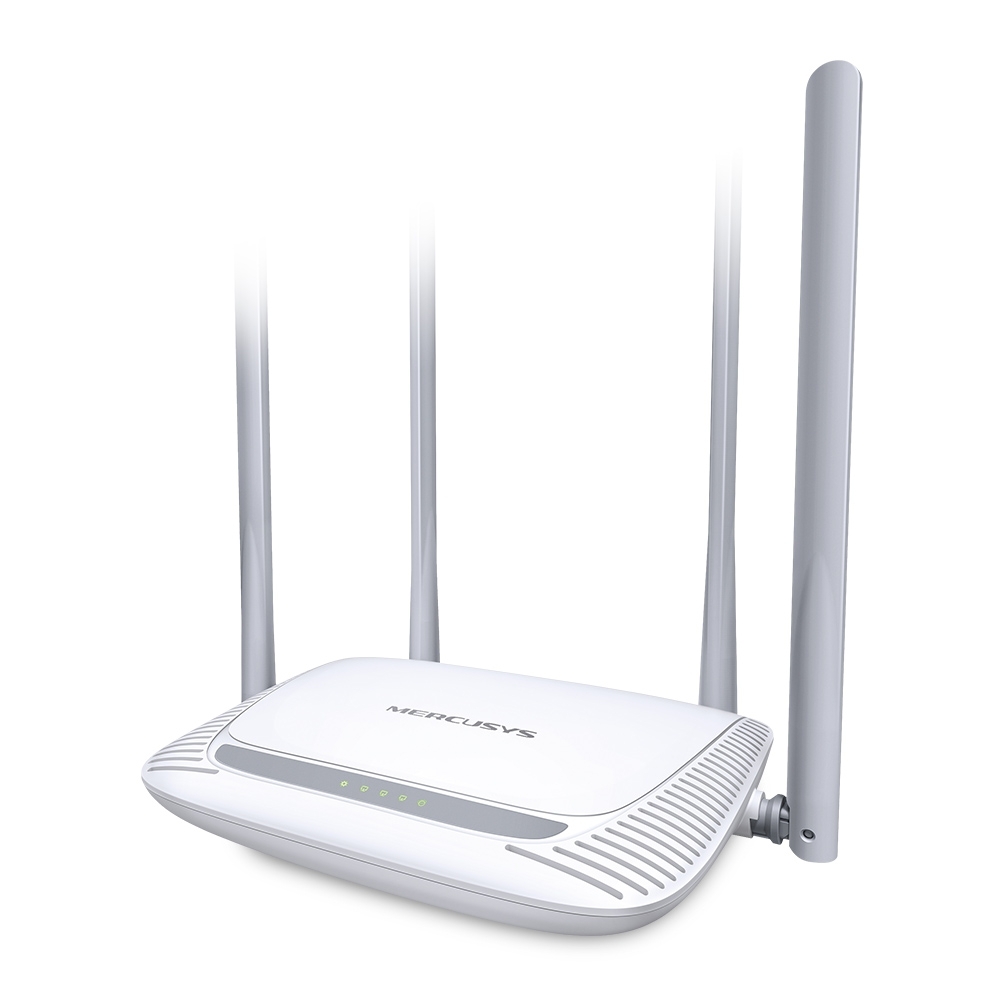

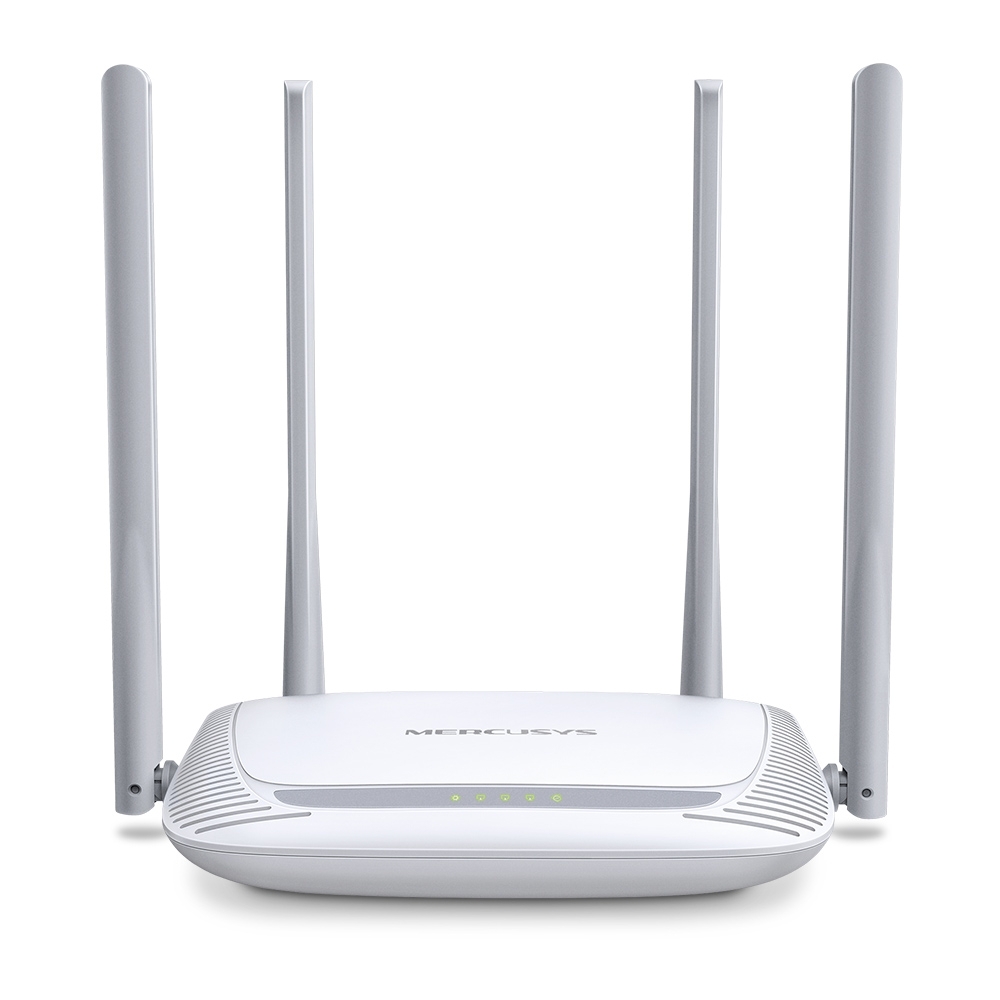

MERCUSYS 300Mbps Enhanced Wireless N Router (MW325R)

Produkto savybės:

• Great Coverage – four 5dBi antennas provide wide wireless coverage
• Enhanced Signal – high gain antennas dramatically increase wireless signal strength, size and stability
• 300Mbps Wireless Speed - ideal for HD streaming, online gaming, and large file downloads
• Easy Installation - intuitive webpage guides you through the setup process in minutes

Produkto specifikacijos:

Wireless

Wireless Standards
    IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
    2.4 - 2.5GHz
WiFi Speeds
    11n: Up to 300Mbps (Dynamic)
    11g: Up to 54Mbps (Dynamic)
    11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
    270M: -70dBm@10% PER
    130M: -72dBm@10% PER
    54M: -74dBm@10% PER
    11M: -87dBm@10% PER
    6M: -92dBm@10% PER
    1M: -94dBm@10% PER
Transmission Power
    <20dBm
Wireless Security
    WPA-PSK / WPA2-PSK
Wireless Functions
    Enable/Disable Wireless Radio, WDS Bridge

Software

WAN Type
    Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
    Access control
    Local management
    Remote management
DHCP
    Server, DHCP Client List
Port Forwarding
    Virtual server, UPnP, DMZ
Dynamic DNS
    Oray
Firewall Security
    IP and MAC address binding
Protocols
    IPv4
Guest Network
    2.4GHz guest network

Hardware

Dimensions
    167 x 118 x 33 mm

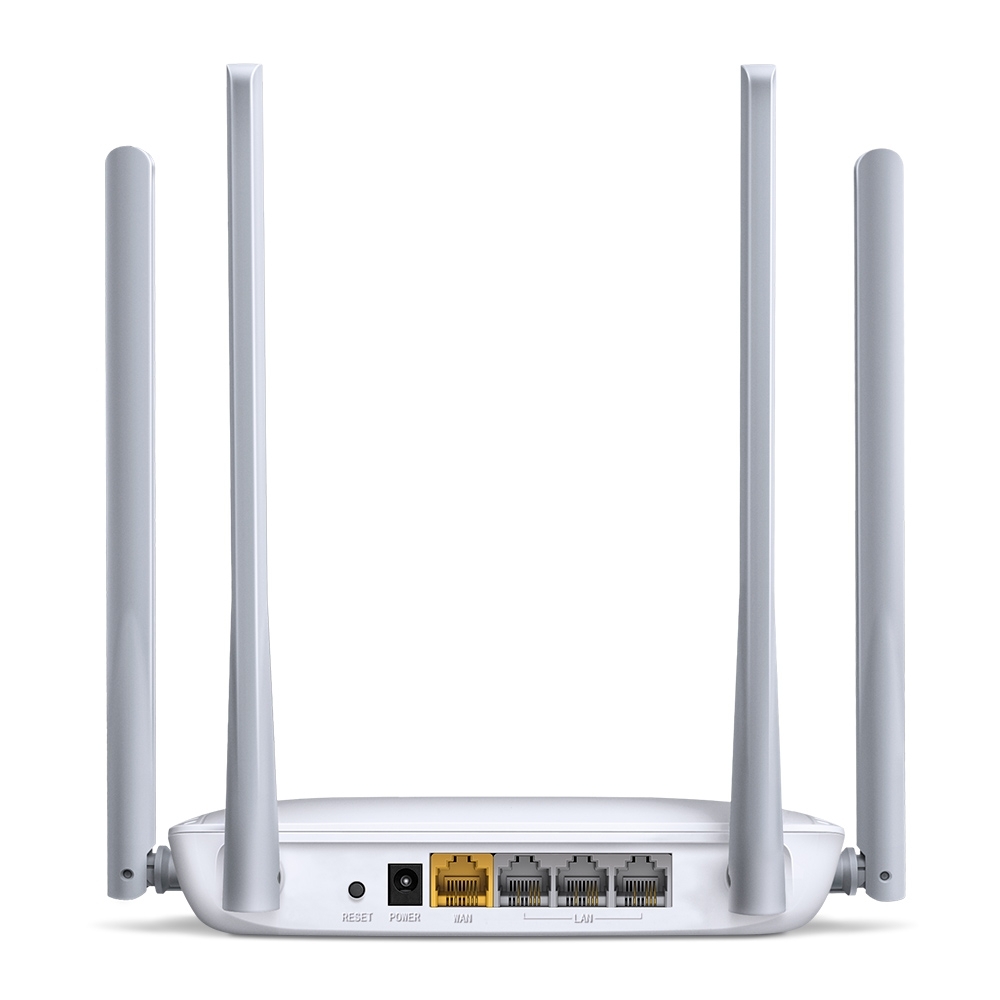

Interfaces
    3 10/100Mbps LAN ports
    1 10/100Mbps WAN port
Button
    Reset button
External Power Supply
    5VDC/0.6A
Antenna Type
    4 x 5dBi fixed omni directional antennas

Others

Certifications
    CE, ROHS
Package Contents
    300Mbps Enhanced Wireless N Router
    MW325R
    Power adapter
    Quick installation guide
    RJ45 Ethernet cable
Environment
    Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
    Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
    Operating humidity: 10% ~ 90%, non-condensing
    Storage humidity: 5% ~ 90%, non-condensing
